Kwave::TrackWriter Class Reference

#include <TrackWriter.h>

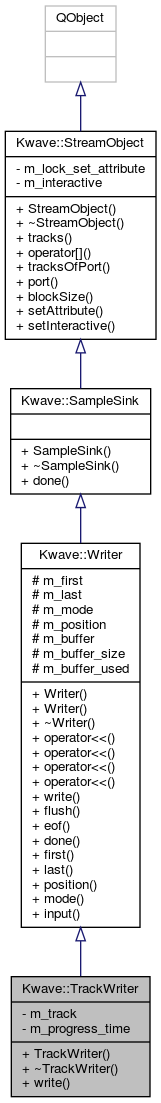

Inheritance diagram for Kwave::TrackWriter:

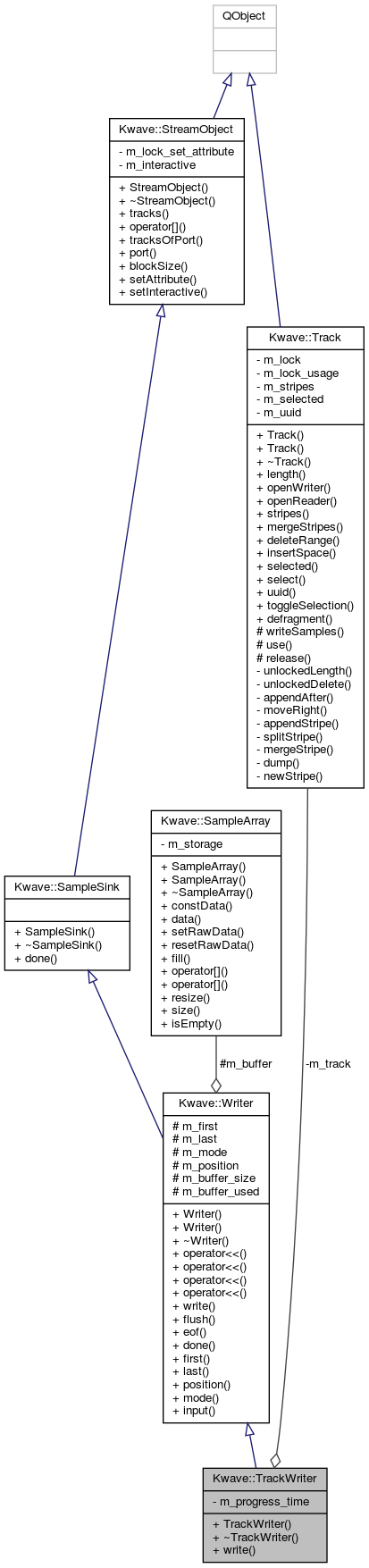

Collaboration diagram for Kwave::TrackWriter:

Public Member Functions
	TrackWriter (Kwave::Track &track, Kwave::InsertMode mode, sample_index_t left=0, sample_index_t right=0)
virtual	~TrackWriter () Q_DECL_OVERRIDE
virtual bool	write (const Kwave::SampleArray &buffer, unsigned int &count) Q_DECL_OVERRIDE
Public Member Functions inherited from Kwave::Writer
	Writer ()
	Writer (Kwave::InsertMode mode, sample_index_t left=0, sample_index_t right=0)
virtual	~Writer () Q_DECL_OVERRIDE
virtual Writer &	operator<< (const Kwave::SampleArray &samples)
virtual Writer &	operator<< (const sample_t &sample)
Writer &	operator<< (Writer &(*modifier)(Writer &))
Writer &	operator<< (Kwave::SampleReader &reader)
bool	flush ()
virtual bool	eof () const
virtual bool	done () const Q_DECL_OVERRIDE
sample_index_t	first () const
sample_index_t	last () const
sample_index_t	position () const
Kwave::InsertMode	mode () const
Public Member Functions inherited from Kwave::SampleSink
	SampleSink (QObject *parent=Q_NULLPTR)
virtual	~SampleSink ()
Public Member Functions inherited from Kwave::StreamObject
	StreamObject (QObject *parent=Q_NULLPTR)
virtual	~StreamObject ()
virtual unsigned int	tracks () const
virtual Kwave::StreamObject *	operator[] (unsigned int track)
virtual unsigned int	tracksOfPort (const char *port) const
virtual Kwave::StreamObject *	port (const char *port, unsigned int track)
virtual unsigned int	blockSize () const
void	setAttribute (const char *attribute, const QVariant &value)

Private Attributes
Kwave::Track &	m_track
QTime	m_progress_time

Additional Inherited Members
Public Slots inherited from Kwave::Writer
void	input (Kwave::SampleArray data)
Signals inherited from Kwave::Writer
void	sigSamplesWritten (sample_index_t)
void	proceeded ()
Signals inherited from Kwave::StreamObject
void	attributeChanged (const QVariant value)
Static Public Member Functions inherited from Kwave::StreamObject
static void	setInteractive (bool interactive)
Protected Attributes inherited from Kwave::Writer
sample_index_t	m_first
sample_index_t	m_last
Kwave::InsertMode	m_mode
sample_index_t	m_position
Kwave::SampleArray	m_buffer
unsigned int	m_buffer_size
unsigned int	m_buffer_used

Detailed Description

Input stream for transferring samples into a Track.

Warning

THIS CLASS IS NOT THREADSAFE! It is intended to be owned by and used from only one thread.

Definition at line 42 of file TrackWriter.h.

Constructor & Destructor Documentation

TrackWriter()

Kwave::TrackWriter::TrackWriter	(	Kwave::Track &	track,
		Kwave::InsertMode	mode,
		sample_index_t	left = 0,
		sample_index_t	right = 0
	)

Constructor, creates a writer for write access to a track.

Parameters

track	reference to the track
mode	specifies where and how to insert
left	start of the input (only useful in insert and overwrite mode)
right	end of the input (only useful with overwrite mode)

See also

InsertMode

Definition at line 32 of file TrackWriter.cpp.

References m_progress_time, m_track, and Kwave::Track::use().

    :Kwave::Writer(mode, left, right),
     m_track(track), m_progress_time()
{
    m_track.use();
    m_progress_time.start();
}

Here is the call graph for this function:

~TrackWriter()

Kwave::TrackWriter::~TrackWriter ( )

virtual

Destructor.

Definition at line 42 of file TrackWriter.cpp.

References Kwave::Writer::flush(), m_track, and Kwave::Track::release().

{
    flush();
    m_track.release();
}

Here is the call graph for this function:

Member Function Documentation

write()

bool Kwave::TrackWriter::write ( const Kwave::SampleArray &  buffer, unsigned int &  count  )

virtual

Flush the content of a buffer. Normally the buffer is the internal intermediate buffer used for single-sample writes. When using block transfers, the internal buffer is bypassed and the written block is passed instead.

Parameters

buffer	reference to the buffer to be flushed
count	number of samples in the buffer to be flushed, will be internally set to zero if successful

Returns

true if successful, false if failed (e.g. out of memory)

Implements Kwave::Writer.

Definition at line 49 of file TrackWriter.cpp.

References Kwave::Append, Kwave::Insert, Kwave::Writer::m_last, Kwave::Writer::m_mode, Kwave::Writer::m_position, m_progress_time, m_track, MIN_PROGRESS_INTERVAL, Kwave::Overwrite, Kwave::Writer::proceeded(), Kwave::SampleArray::size(), Kwave::toUint(), and Kwave::Track::writeSamples().

{
    if (count == 0) return true; // nothing to write

    if ((m_mode == Kwave::Overwrite) && (m_position + count > m_last + 1)) {
        // need clipping
        count = Kwave::toUint(m_last + 1 - m_position);
//      qDebug("TrackWriter::write() clipped to count=%u", count);
    }

    Q_ASSERT(count <= buffer.size());
//     qDebug("TrackWriter[%p,%llu...%llu]::write(%llu ... %llu) (total=%llu)",
//         static_cast<void *>(this),
//         m_first, m_last,
//         m_position, m_position + count - 1,
//         m_position + count - m_first);

    if (!m_track.writeSamples(m_mode, m_position, buffer, 0, count)) {
        count = 0;
        return false; /* out of memory */
    }

    m_position += count;

    // fix m_last, this might be needed in Append and Insert mode
    Q_ASSERT(m_position >= 1);
    if ((m_mode == Kwave::Append) || (m_mode == Kwave::Insert)) {
        if ((m_position - 1) > m_last) m_last = (m_position - 1);
    }
    count = 0;

    // inform others that we proceeded
    if (m_progress_time.elapsed() > MIN_PROGRESS_INTERVAL) {
        m_progress_time.restart();
        emit proceeded();
    }

    return true;
}

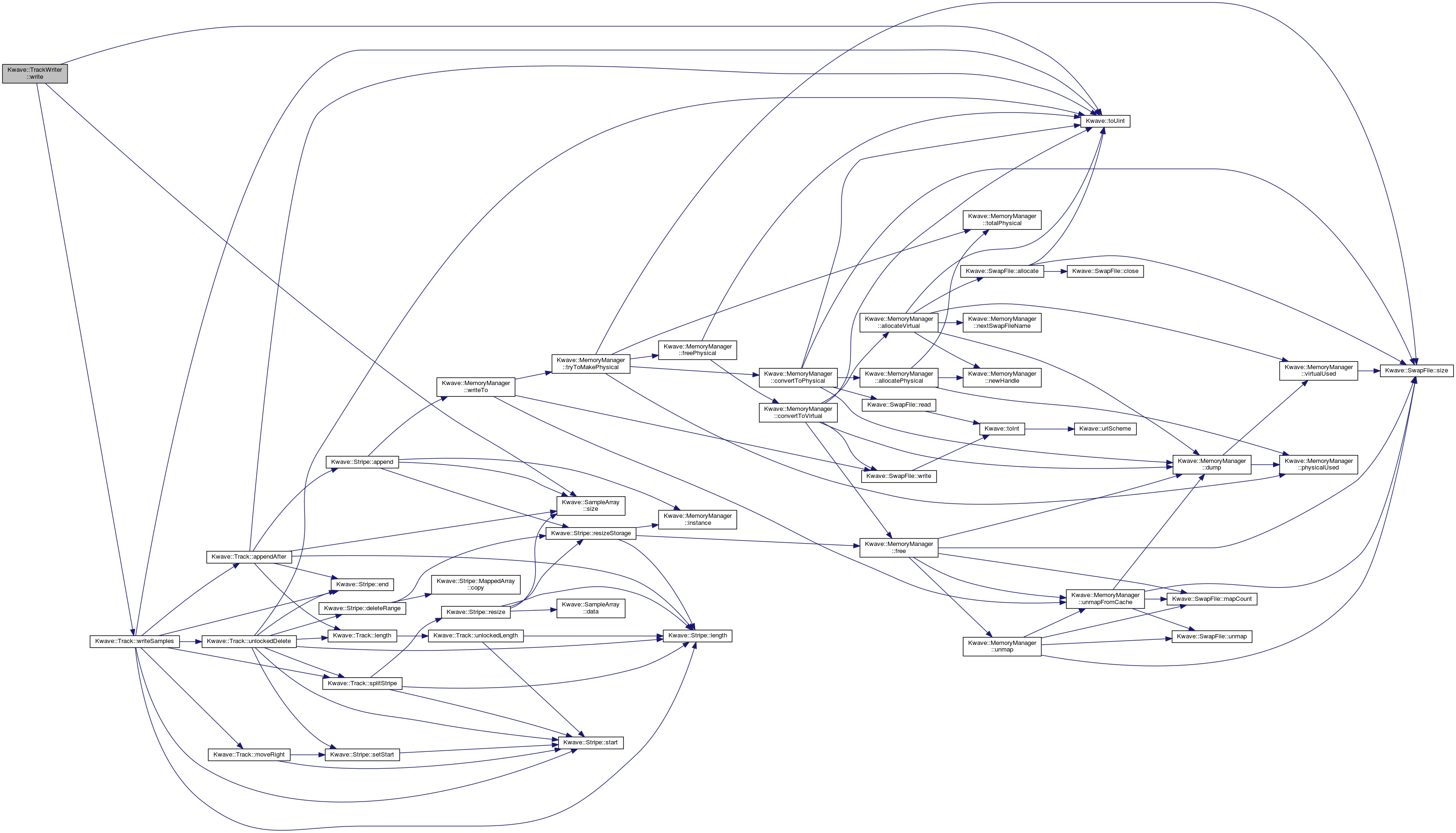

Here is the call graph for this function:

Member Data Documentation

m_progress_time

QTime Kwave::TrackWriter::m_progress_time

private

timer for limiting the number of progress signals per second

Definition at line 84 of file TrackWriter.h.

Referenced by TrackWriter(), and write().

m_track

Kwave::Track& Kwave::TrackWriter::m_track

private

the track that receives our data

Definition at line 81 of file TrackWriter.h.

Referenced by TrackWriter(), write(), and ~TrackWriter().

---

The documentation for this class was generated from the following files:

• libkwave/TrackWriter.h
• libkwave/TrackWriter.cpp
