Kwave::SampleArray Class Reference

#include <SampleArray.h>

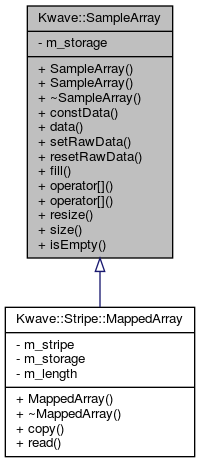

Inheritance diagram for Kwave::SampleArray:

Collaboration diagram for Kwave::SampleArray:

Classes
class	SampleStorage

Public Member Functions
	SampleArray ()
	SampleArray (unsigned int size)
virtual	~SampleArray ()
const sample_t *	constData () const
sample_t *	data ()
void	setRawData (sample_t *data, unsigned int size)
void	resetRawData ()
void	fill (sample_t value)
sample_t &	operator[] (unsigned int index)
const sample_t &	operator[] (unsigned int index) const
bool	resize (unsigned int size) Q_REQUIRED_RESULT
unsigned int	size () const
bool	isEmpty () const

Private Attributes
QSharedDataPointer< SampleStorage >	m_storage

Detailed Description

array with sample_t, for use in KwaveSampleSource, KwaveSampleSink and other streaming classes.

Definition at line 36 of file SampleArray.h.

Constructor & Destructor Documentation

SampleArray() [1/2]

Kwave::SampleArray::SampleArray

(

)

Default constructor, creates an empty array

Definition at line 27 of file SampleArray.cpp.

References m_storage.

{
    m_storage = new(std::nothrow) SampleStorage;
}

SampleArray() [2/2]

Kwave::SampleArray::SampleArray ( unsigned int  size )

explicit

Constructor, creates an array with predefined size (not initialized)

Parameters

size	number of samples to hold

Definition at line 33 of file SampleArray.cpp.

References m_storage, and resize().

{
    m_storage = new(std::nothrow) SampleStorage;
    bool ok = resize(size);
    if (!ok)
        qWarning("Kwave::SampleArray::SampleArray(%u) - FAILED, OOM?", size);
}

Here is the call graph for this function:

~SampleArray()

Kwave::SampleArray::~SampleArray ( )

virtual

Destructor

Definition at line 42 of file SampleArray.cpp.

{
}

Member Function Documentation

constData()

const sample_t* Kwave::SampleArray::constData ( ) const

inline

returns a const pointer to the raw data (non-mutable)

Definition at line 54 of file SampleArray.h.

Referenced by Kwave::Stripe::combine(), Kwave::SampleEncoderLinear::encode(), Kwave::MP3Encoder::encode(), Kwave::VorbisEncoder::encode(), Kwave::SampleFIFO::get(), Kwave::SampleBuffer::get(), Kwave::RateConverter::input(), Kwave::Stripe::minMax(), Kwave::ChannelMixer::mix(), Kwave::Mul::multiply(), operator[](), and Kwave::PlayBackPulseAudio::write().

        {
            if (Q_UNLIKELY(!m_storage)) return Q_NULLPTR;
            if (m_storage->m_raw_data) return m_storage->m_raw_data;
            return m_storage->m_data;
        }

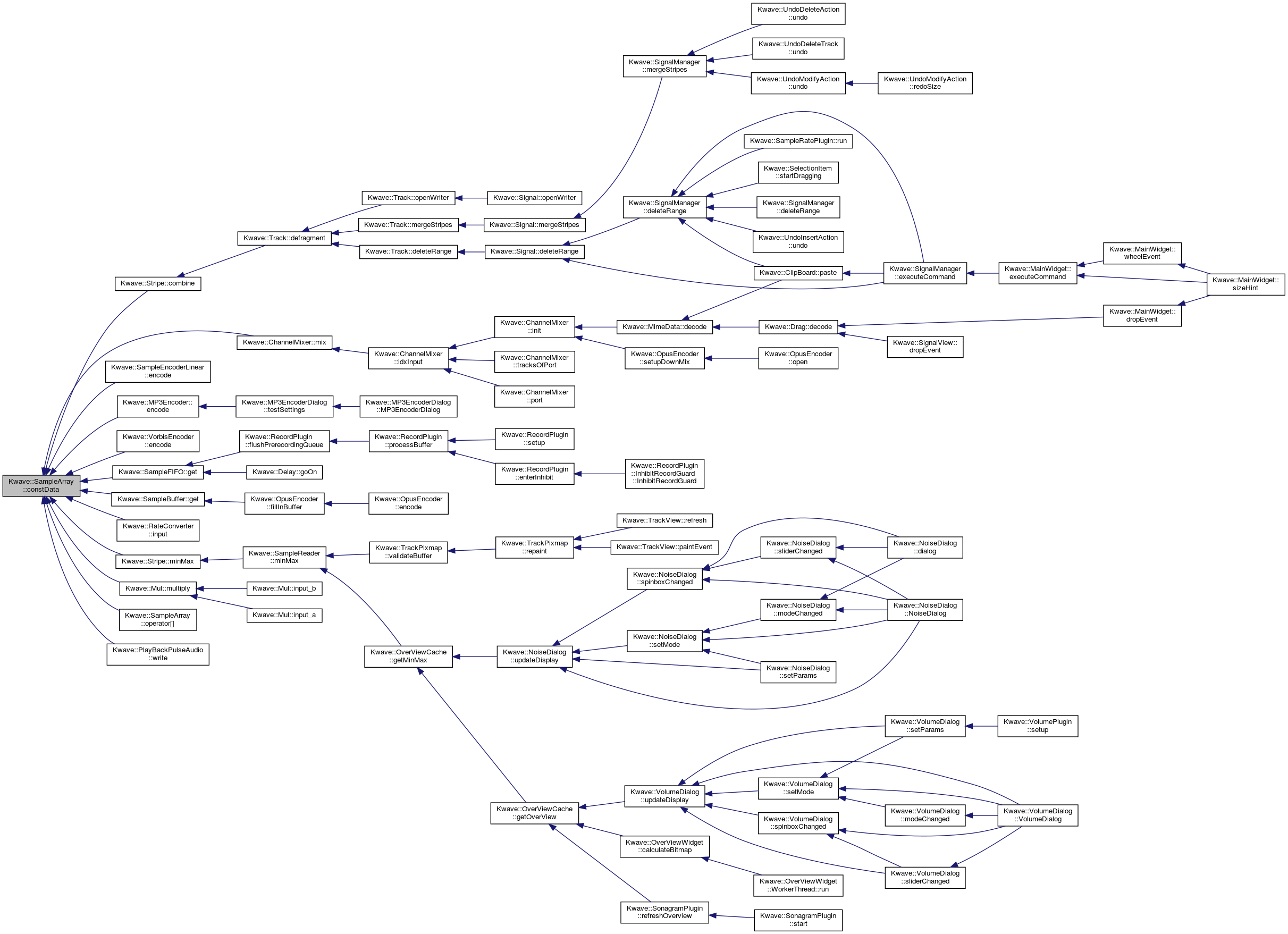

Here is the caller graph for this function:

data()

sample_t* Kwave::SampleArray::data ( )

inline

returns a pointer to the raw data (mutable)

Definition at line 62 of file SampleArray.h.

Referenced by Kwave::Stripe::combine(), Kwave::SampleDecoderLinear::decode(), Kwave::FlacEncoder::encode(), fill(), Kwave::SampleFIFO::get(), Kwave::RateConverter::input(), Kwave::ChannelMixer::mix(), Kwave::Mul::multiply(), operator[](), Kwave::Stripe::resize(), Kwave::ReversePlugin::reverse(), setRawData(), Kwave::Stripe::Stripe(), and Kwave::FlacDecoder::write_callback().

        {
            if (Q_UNLIKELY(!m_storage)) return Q_NULLPTR;
            if (m_storage->m_raw_data) return m_storage->m_raw_data;
            return m_storage->m_data;
        }

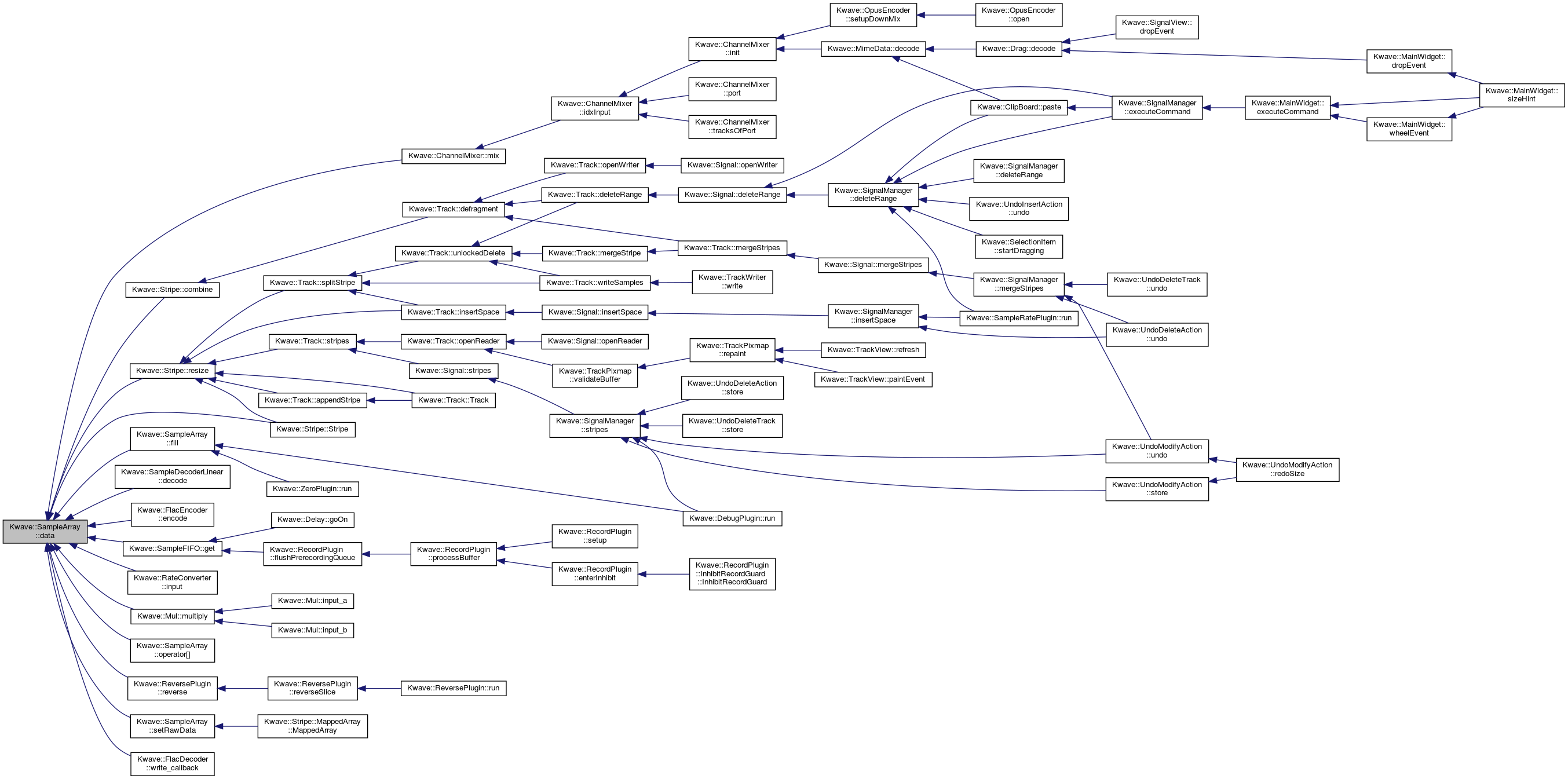

Here is the caller graph for this function:

fill()

void Kwave::SampleArray::fill

(

sample_t

value

)

fills the array with a sample value

Definition at line 68 of file SampleArray.cpp.

References data(), and m_storage.

Referenced by Kwave::ZeroPlugin::run(), and Kwave::DebugPlugin::run().

{
    if (!m_storage) return;
    sample_t *p = data();
    Q_ASSERT(p);
    if (!p) return;
    for (unsigned int count = m_storage->m_size; Q_LIKELY(count); count--) {
        *p = value;
        p++;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

isEmpty()

bool Kwave::SampleArray::isEmpty ( ) const

inline

Returns whether the array is empty. The same as (size() == 0).

Returns

true if empty, false if not

Definition at line 118 of file SampleArray.h.

Referenced by Kwave::SampleReader::fillBuffer(), Kwave::RateConverter::input(), Kwave::SampleBuffer::isEmpty(), and Kwave::SampleFIFO::put().

{ return (size() == 0); }

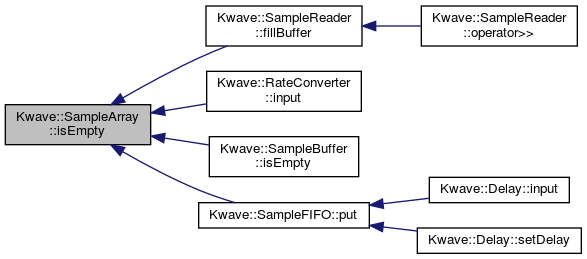

Here is the caller graph for this function:

operator[]() [1/2]

sample_t & Kwave::SampleArray::operator[]

(

unsigned int

index

)

operator [], non-const.

Parameters

index

sample index [0...count()-1]

Returns

reference to the requested sample (read/write)

Definition at line 81 of file SampleArray.cpp.

References data().

{
    static sample_t dummy = 0;
    sample_t *p = data();

    if (Q_LIKELY(p))
        return (*(p + index));
    else
        return dummy;
}

Here is the call graph for this function:

operator[]() [2/2]

const sample_t & Kwave::SampleArray::operator[]

(

unsigned int

index

)

const

operator [], non-const.

Parameters

index

sample index [0...count()-1]

Returns

reference to the requested sample (read only)

Definition at line 93 of file SampleArray.cpp.

References constData().

{
    static const sample_t dummy = 0;
    const sample_t *p = constData();

    if (Q_LIKELY(p))
        return (*(p + index));
    else
        return dummy;
}

Here is the call graph for this function:

resetRawData()

void Kwave::SampleArray::resetRawData

(

)

Resets the raw data set with setRawData() and resizes this array to zero-size

Definition at line 60 of file SampleArray.cpp.

References m_storage.

Referenced by Kwave::Stripe::MappedArray::~MappedArray().

{
    if (!m_storage) return;
    m_storage->m_raw_data = Q_NULLPTR;
    m_storage->m_size = 0;
}

Here is the caller graph for this function:

resize()

bool Kwave::SampleArray::resize

(

unsigned int

size

)

Resizes the array. Using raw data mode is not allowed and will lead to an assert!

Parameters

size	new number of samples

Returns

true if succeeded, false if failed

Definition at line 105 of file SampleArray.cpp.

References m_storage.

Referenced by Kwave::FlacEncoder::encode(), Kwave::SampleBuffer::finished(), Kwave::NoiseGenerator::input(), Kwave::LowPassFilter::input(), Kwave::PitchShiftFilter::input(), Kwave::NotchFilter::input(), Kwave::BandPass::input(), Kwave::SampleBuffer::input(), Kwave::ChannelMixer::mix(), Kwave::Mul::multiply(), Kwave::PlayBackOSS::open(), Kwave::SampleReader::operator>>(), Kwave::SampleBuffer::put(), Kwave::TrackPixmap::resizeBuffer(), Kwave::ReversePlugin::reverseSlice(), Kwave::ZeroPlugin::run(), Kwave::DebugPlugin::run(), SampleArray(), Kwave::Delay::setDelay(), setRawData(), and Kwave::StreamWriter::write().

{
    if (!m_storage) return false;
    if (size == m_storage->m_size) return true;

    Q_ASSERT(m_storage->m_raw_data == Q_NULLPTR);
    m_storage->resize(size);
    if (size && (m_storage->m_size > size)) {
        qWarning("Kwave::SampleArray::resize(): shrinking from %u to %u "
                 "failed, keeping old memory", m_storage->m_size, size);
        return true;
    }
    return (m_storage->m_size == size);
}

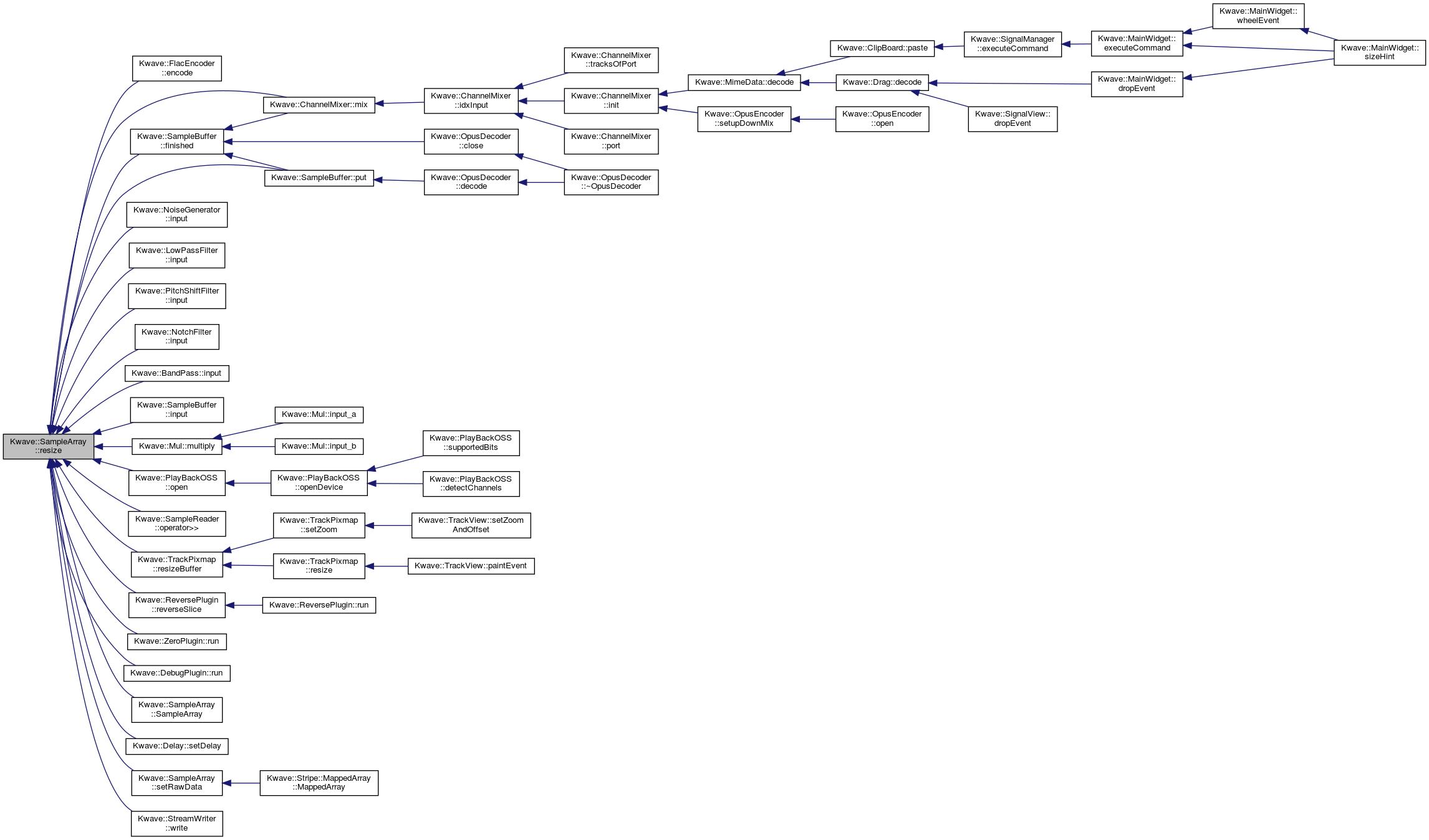

Here is the caller graph for this function:

setRawData()

void Kwave::SampleArray::setRawData	(	sample_t *	data,
		unsigned int	size
	)

Sets a pointer to some raw data

Parameters

data	pointer to an array of sample_t
size	number of samples in the array

Definition at line 47 of file SampleArray.cpp.

References data(), m_storage, resize(), and size().

Referenced by Kwave::Stripe::MappedArray::MappedArray().

{
    if (!m_storage) return;
    bool ok = resize(0);
    if (!ok) qWarning("Kwave::SampleArray::setRawData(...) - OOM?");
    Q_ASSERT(m_storage->m_raw_data == Q_NULLPTR);
    Q_ASSERT(m_storage->m_data == Q_NULLPTR);
    Q_ASSERT(m_storage->m_size == 0);
    m_storage->m_raw_data = data;
    m_storage->m_size     = size;
}

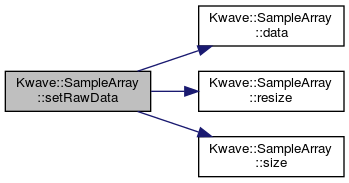

Here is the call graph for this function:

Here is the caller graph for this function:

size()

unsigned int Kwave::SampleArray::size

(

)

const

Returns the number of samples.

Returns

samples [0...N]

Definition at line 121 of file SampleArray.cpp.

References m_storage.

Referenced by Kwave::Stripe::append(), Kwave::Track::appendAfter(), Kwave::SampleBuffer::available(), Kwave::RecordPlugin::checkTrigger(), Kwave::Stripe::combine(), Kwave::TrackPixmap::drawOverview(), Kwave::TrackPixmap::drawPolyLineSignal(), Kwave::FlacEncoder::encode(), Kwave::SampleReader::fillBuffer(), Kwave::SampleBuffer::finished(), Kwave::SampleFIFO::get(), Kwave::SampleBuffer::get(), Kwave::Osc::goOn(), Kwave::NoiseGenerator::input(), Kwave::Normalizer::input(), Kwave::LowPassFilter::input(), Kwave::RateConverter::input(), Kwave::MultiPlaybackSink::input(), Kwave::PitchShiftFilter::input(), Kwave::NotchFilter::input(), Kwave::BandPass::input(), Kwave::SampleBuffer::input(), Kwave::Writer::input(), Kwave::ChannelMixer::mix(), Kwave::Mul::multiply(), Kwave::Writer::operator<<(), Kwave::Stripe::operator<<(), Kwave::SampleReader::operator>>(), Kwave::RecordPlugin::processBuffer(), Kwave::SampleReader::read(), Kwave::SampleReader::readSamples(), Kwave::Stripe::resize(), Kwave::SampleArray::SampleStorage::resize(), Kwave::ReversePlugin::reverse(), Kwave::ZeroPlugin::run(), Kwave::DebugPlugin::run(), Kwave::Delay::setDelay(), Kwave::TrackPixmap::setOffset(), setRawData(), Kwave::Stripe::Stripe(), Kwave::SampleFIFO::unlockedLength(), Kwave::RecordDialog::updateEffects(), Kwave::LevelMeter::updateTrack(), Kwave::TrackPixmap::validateBuffer(), Kwave::PlayBackOSS::write(), Kwave::StreamWriter::write(), Kwave::PlayBackQt::write(), and Kwave::TrackWriter::write().

{
    return (m_storage) ? m_storage->m_size : 0;
}

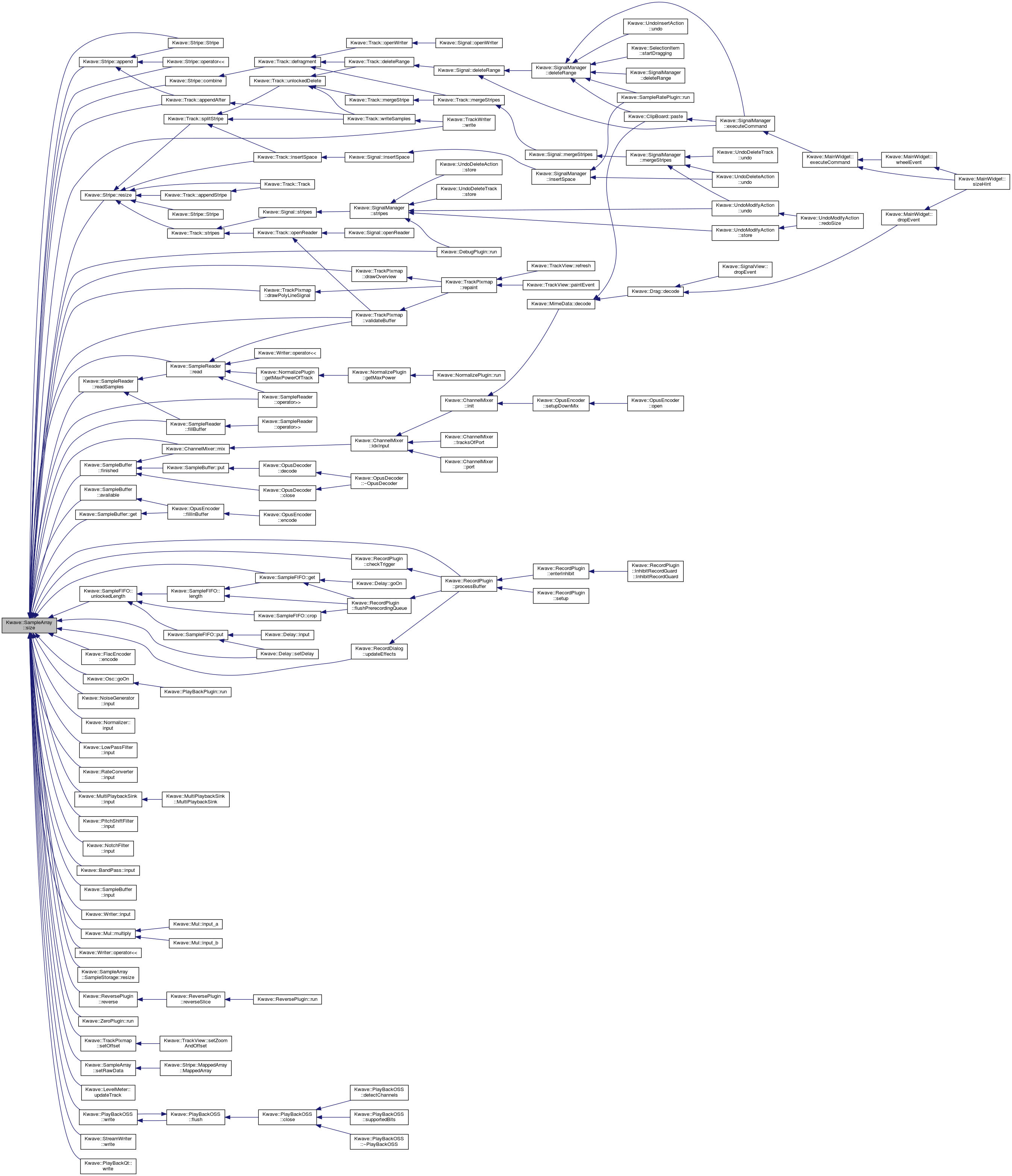

Here is the caller graph for this function:

Member Data Documentation

m_storage

QSharedDataPointer<SampleStorage> Kwave::SampleArray::m_storage

private

Definition at line 152 of file SampleArray.h.

Referenced by fill(), resetRawData(), resize(), SampleArray(), setRawData(), and size().

---

The documentation for this class was generated from the following files:

• libkwave/SampleArray.h
• libkwave/SampleArray.cpp
