Kwave::SelectionTracker::Undo Class Reference

Inheritance diagram for Kwave::SelectionTracker::Undo:

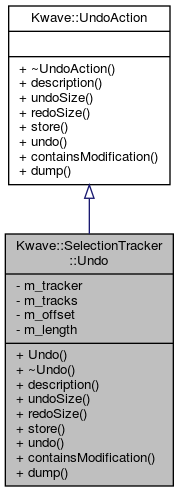

Collaboration diagram for Kwave::SelectionTracker::Undo:

Public Member Functions
	Undo (Kwave::SelectionTracker *selection)
virtual	~Undo () Q_DECL_OVERRIDE
virtual QString	description () Q_DECL_OVERRIDE
virtual qint64	undoSize () Q_DECL_OVERRIDE
virtual qint64	redoSize () Q_DECL_OVERRIDE
virtual bool	store (Kwave::SignalManager &manager) Q_DECL_OVERRIDE
virtual Kwave::UndoAction *	undo (Kwave::SignalManager &manager, bool with_redo) Q_DECL_OVERRIDE
virtual bool	containsModification () const Q_DECL_OVERRIDE
virtual void	dump (const QString &indent) Q_DECL_OVERRIDE
Public Member Functions inherited from Kwave::UndoAction
virtual	~UndoAction ()

Private Attributes
QPointer< Kwave::SelectionTracker >	m_tracker
QList< QUuid >	m_tracks
sample_index_t	m_offset
sample_index_t	m_length

Detailed Description

Undo action for tracking selection changes

Definition at line 209 of file SelectionTracker.h.

Constructor & Destructor Documentation

Undo()

Kwave::SelectionTracker::Undo::Undo ( Kwave::SelectionTracker *  selection )

explicit

Constructor

Parameters

selection

pointer to the corresponding selection tracker

Definition at line 385 of file SelectionTracker.cpp.

    :Kwave::UndoAction(),
     m_tracker(selection),
     m_tracks(selection ? selection->allTracks() : QList<QUuid>()),
     m_offset(selection ? selection->offset() : 0),
     m_length(selection ? selection->length() : 0)
{
}

~Undo()

Kwave::SelectionTracker::Undo::~Undo ( )

virtual

Destructor

Definition at line 395 of file SelectionTracker.cpp.

{
}

Member Function Documentation

containsModification()

virtual bool Kwave::SelectionTracker::Undo::containsModification ( ) const

inlinevirtual

This undo action does not contribute to the modification of the signal.

Returns

true always

Reimplemented from Kwave::UndoAction.

Definition at line 267 of file SelectionTracker.h.

                                                                      {
                return false;
            }

description()

QString Kwave::SelectionTracker::Undo::description ( )

virtual

Returns a verbose short description of the action.

Implements Kwave::UndoAction.

Definition at line 400 of file SelectionTracker.cpp.

{
    return QString();
}

dump()

virtual void Kwave::SelectionTracker::Undo::dump ( const QString &  indent )

inlinevirtual

dump, for debugging purposes

Reimplemented from Kwave::UndoAction.

Definition at line 272 of file SelectionTracker.h.

References DBG.

                                                                     {
                qDebug("%s%s", DBG(indent), DBG(description()));
            }

redoSize()

qint64 Kwave::SelectionTracker::Undo::redoSize ( )

virtual

Returns the difference of needed memory that is needed for redo.

Implements Kwave::UndoAction.

Definition at line 412 of file SelectionTracker.cpp.

{
    return 0;
}

store()

bool Kwave::SelectionTracker::Undo::store ( Kwave::SignalManager &  manager )

virtual

Stores the data needed for undo.

Parameters

manager

the SignalManager for modifying the signal

Note

this is the second step, after size() has been called

Returns

true if successful, false if failed (e.g. out of memory)

Implements Kwave::UndoAction.

Definition at line 418 of file SelectionTracker.cpp.

{
    Q_UNUSED(manager); // data has already been stored in the constructor
    return true;
}

undo()

Kwave::UndoAction * Kwave::SelectionTracker::Undo::undo ( Kwave::SignalManager &  manager, bool  with_redo  )

virtual

Takes back an action by creating a new undo action (for further redo) and restoring the previous state.

Parameters

manager	the SignalManager for modifying the signal
with_redo	if true a UndoAction for redo will be created

Note

The return value is allowed to be the same object. This is useful for objects that can re-use their data for undo/redo. You have to check for this when deleting an UndoAction object after undo.

Implements Kwave::UndoAction.

Definition at line 425 of file SelectionTracker.cpp.

References m_length, m_offset, m_tracker, and m_tracks.

{
    Q_UNUSED(manager);

    if (!m_tracker.isNull()) {
        QList<QUuid>   tracks = m_tracks;
        sample_index_t ofs    = m_offset;
        sample_index_t len    = m_length;

        m_tracks = m_tracker->allTracks();
        m_offset = m_tracker->offset();
        m_length = m_tracker->length();

        m_tracker->selectRange(tracks, ofs, len);
    }

    return (with_redo) ? this : Q_NULLPTR;
}

undoSize()

qint64 Kwave::SelectionTracker::Undo::undoSize ( )

virtual

Returns the required amount of memory that is needed for storing undo data for the operation. This will be called to determine the free memory to be reserved.

Note

this is the first step (after the constructor)

Implements Kwave::UndoAction.

Definition at line 406 of file SelectionTracker.cpp.

{
    return sizeof(*this);
}

Member Data Documentation

m_length

sample_index_t Kwave::SelectionTracker::Undo::m_length

private

number of selected samples

Definition at line 288 of file SelectionTracker.h.

Referenced by undo().

m_offset

sample_index_t Kwave::SelectionTracker::Undo::m_offset

private

start of the selection, first sample

Definition at line 285 of file SelectionTracker.h.

Referenced by undo().

m_tracker

QPointer<Kwave::SelectionTracker> Kwave::SelectionTracker::Undo::m_tracker

private

pointer to the overview cache

Definition at line 279 of file SelectionTracker.h.

Referenced by undo().

m_tracks

QList<QUuid> Kwave::SelectionTracker::Undo::m_tracks

private

list of selected tracks

Definition at line 282 of file SelectionTracker.h.

Referenced by undo().

---

The documentation for this class was generated from the following files:

• libgui/SelectionTracker.h
• libgui/SelectionTracker.cpp
