Kwave::UndoAction Class Reference

#include <UndoAction.h>

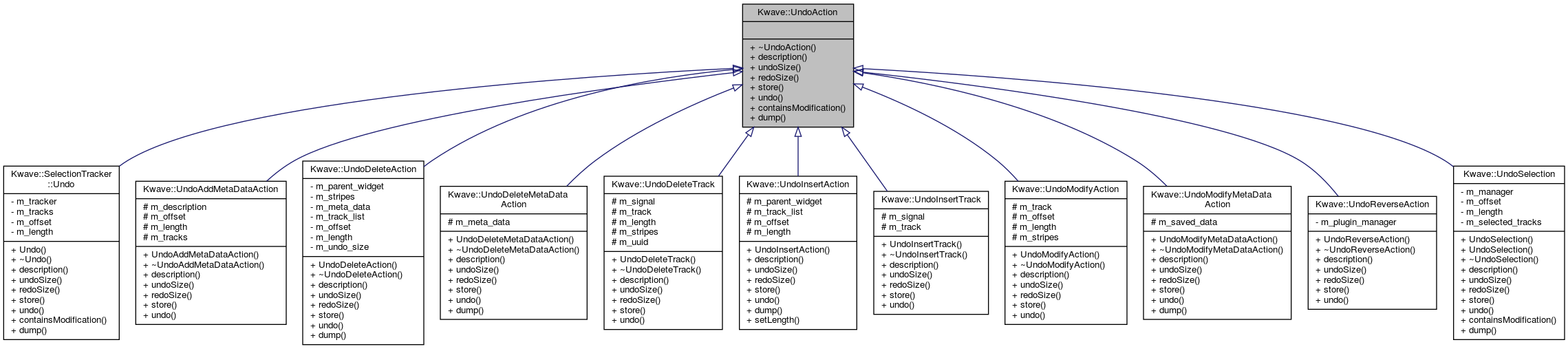

Inheritance diagram for Kwave::UndoAction:

Collaboration diagram for Kwave::UndoAction:

Public Member Functions
virtual	~UndoAction ()
virtual QString	description ()=0
virtual qint64	undoSize ()=0
virtual qint64	redoSize ()=0
virtual bool	store (Kwave::SignalManager &manager)=0
virtual Kwave::UndoAction *	undo (Kwave::SignalManager &manager, bool with_redo)=0
virtual bool	containsModification () const
virtual void	dump (const QString &indent)

Detailed Description

This is an abstract base class used for implementation of undo and redo. The constructor should take all information needed for storing the undo data and for being able to guess the amount of the needed memory. After construction, the caller can call size() for retaining the amount of needed memory and o provide enough space. The store() function can then save the data for further undo. Calling the undo() function also creates a new UndoAction object that is responsible for holding all information for undoing that undo (redo).

Definition at line 44 of file UndoAction.h.

Constructor & Destructor Documentation

~UndoAction()

virtual Kwave::UndoAction::~UndoAction ( )

inlinevirtual

Destructor

Definition at line 50 of file UndoAction.h.

        {
        }

Member Function Documentation

containsModification()

virtual bool Kwave::UndoAction::containsModification ( ) const

inlinevirtual

Determines whether a undo action has to do with a modification of the signal or meta information and leads to a "modified" file. The default implementation returns "true". An example for a implementation that returns "false" is the UndoSelection class which contains only information about a change in selected samples.

Returns

true if a modification is contained, false if not.

Reimplemented in Kwave::SelectionTracker::Undo, and Kwave::UndoSelection.

Definition at line 102 of file UndoAction.h.

Referenced by Kwave::UndoTransaction::containsModification().

{ return true; }

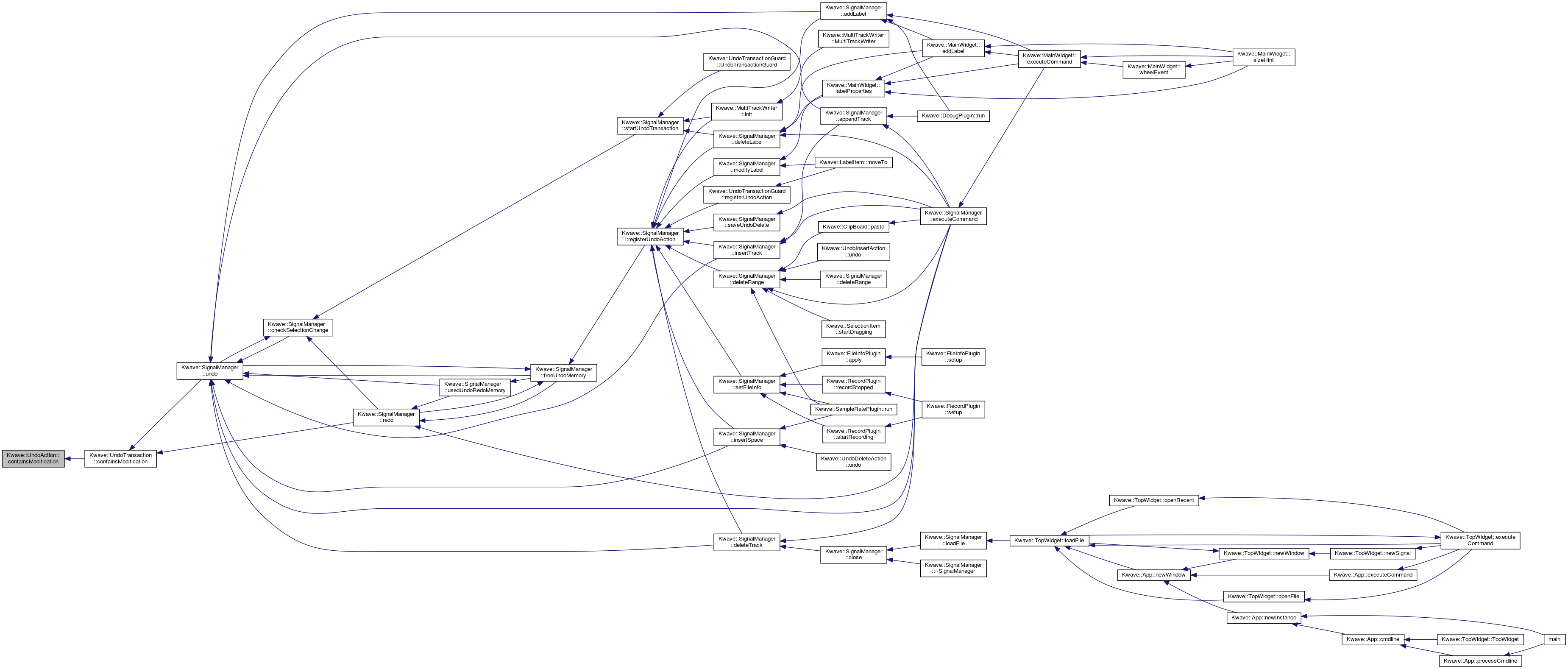

Here is the caller graph for this function:

description()

virtual QString Kwave::UndoAction::description ( )

pure virtual

Returns a verbose short description of the action.

Implemented in Kwave::SelectionTracker::Undo, Kwave::UndoSelection, Kwave::UndoDeleteAction, Kwave::UndoAddMetaDataAction, Kwave::UndoDeleteTrack, Kwave::UndoInsertAction, Kwave::UndoInsertTrack, Kwave::UndoDeleteMetaDataAction, Kwave::UndoModifyMetaDataAction, Kwave::UndoModifyAction, and Kwave::UndoReverseAction.

Referenced by Kwave::UndoTransaction::description().

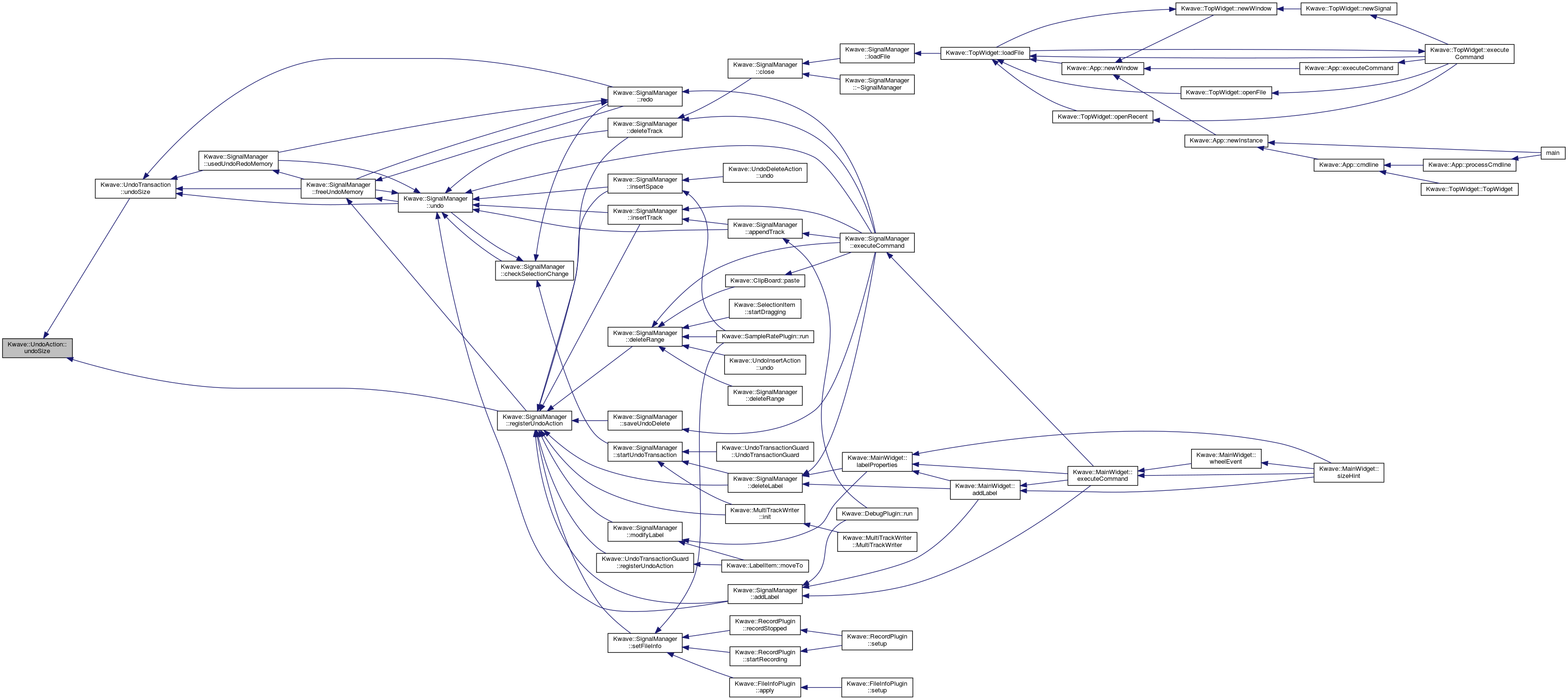

Here is the caller graph for this function:

dump()

virtual void Kwave::UndoAction::dump ( const QString &  indent )

inlinevirtual

dump, for debugging purposes

Reimplemented in Kwave::SelectionTracker::Undo, Kwave::UndoSelection, Kwave::UndoDeleteAction, Kwave::UndoInsertAction, Kwave::UndoDeleteMetaDataAction, and Kwave::UndoModifyMetaDataAction.

Definition at line 105 of file UndoAction.h.

References DBG.

Referenced by Kwave::UndoTransaction::dump().

                                                 {
            qDebug("%s%s", DBG(indent), DBG(description()));
        }

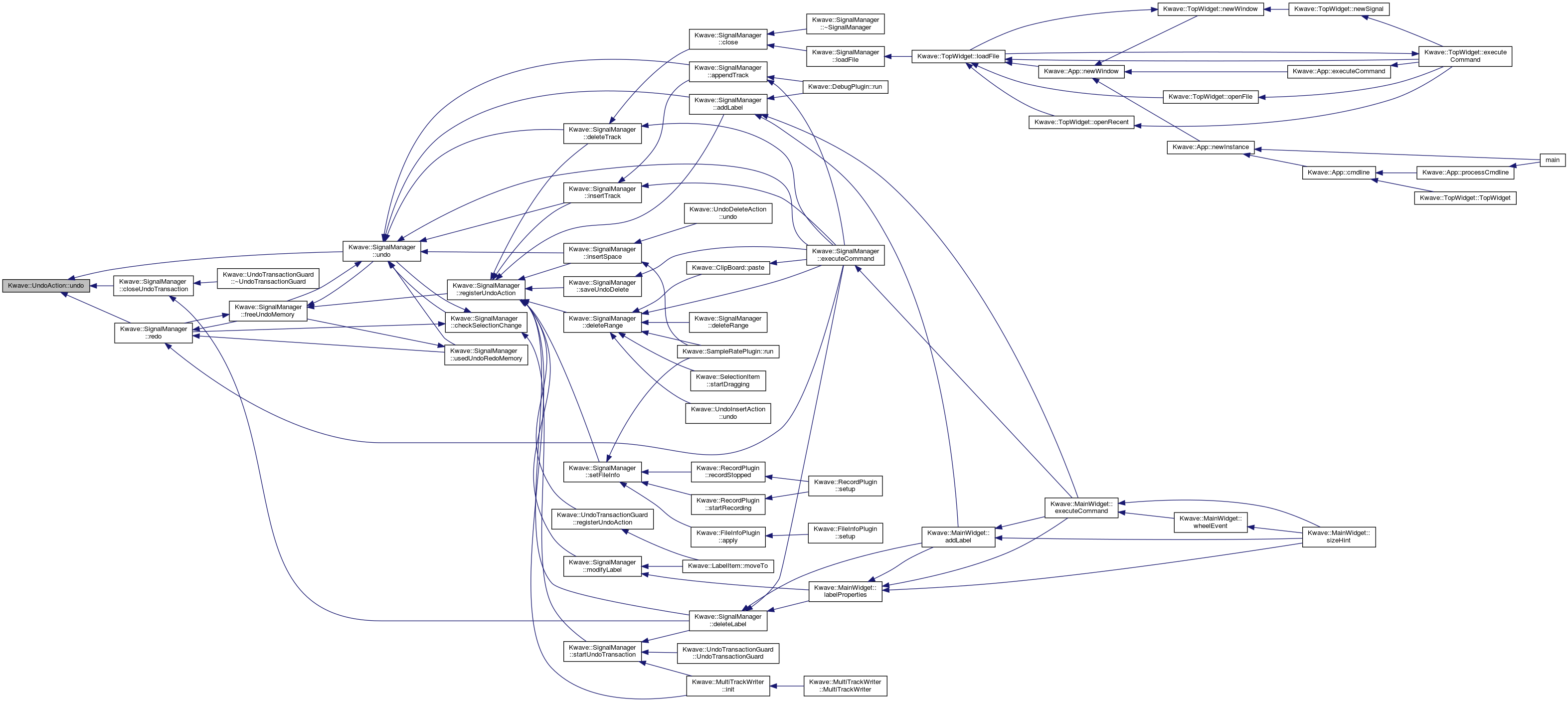

Here is the caller graph for this function:

redoSize()

virtual qint64 Kwave::UndoAction::redoSize ( )

pure virtual

Returns the difference of needed memory that is needed for redo.

Implemented in Kwave::SelectionTracker::Undo, Kwave::UndoSelection, Kwave::UndoDeleteAction, Kwave::UndoAddMetaDataAction, Kwave::UndoDeleteTrack, Kwave::UndoInsertAction, Kwave::UndoInsertTrack, Kwave::UndoReverseAction, Kwave::UndoDeleteMetaDataAction, Kwave::UndoModifyMetaDataAction, and Kwave::UndoModifyAction.

Referenced by Kwave::UndoTransaction::redoSize().

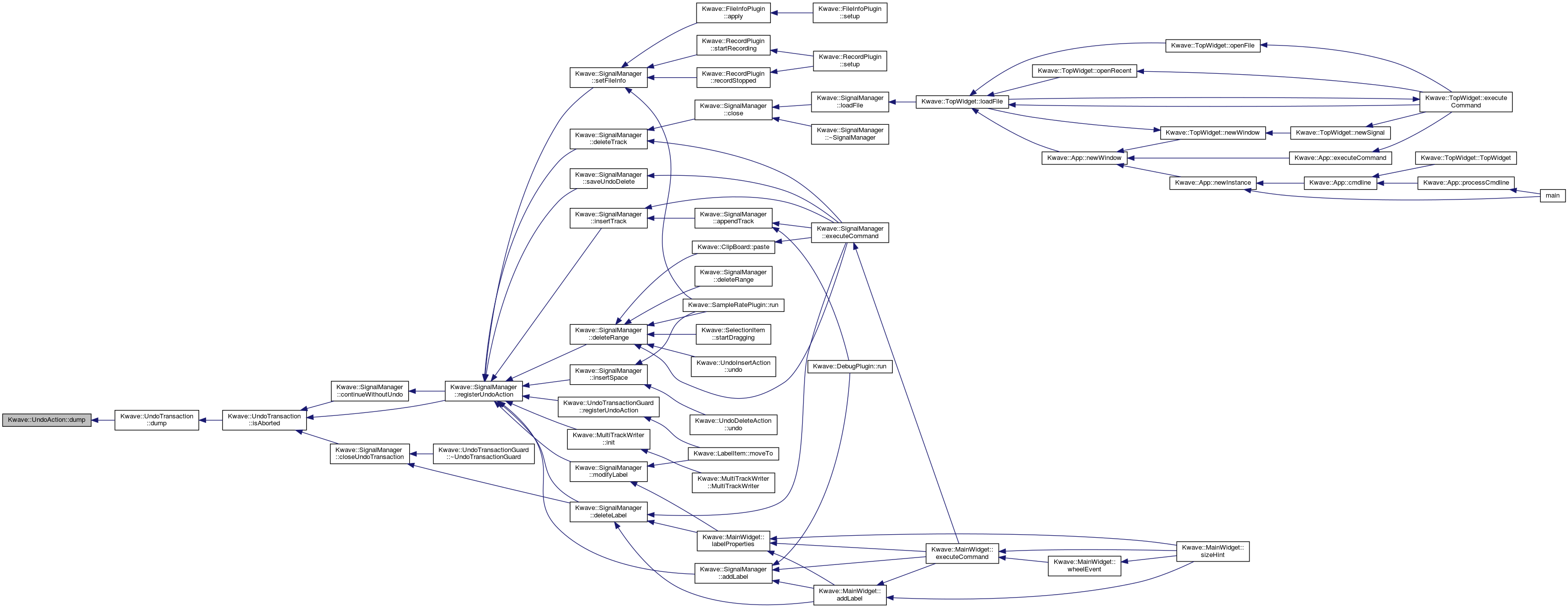

Here is the caller graph for this function:

store()

virtual bool Kwave::UndoAction::store ( Kwave::SignalManager &  manager )

pure virtual

Stores the data needed for undo.

Parameters

manager

the SignalManager for modifying the signal

Note

this is the second step, after size() has been called

Returns

true if successful, false if failed (e.g. out of memory)

Implemented in Kwave::SelectionTracker::Undo, Kwave::UndoSelection, Kwave::UndoDeleteAction, Kwave::UndoReverseAction, Kwave::UndoInsertAction, Kwave::UndoAddMetaDataAction, Kwave::UndoDeleteTrack, Kwave::UndoInsertTrack, Kwave::UndoDeleteMetaDataAction, Kwave::UndoModifyAction, and Kwave::UndoModifyMetaDataAction.

Referenced by Kwave::SignalManager::registerUndoAction(), Kwave::ReversePlugin::run(), Kwave::SelectionTracker::saveUndoData(), Kwave::SignalManager::startUndoTransaction(), Kwave::UndoDeleteMetaDataAction::undo(), Kwave::UndoInsertTrack::undo(), Kwave::UndoAddMetaDataAction::undo(), Kwave::UndoDeleteTrack::undo(), Kwave::UndoInsertAction::undo(), and Kwave::UndoDeleteAction::undo().

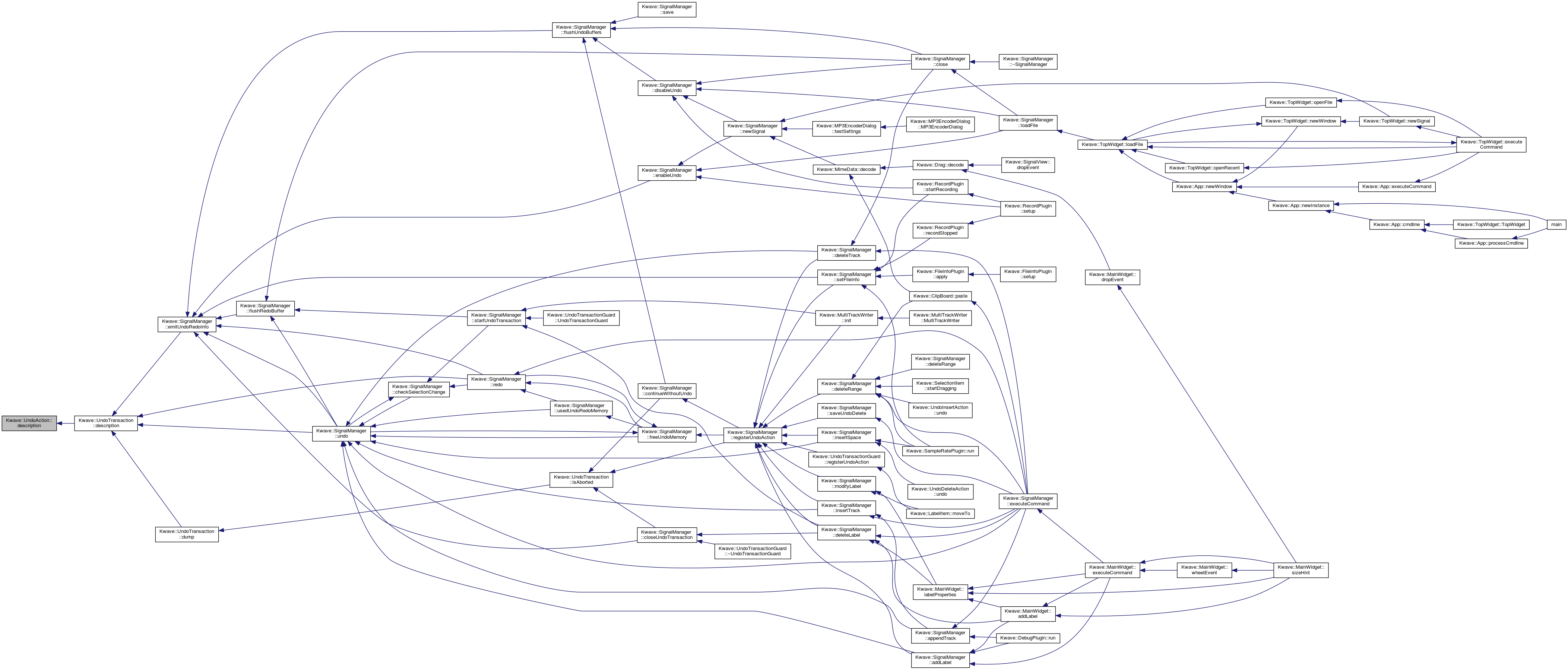

Here is the caller graph for this function:

undo()

virtual Kwave::UndoAction* Kwave::UndoAction::undo ( Kwave::SignalManager &  manager, bool  with_redo  )

pure virtual

Takes back an action by creating a new undo action (for further redo) and restoring the previous state.

Parameters

manager	the SignalManager for modifying the signal
with_redo	if true a UndoAction for redo will be created

Note

The return value is allowed to be the same object. This is useful for objects that can re-use their data for undo/redo. You have to check for this when deleting an UndoAction object after undo.

Implemented in Kwave::SelectionTracker::Undo, Kwave::UndoReverseAction, Kwave::UndoDeleteAction, Kwave::UndoSelection, Kwave::UndoInsertAction, Kwave::UndoModifyAction, Kwave::UndoAddMetaDataAction, Kwave::UndoDeleteTrack, Kwave::UndoInsertTrack, Kwave::UndoDeleteMetaDataAction, and Kwave::UndoModifyMetaDataAction.

Referenced by Kwave::SignalManager::closeUndoTransaction(), Kwave::SignalManager::redo(), and Kwave::SignalManager::undo().

Here is the caller graph for this function:

undoSize()

virtual qint64 Kwave::UndoAction::undoSize ( )

pure virtual

Returns the required amount of memory that is needed for storing undo data for the operation. This will be called to determine the free memory to be reserved.

Note

this is the first step (after the constructor)

Implemented in Kwave::SelectionTracker::Undo, Kwave::UndoSelection, Kwave::UndoDeleteAction, Kwave::UndoAddMetaDataAction, Kwave::UndoDeleteTrack, Kwave::UndoInsertAction, Kwave::UndoInsertTrack, Kwave::UndoDeleteMetaDataAction, Kwave::UndoModifyMetaDataAction, Kwave::UndoReverseAction, and Kwave::UndoModifyAction.

Referenced by Kwave::SignalManager::registerUndoAction(), and Kwave::UndoTransaction::undoSize().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• libkwave/undo/UndoAction.h
