Kwave::DebugPlugin Class Reference

#include <DebugPlugin.h>

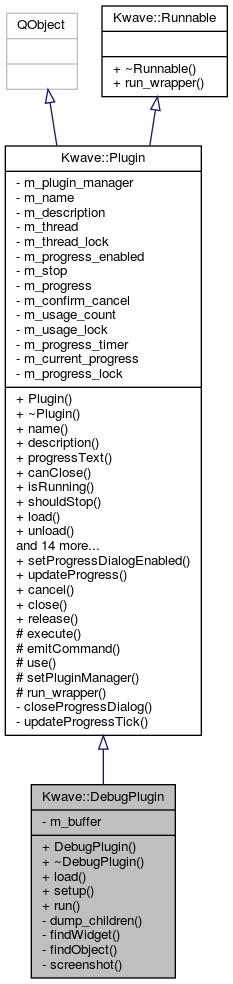

Inheritance diagram for Kwave::DebugPlugin:

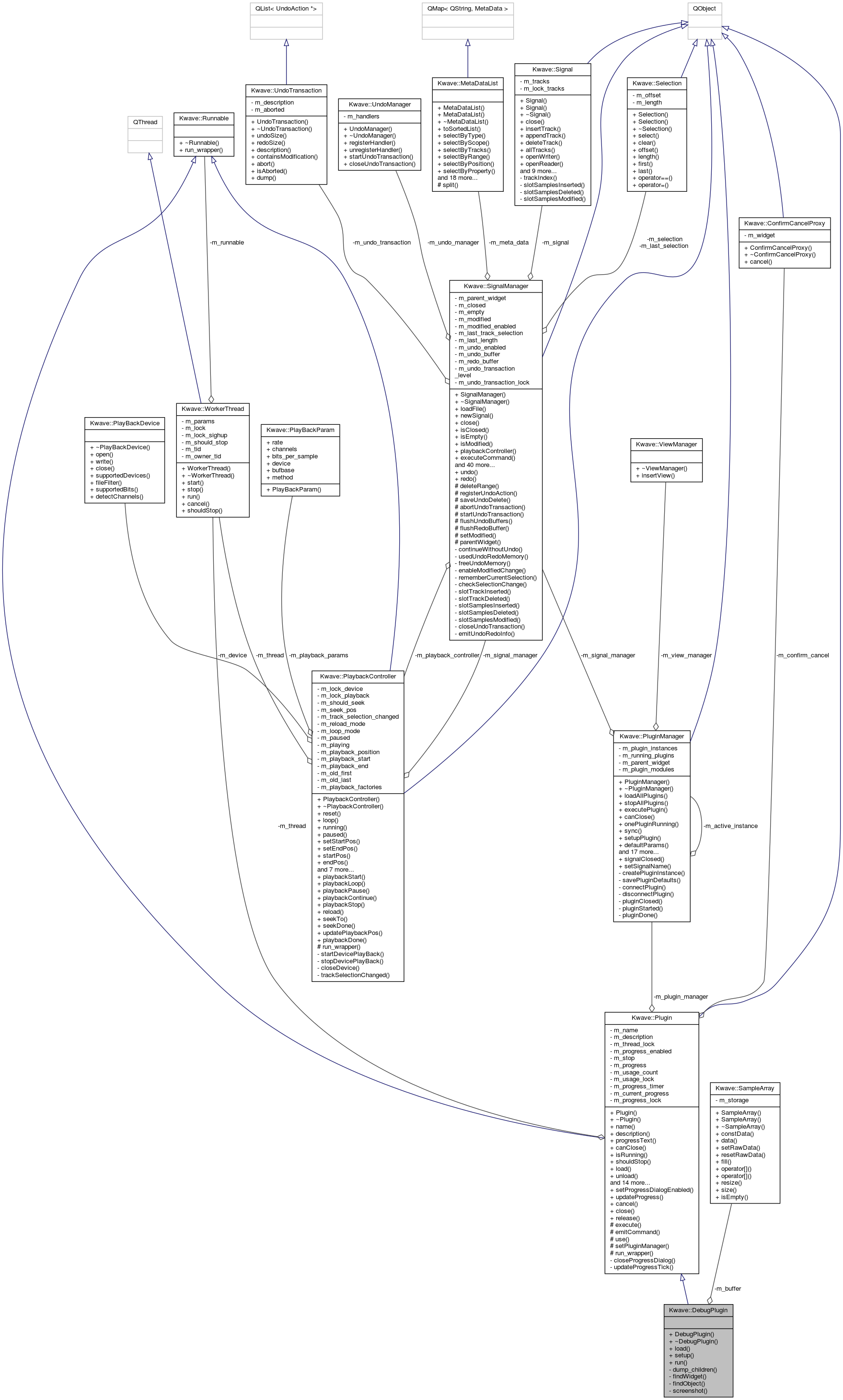

Collaboration diagram for Kwave::DebugPlugin:

Public Member Functions
	DebugPlugin (QObject *parent, const QVariantList &args)
virtual	~DebugPlugin () Q_DECL_OVERRIDE
virtual void	load (QStringList &params) Q_DECL_OVERRIDE
virtual QStringList *	setup (QStringList &params) Q_DECL_OVERRIDE
virtual void	run (QStringList params) Q_DECL_OVERRIDE
Public Member Functions inherited from Kwave::Plugin
	Plugin (QObject *parent, const QVariantList &args)
virtual	~Plugin () Q_DECL_OVERRIDE
virtual QString	name () const
virtual QString	description () const
virtual QString	progressText ()
virtual bool	canClose () const
bool	isRunning () const
bool	shouldStop () const
virtual void	unload ()
virtual int	start (QStringList &params)
virtual int	stop ()
Kwave::PluginManager &	manager () const
Kwave::SignalManager &	signalManager ()
QWidget *	parentWidget () const
QString	signalName ()
virtual sample_index_t	signalLength ()
virtual double	signalRate ()
virtual const QList< unsigned int >	selectedTracks ()
virtual sample_index_t	selection (QList< unsigned int > *tracks=Q_NULLPTR, sample_index_t *left=Q_NULLPTR, sample_index_t *right=Q_NULLPTR, bool expand_if_empty=false)
virtual void	selectRange (sample_index_t offset, sample_index_t length)
virtual void	migrateToActiveContext ()
Public Member Functions inherited from Kwave::Runnable
virtual	~Runnable ()

Private Slots
void	screenshot (const QByteArray &class_name, const QString &filename)

Private Member Functions
void	dump_children (const QObject *obj, const QString &indent) const
QWidget *	findWidget (const char *class_name) const
QObject *	findObject (QObject *obj, const char *class_name) const

Private Attributes
Kwave::SampleArray	m_buffer

Additional Inherited Members
Public Slots inherited from Kwave::Plugin
virtual void	setProgressDialogEnabled (bool enable)
virtual void	updateProgress (qreal progress)
virtual void	cancel ()
virtual void	close ()
void	release ()
Signals inherited from Kwave::Plugin
void	sigRunning (Kwave::Plugin *plugin)
void	sigDone (Kwave::Plugin *plugin)
void	sigClosed (Kwave::Plugin *p)
void	sigCommand (const QString &command)
void	setProgressText (const QString &text)
Protected Member Functions inherited from Kwave::Plugin
int	execute (QStringList &params)
void	emitCommand (const QString &command)
void	use ()
void	setPluginManager (Kwave::PluginManager *new_plugin_manager)
virtual void	run_wrapper (const QVariant &params) Q_DECL_OVERRIDE

Detailed Description

This plugin is intended to be used internally for debuggin and verification purposes.

Definition at line 37 of file DebugPlugin.h.

Constructor & Destructor Documentation

DebugPlugin()

Kwave::DebugPlugin::DebugPlugin	(	QObject *	parent,
		const QVariantList &	args
	)

Constructor

Parameters

parent	reference to our plugin manager
args	argument list [unused]

Definition at line 69 of file DebugPlugin.cpp.

    :Kwave::Plugin(parent, args), m_buffer()
{
}

~DebugPlugin()

Kwave::DebugPlugin::~DebugPlugin ( )

virtual

Destructor

Definition at line 76 of file DebugPlugin.cpp.

{
}

Member Function Documentation

dump_children()

void Kwave::DebugPlugin::dump_children ( const QObject *  obj, const QString &  indent  ) const

private

Dump a tree with all child objects (for debugging)

Parameters

obj	parent object to start the dump
indent	string for indenting the console output

Definition at line 389 of file DebugPlugin.cpp.

References _, and DBG.

Referenced by setup().

{
    if (!obj) return;
    const char *classname = obj->metaObject()->className();
    qDebug("%s - %p [%s]",
        DBG(indent),
        static_cast<const void *>(obj),
        classname
    );

    foreach (QObject *o, obj->children()) {
        dump_children(o, indent + _("|   "));
    }
}

Here is the caller graph for this function:

findObject()

QObject * Kwave::DebugPlugin::findObject ( QObject *  obj, const char *  class_name  ) const

private

Find a (child) object with a given class name

Parameters

obj	object to start the search at
class_name	name of the class to search

Returns

pointer to the QObject if found or null if not found

Definition at line 414 of file DebugPlugin.cpp.

Referenced by findWidget().

{
    if (!obj) return Q_NULLPTR;
    const char *obj_class_name = obj->metaObject()->className();
    if (strcmp(class_name, obj_class_name) == 0)
        return obj;

    foreach (QObject *o, obj->children()) {
        QObject *result = findObject(o, class_name);
        if (result) return result; // first match -> found
    }

    return Q_NULLPTR; // nothing found
}

Here is the caller graph for this function:

findWidget()

QWidget * Kwave::DebugPlugin::findWidget ( const char *  class_name ) const

private

Find a widget with a given class name

Parameters

class_name

name of the class to search

Returns

pointer to the QWidget if found or null if not found or no QWidget

Definition at line 406 of file DebugPlugin.cpp.

References findObject(), and Kwave::Plugin::parentWidget().

Referenced by screenshot(), and setup().

{
    QObject *obj = findObject(parentWidget(), class_name);
    if (!obj) return Q_NULLPTR;
    return qobject_cast<QWidget *>(obj);
}

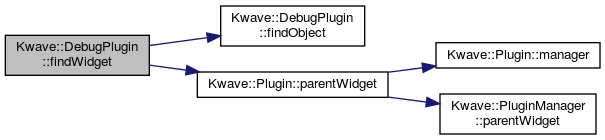

Here is the call graph for this function:

Here is the caller graph for this function:

load()

void Kwave::DebugPlugin::load ( QStringList &  params )

virtual

See also

Kwave::Plugin::load()

Reimplemented from Kwave::Plugin.

Definition at line 81 of file DebugPlugin.cpp.

References _, and MENU_ENTRY.

{
    Q_UNUSED(params);
#ifdef HAVE_DEBUG_PLUGIN
    QString entry = _("menu(plugin:execute(debug,%1),Calculate/Debug/%2)");

    MENU_ENTRY("dc_50",             _(I18N_NOOP("Generate 50% DC Level")));
    MENU_ENTRY("dc_100",            _(I18N_NOOP("Generate 100% DC Level")));
    MENU_ENTRY("min_max",           _(I18N_NOOP("MinMax Pattern")));
    MENU_ENTRY("sawtooth",          _(I18N_NOOP("Generate Sawtooth Pattern")));
    MENU_ENTRY("sawtooth_verify",   _(I18N_NOOP("Verify Sawtooth Pattern")));
    MENU_ENTRY("fm_sweep",          _(I18N_NOOP("FM Sweep")));
//     MENU_ENTRY("stripe_index",      _(I18N_NOOP("Stripe Index")));
//     MENU_ENTRY("hull_curve",        _(I18N_NOOP("Hull Curve")));
//     MENU_ENTRY("offset_in_stripe",  _(I18N_NOOP("Offset in Stripe")));
//     MENU_ENTRY("stripe_borders",    _(I18N_NOOP("Show Stripe Borders")));
    MENU_ENTRY("labels_at_stripes", _(I18N_NOOP("Labels at Stripe borders")));

    entry = _("menu(plugin:setup(debug,%1),Help/%2)");
    MENU_ENTRY("dump_windows",      _(I18N_NOOP("Dump Window Hierarchy")));

    entry = _("menu(%1,Help/%2)");
    MENU_ENTRY("dump_metadata()",   _(I18N_NOOP("Dump Meta Data")));
#endif /* HAVE_DEBUG_PLUGIN */
}

run()

void Kwave::DebugPlugin::run ( QStringList  params )

virtual

performs the special function

Parameters

params

list of strings with parameters

Reimplemented from Kwave::Plugin.

Definition at line 210 of file DebugPlugin.cpp.

References _, Kwave::SignalManager::addLabel(), Kwave::SignalManager::allTracks(), Kwave::SignalManager::appendTrack(), BUFFER_SIZE, Kwave::connect(), double2sample(), Kwave::MetaDataList::dump(), Kwave::Stripe::end(), Kwave::SampleArray::fill(), float2sample(), m_buffer, Kwave::SignalManager::metaData(), Kwave::Overwrite, Kwave::SampleArray::resize(), SAMPLE_MAX, SAMPLE_MIN, Kwave::SignalManager::selectedTracks(), Kwave::Plugin::shouldStop(), Kwave::Plugin::signalLength(), Kwave::Plugin::signalManager(), Kwave::Plugin::signalRate(), Kwave::SinglePassForward, Kwave::SampleArray::size(), Kwave::Stripe::start(), Kwave::SignalManager::stripes(), Kwave::toUint(), Kwave::MultiTrackSink< SINK, INITIALIZE >::tracks(), Kwave::MultiTrackSource< SOURCE, INITIALIZE >::tracks(), Kwave::SignalManager::tracks(), and Kwave::Plugin::updateProgress().

{
    sample_index_t first = 0;
    sample_index_t last  = 0;
    Kwave::SignalManager &sig    = signalManager();
    const double          rate   = signalRate();

    if (params.count() < 1) return;

    QString command = params.first();
    QString action = i18n("Debug (%1)", command);
    Kwave::UndoTransactionGuard undo_guard(*this, action);

    // get the buffer for faster processing
    {
        bool ok = m_buffer.resize(BUFFER_SIZE);
        Q_ASSERT(ok);
        if (!ok) return;
        m_buffer.fill(0);
    }

    bool make_new_track = (
        (command == _("stripe_index")) ||
        (command == _("offset_in_stripe")) ||
        (command == _("stripe_borders"))
    );

    if (command == _("min_max")) {
        // toggle between minimum and maximum possible sample value
        for (unsigned int i = 0; i < BUFFER_SIZE; i++)
            m_buffer[i] = (i & 1) ? SAMPLE_MIN : SAMPLE_MAX;
    }

    if (command == _("labels_at_stripes")) {
        QList<Kwave::Stripe::List> all_stripes = sig.stripes(sig.allTracks());
        if (all_stripes.isEmpty()) return;

        const Kwave::Stripe::List &stripes = all_stripes.first();
        unsigned int index = 0;
        foreach (const Kwave::Stripe &stripe, stripes) {
            QString text;
            text = text.sprintf("stripe #%d [%llu .. %llu]",
                index++, stripe.start(), stripe.end());
            sig.addLabel(stripe.start(), text);
        }
        return;
    } else if (command == _("dump_metadata")) {
        sig.metaData().dump();
        return;
    } else if (command == _("sawtooth_verify")) {
        Kwave::MultiTrackReader *readers = new Kwave::MultiTrackReader(
            Kwave::SinglePassForward, sig, sig.selectedTracks(), first, last);
        Q_ASSERT(readers);
        if (!readers) return;

        sample_index_t pos = first;
        bool ok = true;
        while (ok && (first <= last) && (!shouldStop())) {
            sample_index_t rest = last - first + 1;
            if (rest < m_buffer.size()) {
                ok = m_buffer.resize(Kwave::toUint(rest));
                Q_ASSERT(ok);
                if (!ok) break;
            }

            unsigned int count = readers->tracks();
            for (unsigned int r = 0; ok && (r < count); ++r) {
                *((*readers)[r]) >> m_buffer;
                for (unsigned int ofs = 0; ofs < m_buffer.size(); ++ofs) {
                    sample_t value_is = m_buffer[ofs];
                    sample_t value_should = SAMPLE_MIN + static_cast<sample_t>(
                        ((pos + ofs) % (SAMPLE_MAX - SAMPLE_MIN)));
                    if (value_is != value_should) {
                        qWarning("ERROR: mismatch detected at offset %llu: "
                                 "value=%d, expected=%d", pos + ofs,
                                 value_is, value_should);
                        ok = false;
                        break;
                    }
                }
                if (!ok) break;
            }

            pos   += m_buffer.size();
            first += m_buffer.size();
        }
        delete readers;
        if (ok) {
            qDebug("test pattern successfully detected, no errors :-)");
        }
        return;
    }

    Kwave::MultiTrackWriter *writers = Q_NULLPTR;

    if (make_new_track) {
        // append a new track
        sig.appendTrack();

        // and use only the new track as target
        last = signalLength() - 1;
        QList<unsigned int> track_list;
        track_list.append(sig.tracks() - 1);
        writers = new Kwave::MultiTrackWriter(sig, track_list,
                                              Kwave::Overwrite, 0, last);
    } else {
        // use all currently selected tracks
        writers = new Kwave::MultiTrackWriter(sig, Kwave::Overwrite);
    }

    Q_ASSERT(writers);
    if (!writers) return; // out-of-memory

    // break if aborted
    if (!writers->tracks()) return;

    first = (*writers)[0]->first();
    last  = (*writers)[0]->last();
    unsigned int count = writers->tracks();

    // connect the progress dialog
    connect(writers, SIGNAL(progress(qreal)),
            this,  SLOT(updateProgress(qreal)),
             Qt::BlockingQueuedConnection);

    // loop over the sample range
    const sample_index_t left   = first;
    const sample_index_t right  = last;
    const sample_index_t length = right - left + 1;
    sample_index_t pos = first;
    while ((first <= last) && (!shouldStop())) {
        sample_index_t rest = last - first + 1;
        if (rest < m_buffer.size()) {
            bool ok = m_buffer.resize(Kwave::toUint(rest));
            Q_ASSERT(ok);
            if (!ok) break;
        }

        // sawtooth pattern from min to max
        if (command == _("fm_sweep")) {
            const double f_max = rate / 2.0;
            const double f_min = 1;
            for (unsigned int i = 0; i < m_buffer.size(); ++i, ++pos) {
                double t = static_cast<double>((pos - left) / rate);
                double f = f_min + (((f_max - f_min) *
                    static_cast<double>(pos - left)) /
                    static_cast<double>(length));
                double y = 0.707 * sin(M_PI * f * t);
                m_buffer[i] = double2sample(y);
            }
        } else if (command == _("sawtooth")) {
            for (unsigned int i = 0; i < m_buffer.size(); ++i, ++pos) {
                m_buffer[i] = SAMPLE_MIN +
                    static_cast<sample_t>(pos % (SAMPLE_MAX - SAMPLE_MIN));
            }
        } else if (command == _("dc_50")) {
            const sample_t s = float2sample(0.5);
            for (unsigned int i = 0; i < m_buffer.size(); ++i) {
                m_buffer[i] = s;
            }
        } else if (command == _("dc_100")) {
            const sample_t s = SAMPLE_MAX;
            for (unsigned int i = 0; i < m_buffer.size(); ++i) {
                m_buffer[i] = s;
            }
        }

        // loop over all writers
        for (unsigned int w = 0; w < count; ++w) {
            *((*writers)[w]) << m_buffer;
        }

        first += m_buffer.size();
    }

    delete writers;
}

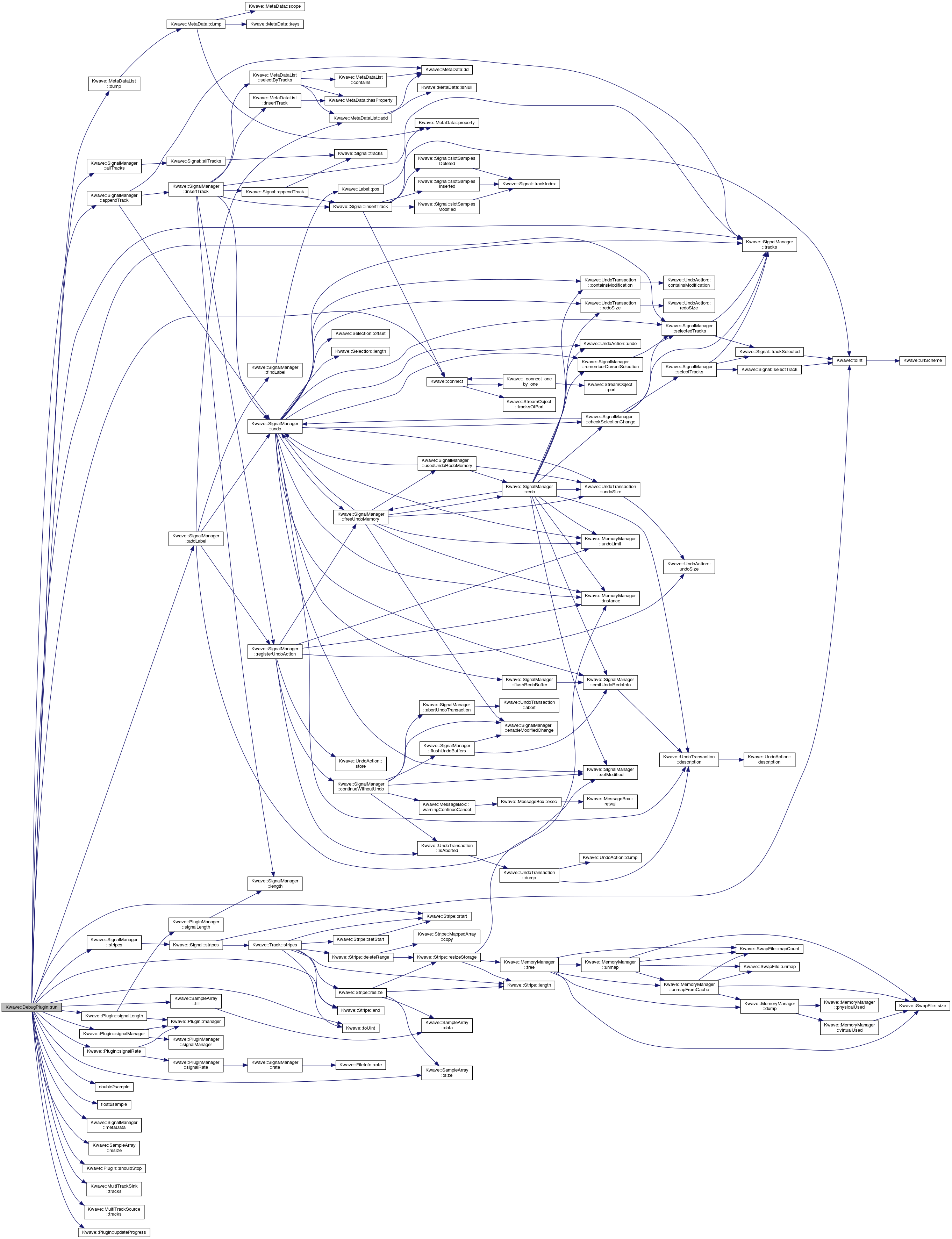

Here is the call graph for this function:

screenshot

void Kwave::DebugPlugin::screenshot ( const QByteArray &  class_name, const QString &  filename  )

privateslot

makes a screenshot, using the information from m_screenshot

Parameters

class_name	class name of the widget to capture
filename	path to the file to save the screenshot

Definition at line 431 of file DebugPlugin.cpp.

References DBG, findWidget(), Kwave::Logger::Info, Kwave::Logger::log(), and rect().

Referenced by setup().

{
    // find the first widget/window with the given class name
    QWidget *widget = findWidget(class_name.constData());
    qDebug("screenshot of '%s' [%p] -> '%s'",
        class_name.constData(),
        static_cast<void *>(widget),
        DBG(filename)
    );
    if (!widget) return;

    // get the outer frame geometry, absolute coordinates
    const QRect rect = widget->windowHandle()->frameGeometry();
    QScreen *screen = QGuiApplication::primaryScreen();
    Q_ASSERT(screen);
    if (!screen) return;
    QPixmap pixmap = screen->grabWindow(
        QApplication::desktop()->winId(),
        rect.x(), rect.y(),
        rect.width(), rect.height()
    );

    QString str;
    str = str.sprintf("screenshot of %s - [%p] %d/%d %dx%d",
        DBG(filename), static_cast<void*>(widget),
        rect.x(), rect.y(), rect.width(), rect.height()
    );
    Kwave::Logger::log(this, Logger::Info, str);

    // make sure the directory exists
    QFileInfo file(filename);
    QDir dir = file.absoluteDir();
    if (!dir.exists()) dir.mkpath(dir.absolutePath());

    // save the file
    pixmap.save(filename, "PNG", 90);
}

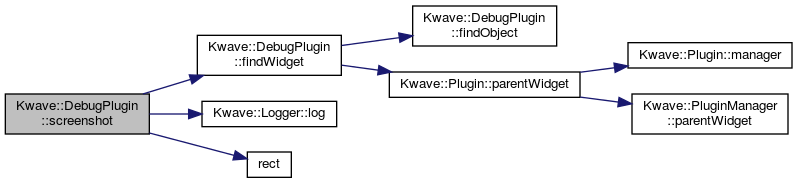

Here is the call graph for this function:

Here is the caller graph for this function:

setup()

QStringList * Kwave::DebugPlugin::setup ( QStringList &  params )

virtual

Normally this method is used to set up all necessary parameters for executing the plugin. This plugin uses it for performing actions in the context of the GUI thread.

Parameters

params

some parameters

Returns

always a null pointer

Reimplemented from Kwave::Plugin.

Definition at line 108 of file DebugPlugin.cpp.

References _, DBG, dump_children(), findWidget(), Kwave::Plugin::parentWidget(), and screenshot().

{
    if (params.count() < 1) return Q_NULLPTR;

    QString command = params.first();
    QString action = i18n("Debug (%1)", command);
    Kwave::UndoTransactionGuard undo_guard(*this, action);

//     for (int i = 0; i < params.count()d; ++i)
//      qDebug("param[%d] = '%s'", i, DBG(params[i]));

    if (command == _("dump_windows")) {
        dump_children(parentWidget(), _(""));
    } else if (command == _("window:click")) {
        if (params.count() != 4) return Q_NULLPTR;
        QString    class_name = params[1];
        QWidget   *widget     = findWidget(class_name.toUtf8().constData());
        unsigned int x        = params[2].toUInt();
        unsigned int y        = params[3].toUInt();
        if (!widget) return Q_NULLPTR;

        QMouseEvent *press_event =
            new QMouseEvent(QEvent::MouseButtonPress,
                QPoint(x, y),
                widget->mapToGlobal(QPoint(x,y)),
                Qt::LeftButton, Qt::LeftButton, Qt::NoModifier);
        QCoreApplication::postEvent(widget, press_event);

        QMouseEvent *release_event =
            new QMouseEvent(QEvent::MouseButtonRelease,
                QPoint(x, y),
                widget->mapToGlobal(QPoint(x,y)),
                Qt::LeftButton, Qt::LeftButton, Qt::NoModifier);
        QCoreApplication::postEvent(widget, release_event);
    } else if (command == _("window:close")) {
        if (params.count() != 2) return Q_NULLPTR;
        QString    class_name = params[1];
        QWidget   *widget     = findWidget(class_name.toUtf8().constData());

        qDebug("close window '%s' [%p]",
            DBG(class_name), static_cast<void *>(widget));
        if (!widget) return Q_NULLPTR;
        widget->close();
    } else if (command == _("window:mousemove")) {
        if (params.count() != 4) return Q_NULLPTR;
        QString    class_name = params[1];
        QWidget   *widget     = findWidget(class_name.toUtf8().constData());
        unsigned int x        = params[2].toUInt();
        unsigned int y        = params[3].toUInt();
        if (!widget) return Q_NULLPTR;

        QMouseEvent *move_event =
            new QMouseEvent(QEvent::MouseMove,
                QPoint(x, y),
                widget->mapToGlobal(QPoint(x,y)),
                Qt::NoButton, Qt::NoButton, Qt::NoModifier);
        QCoreApplication::postEvent(widget, move_event);
    } else if (command == _("window:resize")) {
        if (params.count() != 4) return Q_NULLPTR;
        QString    class_name = params[1];
        QWidget   *widget     = findWidget(class_name.toUtf8().constData());
        unsigned int width    = params[2].toUInt();
        unsigned int height   = params[3].toUInt();
        if (!widget) return Q_NULLPTR;
        widget->resize(width, height);
    } else if (command == _("window:screenshot")) {
        if (params.count() != 3) return Q_NULLPTR;
        screenshot(params[1].toUtf8(), params[2]);
    } else if (command == _("window:sendkey")) {
        if (params.count() != 3) return Q_NULLPTR;
        QString    class_name = params[1];
        QString    key_name   = params[2];
        QWidget   *widget     = findWidget(class_name.toUtf8().constData());

        unsigned int          shortcut = QKeySequence::fromString(key_name)[0];
        int                   key_code = shortcut & Qt::Key_unknown;
        Qt::KeyboardModifiers key_modifiers(shortcut & ~Qt::Key_unknown);

        qDebug("send key '%s' [0x%08X:0x%08X] to '%s' [%p]",
               DBG(key_name), static_cast<int>(key_modifiers), key_code,
               DBG(class_name), static_cast<void *>(widget));
        if (!widget) return Q_NULLPTR;

        // make sure that the widget gets the focus
        widget->activateWindow();
        widget->raise();
        widget->setFocus(Qt::OtherFocusReason);

        QKeyEvent *press_event =
            new QKeyEvent(QEvent::KeyPress, key_code, key_modifiers);
        QCoreApplication::postEvent(widget, press_event);

        QKeyEvent *release_event =
            new QKeyEvent(QEvent::KeyRelease, key_code, key_modifiers);
        QCoreApplication::postEvent(widget, release_event);

    }

    return new QStringList;
}

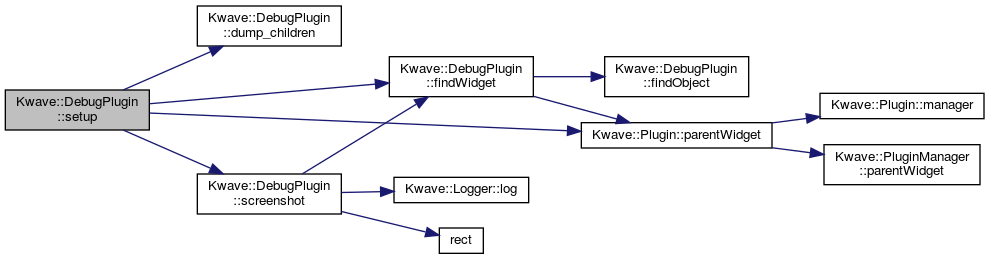

Here is the call graph for this function:

Member Data Documentation

m_buffer

Kwave::SampleArray Kwave::DebugPlugin::m_buffer

private

use an intermediate buffer for faster filling

Definition at line 111 of file DebugPlugin.h.

Referenced by run().

---

The documentation for this class was generated from the following files:

• plugins/debug/DebugPlugin.h
• plugins/debug/DebugPlugin.cpp
