Kwave::WavEncoder Class Reference

#include <WavEncoder.h>

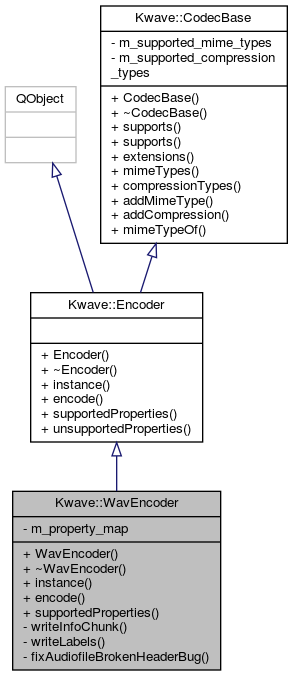

Inheritance diagram for Kwave::WavEncoder:

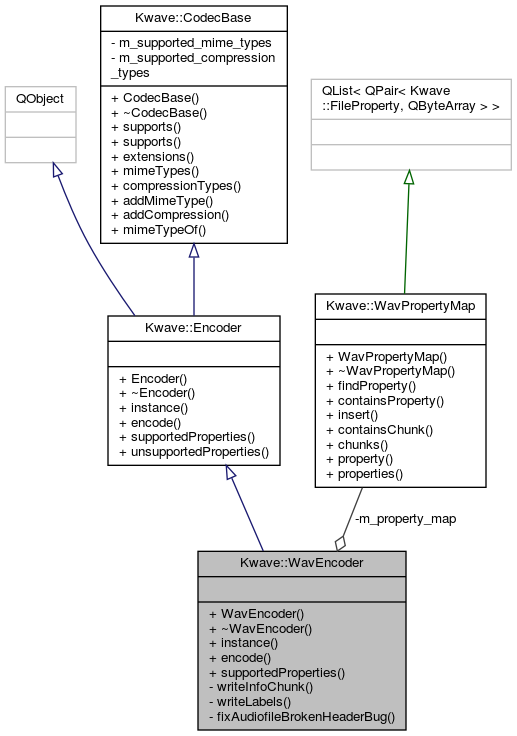

Collaboration diagram for Kwave::WavEncoder:

Public Member Functions
	WavEncoder ()
virtual	~WavEncoder () Q_DECL_OVERRIDE
virtual Encoder *	instance () Q_DECL_OVERRIDE
virtual bool	encode (QWidget *widget, Kwave::MultiTrackReader &src, QIODevice &dst, const Kwave::MetaDataList &meta_data) Q_DECL_OVERRIDE
virtual QList< Kwave::FileProperty >	supportedProperties () Q_DECL_OVERRIDE
Public Member Functions inherited from Kwave::Encoder
	Encoder ()
virtual	~Encoder ()
virtual QList< Kwave::FileProperty >	unsupportedProperties (const QList< Kwave::FileProperty > &properties_to_check)
Public Member Functions inherited from Kwave::CodecBase
	CodecBase ()
virtual	~CodecBase ()
virtual bool	supports (const QMimeType &mimetype)
virtual bool	supports (const QString &mimetype_name)
virtual QStringList	extensions (const QString &mimetype_name) const
virtual const QList< CodecBase::MimeType >	mimeTypes ()
virtual const QList< Kwave::Compression::Type >	compressionTypes ()
virtual void	addMimeType (const char *name, const QString &description, const char *patterns)
virtual void	addCompression (Kwave::Compression::Type compression)
virtual QString	mimeTypeOf (const QUrl &url)

Private Member Functions
void	writeInfoChunk (QIODevice &dst, Kwave::FileInfo &info)
void	writeLabels (QIODevice &dst, const Kwave::LabelList &labels)
void	fixAudiofileBrokenHeaderBug (QIODevice &dst, Kwave::FileInfo &info, unsigned int frame_size)

Private Attributes
Kwave::WavPropertyMap	m_property_map

Detailed Description

Definition at line 37 of file WavEncoder.h.

Constructor & Destructor Documentation

WavEncoder()

Kwave::WavEncoder::WavEncoder

(

)

Constructor

Definition at line 44 of file WavEncoder.cpp.

References REGISTER_COMPRESSION_TYPES, and REGISTER_MIME_TYPES.

    :Kwave::Encoder(), m_property_map()
{
    REGISTER_MIME_TYPES
    REGISTER_COMPRESSION_TYPES
}

~WavEncoder()

Kwave::WavEncoder::~WavEncoder ( )

virtual

Destructor

Definition at line 52 of file WavEncoder.cpp.

{
}

Member Function Documentation

encode()

bool Kwave::WavEncoder::encode ( QWidget *  widget, Kwave::MultiTrackReader &  src, QIODevice &  dst, const Kwave::MetaDataList &  meta_data  )

virtual

Encodes a signal into a stream of bytes.

Parameters

widget	a widget that can be used for displaying message boxes or dialogs
src	MultiTrackReader used as source of the audio data
dst	file or other source to receive a stream of bytes
meta_data	meta data of the file to save

Returns

true if succeeded, false on errors

Implements Kwave::Encoder.

Definition at line 307 of file WavEncoder.cpp.

References Kwave::SampleFormat::assign(), Kwave::FileInfo::bits(), Kwave::VirtualAudioFile::close(), Kwave::FileInfo::contains(), Kwave::SampleFormat::Double, Kwave::SampleReader::eof(), Kwave::MessageBox::error(), fixAudiofileBrokenHeaderBug(), Kwave::SampleFormat::Float, Kwave::SampleFormat::fromInt(), Kwave::Compression::fromInt(), Kwave::Compression::G711_ALAW, Kwave::Compression::G711_ULAW, Kwave::FileInfo::get(), Kwave::VirtualAudioFile::handle(), Kwave::INF_COMPRESSION, Kwave::INF_SAMPLE_FORMAT, Kwave::MultiTrackReader::isCanceled(), Kwave::VirtualAudioFile::lastError(), Kwave::FileInfo::length(), Kwave::Compression::NONE, Kwave::VirtualAudioFile::open(), Kwave::FileInfo::rate(), SAMPLE_BITS, SAMPLE_STORAGE_BITS, Kwave::FileInfo::set(), Kwave::FileInfo::setBits(), Kwave::SampleFormat::Signed, Kwave::Compression::toAudiofile(), Kwave::SampleFormat::toInt(), Kwave::toInt(), Kwave::toUint(), Kwave::MultiTrackSource< SOURCE, INITIALIZE >::tracks(), Kwave::FileInfo::tracks(), Kwave::SampleFormat::Unsigned, Kwave::MessageBox::warningYesNoCancel(), writeInfoChunk(), and writeLabels().

{
    Kwave::FileInfo info(meta_data);

    /* first get and check some header information */
    const unsigned int   tracks = info.tracks();
    const sample_index_t length = info.length();
    unsigned int bits = info.bits();
    const double rate = info.rate();

    Kwave::SampleFormat format(Kwave::SampleFormat::Signed);
    if (info.contains(Kwave::INF_SAMPLE_FORMAT))
        format.fromInt(info.get(Kwave::INF_SAMPLE_FORMAT).toInt());

    Kwave::Compression::Type compression =
        info.contains(Kwave::INF_COMPRESSION) ?
        Kwave::Compression::fromInt(info.get(Kwave::INF_COMPRESSION).toInt()) :
        Kwave::Compression::NONE;

    // use default bit resolution if missing
    Q_ASSERT(bits);
    if (!bits) bits = 16;

    // check for a valid source
    if ((!tracks) || (!length)) return false;
    Q_ASSERT(src.tracks() == tracks);
    if (src.tracks() != tracks) return false;

    // check if the chosen compression mode is supported for saving
    if ((compression != Kwave::Compression::NONE) &&
        (compression != Kwave::Compression::G711_ULAW) &&
        (compression != Kwave::Compression::G711_ALAW))
    {
        qWarning("compression mode %d not supported!",
                 Kwave::Compression(compression).toInt());
        int what_now = Kwave::MessageBox::warningYesNoCancel(widget,
            i18n("Sorry, the currently selected compression type cannot "
                 "be used for saving. Do you want to use "
                 "G711 ULAW compression instead?"), QString(),
            i18n("&Yes, use G711"),
            i18n("&No, store uncompressed")
        );
        switch (what_now) {
            case (KMessageBox::Yes):
                info.set(Kwave::INF_COMPRESSION,
                         Kwave::Compression::G711_ULAW);
                compression = Kwave::Compression::G711_ULAW;
                break;
            case (KMessageBox::No):
                info.set(Kwave::INF_COMPRESSION,
                         Kwave::Compression::NONE);
                compression = Kwave::Compression::NONE;
                break;
            default:
                return false; // bye bye, save later...
        }
    }

    // check for unsupported compression/bits/sample format combinations
    // G.711 and MSADPCM support only 16 bit signed as input format!
    if ((compression == Kwave::Compression::G711_ULAW) ||
        (compression == Kwave::Compression::G711_ALAW))
    {
        if ((format != Kwave::SampleFormat::Signed) || (bits != 16)) {
            format.assign(Kwave::SampleFormat::Signed);
            bits = 16;
            info.set(Kwave::INF_SAMPLE_FORMAT, QVariant(format.toInt()));
            info.setBits(16);
            qDebug("auto-switching to 16 bit signed format");
        }
    } else if ((bits <= 8) && (format != Kwave::SampleFormat::Unsigned)) {
        format.assign(Kwave::SampleFormat::Unsigned);
        info.set(Kwave::INF_SAMPLE_FORMAT, QVariant(format.toInt()));
        qDebug("auto-switching to unsigned format");
    } else if ((bits > 8) && (format != Kwave::SampleFormat::Signed)) {
        format.assign(Kwave::SampleFormat::Signed);
        info.set(Kwave::INF_SAMPLE_FORMAT, QVariant(format.toInt()));
        qDebug("auto-switching to signed format");
    }

    // open the output device
    if (!dst.open(QIODevice::ReadWrite | QIODevice::Truncate)) {
        Kwave::MessageBox::error(widget,
            i18n("Unable to open the file for saving!"));
        return false;
    }

    // check for proper size: WAV supports only 32bit addressing
    if (length * ((bits + 7) / 8) >= UINT_MAX) {
        Kwave::MessageBox::error(widget, i18n("File or selection too large"));
        return false;
    }

    int af_sample_format = AF_SAMPFMT_TWOSCOMP;
    Kwave::SampleFormat fmt(format);
    switch (fmt)
    {
        case Kwave::SampleFormat::Unsigned:
            af_sample_format = AF_SAMPFMT_UNSIGNED;
            break;
        case Kwave::SampleFormat::Float:
            af_sample_format = AF_SAMPFMT_FLOAT;
            break;
        case Kwave::SampleFormat::Double:
            af_sample_format = AF_SAMPFMT_DOUBLE;
            break;
        case Kwave::SampleFormat::Signed: /* FALLTHROUGH */
        default:
            af_sample_format = AF_SAMPFMT_TWOSCOMP;
            break;
    }

    AFfilesetup setup;
    setup = afNewFileSetup();
    afInitFileFormat(setup, AF_FILE_WAVE);
    afInitChannels(setup, AF_DEFAULT_TRACK, tracks);
    afInitSampleFormat(setup, AF_DEFAULT_TRACK, af_sample_format, bits);
    afInitCompression(setup, AF_DEFAULT_TRACK,
        Kwave::Compression::toAudiofile(compression));
    afInitRate(setup, AF_DEFAULT_TRACK, rate);

    Kwave::VirtualAudioFile outfile(dst);
    outfile.open(&outfile, setup);

    AFfilehandle fh = outfile.handle();
    if (!fh || (outfile.lastError() >= 0)) {
        QString reason;

        switch (outfile.lastError()) {
            case AF_BAD_NOT_IMPLEMENTED:
                reason = i18n("Format or function is not implemented") /*+
                         "\n("+format_name+")"*/;
                break;
            case AF_BAD_MALLOC:
                reason = i18n("Out of memory");
                break;
            case AF_BAD_HEADER:
                reason = i18n("File header is damaged");
                break;
            case AF_BAD_CODEC_TYPE:
                reason = i18n("Invalid codec type")/* +
                         "\n("+format_name+")"*/;
                break;
            case AF_BAD_OPEN:
                reason = i18n("Opening the file failed");
                break;
            case AF_BAD_READ:
                reason = i18n("Read access failed");
                break;
            case AF_BAD_SAMPFMT:
                reason = i18n("Invalid sample format");
                break;
            default:
                reason = reason.number(outfile.lastError());
        }

        QString text= i18n("An error occurred while opening the "\
            "file:\n'%1'", reason);
        Kwave::MessageBox::error(widget, text);

        return false;
    }

    // set up libaudiofile to produce Kwave's internal sample format
#if Q_BYTE_ORDER == Q_BIG_ENDIAN
    afSetVirtualByteOrder(fh, AF_DEFAULT_TRACK, AF_BYTEORDER_BIGENDIAN);
#else
    afSetVirtualByteOrder(fh, AF_DEFAULT_TRACK, AF_BYTEORDER_LITTLEENDIAN);
#endif
    afSetVirtualSampleFormat(fh, AF_DEFAULT_TRACK,
        AF_SAMPFMT_TWOSCOMP, SAMPLE_STORAGE_BITS);

    // allocate a buffer for input data
    const unsigned int virtual_frame_size = Kwave::toUint(
            afGetVirtualFrameSize(fh, AF_DEFAULT_TRACK, 1));
    const unsigned int buffer_frames = (8 * 1024);
    sample_storage_t *buffer = static_cast<sample_storage_t *>(
        malloc(buffer_frames * virtual_frame_size));
    if (!buffer) return false;

    // read in from the sample readers
    sample_index_t rest = length;
    while (rest) {
        // merge the tracks into the sample buffer
        sample_storage_t *p = buffer;
        unsigned int count = buffer_frames;
        if (rest < count) count = Kwave::toUint(rest);

        for (unsigned int pos = 0; pos < count; pos++) {
            for (unsigned int track = 0; track < tracks; track++) {
                Kwave::SampleReader *stream = src[track];
                sample_t sample = 0;
                if (!stream->eof()) (*stream) >> sample;

                // the following cast is only necessary if
                // sample_t is not equal to sample_storage_t
                sample_storage_t act = static_cast<sample_storage_t>(sample);
                act *= (1 << (SAMPLE_STORAGE_BITS - SAMPLE_BITS));
                *p = act;
                p++;
            }
        }

        // write out through libaudiofile
        count = afWriteFrames(fh, AF_DEFAULT_TRACK, buffer, count);

        // break if eof reached or disk full
        Q_ASSERT(count);
        if (!count) break;

        Q_ASSERT(rest >= count);
        rest -= count;

        // abort if the user pressed cancel
        // --> this would leave a corrupted file !!!
        if (src.isCanceled()) break;
    }

    // close the audiofile stuff, we need control over the
    // fixed-up file on our own
    outfile.close();

    // clean up the sample buffer
    free(buffer);
    afFreeFileSetup(setup);

    // due to a buggy implementation of libaudiofile
    // we have to fix up the length of the "data" and the "RIFF" chunk
    fixAudiofileBrokenHeaderBug(dst, info, (bits * tracks) >> 3);

    // put the properties into the INFO chunk
    writeInfoChunk(dst, info);

    // write the labels list
    writeLabels(dst, Kwave::LabelList(meta_data));

    return true;
}

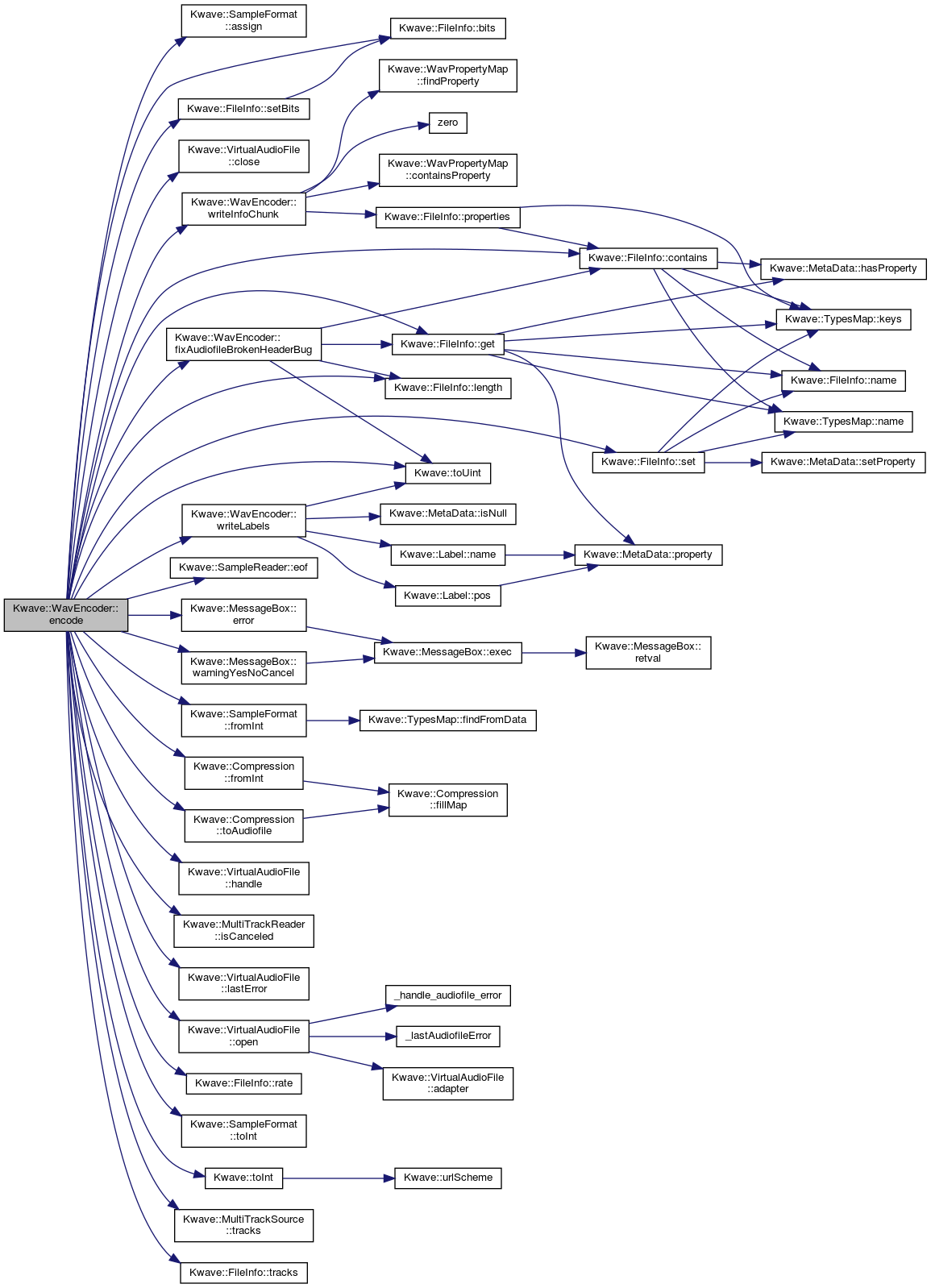

Here is the call graph for this function:

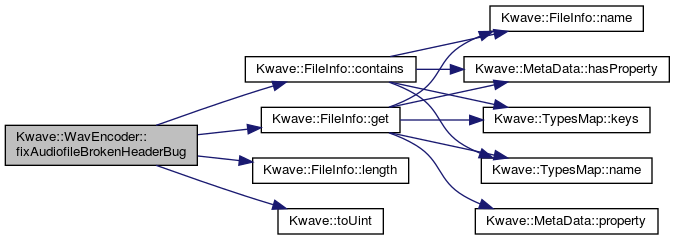

fixAudiofileBrokenHeaderBug()

void Kwave::WavEncoder::fixAudiofileBrokenHeaderBug ( QIODevice &  dst, Kwave::FileInfo &  info, unsigned int  frame_size  )

private

Fix the size of the "data" and the "RIFF" chunk, as libaudiofile is sometimes really buggy due to internal calculations done with "float" as data type. This can lead to broken files as the data and also the RIFF chunk sizes are too small.

Parameters

dst	file or other source to receive a stream of bytes
info	information about the file to be saved
frame_size	number of bytes per sample

Definition at line 69 of file WavEncoder.cpp.

References Kwave::FileInfo::contains(), Kwave::FileInfo::get(), Kwave::INF_COMPRESSION, Kwave::FileInfo::length(), Kwave::Compression::NONE, and Kwave::toUint().

Referenced by encode().

{
    const unsigned int length = Kwave::toUint(info.length());
    quint32 correct_size = length * frame_size;
    const int compression = info.contains(Kwave::INF_COMPRESSION) ?
                      info.get(Kwave::INF_COMPRESSION).toInt() :
            Kwave::Compression::NONE;
    if (compression != Kwave::Compression::NONE) {
        qWarning("WARNING: libaudiofile might have produced a broken header!");
        return;
    }

    // just to be sure: at offset 36 we expect the chunk name "data"
    dst.seek(36);
    char chunk_name[5];
    memset(chunk_name, 0x00, sizeof(chunk_name));
    dst.read(&chunk_name[0], 4);
    if (strncmp("data", chunk_name, sizeof(chunk_name))) {
        qWarning("WARNING: unexpected wav header format, check disabled");
        return;
    }

    // read the data chunk size that libaudiofile has written
    quint32 data_size;
    dst.seek(40);
    dst.read(reinterpret_cast<char *>(&data_size), 4);
    data_size = qFromLittleEndian<quint32>(data_size);
    if (data_size == length * frame_size) {
//      qDebug("(data size written by libaudiofile is correct)");
        return;
    }

    qWarning("WARNING: libaudiofile wrote a wrong 'data' chunk size!");
    qWarning("         current=%u, correct=%u", data_size, correct_size);

    // write the fixed size of the "data" chunk
    dst.seek(40);
    data_size = qToLittleEndian<quint32>(correct_size);
    dst.write(reinterpret_cast<char *>(&data_size), 4);

    // also fix the "RIFF" size
    dst.seek(4);
    quint32 riff_size = static_cast<quint32>(dst.size()) - 4 - 4;
    riff_size = qToLittleEndian<quint32>(riff_size);
    dst.write(reinterpret_cast<char *>(&riff_size), 4);

}

Here is the call graph for this function:

Here is the caller graph for this function:

instance()

Kwave::Encoder * Kwave::WavEncoder::instance ( )

virtual

Returns a new instance of the encoder

Implements Kwave::Encoder.

Definition at line 57 of file WavEncoder.cpp.

{
    return new Kwave::WavEncoder();
}

supportedProperties()

QList< Kwave::FileProperty > Kwave::WavEncoder::supportedProperties ( )

virtual

Returns a list of supported file properties

Reimplemented from Kwave::Encoder.

Definition at line 63 of file WavEncoder.cpp.

References m_property_map, and Kwave::WavPropertyMap::properties().

{
    return m_property_map.properties();
}

Here is the call graph for this function:

writeInfoChunk()

void Kwave::WavEncoder::writeInfoChunk ( QIODevice &  dst, Kwave::FileInfo &  info  )

private

write the INFO chunk with all known file properties

Parameters

dst	file or other source to receive a stream of bytes
info	information about the file to be saved

Definition at line 120 of file WavEncoder.cpp.

References Kwave::WavPropertyMap::containsProperty(), Kwave::WavPropertyMap::findProperty(), m_property_map, name, Kwave::FileInfo::properties(), and zero().

Referenced by encode().

{
    // create a list of chunk names and properties for the INFO chunk
    QMap<Kwave::FileProperty, QVariant> properties(info.properties());
    QMap<QByteArray, QByteArray> info_chunks;
    unsigned int info_size = 0;

    for (QMap<Kwave::FileProperty, QVariant>::Iterator it = properties.begin();
         it != properties.end(); ++it)
    {
        Kwave::FileProperty property = it.key();
        if (!m_property_map.containsProperty(property)) continue;

        QByteArray chunk_id = m_property_map.findProperty(property);
        if (info_chunks.contains(chunk_id)) continue; // already encoded

        QByteArray value = QVariant(properties[property]).toString().toUtf8();
        info_chunks.insert(chunk_id, value);
        info_size += 4 + 4 + value.length();
        if (value.length() & 0x01) info_size++;
    }

    // if there are properties to save, create a LIST chunk
    if (!info_chunks.isEmpty()) {
        quint32 size;

        // enlarge the main RIFF chunk by the size of the LIST chunk
        info_size += 4 + 4 + 4; // add the size of LIST(INFO)
        dst.seek(4);
        dst.read(reinterpret_cast<char *>(&size), 4);
        size = qToLittleEndian<quint32>(
            qFromLittleEndian<quint32>(size) + info_size);
        dst.seek(4);
        dst.write(reinterpret_cast<char *>(&size), 4);

        // add the LIST(INFO) chunk itself
        dst.seek(dst.size());
        if (dst.pos() & 1) dst.write("\000", 1); // padding
        dst.write("LIST", 4);
        size = qToLittleEndian<quint32>(info_size - 8);
        dst.write(reinterpret_cast<char *>(&size), 4);
        dst.write("INFO", 4);

        // append the chunks to the end of the file
        for (QMap<QByteArray, QByteArray>::Iterator it = info_chunks.begin();
             it != info_chunks.end(); ++it)
        {
            QByteArray name  = it.key();
            QByteArray value = it.value();

            dst.write(name.data(), 4); // chunk name
            size = value.length(); // length of the chunk
            if (size & 0x01) size++;
            size = qToLittleEndian<quint32>(size);
            dst.write(reinterpret_cast<char *>(&size), 4);
            dst.write(value.data(), value.length());
            if (value.length() & 0x01) {
                const char zero = 0;
                dst.write(&zero, 1);
            }
        }
    }
}

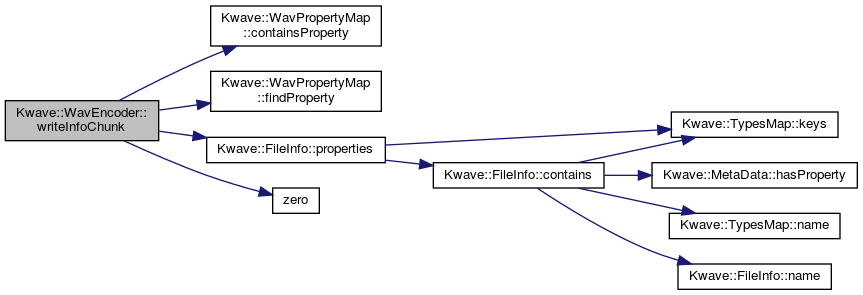

Here is the call graph for this function:

Here is the caller graph for this function:

writeLabels()

void Kwave::WavEncoder::writeLabels ( QIODevice &  dst, const Kwave::LabelList &  labels  )

private

write the 'cue list' and the label names (if any)

Parameters

dst	file or other source to receive a stream of bytes
labels	a list of labels

Definition at line 185 of file WavEncoder.cpp.

References Kwave::MetaData::isNull(), Kwave::Label::name(), name, Kwave::Label::pos(), and Kwave::toUint().

Referenced by encode().

{
    const unsigned int labels_count = labels.count();
    quint32 size, additional_size = 0, index, data;

    // shortcut: nothing to do if no labels present
    if (!labels_count) return;

    // easy things first: size of the cue list (has fixed record size)
    // without chunk name and chunk size
    const unsigned int size_of_cue_list =
        4 + /* number of entries */
        labels_count * (6 * 4); /* cue list entry: 6 x 32 bit */

    // now the size of the labels
    unsigned int size_of_labels = 0;
    foreach (const Kwave::Label &label, labels) {
        if (label.isNull()) continue;
        unsigned int name_len = label.name().toUtf8().size();
        if (!name_len) continue; // skip zero-length names
        size_of_labels += (3 * 4); // 3 * 4 byte
        size_of_labels += name_len;
        // padding if size is unaligned
        if (size_of_labels & 1) size_of_labels++;
    }
    if (size_of_labels) {
        size_of_labels += 4; /* header entry: 'adtl' */
        // enlarge the main RIFF chunk by the size of the LIST chunk
        additional_size += 4 + 4 + size_of_labels; // add size of LIST(adtl)
    }

    // enlarge the main RIFF chunk by the size of the cue chunks
    additional_size += 4 + 4 + size_of_cue_list; // add size of 'cue '

    dst.seek(4);
    dst.read(reinterpret_cast<char *>(&size), 4);
    size = qToLittleEndian<quint32>(
        qFromLittleEndian<quint32>(size) + additional_size);
    dst.seek(4);
    dst.write(reinterpret_cast<char *>(&size), 4);

    // seek to the end of the file
    dst.seek(dst.size());
    if (dst.pos() & 1) dst.write("\000", 1); // padding

    // add the 'cue ' list
    dst.write("cue ", 4);
    size = qToLittleEndian<quint32>(size_of_cue_list);
    dst.write(reinterpret_cast<char *>(&size), 4);

    // number of entries
    size = qToLittleEndian<quint32>(labels_count);
    dst.write(reinterpret_cast<char *>(&size), 4);

    index = 0;
    foreach (const Kwave::Label &label, labels) {
        if (label.isNull()) continue;
        /*
         * typedef struct {
         *     quint32 dwIdentifier; <- index
         *     quint32 dwPosition;   <- 0
         *     quint32 fccChunk;     <- 'data'
         *     quint32 dwChunkStart; <- 0
         *     quint32 dwBlockStart; <- 0
         *     quint32 dwSampleOffset; <- label.pos()
         * } cue_list_entry_t;
         */
        data = qToLittleEndian<quint32>(index);
        dst.write(reinterpret_cast<char *>(&data), 4); // dwIdentifier
        data = 0;
        dst.write(reinterpret_cast<char *>(&data), 4); // dwPosition
        dst.write("data", 4);        // fccChunk
        dst.write(reinterpret_cast<char *>(&data), 4); // dwChunkStart
        dst.write(reinterpret_cast<char *>(&data), 4); // dwBlockStart
        data = qToLittleEndian<quint32>(Kwave::toUint(label.pos()));
        dst.write(reinterpret_cast<char *>(&data), 4); // dwSampleOffset
        index++;
    }

    // add the LIST(adtl) chunk
    if (size_of_labels) {
        dst.write("LIST", 4);
        size = qToLittleEndian<quint32>(size_of_labels);
        dst.write(reinterpret_cast<char *>(&size), 4);
        dst.write("adtl", 4);
        index = 0;
        foreach (const Kwave::Label &label, labels) {
            if (label.isNull()) continue;
            QByteArray name = label.name().toUtf8();

            /*
             * typedef struct {
             *     quint32 dwChunkID;    <- 'labl'
             *     quint32 dwChunkSize;  (without padding !)
             *     quint32 dwIdentifier; <- index
             *     char    dwText[];     <- label->name()
             * } label_list_entry_t;
             */
            if (name.size()) {
                dst.write("labl", 4);                // dwChunkID
                data = qToLittleEndian<quint32>(name.size() + 4);

                // dwChunkSize
                dst.write(reinterpret_cast<char *>(&data), 4);
                data = qToLittleEndian<quint32>(index);

                // dwIdentifier
                dst.write(reinterpret_cast<char *>(&data), 4);
                dst.write(name.data(), name.size()); // dwText
                if (name.size() & 1) {
                    // padding if necessary
                    data = 0;
                    dst.write(reinterpret_cast<char *>(&data), 1);
                }
            }
            index++;
        }
    }
}

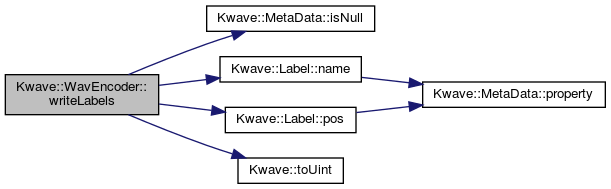

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_property_map

Kwave::WavPropertyMap Kwave::WavEncoder::m_property_map

private

map for translating chunk names to FileInfo properties

Definition at line 101 of file WavEncoder.h.

Referenced by supportedProperties(), and writeInfoChunk().

---

The documentation for this class was generated from the following files:

• plugins/codec_wav/WavEncoder.h
• plugins/codec_wav/WavEncoder.cpp
