kwave  18.07.70
Kwave::TrackView Class Reference

#include <TrackView.h>

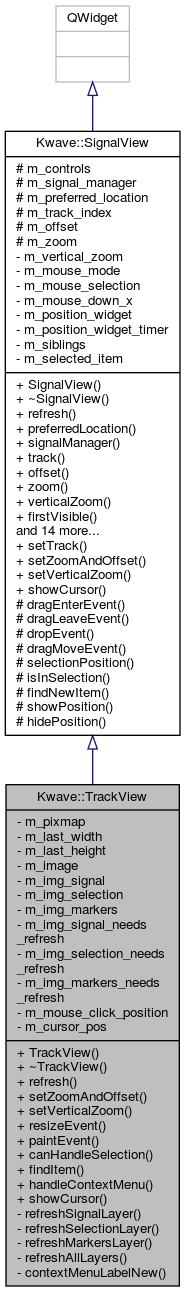

Inheritance diagram for Kwave::TrackView:
Inheritance graph

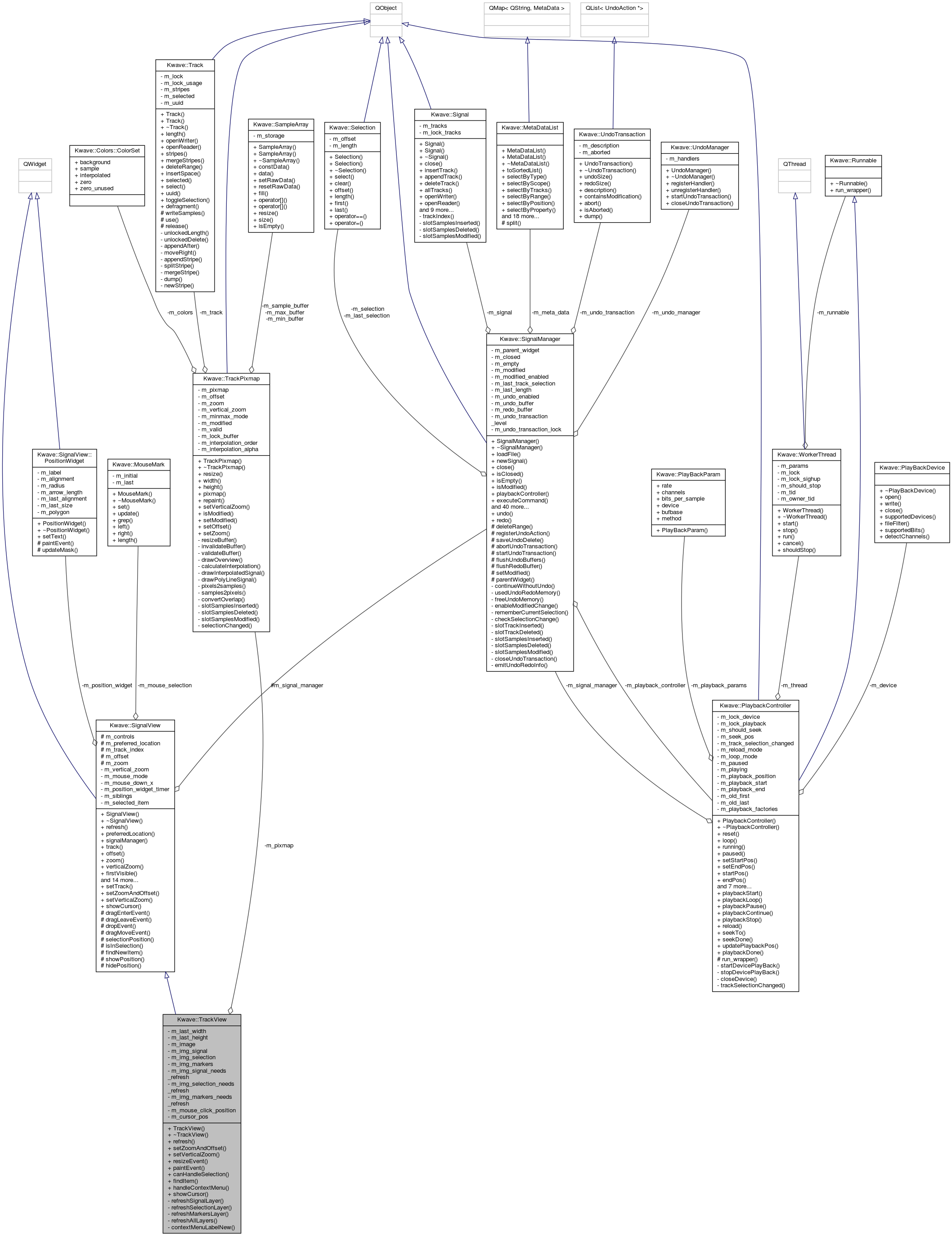

Collaboration diagram for Kwave::TrackView:
Collaboration graph

Public Slots

virtual void showCursor (sample_index_t pos=SAMPLE_INDEX_MAX) Q_DECL_OVERRIDE

- Public Slots inherited from Kwave::SignalView
virtual void setTrack (int track)

virtual void showCursor (sample_index_t pos=SAMPLE_INDEX_MAX)


Public Member Functions

 TrackView (QWidget *parent, QWidget *controls, Kwave::SignalManager *signal_manager, Kwave::Track *track)

virtual ~TrackView () Q_DECL_OVERRIDE

virtual void refresh () Q_DECL_OVERRIDE

virtual void setZoomAndOffset (double zoom, sample_index_t offset) Q_DECL_OVERRIDE

virtual void setVerticalZoom (double zoom) Q_DECL_OVERRIDE

virtual void resizeEvent (QResizeEvent *event) Q_DECL_OVERRIDE

virtual void paintEvent (QPaintEvent *) Q_DECL_OVERRIDE

virtual bool canHandleSelection () const Q_DECL_OVERRIDE

virtual QSharedPointer< Kwave::ViewItemfindItem (const QPoint &pos) Q_DECL_OVERRIDE

virtual void handleContextMenu (const QPoint &pos, QMenu *menu) Q_DECL_OVERRIDE

- Public Member Functions inherited from Kwave::SignalView
 SignalView (QWidget *parent, QWidget *controls, Kwave::SignalManager *signal_manager, Location preferred_location, int track=-1)

virtual ~SignalView () Q_DECL_OVERRIDE

Location preferredLocation () const

Kwave::SignalManagersignalManager () const

int track () const

sample_index_t offset () const

double zoom () const

double verticalZoom () const

sample_index_t firstVisible () const

sample_index_t lastVisible () const

int samples2pixels (sample_index_t samples) const

sample_index_t pixels2samples (int pixels) const

double samples2ms (sample_index_t samples)

virtual void mouseMoveEvent (QMouseEvent *e) Q_DECL_OVERRIDE

virtual void mousePressEvent (QMouseEvent *e) Q_DECL_OVERRIDE

virtual void mouseReleaseEvent (QMouseEvent *e) Q_DECL_OVERRIDE

virtual void leaveEvent (QEvent *e) Q_DECL_OVERRIDE

virtual void keyPressEvent (QKeyEvent *e) Q_DECL_OVERRIDE

virtual int selectionTolerance () const

virtual void addSibling (QWidget *widget)


Private Slots

void refreshSignalLayer ()

void refreshSelectionLayer ()

void refreshMarkersLayer ()

void refreshAllLayers ()

void contextMenuLabelNew ()


Private Attributes

Kwave::TrackPixmap m_pixmap

int m_last_width

int m_last_height

QImage m_image

QImage m_img_signal

QImage m_img_selection

QImage m_img_markers

bool m_img_signal_needs_refresh

bool m_img_selection_needs_refresh

bool m_img_markers_needs_refresh

sample_index_t m_mouse_click_position

sample_index_t m_cursor_pos


Additional Inherited Members

- Public Types inherited from Kwave::SignalView
enum  Location {
  UpperDockTop, UpperDockBottom, Top, AboveTrackTop,
  AboveTrackBottom, BelowTrackTop, BelowTrackBottom, Bottom,
  LowerDockTop, LowerDockBottom
}

- Signals inherited from Kwave::SignalView
void contentSizeChanged ()

void sigCursorChanged (sample_index_t pos)

void sigNeedRepaint (Kwave::SignalView *view)

void sigCommand (const QString &command)

- Protected Types inherited from Kwave::SignalView
enum  SelectionPosEnum { None = 0x0000, LeftBorder = 0x0001, RightBorder = 0x0002, Selection = 0x8000 }

- Protected Slots inherited from Kwave::SignalView
virtual void showPosition (const QString &text, sample_index_t pos, const QPoint &mouse)

virtual void hidePosition ()

- Protected Member Functions inherited from Kwave::SignalView
virtual void dragEnterEvent (QDragEnterEvent *event) Q_DECL_OVERRIDE

virtual void dragLeaveEvent (QDragLeaveEvent *event) Q_DECL_OVERRIDE

virtual void dropEvent (QDropEvent *event) Q_DECL_OVERRIDE

virtual void dragMoveEvent (QDragMoveEvent *event) Q_DECL_OVERRIDE

SelectionPos selectionPosition (int x)

bool isInSelection (int x)

void findNewItem (const QPoint &mouse_pos, bool active)

- Protected Attributes inherited from Kwave::SignalView
QWidget * m_controls

Kwave::SignalManagerm_signal_manager

Location m_preferred_location

int m_track_index

sample_index_t m_offset

double m_zoom


Detailed Description

Definition at line 44 of file TrackView.h.

Constructor & Destructor Documentation

◆ TrackView()

Kwave::TrackView::TrackView ( QWidget *  parent,
QWidget *  controls,
Kwave::SignalManager signal_manager,
Kwave::Track track
)

Constructor

Parameters
parentpointer to the parent widget
controlscontainer widget for associated controls
signal_managerthe signal manager
trackthe track object this view is bound to

Definition at line 47 of file TrackView.cpp.

References _, Kwave::MultiStateWidget::addPixmap(), Kwave::connect(), m_pixmap, MINIMUM_HEIGHT, Kwave::SignalManager::playbackController(), refreshMarkersLayer(), refreshSelectionLayer(), refreshSignalLayer(), Kwave::Track::selected(), Kwave::SignalManager::selection(), showCursor(), and Kwave::MultiStateWidget::switchState().

50  :Kwave::SignalView(parent, controls, signal_manager,
52  m_pixmap(*track),
53  m_last_width(-1),
54  m_last_height(-1),
55  m_image(),
56  m_img_signal(),
58  m_img_markers(),
64 {
65  setMinimumSize(400, MINIMUM_HEIGHT);
66
67  // trigger a repaint request when the signal has been modified
68  connect(&m_pixmap, SIGNAL(sigModified()),
69  this, SLOT(refreshSignalLayer()));
70
71  if (controls) {
72  // add the channel controls, for "enabled" / "disabled"
73
74  QVBoxLayout *layout = new QVBoxLayout(controls);
75  Q_ASSERT(layout);
76  if (!layout) return;
77
79  new(std::nothrow) Kwave::MultiStateWidget(Q_NULLPTR, 0);
80  Q_ASSERT(msw);
81  if (!msw) {
82  delete layout;
83  return;
84  }
85
86  // add a bitmap for off (0 and on (1)
87  msw->addPixmap(_("light_off.xpm"));
88  msw->addPixmap(_("light_on.xpm"));
89
90  // connect widget <-> track
91  connect(
92  msw, SIGNAL(clicked(int)),
93  track, SLOT(toggleSelection())
94  );
95  connect(
96  track, SIGNAL(sigSelectionChanged(bool)),
97  msw, SLOT(switchState(bool))
98  );
99
100  msw->setMinimumSize(20, 20);
101  msw->switchState(track->selected());
102  layout->addWidget(msw);
103  }
104
105  // get informed about meta data changes
106  connect(signal_manager, SIGNAL(
107  sigMetaDataChanged(Kwave::MetaDataList)),
108  this, SLOT(refreshMarkersLayer()),
109  Qt::QueuedConnection);
110
111  // get informed about selection changes
112  connect(&(signal_manager->selection()),
113  SIGNAL(changed(sample_index_t,sample_index_t)),
114  this,
115  SLOT(refreshSelectionLayer()));
116
117  // update the playback position
118  connect(&(signal_manager->playbackController()),
119  SIGNAL(sigPlaybackPos(sample_index_t)),
120  this,
121  SLOT(showCursor(sample_index_t)));
122  connect(&(signal_manager->playbackController()),
123  SIGNAL(sigPlaybackStopped()),
124  this,
125  SLOT(showCursor()));
126
127  // update when the track selection changed
128  connect(track, SIGNAL(sigSelectionChanged(bool)),
129  this, SLOT(refreshSignalLayer()));
130 }
QImage m_img_selection
Definition: TrackView.h:155
bool selected() const
Definition: Track.h:137
bool m_img_signal_needs_refresh
Definition: TrackView.h:161
bool m_img_markers_needs_refresh
Definition: TrackView.h:167
sample_index_t m_mouse_click_position
Definition: TrackView.h:170
#define MINIMUM_HEIGHT
Definition: TrackView.cpp:44
QImage m_img_signal
Definition: TrackView.h:152
Kwave::Selection & selection()
quint64 sample_index_t
Definition: Sample.h:28
Kwave::PlaybackController & playbackController()
void addPixmap(const QString &filename)
bool connect(Kwave::StreamObject &source, const char *output, Kwave::StreamObject &sink, const char *input)
Definition: Connect.cpp:48
Kwave::TrackPixmap m_pixmap
Definition: TrackView.h:140
void refreshSignalLayer()
Definition: TrackView.cpp:307
void refreshSelectionLayer()
Definition: TrackView.cpp:314
void refreshMarkersLayer()
Definition: TrackView.cpp:321
QImage m_img_markers
Definition: TrackView.h:158
virtual void showCursor(sample_index_t pos=SAMPLE_INDEX_MAX) Q_DECL_OVERRIDE
Definition: TrackView.cpp:520
#define _(m)
Definition: memcpy.c:66
bool m_img_selection_needs_refresh
Definition: TrackView.h:164
sample_index_t m_cursor_pos
Definition: TrackView.h:173
#define SAMPLE_INDEX_MAX
Definition: Sample.h:31

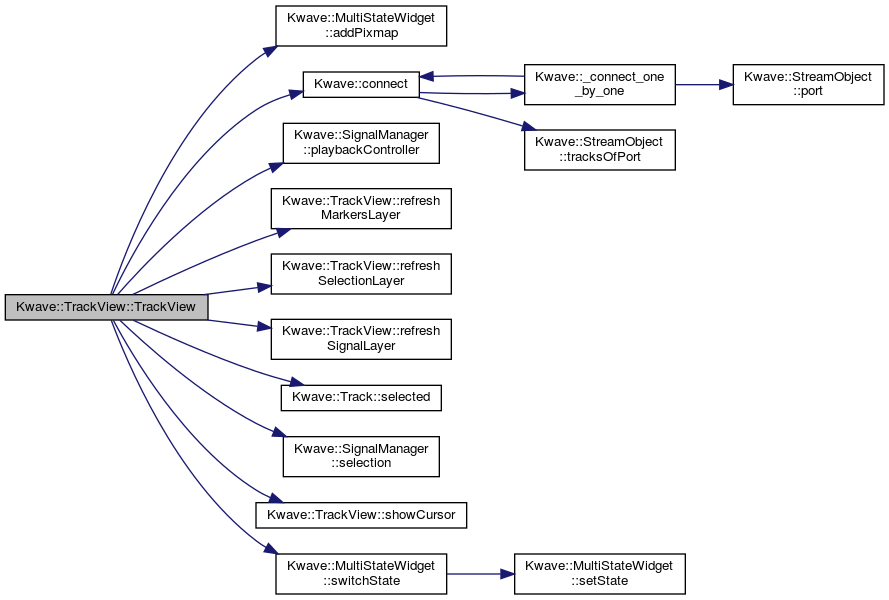

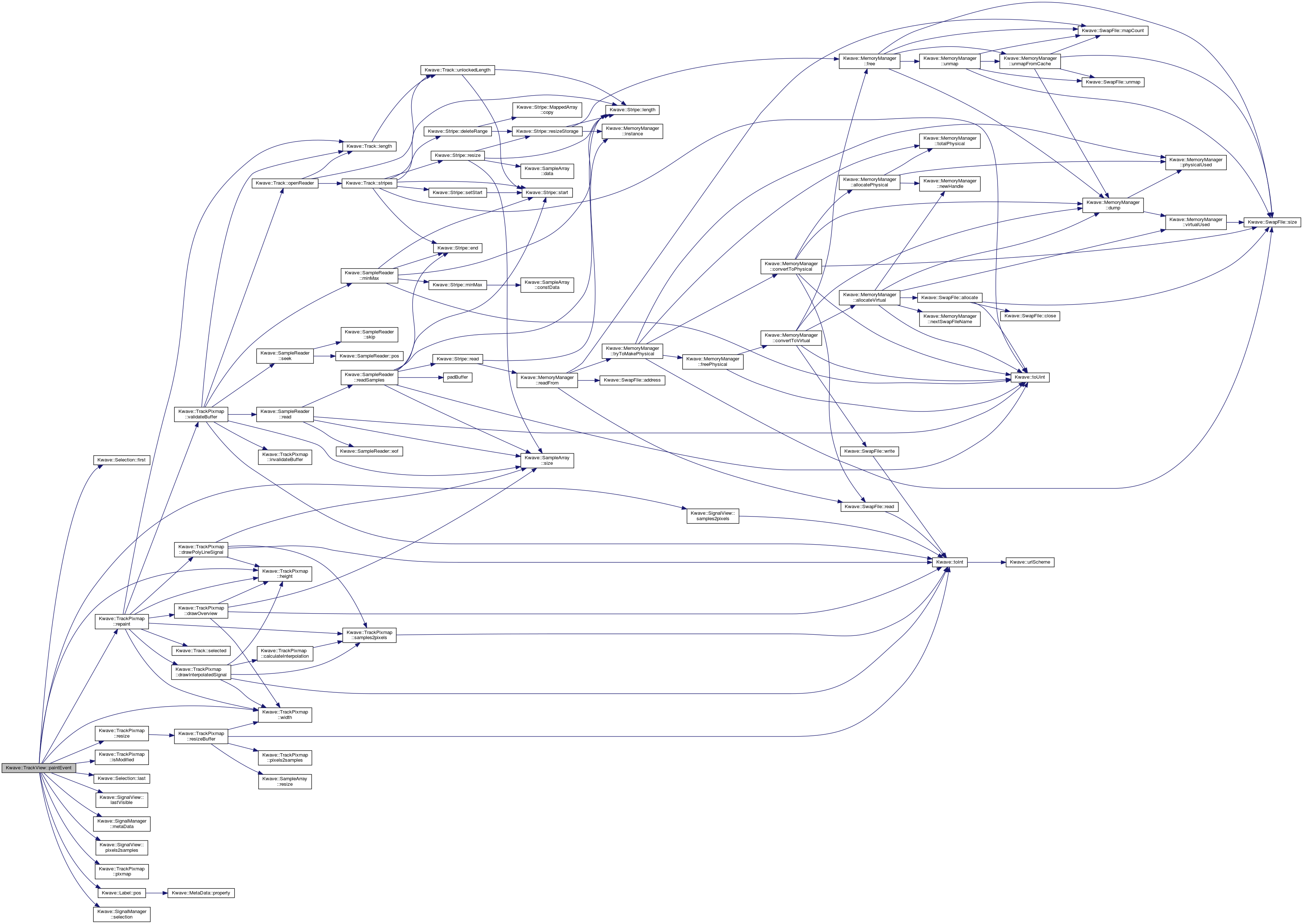

Here is the call graph for this function:

◆ ~TrackView()

Kwave::TrackView::~TrackView ( )
virtual

Destructor

Definition at line 133 of file TrackView.cpp.

134 {
135 }

Member Function Documentation

◆ canHandleSelection()

virtual bool Kwave::TrackView::canHandleSelection ( ) const
inlinevirtual

Should be overwritten by subclasses that can display the currently selected range and allow the user to change the selection by mouse.

Returns
true if mouse selection is handled

Reimplemented from Kwave::SignalView.

Definition at line 90 of file TrackView.h.

References SAMPLE_INDEX_MAX.

90 { return true; }

◆ contextMenuLabelNew

void Kwave::TrackView::contextMenuLabelNew ( )
privateslot

context menu: "label / new"

Definition at line 287 of file TrackView.cpp.

References _, m_mouse_click_position, and Kwave::SignalView::sigCommand().

Referenced by handleContextMenu().

288 {
289  emit sigCommand(_("label:add(%1)").arg(m_mouse_click_position));
290 }
void sigCommand(const QString &command)
sample_index_t m_mouse_click_position
Definition: TrackView.h:170
#define _(m)
Definition: memcpy.c:66
Here is the caller graph for this function:

◆ findItem()

QSharedPointer< Kwave::ViewItem > Kwave::TrackView::findItem ( const QPoint &  pos)
virtual

Tries to find the nearest item that is visible in this view at a given position

Parameters
posposition to look at, relative to view [pixels]
Returns
the nearest ViewObject in range or a null pointer if nothing found

Reimplemented from Kwave::SignalView.

Definition at line 174 of file TrackView.cpp.

References Kwave::Selection::first(), Kwave::MetaData::isNull(), Kwave::Selection::last(), Kwave::Selection::length(), Kwave::SignalView::m_offset, Kwave::SignalView::m_signal_manager, Kwave::SignalView::m_zoom, Kwave::SignalManager::metaData(), Kwave::SignalView::offset(), Kwave::SignalView::pixels2samples(), Kwave::Label::pos(), Kwave::SignalManager::selection(), and Kwave::SignalView::selectionTolerance().

175 {
176  QSharedPointer<Kwave::ViewItem> item =
177  QSharedPointer<Kwave::ViewItem>(Q_NULLPTR);
178  Q_ASSERT(m_signal_manager);
179  if (!m_signal_manager) return item;
180
181  const double offset = m_offset + pixels2samples(pos.x()); // [samples]
182  const double tolerance = m_zoom * selectionTolerance(); // [samples]
183  const double fine_pos = static_cast<double>(m_offset) +
184  (static_cast<double>(pos.x()) * m_zoom);
185
186  // we support the following items (with this priority):
187  // 1. a label, which can be moved
188  // 2. the border of a selection (left or right), which can be moved
189  // 3. the body of a selection, which can be dragged
190
191  // find the nearest label
192  Kwave::Label nearest_label;
193  unsigned int nearest_label_index = 0;
194  double d_label = tolerance;
195  {
196  unsigned int index = 0;
197  foreach (const Kwave::Label &label,
199  {
200  double d = qAbs(static_cast<double>(label.pos()) - fine_pos);
201  if (d < qMin(d_label, tolerance)) {
202  d_label = d;
203  nearest_label = label;
204  nearest_label_index = index;
205  }
206  index++;
207  }
208  }
209
210  // get information about the current selection
211  double selection_first = static_cast<double>(
213  double selection_last = static_cast<double>(
215  bool selection_is_empty = (m_signal_manager->selection().length() == 0);
216  const double d_selection_left = qAbs(selection_first - fine_pos);
217  const double d_selection_right = qAbs(selection_last - fine_pos);
218
219  // special case: label is near selection left and cursor is left
220  // of selection -> take the label
221  // (or vice versa at the right border)
222  bool prefer_the_label =
223  ((d_selection_left < tolerance) && (fine_pos < selection_first)) ||
224  ((d_selection_right < tolerance) && (fine_pos > selection_last));
225  bool selection_is_nearer =
226  (d_selection_left <= d_label) || (d_selection_right <= d_label);
227  if (selection_is_nearer && !prefer_the_label) {
228  // one of the selection borders is nearer
229  d_label = d_selection_left + d_selection_right;
230  }
231
232  if ( (d_label <= qMin(d_selection_left, d_selection_right)) &&
233  !nearest_label.isNull() ) {
234  // found a label
235  return QSharedPointer<Kwave::ViewItem>(new(std::nothrow)
237  nearest_label_index, nearest_label));
238  }
239
240  if ( (d_selection_left < qMin(tolerance, d_selection_right)) ||
241  ((d_selection_left < tolerance) && selection_is_empty) )
242  {
243  // found selection border (left) or empty selection
244  return QSharedPointer<Kwave::ViewItem>(new(std::nothrow)
246  *this, *m_signal_manager,
248  }
249
250  if (d_selection_right < qMin(tolerance, d_selection_left)) {
251  // found selection border (right)
252  return QSharedPointer<Kwave::ViewItem>(new(std::nothrow)
254  *this, *m_signal_manager,
256  }
257
258  if ((offset >= selection_first) && (offset <= selection_last)) {
259  // found selection body
260  return QSharedPointer<Kwave::ViewItem>(new(std::nothrow)
262  }
263
264  // nothing found
265  return QSharedPointer<Kwave::ViewItem>(Q_NULLPTR);
266 }
sample_index_t m_offset
Definition: SignalView.h:348
sample_index_t first() const
Definition: Selection.h:71
virtual int selectionTolerance() const
Definition: SignalView.cpp:542
sample_index_t last() const
Definition: Selection.h:76
Kwave::MetaDataList & metaData()
Kwave::Selection & selection()
virtual sample_index_t pos() const
Definition: Label.cpp:56
sample_index_t offset() const
Definition: SignalView.h:110
sample_index_t length() const
Definition: Selection.h:66
virtual bool isNull() const
Definition: MetaData.cpp:69
sample_index_t pixels2samples(int pixels) const
Definition: SignalView.cpp:155
Kwave::SignalManager * m_signal_manager
Definition: SignalView.h:336
Here is the call graph for this function:

◆ handleContextMenu()

void Kwave::TrackView::handleContextMenu ( const QPoint &  pos,
QMenu *  menu
)
virtual

Called when the context menu has been activated over this view

Parameters
posa position in pixel within this widget
menupointer to the context menu

Reimplemented from Kwave::SignalView.

Definition at line 269 of file TrackView.cpp.

References _, contextMenuLabelNew(), m_mouse_click_position, Kwave::SignalView::m_offset, and Kwave::SignalView::pixels2samples().

270 {
271  QMenu *submenu_label = menu->addMenu(i18n("Label"));
272  Q_ASSERT(submenu_label);
273  if (!submenu_label) return;
274
275  // add label
276  QAction *action_label_new = submenu_label->addAction(
277  QIcon::fromTheme(_("list-add")),
278  i18n("New"), this, SLOT(contextMenuLabelNew()));
279  Q_ASSERT(action_label_new);
280  if (!action_label_new) return;
281
282  // store the menu position
284 }
sample_index_t m_offset
Definition: SignalView.h:348
sample_index_t m_mouse_click_position
Definition: TrackView.h:170
void contextMenuLabelNew()
Definition: TrackView.cpp:287
sample_index_t pixels2samples(int pixels) const
Definition: SignalView.cpp:155
#define _(m)
Definition: memcpy.c:66

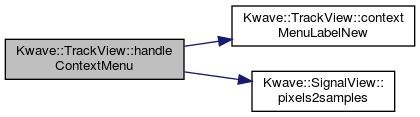

Here is the call graph for this function:

◆ paintEvent()

void Kwave::TrackView::paintEvent ( QPaintEvent *  )
virtual

slot for repainting the widget or portions of it

Definition at line 337 of file TrackView.cpp.

References Kwave::Selection::first(), Kwave::TrackPixmap::height(), Kwave::TrackPixmap::isModified(), Kwave::Selection::last(), Kwave::SignalView::lastVisible(), m_cursor_pos, m_image, m_img_markers, m_img_markers_needs_refresh, m_img_selection, m_img_selection_needs_refresh, m_img_signal, m_img_signal_needs_refresh, m_last_height, m_last_width, Kwave::SignalView::m_offset, m_pixmap, Kwave::SignalView::m_signal_manager, Kwave::SignalManager::metaData(), Kwave::SignalView::pixels2samples(), Kwave::TrackPixmap::pixmap(), Kwave::Label::pos(), Kwave::TrackPixmap::repaint(), Kwave::TrackPixmap::resize(), SAMPLE_INDEX_MAX, Kwave::SignalView::samples2pixels(), Kwave::SignalManager::selection(), and Kwave::TrackPixmap::width().

338 {
339  Q_ASSERT(m_signal_manager);
340  if (!m_signal_manager) return;
341
342 // qDebug("TrackView::paintEvent()");
343 // #define DEBUG_REPAINT_TIMES
344 #ifdef DEBUG_REPAINT_TIMES
345  QTime time;
346  time.start();
347 #endif /* DEBUG_REPAINT_TIMES */
348
349  QPainter p;
350  const int width = QWidget::width();
351  const int height = QWidget::height();
352
353 // qDebug("TrackView::paintEvent(): width=%d, height=%d", width, height);
354
355  // --- detect size changes and refresh the whole image ---
356  if ((width > m_last_width) || (height != m_last_height)) {
357 // qDebug("TrackView::paintEvent(): window size changed from "
358 // "%dx%d to %dx%d", m_last_width, m_last_height, width, height);
359
360  // create new images for the layers
361  const QImage::Format format = QImage::Format_ARGB32_Premultiplied;
362  m_img_signal = QImage(width, height, format);
363  m_img_selection = QImage(width, height, format);
364  m_img_markers = QImage(width, height, format);
365
366  // create a new target image
367  m_image = QImage(width, height, format);
368
369  // mark all images as "need refresh"
373
374  // remember the last width
375  m_last_width = width;
376  m_last_height = height;
377  }
378
379  // --- repaint of the signal layer ---
381 // qDebug("TrackView::paintEvent(): - redraw of signal layer -");
382
383  p.begin(&m_img_signal);
384
385  // fix the width and height of the track pixmap
386  if ((m_pixmap.width() < width) || (m_pixmap.height() != height))
387  m_pixmap.resize(width, height);
388
389  // refresh the pixmap
390  if (m_pixmap.isModified())
391  m_pixmap.repaint();
392
393  p.setCompositionMode(QPainter::CompositionMode_Source);
394  p.drawPixmap(0, 0, m_pixmap.pixmap());
395  p.end();
396
398  }
399
400  // --- repaint of the markers layer ---
402 // qDebug("TrackView::paintEvent(): - redraw of markers layer -");
403
404  p.begin(&m_img_markers);
405  p.fillRect(0, 0, width, height, Qt::black);
406
407  int last_marker = -1;
408  const sample_index_t last_visible = lastVisible();
409  foreach (const Kwave::Label &label,
411  {
412  sample_index_t pos = label.pos();
413  if (pos < m_offset) continue; // outside left
414  if (pos > last_visible) break; // far outside right, done
415  int x = samples2pixels(pos - m_offset);
416  if (x >= width) break; // outside right, done
417
418  // position must differ from the last one, otherwise we
419  // would wipe out the last one with XOR mode
420  if (x == last_marker) continue;
421
422  p.setPen(Qt::cyan);
423  p.setCompositionMode(QPainter::CompositionMode_Exclusion);
424  p.drawLine(x, 0, x, height);
425
426  last_marker = x;
427  }
428
429  p.end();
430
432  }
433
434  // --- repaint of the selection layer ---
436 // qDebug("TrackView::paintEvent(): - redraw of selection layer -");
437
438  p.begin(&m_img_selection);
439  p.fillRect(0, 0, width, height, Qt::black);
440
443  const sample_index_t visible = pixels2samples(width);
444
445  if ((right > 0) && (right >= m_offset)) {
446
447  // shift and clip the selection, relative to m_offset
448  left = (left > m_offset) ? (left - m_offset) : 0;
449  if (left <= visible) {
450  right -= m_offset;
451  if (right > visible) right = visible + 1;
452
453  // transform to pixel coordinates
454  int l = samples2pixels(left);
455  int r = samples2pixels(right);
456
457  // clip to the widget's size
458  if (r >= width) r = width - 1;
459  if (l > r) l = r;
460
461  p.setPen(Qt::yellow);
462  if (l == r) {
463  p.drawLine(l, 0, l, height);
464  } else {
465  p.setBrush(Qt::yellow);
466  p.drawRect(l, 0, r - l + 1, height);
467  }
468  }
469  }
470  p.end();
471
473  }
474
475  // bitBlt all layers together
476  p.begin(&m_image);
477  p.fillRect(0, 0, width, height, Qt::black);
478
479  // paint the signal layer (copy mode)
480  p.setCompositionMode(QPainter::CompositionMode_Source);
481  p.drawImage(0, 0, m_img_signal);
482
483  // paint the selection layer (XOR mode)
484  p.setCompositionMode(QPainter::CompositionMode_Exclusion);
485  p.drawImage(0, 0, m_img_selection);
486
487  // paint the markers/labels layer (XOR mode)
488  p.setCompositionMode(QPainter::CompositionMode_Exclusion);
489  p.drawImage(0, 0, m_img_markers);
490
491  // --- show the cursor position ---
492  do
493  {
494  if (m_cursor_pos == SAMPLE_INDEX_MAX) break;
495  if (m_cursor_pos < m_offset) break;
496  const sample_index_t visible = pixels2samples(width);
497  if (m_cursor_pos >= m_offset + visible) break;
498
500  if (x >= width) break;
501
502  p.setPen(Qt::yellow);
503  p.setCompositionMode(QPainter::CompositionMode_Exclusion);
504  p.drawLine(x, 0, x, height);
505  } while (0);
506
507  p.end();
508
509  // draw the result
510  p.begin(this);
511  p.drawImage(0, 0, m_image);
512  p.end();
513
514 #ifdef DEBUG_REPAINT_TIMES
515  qDebug("TrackView::paintEvent() -- done, t=%d ms --", time.elapsed());
516 #endif /* DEBUG_REPAINT_TIMES */
517 }
sample_index_t lastVisible() const
Definition: SignalView.h:130
QImage m_img_selection
Definition: TrackView.h:155
bool m_img_signal_needs_refresh
Definition: TrackView.h:161
bool m_img_markers_needs_refresh
Definition: TrackView.h:167
sample_index_t m_offset
Definition: SignalView.h:348
sample_index_t first() const
Definition: Selection.h:71
virtual int width() const
Definition: TrackPixmap.h:90
virtual const QPixmap & pixmap() const
Definition: TrackPixmap.h:102
sample_index_t last() const
Definition: Selection.h:76
QImage m_img_signal
Definition: TrackView.h:152
Kwave::MetaDataList & metaData()
virtual void repaint()
Kwave::Selection & selection()
virtual sample_index_t pos() const
Definition: Label.cpp:56
virtual int height() const
Definition: TrackPixmap.h:96
quint64 sample_index_t
Definition: Sample.h:28
virtual void resize(int width, int height)
Kwave::TrackPixmap m_pixmap
Definition: TrackView.h:140
QImage m_img_markers
Definition: TrackView.h:158
sample_index_t pixels2samples(int pixels) const
Definition: SignalView.cpp:155
Kwave::SignalManager * m_signal_manager
Definition: SignalView.h:336
virtual bool isModified()
bool m_img_selection_needs_refresh
Definition: TrackView.h:164
sample_index_t m_cursor_pos
Definition: TrackView.h:173
#define SAMPLE_INDEX_MAX
Definition: Sample.h:31
int samples2pixels(sample_index_t samples) const
Definition: SignalView.cpp:149
Here is the call graph for this function:

◆ refresh()

void Kwave::TrackView::refresh ( )
virtual

refreshes the bitmap that displays the signal

Reimplemented from Kwave::SignalView.

Definition at line 138 of file TrackView.cpp.

References m_pixmap, and Kwave::TrackPixmap::repaint().

139 {
140 // qDebug("Kwave::TrackView[%d]::refresh()", track());
141  m_pixmap.repaint();
142  repaint();
143 }
virtual void repaint()
Kwave::TrackPixmap m_pixmap
Definition: TrackView.h:140
Here is the call graph for this function:

◆ refreshAllLayers

void Kwave::TrackView::refreshAllLayers ( )
privateslot

requests a refresh of all layers

Definition at line 328 of file TrackView.cpp.

References m_img_markers_needs_refresh, m_img_selection_needs_refresh, m_img_signal_needs_refresh, and Kwave::SignalView::sigNeedRepaint().

Referenced by resizeEvent(), and setZoomAndOffset().

329 {
333  emit sigNeedRepaint(this);
334 }
bool m_img_signal_needs_refresh
Definition: TrackView.h:161
bool m_img_markers_needs_refresh
Definition: TrackView.h:167
bool m_img_selection_needs_refresh
Definition: TrackView.h:164
void sigNeedRepaint(Kwave::SignalView *view)
Here is the caller graph for this function:

◆ refreshMarkersLayer

void Kwave::TrackView::refreshMarkersLayer ( )
privateslot

requests a refresh of the markers layer

Definition at line 321 of file TrackView.cpp.

References m_img_markers_needs_refresh, and Kwave::SignalView::sigNeedRepaint().

Referenced by TrackView().

322 {
324  emit sigNeedRepaint(this);
325 }
bool m_img_markers_needs_refresh
Definition: TrackView.h:167
void sigNeedRepaint(Kwave::SignalView *view)
Here is the caller graph for this function:

◆ refreshSelectionLayer

void Kwave::TrackView::refreshSelectionLayer ( )
privateslot

requests a refresh of the selection layer

Definition at line 314 of file TrackView.cpp.

References m_img_selection_needs_refresh, and Kwave::SignalView::sigNeedRepaint().

Referenced by TrackView().

315 {
317  emit sigNeedRepaint(this);
318 }
bool m_img_selection_needs_refresh
Definition: TrackView.h:164
void sigNeedRepaint(Kwave::SignalView *view)
Here is the caller graph for this function:

◆ refreshSignalLayer

void Kwave::TrackView::refreshSignalLayer ( )
privateslot

requests a refresh of the signal layer

Definition at line 307 of file TrackView.cpp.

References m_img_signal_needs_refresh, and Kwave::SignalView::sigNeedRepaint().

Referenced by TrackView().

308 {
310  emit sigNeedRepaint(this);
311 }
bool m_img_signal_needs_refresh
Definition: TrackView.h:161
void sigNeedRepaint(Kwave::SignalView *view)
Here is the caller graph for this function:

◆ resizeEvent()

void Kwave::TrackView::resizeEvent ( QResizeEvent *  event)
virtual

called when the widget has been resized

Definition at line 293 of file TrackView.cpp.

References m_last_height, m_last_width, and refreshAllLayers().

294 {
295  Kwave::SignalView::resizeEvent(event);
296  if (!event) return;
297
298  // request a repaint on all size changes, but not on horizontal shrink
299  if ((event->size().width() > m_last_width) ||
300  (event->size().height() != m_last_height))
301  {
303  }
304 }
void refreshAllLayers()
Definition: TrackView.cpp:328
Here is the call graph for this function:

◆ setVerticalZoom()

void Kwave::TrackView::setVerticalZoom ( double  zoom)
virtual

sets new vertical zoom factor

Parameters
zoomvertical zoom factor

Reimplemented from Kwave::SignalView.

Definition at line 158 of file TrackView.cpp.

References Kwave::SignalView::contentSizeChanged(), MINIMUM_HEIGHT, Kwave::SignalView::setVerticalZoom(), Kwave::toInt(), and Kwave::SignalView::verticalZoom().

159 {
160  const int old_height = this->height();
161  const double old_zoom = verticalZoom();
162
163  if (old_height > MINIMUM_HEIGHT * old_zoom) {
164  // stretched mode
165  zoom *= double(old_height) / (old_zoom * double(MINIMUM_HEIGHT));
166  }
167
169  setMinimumHeight(Kwave::toInt(MINIMUM_HEIGHT * zoom));
170  emit contentSizeChanged();
171 }
#define MINIMUM_HEIGHT
Definition: TrackView.cpp:44
void contentSizeChanged()
virtual void setVerticalZoom(double zoom)
Definition: SignalView.cpp:137
int toInt(T x)
Definition: Utils.h:127
double verticalZoom() const
Definition: SignalView.h:120
double zoom() const
Definition: SignalView.h:115

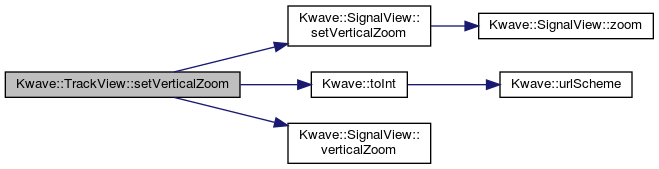

Here is the call graph for this function:

◆ setZoomAndOffset()

void Kwave::TrackView::setZoomAndOffset ( double  zoom,
sample_index_t  offset
)
virtual

sets new zoom factor and offset

Parameters
zoomthe new zoom factor in pixels/sample
offsetthe index of the first visible sample

Reimplemented from Kwave::SignalView.

Definition at line 146 of file TrackView.cpp.

References Kwave::TrackPixmap::isModified(), m_pixmap, refreshAllLayers(), Kwave::TrackPixmap::setOffset(), Kwave::TrackPixmap::setZoom(), and Kwave::SignalView::setZoomAndOffset().

147 {
148  Q_ASSERT(zoom >= 0.0);
152  if (m_pixmap.isModified()) {
154  }
155 }
void refreshAllLayers()
Definition: TrackView.cpp:328
sample_index_t offset() const
Definition: SignalView.h:110
void setOffset(sample_index_t offset)
Definition: TrackPixmap.cpp:82
Kwave::TrackPixmap m_pixmap
Definition: TrackView.h:140
virtual bool isModified()
double zoom() const
Definition: SignalView.h:115
void setZoom(double zoom)
virtual void setZoomAndOffset(double zoom, sample_index_t offset)
Definition: SignalView.cpp:119

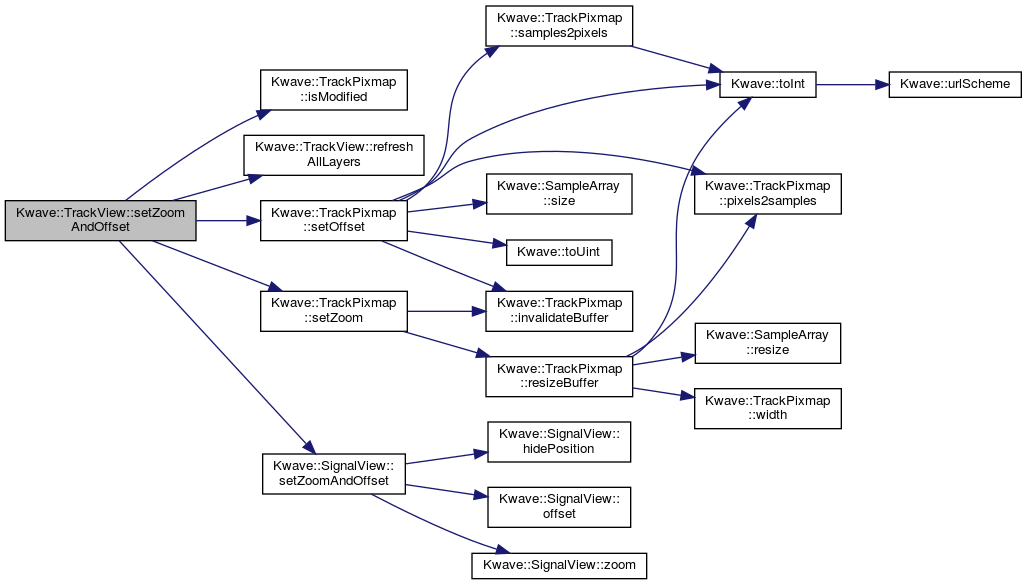

Here is the call graph for this function:

◆ showCursor

void Kwave::TrackView::showCursor ( sample_index_t  pos = SAMPLE_INDEX_MAX)
virtualslot

requests a repaint, as soon as the repaint timer elapsed

Parameters
poscurrent position of the cursor

Definition at line 520 of file TrackView.cpp.

References m_cursor_pos, and Kwave::SignalView::sigNeedRepaint().

Referenced by TrackView().

521 {
522  m_cursor_pos = pos;
523  emit sigNeedRepaint(this);
524 }
sample_index_t m_cursor_pos
Definition: TrackView.h:173
void sigNeedRepaint(Kwave::SignalView *view)
Here is the caller graph for this function:

Member Data Documentation

◆ m_cursor_pos

sample_index_t Kwave::TrackView::m_cursor_pos
private

last known position of the playback pointer

Definition at line 173 of file TrackView.h.

Referenced by paintEvent(), and showCursor().

◆ m_image

QImage Kwave::TrackView::m_image
private

QImage used for composition

Definition at line 149 of file TrackView.h.

Referenced by paintEvent().

◆ m_img_markers

QImage Kwave::TrackView::m_img_markers
private

QImage used for the markers/labels layer

Definition at line 158 of file TrackView.h.

Referenced by paintEvent().

◆ m_img_markers_needs_refresh

bool Kwave::TrackView::m_img_markers_needs_refresh
private

if true, the markers layer needs to be refreshed

Definition at line 167 of file TrackView.h.

Referenced by paintEvent(), refreshAllLayers(), and refreshMarkersLayer().

◆ m_img_selection

QImage Kwave::TrackView::m_img_selection
private

QImage used for the selection layer

Definition at line 155 of file TrackView.h.

Referenced by paintEvent().

◆ m_img_selection_needs_refresh

bool Kwave::TrackView::m_img_selection_needs_refresh
private

if true, the selection layer needs to be refreshed

Definition at line 164 of file TrackView.h.

Referenced by paintEvent(), refreshAllLayers(), and refreshSelectionLayer().

◆ m_img_signal

QImage Kwave::TrackView::m_img_signal
private

QImage used for the signal layer

Definition at line 152 of file TrackView.h.

Referenced by paintEvent().

◆ m_img_signal_needs_refresh

bool Kwave::TrackView::m_img_signal_needs_refresh
private

if true, the signal layer needs to be refreshed

Definition at line 161 of file TrackView.h.

Referenced by paintEvent(), refreshAllLayers(), and refreshSignalLayer().

◆ m_last_height

int Kwave::TrackView::m_last_height
private

last/previous height of the widget, for detecting size changes

Definition at line 146 of file TrackView.h.

Referenced by paintEvent(), and resizeEvent().

◆ m_last_width

int Kwave::TrackView::m_last_width
private

last/previous width of the widget, for detecting size changes

Definition at line 143 of file TrackView.h.

Referenced by paintEvent(), and resizeEvent().

◆ m_mouse_click_position

sample_index_t Kwave::TrackView::m_mouse_click_position
private

position of the last mouse click in samples

Definition at line 170 of file TrackView.h.

Referenced by contextMenuLabelNew(), and handleContextMenu().

◆ m_pixmap

Kwave::TrackPixmap Kwave::TrackView::m_pixmap
private

the track pixmap

Definition at line 140 of file TrackView.h.

Referenced by paintEvent(), refresh(), setZoomAndOffset(), and TrackView().


The documentation for this class was generated from the following files:
