Kwave::SaveBlocksWidget Class Reference

#include <SaveBlocksWidget.h>

Inheritance diagram for Kwave::SaveBlocksWidget:

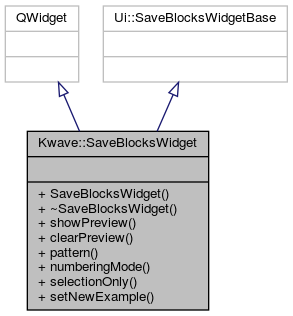

Collaboration diagram for Kwave::SaveBlocksWidget:

Public Slots
void	setNewExample (const QString &example)

Signals
void	somethingChanged ()

Public Member Functions
	SaveBlocksWidget (QWidget *widget, QString filename_pattern, Kwave::SaveBlocksPlugin::numbering_mode_t numbering_mode, bool selection_only, bool have_selection)
virtual	~SaveBlocksWidget ()
virtual void	showPreview (const QUrl &url)
virtual void	clearPreview ()
QString	pattern ()
Kwave::SaveBlocksPlugin::numbering_mode_t	numberingMode ()
bool	selectionOnly ()

Detailed Description

Definition at line 28 of file SaveBlocksWidget.h.

Constructor & Destructor Documentation

SaveBlocksWidget()

Kwave::SaveBlocksWidget::SaveBlocksWidget	(	QWidget *	widget,
		QString	filename_pattern,
		Kwave::SaveBlocksPlugin::numbering_mode_t	numbering_mode,
		bool	selection_only,
		bool	have_selection
	)

Constructor

Parameters

widget	pointer to the parent widget
filename_pattern	the pattern used for generating the file names
numbering_mode	the way the numbers are given
selection_only	if true, save only the selection
have_selection	if true, there is a selection

Definition at line 31 of file SaveBlocksWidget.cpp.

References _, Kwave::connect(), Kwave::INF_NAME, Kwave::FileInfo::name(), and somethingChanged().

    :QWidget(parent), Ui::SaveBlocksWidgetBase()
{
    setupUi(this);

    Kwave::FileInfo info;

    // the file name pattern combo box
    cbPattern->addItem(_("[%2nr]-[%title]"));
    cbPattern->addItem(_("[%filename] part [%nr] of [%total]"));
    cbPattern->addItem(
        _("[%fileinfo{") +
        info.name(Kwave::INF_NAME) +
        _("}] (part [%nr] of [%total])"));
    cbPattern->addItem(_("[%filename] - [%04nr]"));
    cbPattern->addItem(_("[%2nr] [%filename]"));
    cbPattern->addItem(_("[%2nr]-[%filename]"));
    cbPattern->addItem(_("[%02nr]-[%filename]"));
    cbPattern->addItem(_("[%04nr]-[%filename]"));
    cbPattern->addItem(_("[%02nr] of [%count] [%filename]"));
    cbPattern->addItem(_("[%02nr] of [%total] [%filename]"));
    if (filename_pattern.length())
        cbPattern->setEditText(filename_pattern);
    else
        cbPattern->setCurrentIndex(0);

    // the numbering mode combo box
    cbNumbering->setCurrentIndex(static_cast<int>(numbering_mode));

    // the "selection only" checkbox
    if (have_selection) {
        // we have a selection
        chkSelectionOnly->setEnabled(true);
        chkSelectionOnly->setChecked(selection_only);
    } else {
        // no selection -> force it to "off"
        chkSelectionOnly->setEnabled(false);
        chkSelectionOnly->setChecked(false);
    }

    // combo box with pattern
    connect(cbPattern, SIGNAL(editTextChanged(QString)),
            this, SIGNAL(somethingChanged()));
    connect(cbPattern, SIGNAL(highlighted(int)),
            this, SIGNAL(somethingChanged()));
    connect(cbPattern, SIGNAL(activated(int)),
            this, SIGNAL(somethingChanged()));

    // combo box with numbering
    connect(cbNumbering, SIGNAL(editTextChanged(QString)),
            this, SIGNAL(somethingChanged()));
    connect(cbNumbering, SIGNAL(highlighted(int)),
            this, SIGNAL(somethingChanged()));
    connect(cbNumbering, SIGNAL(activated(int)),
            this, SIGNAL(somethingChanged()));

    // selection only checkbox
    connect(chkSelectionOnly, SIGNAL(stateChanged(int)),
            this, SIGNAL(somethingChanged()));
}

Here is the call graph for this function:

~SaveBlocksWidget()

Kwave::SaveBlocksWidget::~SaveBlocksWidget ( )

virtual

Destructor

Definition at line 97 of file SaveBlocksWidget.cpp.

{
}

Member Function Documentation

clearPreview()

virtual void Kwave::SaveBlocksWidget::clearPreview ( )

inlinevirtual

See also

KPreviewWidgetBase::clearPreview

Definition at line 59 of file SaveBlocksWidget.h.

References numberingMode(), pattern(), selectionOnly(), setNewExample(), and somethingChanged().

        {
        }

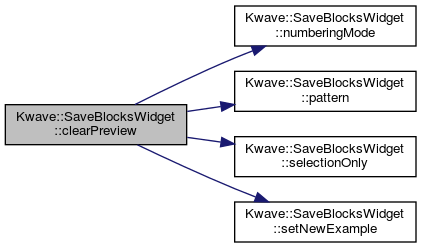

Here is the call graph for this function:

numberingMode()

Kwave::SaveBlocksPlugin::numbering_mode_t Kwave::SaveBlocksWidget::numberingMode

(

)

returns the numbering mode

Definition at line 109 of file SaveBlocksWidget.cpp.

References Kwave::SaveBlocksPlugin::CONTINUE.

Referenced by clearPreview(), and Kwave::SaveBlocksDialog::numberingMode().

{
    Q_ASSERT(cbNumbering);
    return (cbNumbering) ?
        static_cast<Kwave::SaveBlocksPlugin::numbering_mode_t>(
        cbNumbering->currentIndex()) : Kwave::SaveBlocksPlugin::CONTINUE;
}

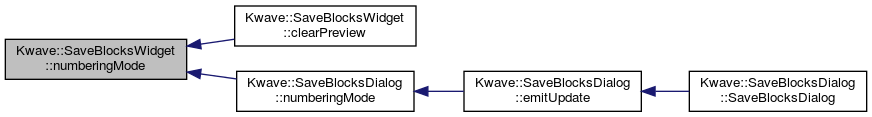

Here is the caller graph for this function:

pattern()

QString Kwave::SaveBlocksWidget::pattern

(

)

returns the file name pattern

Definition at line 102 of file SaveBlocksWidget.cpp.

References _.

Referenced by clearPreview(), and Kwave::SaveBlocksDialog::pattern().

{
    Q_ASSERT(cbPattern);
    return (cbPattern) ? cbPattern->currentText() : _("");
}

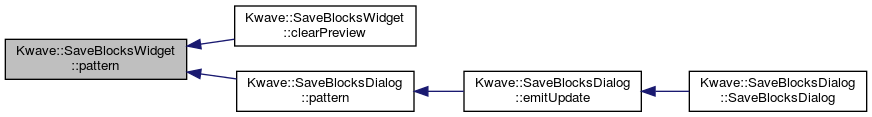

Here is the caller graph for this function:

selectionOnly()

bool Kwave::SaveBlocksWidget::selectionOnly

(

)

returns true if only the selection should be saved

Definition at line 118 of file SaveBlocksWidget.cpp.

Referenced by clearPreview(), and Kwave::SaveBlocksDialog::selectionOnly().

{
    Q_ASSERT(chkSelectionOnly);
    return (chkSelectionOnly) ? chkSelectionOnly->isChecked() : false;
}

Here is the caller graph for this function:

setNewExample

void Kwave::SaveBlocksWidget::setNewExample ( const QString &  example )

slot

update the filename preview

Parameters

example

the example filename

Definition at line 125 of file SaveBlocksWidget.cpp.

Referenced by clearPreview(), and Kwave::SaveBlocksDialog::setNewExample().

{
    Q_ASSERT(txtExample);
    if (txtExample) txtExample->setText(example);
}

Here is the caller graph for this function:

showPreview()

virtual void Kwave::SaveBlocksWidget::showPreview ( const QUrl &  url )

inlinevirtual

See also

KPreviewWidgetBase::showPreview()

Definition at line 53 of file SaveBlocksWidget.h.

        {
            Q_UNUSED(url);
        }

somethingChanged

void Kwave::SaveBlocksWidget::somethingChanged ( )

signal

emitted whenever one of the input controls has changed

Referenced by clearPreview(), and SaveBlocksWidget().

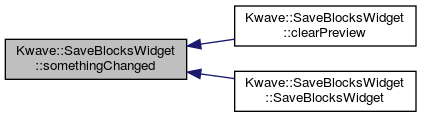

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• plugins/saveblocks/SaveBlocksWidget.h
• plugins/saveblocks/SaveBlocksWidget.cpp
