#include <SaveBlocksPlugin.h>

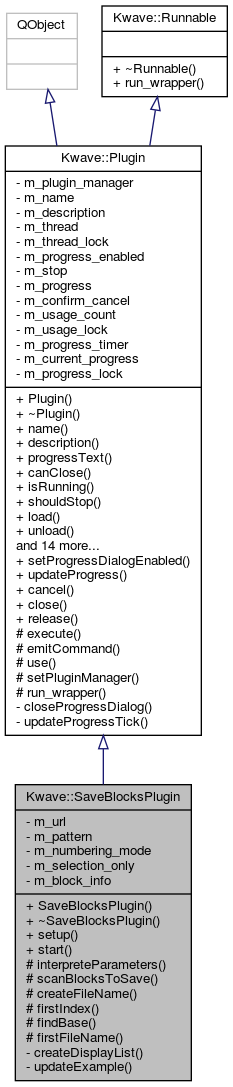

Inheritance diagram for Kwave::SaveBlocksPlugin:

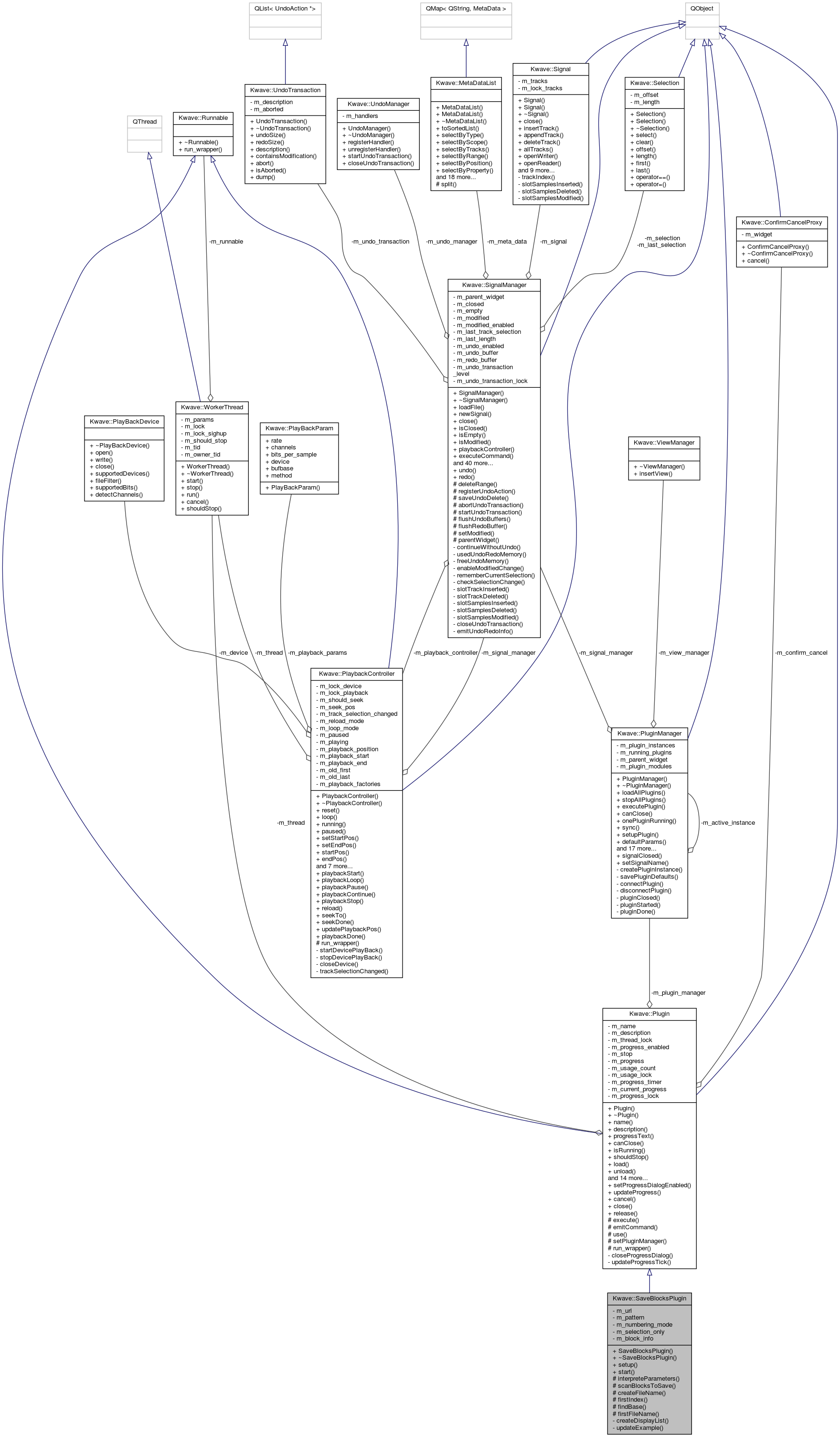

Collaboration diagram for Kwave::SaveBlocksPlugin:

Classes
struct	BlockInfo

Public Types
enum	numbering_mode_t { CONTINUE = 0, START_AT_ONE = 1 }

Signals
void	sigNewExample (const QString &example)

Signals inherited from Kwave::Plugin
void	sigRunning (Kwave::Plugin *plugin)

void	sigDone (Kwave::Plugin *plugin)

void	sigClosed (Kwave::Plugin *p)

void	sigCommand (const QString &command)

void	setProgressText (const QString &text)

Public Member Functions
	SaveBlocksPlugin (QObject *parent, const QVariantList &args)

virtual	~SaveBlocksPlugin () Q_DECL_OVERRIDE

virtual QStringList *	setup (QStringList &previous_params) Q_DECL_OVERRIDE

virtual int	start (QStringList &params) Q_DECL_OVERRIDE

Public Member Functions inherited from Kwave::Plugin
	Plugin (QObject *parent, const QVariantList &args)

virtual	~Plugin () Q_DECL_OVERRIDE

virtual QString	name () const

virtual QString	description () const

virtual QString	progressText ()

virtual bool	canClose () const

bool	isRunning () const

bool	shouldStop () const

virtual void	load (QStringList &params)

virtual void	unload ()

virtual int	stop ()

virtual void	run (QStringList params)

Kwave::PluginManager &	manager () const

Kwave::SignalManager &	signalManager ()

QWidget *	parentWidget () const

QString	signalName ()

virtual sample_index_t	signalLength ()

virtual double	signalRate ()

virtual const QList< unsigned int >	selectedTracks ()

virtual sample_index_t	selection (QList< unsigned int > tracks=Q_NULLPTR, sample_index_t left=Q_NULLPTR, sample_index_t *right=Q_NULLPTR, bool expand_if_empty=false)

virtual void	selectRange (sample_index_t offset, sample_index_t length)

virtual void	migrateToActiveContext ()

Public Member Functions inherited from Kwave::Runnable
virtual	~Runnable ()

Protected Member Functions
int	interpreteParameters (QStringList &params)

void	scanBlocksToSave (const QString &base, bool selection_only)

QString	createFileName (const QString &base, const QString &ext, const QString &pattern, unsigned int index, int count, int total)

unsigned int	firstIndex (const QString &path, const QString &base, const QString &ext, const QString &pattern, Kwave::SaveBlocksPlugin::numbering_mode_t mode, unsigned int count)

QString	findBase (const QString &filename, const QString &pattern)

QString	firstFileName (const QString &filename, const QString &pattern, numbering_mode_t mode, bool selection_only)

Protected Member Functions inherited from Kwave::Plugin
int	execute (QStringList &params)

void	emitCommand (const QString &command)

void	use ()

void	setPluginManager (Kwave::PluginManager *new_plugin_manager)

virtual void	run_wrapper (const QVariant &params) Q_DECL_OVERRIDE

Private Slots
void	updateExample (const QString &filename, const QString &pattern, Kwave::SaveBlocksPlugin::numbering_mode_t mode, bool selection_only)

Private Member Functions
QString	createDisplayList (const QStringList &list, unsigned int max_entries) const

Private Attributes
QUrl	m_url

QString	m_pattern

numbering_mode_t	m_numbering_mode

bool	m_selection_only

QList< BlockInfo >	m_block_info

Additional Inherited Members
Public Slots inherited from Kwave::Plugin
virtual void	setProgressDialogEnabled (bool enable)

virtual void	updateProgress (qreal progress)

virtual void	cancel ()

virtual void	close ()

void	release ()

Detailed Description

Definition at line 33 of file SaveBlocksPlugin.h.

Member Enumeration Documentation

◆ numbering_mode_t

enum Kwave::SaveBlocksPlugin::numbering_mode_t

mode for numbering the output files

Enumerator
CONTINUE
START_AT_ONE

Definition at line 64 of file SaveBlocksPlugin.h.

                      {
             CONTINUE      = 0,
             START_AT_ONE  = 1
         } numbering_mode_t;

Constructor & Destructor Documentation

◆ SaveBlocksPlugin()

Kwave::SaveBlocksPlugin::SaveBlocksPlugin	(	QObject *	parent,
		const QVariantList &	args
	)

Constructor

Parameters

parent	reference to our plugin manager
args	argument list [unused]

Definition at line 47 of file SaveBlocksPlugin.cpp.

     :Kwave::Plugin(parent, args),
      m_url(), m_pattern(), m_numbering_mode(CONTINUE),
      m_selection_only(true), m_block_info()
 {
 }

◆ ~SaveBlocksPlugin()

Kwave::SaveBlocksPlugin::~SaveBlocksPlugin ( )

virtual

Destructor

Definition at line 56 of file SaveBlocksPlugin.cpp.

57 {

58 }

Member Function Documentation

◆ createDisplayList()

QString Kwave::SaveBlocksPlugin::createDisplayList	(	const QStringList &	list,
		unsigned int	max_entries
	)		const

private

internal helper to create a string that contains a HTML formated list of file names or directories

Parameters

list	a list of file names or directories
max_entries	maximum number of entries to render

Returns: the list as a single string, separated by "\<br\>"

Definition at line 159 of file SaveBlocksPlugin.cpp.

References _.

Referenced by start().

 {
     if (!max_entries || list.isEmpty()) return QString();

     QString retval;
     unsigned int count = 0;

     foreach (const QString &entry, list) {
         if (count == 0) // first entry
             retval = _("<br><br>");
         if (count < max_entries)
             retval += entry + _("<br>");
         else if (count == max_entries)
             retval += i18n("...") + _("<br>");

         if (++count > max_entries)
             break;
     }

     return retval;
 }

Here is the caller graph for this function:

◆ createFileName()

QString Kwave::SaveBlocksPlugin::createFileName	(	const QString &	base,
		const QString &	ext,
		const QString &	pattern,
		unsigned int	index,
		int	count,
		int	total
	)

protected

create a filename (without extension) out of a given base name, pattern, index and count

Parameters

base	the base name, without indices, extension etc...
ext	the extension (zero-length is allowed)
pattern	the pattern for creating the filename
index	the index of the current file
count	the number of files to save
total	the highest index to save (first + count - 1)

Returns: the name of the file, escaped

Definition at line 497 of file SaveBlocksPlugin.cpp.

References _, Kwave::Parser::escapeForFileName(), Kwave::FileInfo::flags(), Kwave::FileInfo::FP_FORMAT_NUMERIC, Kwave::FileInfo::fromName(), Kwave::FileInfo::get(), Kwave::INF_UNKNOWN, m_block_info, and Kwave::Plugin::signalManager().

Referenced by firstFileName(), firstIndex(), and start().

 {
     QString p = QRegExp::escape(pattern);
     QString nr;

     // format the "index" parameter
     QRegExp rx_nr(_("(\\\\\\[%(\\d*)nr\\\\\\])"), Qt::CaseInsensitive);
     while (rx_nr.indexIn(p) >= 0) {
         QString format = rx_nr.cap(1);
         format = format.mid(2, format.length() - 6);
         QString ex = _("(\\\\\\[") + format + _("nr\\\\\\])");
         QRegExp rx(ex, Qt::CaseInsensitive);
         format += _("u");
         p.replace(rx, nr.sprintf(format.toLatin1(), index));
     }

     // format the "count" parameter
     QRegExp rx_count(_("(\\\\\\[%\\d*count\\\\\\])"), Qt::CaseInsensitive);
     while (rx_count.indexIn(p) >= 0) {
         if (count >= 0) {
             QString format = rx_count.cap(1);
             format = format.mid(2, format.length() - 9);
             QString ex = _("(\\\\\\[") + format + _("count\\\\\\])");
             QRegExp rx(ex, Qt::CaseInsensitive);
             format += _("u");
             p.replace(rx, nr.sprintf(format.toLatin1(), count));
         } else {
             p.replace(rx_count, _("(\\d+)"));
         }
     }

     // format the "total" parameter
     QRegExp rx_total(_("(\\\\\\[%\\d*total\\\\\\])"), Qt::CaseInsensitive);
     while (rx_total.indexIn(p) >= 0) {
         if (total >= 0) {
             QString format = rx_total.cap(1);
             format = format.mid(2, format.length() - 9);
             QString ex = _("(\\\\\\[") + format + _("total\\\\\\])");
             QRegExp rx(ex, Qt::CaseInsensitive);
             format += _("u");
             p.replace(rx, nr.sprintf(format.toLatin1(), total));
         } else {
             p.replace(rx_total, _("(\\d+)"));
         }
     }

     // format the "filename" parameter
     QRegExp rx_filename(_("\\\\\\[%filename\\\\\\]"), Qt::CaseInsensitive);
     if (rx_filename.indexIn(p) >= 0) {
         p.replace(rx_filename, QRegExp::escape(base));
     }

     // support for file info
     QRegExp rx_fileinfo(
         _("\\\\\\[%(\\d*)fileinfo\\\\\\{([\\w\\s]+)\\\\\\}\\\\\\]"),
         Qt::CaseInsensitive
     );
     Kwave::FileInfo info(signalManager().metaData());
     while (rx_fileinfo.indexIn(p) >= 0) {
         const QString format = rx_fileinfo.cap(1);
         const QString id     = rx_fileinfo.cap(2);
         QString value;
         FileProperty property = info.fromName(id);
         if (property != Kwave::INF_UNKNOWN) {
             QVariant val = info.get(property);
             if (!val.isNull()) {
                 // we have a property value
                 value = val.toString();

                 // check for format (desired minimum string length)
                 bool ok  = false;
                 int  len = format.toUInt(&ok);
                 if ((len > 0) && ok) {
                     Kwave::FileInfo::Flags flags = info.flags(property);
                     if (flags & Kwave::FileInfo::FP_FORMAT_NUMERIC) {
                         // numeric format, pad with leading zeros or spaces
                         QString pad = (format.startsWith(QLatin1Char('0'))) ?
                             _("0") : _(" ");
                         while (value.length() < len)
                             value = pad + value;
                     } else {
                         // string format, pad with trailing spaces
                         while (value.length() < len)
                             value = value + _(" ");
                     }
                 }
                 value = Kwave::Parser::escapeForFileName(value);
             }
         }

         QString ex(_("(\\\\\\[%") + format + _("fileinfo\\\\\\{") + id +
                    _("\\\\\\}\\\\\\])"));
         QRegExp rx(ex, Qt::CaseInsensitive);
         p.replace(rx, value);
     }

     // format the "title" parameter
     QRegExp rx_title(_("\\\\\\[%title\\\\\\]"), Qt::CaseInsensitive);
     if (rx_title.indexIn(p) >= 0) {
         QString title;
         int idx = (index - 1) - (total - count);
         if ((idx >= 0) && (idx < m_block_info.count()))
             title = m_block_info[idx].m_title;
         if (title.length()) {
             title = Kwave::Parser::escapeForFileName(title);
             p.replace(rx_title, title);
         }
     }

     if (ext.length()) p += _(".") + ext;

     // sanitize the filename/path, make sure that there are no spaces
     // before and after all path separators
     QString sep = _("/");
     QRegExp rx_sep(_("\\s*") + sep + _("\\s*"));
     p.replace(rx_sep, sep);

     return p;
 }

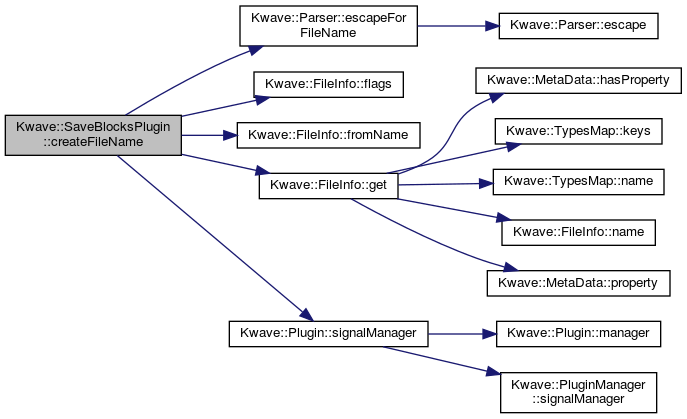

Here is the call graph for this function:

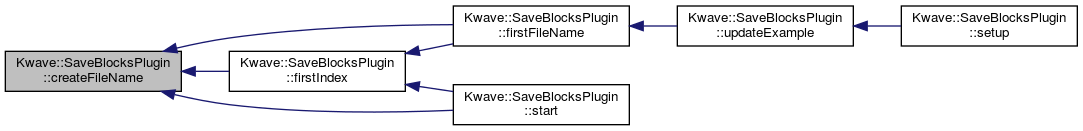

Here is the caller graph for this function:

◆ findBase()

QString Kwave::SaveBlocksPlugin::findBase	(	const QString &	filename,
		const QString &	pattern
	)

protected

Find out the base name out of a given file name, using a given filename pattern. If the given file name is already produced (matched) by this pattern, the base name will be cut out of the file name.

Parameters

filename	the file name to check
pattern	the selected filename pattern

Returns: the base name of the file, without path and extension

Definition at line 648 of file SaveBlocksPlugin.cpp.

References _, and Kwave::Plugin::name().

Referenced by firstFileName(), setup(), and start().

 {
     QFileInfo file(filename);
     QString name = file.fileName();
     QString base = file.completeBaseName();
     QString ext  = file.suffix();

     // convert the pattern into a regular expression in order to check if
     // the current name already is produced by the current pattern
     // \[%[0-9]?nr\]      -> \d+
     // \[%[0-9]?count\]   -> \d+
     // \[%[0-9]?total\]   -> \d+
     // \[%filename\]      -> base
     // \[%fileinfo\]      -> .
     // \[%title\]         -> .
     QRegExp rx_nr(_("\\\\\\[%\\d*nr\\\\\\]"), Qt::CaseInsensitive);
     QRegExp rx_count(_("\\\\\\[%\\d*count\\\\\\]"), Qt::CaseInsensitive);
     QRegExp rx_total(_("\\\\\\[%\\d*total\\\\\\]"), Qt::CaseInsensitive);
     QRegExp rx_filename(_("\\\\\\[%filename\\\\\\]"), Qt::CaseInsensitive);
     QRegExp rx_fileinfo(_("\\\\\\[%fileinfo\\\\\\]"), Qt::CaseInsensitive);
     QRegExp rx_title(_("\\\\\\[%title\\\\\\]"), Qt::CaseInsensitive);

     QString p = QRegExp::escape(pattern);
     int idx_nr       = rx_nr.indexIn(p);
     int idx_count    = rx_count.indexIn(p);
     int idx_total    = rx_total.indexIn(p);
     int idx_filename = rx_filename.indexIn(p);
     int idx_fileinfo = rx_fileinfo.indexIn(p);
     int idx_title    = rx_fileinfo.indexIn(p);
     p.replace(rx_nr,       _("(\\d+)"));
     p.replace(rx_count,    _("(\\d+)"));
     p.replace(rx_total,    _("(\\d+)"));
     p.replace(rx_filename, _("(.+)"));
     p.replace(rx_fileinfo, _("(.+)"));
     p.replace(rx_title,    _("(.+)"));

     int max = 0;
     for (int i = 0; i < pattern.length(); i++) {
         if (idx_nr       == max) max++;
         if (idx_count    == max) max++;
         if (idx_total    == max) max++;
         if (idx_filename == max) max++;
         if (idx_fileinfo == max) max++;
         if (idx_title    == max) max++;

         if (idx_nr       > max) idx_nr--;
         if (idx_count    > max) idx_count--;
         if (idx_total    > max) idx_total--;
         if (idx_filename > max) idx_filename--;
         if (idx_fileinfo > max) idx_fileinfo--;
         if (idx_title    > max) idx_title--;
     }

     if (ext.length()) p += _(".") + ext;
     QRegExp rx_current(p, Qt::CaseInsensitive);
     if (rx_current.indexIn(name) >= 0) {
         // filename already produced by this pattern
         base = rx_current.cap(idx_filename + 1);
     }

     return base;
 }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ firstFileName()

QString Kwave::SaveBlocksPlugin::firstFileName	(	const QString &	filename,
		const QString &	pattern,
		numbering_mode_t	mode,
		bool	selection_only
	)

protected

determines the first file name that matches the given filename, pattern, mode and selection

Parameters

filename	the currently selected filename
pattern	the selected filename pattern
mode	the numbering mode
selection_only	if true: save only the selection

Returns: name of the first file, escaped

Definition at line 713 of file SaveBlocksPlugin.cpp.

References createFileName(), findBase(), firstIndex(), m_block_info, and scanBlocksToSave().

Referenced by updateExample().

 {
     QFileInfo file(filename);
     QString path = file.absolutePath();
     QString ext  = file.suffix();
     QString base = findBase(filename, pattern);

     // now we have a new name, base and extension
     // -> find out the numbering, min/max etc...
     scanBlocksToSave(base, selection_only);
     unsigned int count = m_block_info.count();
     unsigned int first = firstIndex(path, base, ext, pattern, mode, count);
     unsigned int total = first + count - 1;

     // create the complete filename, including extension but without path
     return createFileName(base, ext, pattern, first, count, total);
 }

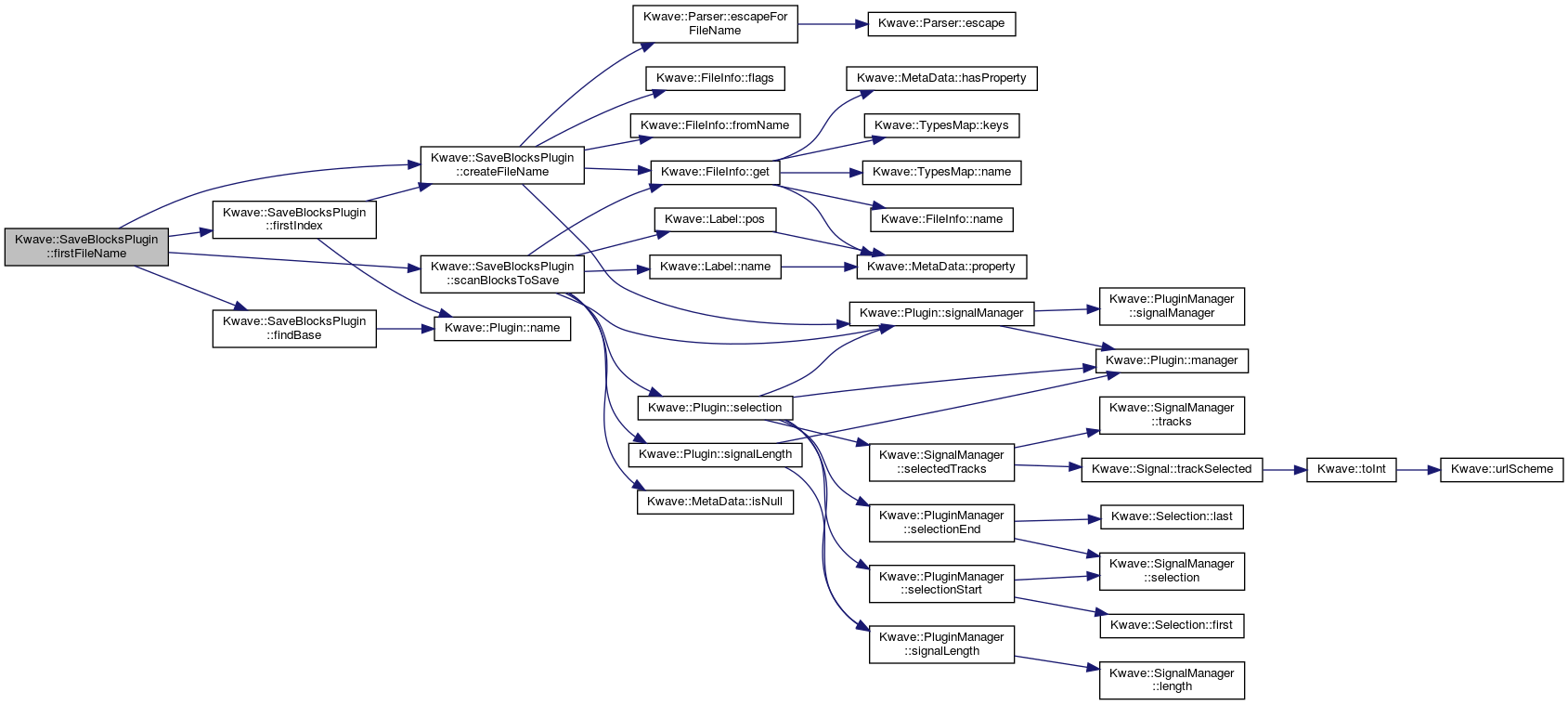

Here is the call graph for this function:

Here is the caller graph for this function:

◆ firstIndex()

unsigned int Kwave::SaveBlocksPlugin::firstIndex	(	const QString &	path,
		const QString &	base,
		const QString &	ext,
		const QString &	pattern,
		Kwave::SaveBlocksPlugin::numbering_mode_t	mode,
		unsigned int	count
	)

protected

determines the index of the first file name that matches the given filename, pattern and mode

Parameters

path	the directory for saving
base	the base name, without indices, extension etc...
ext	the extension (zero-length is allowed)
pattern	the pattern for creating the filename
mode	the numbering mode
count	the total number of files

Returns: the index of the first file, [1...count+X]

Definition at line 620 of file SaveBlocksPlugin.cpp.

References _, CONTINUE, createFileName(), Kwave::Plugin::name(), and START_AT_ONE.

Referenced by firstFileName(), and start().

 {
     unsigned int first = 1;
     switch (mode) {
         case START_AT_ONE:
             first = 1;
             break;
         case CONTINUE: {
             QDir dir(path, _("*"));
             QStringList files;
             files = dir.entryList();
             for (unsigned int i = first; i < (first + count); i++) {
                 QString name = createFileName(base, ext, pattern, i, -1, -1);
                 QRegExp rx(_("^(") + name + _(")$"),
                            Qt::CaseInsensitive);
                 QStringList matches = files.filter(rx);
                 if (matches.count() > 0) first = i + 1;
             }
             break;
         }
     }

     return first;
 }

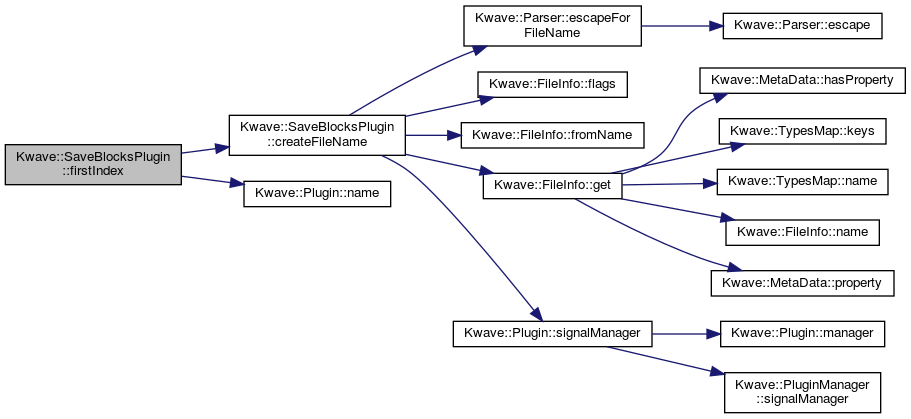

Here is the call graph for this function:

Here is the caller graph for this function:

◆ interpreteParameters()

int Kwave::SaveBlocksPlugin::interpreteParameters ( QStringList & params )

protected

reads values from the parameter list

Definition at line 409 of file SaveBlocksPlugin.cpp.

References CONTINUE, m_numbering_mode, m_pattern, m_selection_only, m_url, START_AT_ONE, and Kwave::Parser::unescape().

Referenced by setup(), and start().

 {
     bool ok;
     QString param;

     // evaluate the parameter list
     if (params.count() != 4) {
         return -EINVAL;
     }

     // the selected URL
     m_url = QUrl::fromUserInput(Kwave::Parser::unescape(params[0]));
     if (!m_url.isValid()) return -EINVAL;

     // filename pattern
     m_pattern = Kwave::Parser::unescape(params[1]);
     if (!m_pattern.length()) return -EINVAL;

     // numbering mode
     param = params[2];
     int mode = param.toInt(&ok);
     Q_ASSERT(ok);
     if (!ok) return -EINVAL;
     if ((mode != CONTINUE) &&
         (mode != START_AT_ONE)) return -EINVAL;
     m_numbering_mode = static_cast<numbering_mode_t>(mode);

     // flag: save only the selection
     param = params[3];
     m_selection_only = (param.toUInt(&ok) != 0);
     Q_ASSERT(ok);
     if (!ok) return -EINVAL;

     return 0;
 }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ scanBlocksToSave()

void Kwave::SaveBlocksPlugin::scanBlocksToSave	(	const QString &	base,
		bool	selection_only
	)

protected

determines the blocks which should be saved, including start position, length and title.

Parameters

base	the base name, without indices, extension etc...
selection_only	if true, save only selected blocks

Definition at line 446 of file SaveBlocksPlugin.cpp.

References Kwave::FileInfo::get(), Kwave::INF_NAME, Kwave::MetaData::isNull(), m_block_info, Kwave::SaveBlocksPlugin::BlockInfo::m_length, Kwave::SaveBlocksPlugin::BlockInfo::m_start, Kwave::SaveBlocksPlugin::BlockInfo::m_title, Kwave::Label::name(), Kwave::Label::pos(), Kwave::Plugin::selection(), Kwave::Plugin::signalLength(), and Kwave::Plugin::signalManager().

Referenced by firstFileName(), setup(), and start().

 {
     sample_index_t selection_left, selection_right;

     sample_index_t block_start;
     sample_index_t block_end = 0;
     QString        block_title;
     Kwave::LabelList labels(signalManager().metaData());
     Kwave::LabelListIterator it(labels);
     Kwave::Label label = (it.hasNext()) ? it.next() : Kwave::Label();

     if (selection_only) {
         selection(Q_NULLPTR, &selection_left, &selection_right, true);
     } else {
         selection_left  = 0;
         selection_right = signalLength() - 1;
     }

     // get the title of the whole file, in case that a block does not have
     // an own title
     FileInfo info(signalManager().metaData());
     QString file_title = info.get(INF_NAME).toString();

     // fallback: if there is no INF_NAME either, fall back to the file
     //           name as last resort
     if (!file_title.length()) file_title = base;

     m_block_info.clear();
     QString prev_title;
     for (;;) {
         block_start = block_end;
         block_end   = (label.isNull()) ? signalLength() : label.pos();
         block_title = prev_title;
         prev_title  = (label.isNull()) ? file_title     : label.name();

         if ((block_end > selection_left) && (block_start <= selection_right)) {
             BlockInfo block;
             block.m_start  = block_start;
             block.m_length = block_end - block_start;
             block.m_title  = block_title;
             if (!block.m_title.length()) block.m_title = file_title;
             m_block_info.append(block);
         }

         if (label.isNull()) break;
         label = (it.hasNext()) ? it.next() : Kwave::Label();
     }
 }

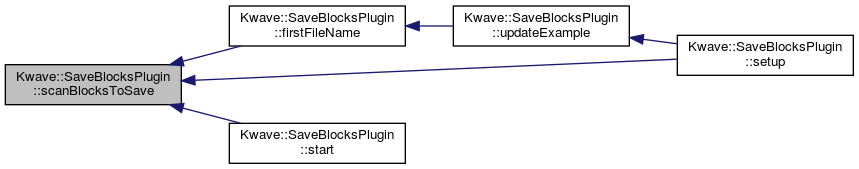

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setup()

QStringList * Kwave::SaveBlocksPlugin::setup ( QStringList & previous_params )

virtual

Shows a file saving dialog and emits a command for saving the blocks when OK has been pressed.

See also: Kwave::Plugin::setup

Reimplemented from Kwave::Plugin.

Definition at line 61 of file SaveBlocksPlugin.cpp.

References _, Kwave::connect(), Kwave::Plugin::description(), Kwave::Plugin::emitCommand(), Kwave::CodecManager::encodingFilter(), Kwave::Parser::escape(), findBase(), interpreteParameters(), m_numbering_mode, m_pattern, m_selection_only, m_url, Kwave::Plugin::name(), Kwave::Plugin::parentWidget(), scanBlocksToSave(), Kwave::Plugin::selection(), Kwave::Plugin::signalLength(), Kwave::Plugin::signalName(), sigNewExample(), and updateExample().

 {
     // try to interpret the previous parameters
     interpreteParameters(previous_params);

     // create the setup dialog
     sample_index_t selection_left  = 0;
     sample_index_t selection_right = 0;
     selection(Q_NULLPTR, &selection_left, &selection_right, false);

     // enable the "selection only" checkbox only if there is something
     // selected but not everything
     bool selected_something = (selection_left != selection_right);
     bool selected_all = ((selection_left == 0) &&
                          (selection_right + 1 >= signalLength()));
     bool enable_selection_only = selected_something && !selected_all;

     QString filename = m_url.path();
     QString base = findBase(filename, m_pattern);
     scanBlocksToSave(base, m_selection_only && enable_selection_only);

     QPointer<Kwave::SaveBlocksDialog> dialog =
         new(std::nothrow) Kwave::SaveBlocksDialog(
             _("kfiledialog:///kwave_save_blocks"),
             Kwave::CodecManager::encodingFilter(),
             parentWidget(),
             QUrl::fromUserInput(signalName()),
             _("*.wav"),
             m_pattern,
             m_numbering_mode,
             m_selection_only,
             enable_selection_only
         );
         if (!dialog) return Q_NULLPTR;

     // connect the signals/slots from the plugin and the dialog
     connect(dialog, SIGNAL(sigSelectionChanged(QString,
         QString,Kwave::SaveBlocksPlugin::numbering_mode_t,bool)),
         this, SLOT(updateExample(QString,QString,
         Kwave::SaveBlocksPlugin::numbering_mode_t,bool)));
     connect(this, SIGNAL(sigNewExample(QString)),
         dialog, SLOT(setNewExample(QString)));

     dialog->setWindowTitle(description());
     dialog->emitUpdate();
     if (dialog->exec() != QDialog::Accepted) {
         delete dialog;
         return Q_NULLPTR;
     }

     QStringList *list = new(std::nothrow) QStringList();
     Q_ASSERT(list);
     if (list) {
         // user has pressed "OK"
         QString pattern;

         QUrl url = dialog->selectedUrl();
         if (url.isEmpty()) {
             delete dialog;
             delete list;
             return Q_NULLPTR;
         }
         QString name = url.path();
         QFileInfo path(name);

         // add the correct extension if necessary
         if (!path.suffix().length()) {
             QString ext = dialog->selectedExtension();
             QStringList extensions = ext.split(_(" "));
             ext = extensions.first();
             name += ext.mid(1);
             path = name;
             url.setPath(name);
         }

         name     = Kwave::Parser::escape(name);
         pattern  = Kwave::Parser::escape(dialog->pattern());
         int mode = static_cast<int>(dialog->numberingMode());
         bool selection_only = (enable_selection_only) ?
             dialog->selectionOnly() : m_selection_only;

         *list << name;
         *list << pattern;
         *list << QString::number(mode);
         *list << QString::number(selection_only);

         emitCommand(_("plugin:execute(saveblocks,") +
             name + _(",") + pattern + _(",") +
             QString::number(mode) + _(",") +
             QString::number(selection_only) + _(")")
         );
     }

     if (dialog) delete dialog;
     return list;
 }

Here is the call graph for this function:

◆ sigNewExample

void Kwave::SaveBlocksPlugin::sigNewExample ( const QString & example )

signal

emitted by updateExample to update the filename preview

Referenced by setup(), and updateExample().

Here is the caller graph for this function:

◆ start()

int Kwave::SaveBlocksPlugin::start ( QStringList & params )

virtual

Saves the files, using the settings made in "setup()"

See also: Kwave::Plugin::start()

Reimplemented from Kwave::Plugin.

Definition at line 184 of file SaveBlocksPlugin.cpp.

References _, createDisplayList(), createFileName(), DBG, Kwave::CodecManager::encoder(), findBase(), firstIndex(), Kwave::FileInfo::get(), Kwave::INF_NAME, interpreteParameters(), Kwave::MetaData::isNull(), m_block_info, m_numbering_mode, m_pattern, m_selection_only, m_url, Kwave::SignalManager::metaData(), Kwave::CodecManager::mimeTypeOf(), Kwave::Plugin::name(), Kwave::Plugin::parentWidget(), Kwave::Label::pos(), Kwave::FileInfo::properties(), Kwave::MetaDataList::replace(), scanBlocksToSave(), Kwave::Plugin::selection(), Kwave::Plugin::selectRange(), Kwave::FileInfo::set(), Kwave::Plugin::signalLength(), Kwave::Plugin::signalManager(), Kwave::Parser::unescape(), Kwave::Encoder::unsupportedProperties(), Kwave::MessageBox::warningContinueCancel(), and Kwave::MessageBox::warningYesNo().

 {
     qDebug("SaveBlocksPlugin::start()");

     // interpret the parameters
     int result = interpreteParameters(params);
     if (result) return result;

     QString filename = m_url.path();
     QFileInfo file(filename);
     QString path = file.absolutePath();
     QString ext  = file.suffix();
     QString base = findBase(filename, m_pattern);
     QByteArray sep("/");

     // determine the selection settings
     sample_index_t selection_left  = 0;
     sample_index_t selection_right = 0;
     selection(Q_NULLPTR, &selection_left, &selection_right, false);

     bool selected_something = (selection_left != selection_right);
     bool selected_all = ( (selection_left == 0) &&
                           ((selection_right + 1) >= signalLength()) );
     bool enable_selection_only = selected_something && !selected_all;
     bool selection_only = enable_selection_only && m_selection_only;
     if (!selection_only) {
         selection_left  = 0;
         selection_right = signalLength() - 1;
     }

     // get the index range
     scanBlocksToSave(base, selection_only);
     unsigned int count = m_block_info.count();
     unsigned int first = firstIndex(path, base, ext, m_pattern,
                                     m_numbering_mode, count);

 //     qDebug("m_url            = '%s'", m_url.prettyURL().local8Bit().data());
 //     qDebug("m_pattern        = '%s'", m_pattern.local8Bit().data());
 //     qDebug("m_numbering_mode = %d", (int)m_numbering_mode);
 //     qDebug("selection_only   = %d", selection_only);
 //     qDebug("indices          = %u...%u (count=%u)", first, first+count-1,count);

     // remember the original file info and determine the list of unsupported
     // properties, we need that later to avoid that the signal manager
     // complains on saving each and every block, again and again...
     const Kwave::FileInfo orig_file_info(signalManager().metaData());
     Kwave::FileInfo file_info(orig_file_info);
     QList<Kwave::FileProperty> unsupported_properties;
     {
         QString mimetype = Kwave::CodecManager::mimeTypeOf(m_url);
         Kwave::Encoder *encoder = Kwave::CodecManager::encoder(mimetype);
         if (encoder) {
             unsupported_properties = encoder->unsupportedProperties(
                 file_info.properties().keys());
             delete encoder;
         }
     }

     // iterate over all blocks to check for overwritten files and missing dirs
     QStringList  overwritten_files;
     QStringList  missing_dirs;
     for (unsigned int i = first; i < (first + count); i++) {
         QString name = createFileName(base, ext, m_pattern, i, count,
                                       first + count - 1);
         QString display_name = Kwave::Parser::unescape(name);

         // split the name into directory and file name
         name = QString::fromLatin1(QUrl::toPercentEncoding(display_name, sep));
         QUrl url = m_url.adjusted(QUrl::RemoveFilename);
         url.setPath(url.path(QUrl::FullyEncoded) + name, QUrl::StrictMode);

         QString p = url.path();
         QFileInfo fi(p);

         // check for potentially overwritten file
         if (fi.exists())
             overwritten_files += Kwave::Parser::unescape(display_name);

         // check for missing subdirectory
         if (!fi.dir().exists()) {
             QString missing_dir = fi.absolutePath();
             if (!missing_dirs.contains(missing_dir))
                 missing_dirs += missing_dir;
         }
     }

     // inform about overwritten files
     if (!overwritten_files.isEmpty()) {
         // ask the user for confirmation if he really wants to overwrite...
         if (Kwave::MessageBox::warningYesNo(parentWidget(),
             _("<html>") +
             i18n("This would overwrite the following file(s): %1" \
             "Do you really want to continue?",
             createDisplayList(overwritten_files, 5)) +
             _("</html>") ) != KMessageBox::Yes)
         {
             return -1;
         }
     }

     // handle missing directories
     if (!missing_dirs.isEmpty()) {
         // ask the user if he wants to continue and create the directory
         if (Kwave::MessageBox::warningContinueCancel(parentWidget(),
             i18n("The following directories do not exist: %1"
                  "Do you want to create them and continue?",
                  createDisplayList(missing_dirs, 5)),
             QString(),
             QString(),
             QString(),
             _("saveblocks_create_missing_dirs")
             ) != KMessageBox::Continue)
         {
             return -1;
         }

         // create all missing directories
         QUrl base_url = m_url.adjusted(QUrl::RemoveFilename);
         foreach (const QString &missing, missing_dirs) {
             QUrl url(base_url);
             url.setPath(
                 base_url.path(QUrl::FullyEncoded) +
                 QString::fromLatin1(QUrl::toPercentEncoding(missing)),
                 QUrl::StrictMode
             );
             QString p = url.path();
             QDir dir;
             if (!dir.mkpath(p))
                 qWarning("creating path '%s' failed", DBG(p));
         }
     }

     // save the current selection, we have to restore it afterwards!
     sample_index_t saved_selection_left  = 0;
     sample_index_t saved_selection_right = 0;
     selection(Q_NULLPTR, &saved_selection_left, &saved_selection_right, false);

     // now we can loop over all blocks and save them
     sample_index_t block_start;
     sample_index_t block_end = 0;
     Kwave::LabelList labels(signalManager().metaData());
     Kwave::LabelListIterator it(labels);
     Kwave::Label label = it.hasNext() ? it.next() : Kwave::Label();

     for (unsigned int index = first;;) {
         block_start = block_end;
         block_end   = (label.isNull()) ? signalLength() : label.pos();

         if ((selection_left < block_end) && (selection_right > block_start)) {
             // found a block to save...
             Q_ASSERT(index < first + count);

             sample_index_t left  = block_start;
             sample_index_t right = block_end - 1;
             if (left  < selection_left)  left  = selection_left;
             if (right > selection_right) right = selection_right;
             Q_ASSERT(right > left);
             if (right <= left) break; // zero-length ?

             // select the range of samples
             selectRange(left, right - left + 1);

             // determine the filename
             QString name = createFileName(base, ext, m_pattern, index, count,
                                           first + count - 1);
             name = Kwave::Parser::unescape(name);
             // use URL encoding for the filename
             name = QString::fromLatin1(QUrl::toPercentEncoding(name, sep));
             QUrl url = m_url.adjusted(QUrl::RemoveFilename);
             url.setPath(url.path(QUrl::FullyEncoded) + name, QUrl::StrictMode);

             // enter the title of the block into the meta data if supported
             if (!unsupported_properties.contains(INF_NAME)) {
                 QString title = orig_file_info.get(INF_NAME).toString();
                 int idx = index - first;
                 if ((idx >= 0) && (idx < m_block_info.count())) {
                     QString block_title = m_block_info[idx].m_title;
                     if (block_title.length())
                         title = title + _(", ") + block_title;
                 }
                 file_info.set(INF_NAME, QVariant(title));
                 signalManager().metaData().replace(
                     Kwave::MetaDataList(file_info));
             }

             qDebug("saving %9lu...%9lu -> '%s'",
                    static_cast<unsigned long int>(left),
                    static_cast<unsigned long int>(right),
                    DBG(url.toDisplayString()));
             if (signalManager().save(url, true) < 0)
                 break;

             // if there were unsupported properties, the user might have been
             // asked whether it is ok to continue or not. If he answered with
             // "Cancel", we do not reach this point, otherwise we can continue
             // and prevent any further annoying questions by removing all
             // unsupported file info before the next run...
             if ((index == first) && !unsupported_properties.isEmpty()) {
                 foreach (const Kwave::FileProperty &p, unsupported_properties) {
                     file_info.set(p, QVariant());
                 }
                 signalManager().metaData().replace(
                     Kwave::MetaDataList(file_info));
             }

             // increment the index for the next filename
             index++;
         }
         if (label.isNull()) break;
         label = (it.hasNext()) ? it.next() : Kwave::Label();
     }

     // restore the original file info
     signalManager().metaData().replace(
         Kwave::MetaDataList(orig_file_info));

     // restore the previous selection
     selectRange(saved_selection_left,
         (saved_selection_left != saved_selection_right) ?
         (saved_selection_right - saved_selection_left + 1) : 0);

     return result;
 }

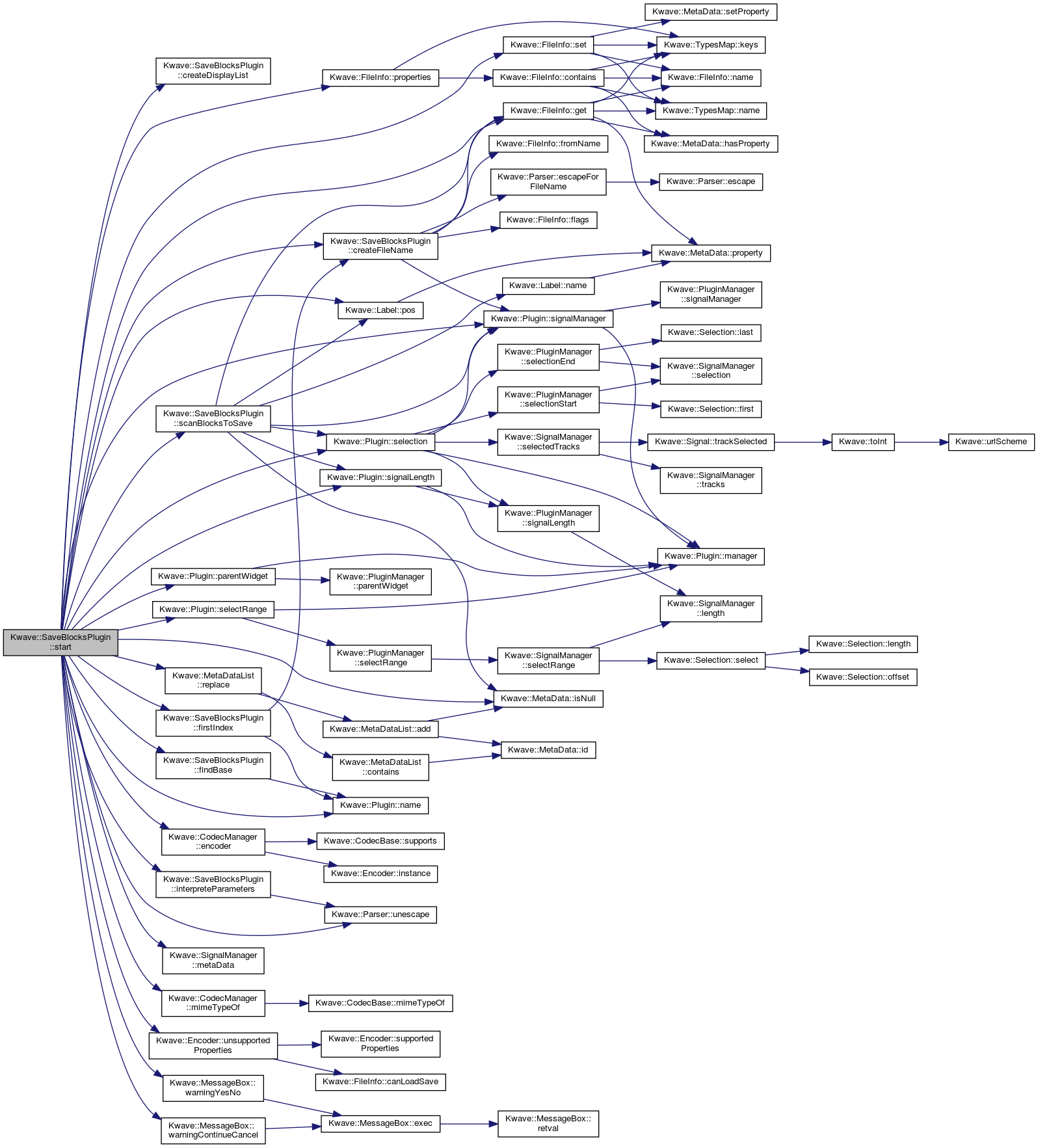

Here is the call graph for this function:

◆ updateExample

void Kwave::SaveBlocksPlugin::updateExample	(	const QString &	filename,
		const QString &	pattern,
		Kwave::SaveBlocksPlugin::numbering_mode_t	mode,
		bool	selection_only
	)

privateslot

called whenever the selection has changed and a new example has to be shown.

Parameters

filename	the currently selected filename, including path
pattern	the selected filename pattern
mode	the numbering mode
selection_only	if true: save only the selection

Definition at line 734 of file SaveBlocksPlugin.cpp.

References firstFileName(), sigNewExample(), and Kwave::Parser::unescape().

Referenced by setup().

 {
     QString example = firstFileName(filename, pattern, mode, selection_only);
     emit sigNewExample(Kwave::Parser::unescape(example));
 }

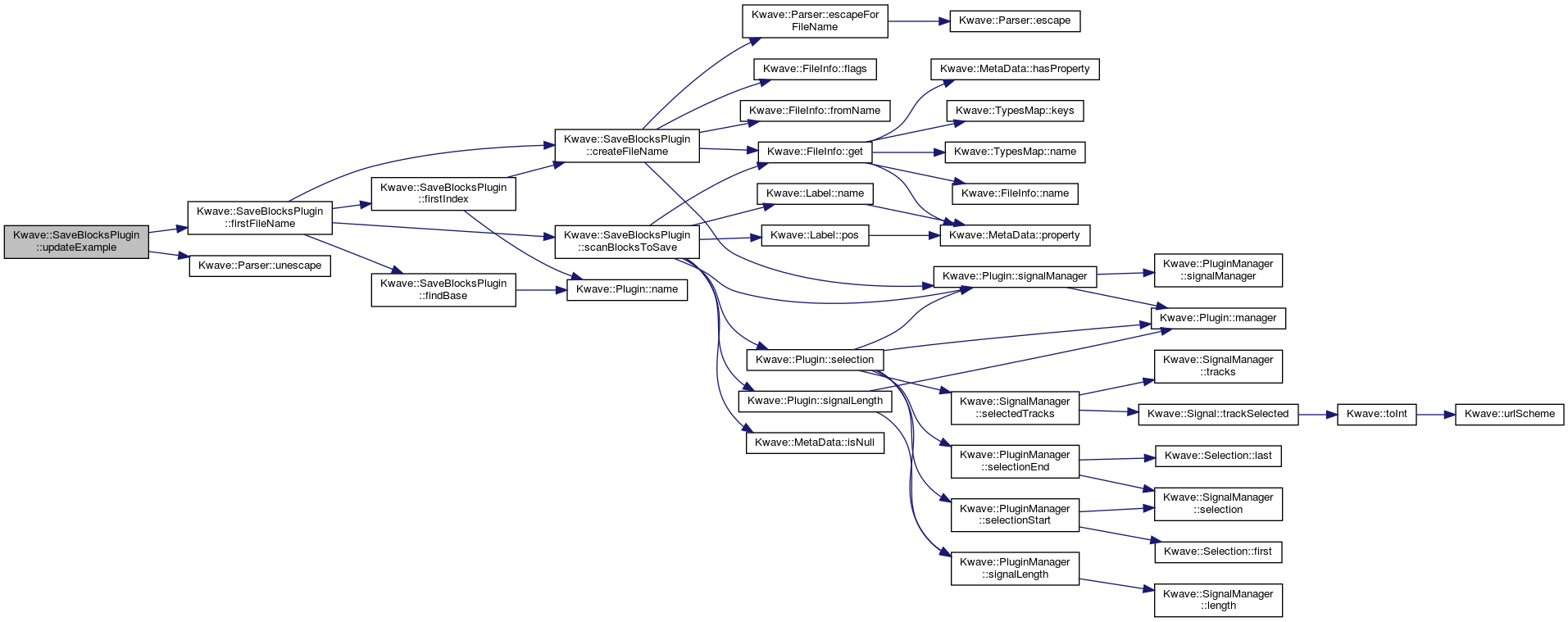

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_block_info

QList<BlockInfo> Kwave::SaveBlocksPlugin::m_block_info

private

list of all blocks to save

Definition at line 192 of file SaveBlocksPlugin.h.

Referenced by createFileName(), firstFileName(), scanBlocksToSave(), and start().

◆ m_numbering_mode

numbering_mode_t Kwave::SaveBlocksPlugin::m_numbering_mode

private

mode for numbering the output files

Definition at line 186 of file SaveBlocksPlugin.h.

Referenced by interpreteParameters(), setup(), and start().

◆ m_pattern

QString Kwave::SaveBlocksPlugin::m_pattern

private

expression with the filename pattern

Definition at line 183 of file SaveBlocksPlugin.h.

Referenced by interpreteParameters(), setup(), and start().

◆ m_selection_only

bool Kwave::SaveBlocksPlugin::m_selection_only

private

if true, only save stuff within the selection

Definition at line 189 of file SaveBlocksPlugin.h.

Referenced by interpreteParameters(), setup(), and start().

◆ m_url

QUrl Kwave::SaveBlocksPlugin::m_url

private

the URL of the first file (user selection)

Definition at line 180 of file SaveBlocksPlugin.h.

Referenced by interpreteParameters(), setup(), and start().

The documentation for this class was generated from the following files:

plugins/saveblocks/SaveBlocksPlugin.h
plugins/saveblocks/SaveBlocksPlugin.cpp

Classes

Public Types

Signals

Public Member Functions

Protected Member Functions

Private Slots

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ numbering_mode_t

Constructor & Destructor Documentation

◆ SaveBlocksPlugin()

◆ ~SaveBlocksPlugin()

Member Function Documentation

◆ createDisplayList()

◆ createFileName()

◆ findBase()

◆ firstFileName()

◆ firstIndex()

◆ interpreteParameters()

◆ scanBlocksToSave()

◆ setup()

◆ sigNewExample

◆ start()

◆ updateExample

Member Data Documentation

◆ m_block_info

◆ m_numbering_mode

◆ m_pattern

◆ m_selection_only

◆ m_url
