Kwave::MouseMark Class Reference

#include <MouseMark.h>

Collaboration diagram for Kwave::MouseMark:

Public Member Functions
	MouseMark ()
virtual	~MouseMark ()
void	set (sample_index_t l, sample_index_t r)
void	update (sample_index_t x)
void	grep (sample_index_t x)
sample_index_t	left () const
sample_index_t	right () const
sample_index_t	length () const

Private Attributes
sample_index_t	m_initial
sample_index_t	m_last

Detailed Description

Simple class that can be used whenever the user selects something with the mouse.

Definition at line 31 of file MouseMark.h.

Constructor & Destructor Documentation

MouseMark()

Kwave::MouseMark::MouseMark

(

)

Constructor

Definition at line 25 of file MouseMark.cpp.

    :m_initial(0), m_last(0)
{
}

~MouseMark()

Kwave::MouseMark::~MouseMark ( )

virtual

Destructor

Definition at line 31 of file MouseMark.cpp.

{
}

Member Function Documentation

grep()

void Kwave::MouseMark::grep

(

sample_index_t

x

)

Re-enters the selection process at a new position. The last position will be set to the left or the right margin, depending on which side is nearer.

Definition at line 55 of file MouseMark.cpp.

References m_initial, and m_last.

Referenced by Kwave::SignalView::mousePressEvent(), and Kwave::SelectionBorderItem::SelectionBorderItem().

{
    const sample_index_t d_last  =
        (x > m_last)    ? (x - m_last)    : (m_last    - x);
    const sample_index_t d_first =
        (x > m_initial) ? (x - m_initial) : (m_initial - x);
    if (d_last > d_first)
        m_initial = m_last;
    m_last = x;
}

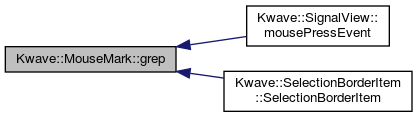

Here is the caller graph for this function:

left()

sample_index_t Kwave::MouseMark::left

(

)

const

Returns the left border of the selection.

Definition at line 43 of file MouseMark.cpp.

References m_initial, and m_last.

Referenced by length(), Kwave::SignalView::mousePressEvent(), Kwave::SelectionBorderItem::moveTo(), and Kwave::SelectionBorderItem::toolTip().

{
    return qMin(m_initial, m_last);
}

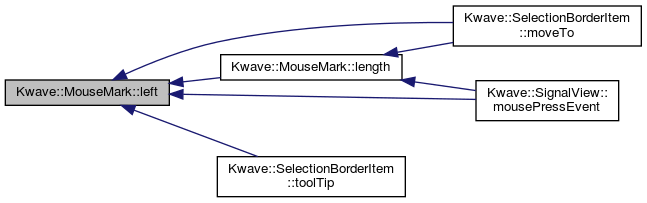

Here is the caller graph for this function:

length()

sample_index_t Kwave::MouseMark::length ( ) const

inline

Returns the length of the selection

Definition at line 77 of file MouseMark.h.

References left(), and right().

Referenced by Kwave::SignalView::mousePressEvent(), and Kwave::SelectionBorderItem::moveTo().

                                             {
            return right() - left() + 1;
        }

Here is the call graph for this function:

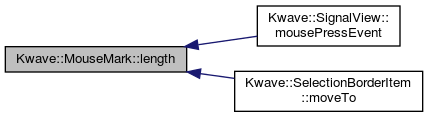

Here is the caller graph for this function:

right()

sample_index_t Kwave::MouseMark::right

(

)

const

Returns the right border of the selection.

Definition at line 49 of file MouseMark.cpp.

References m_initial, and m_last.

Referenced by length(), and Kwave::SelectionBorderItem::toolTip().

{
    return qMax(m_initial, m_last);
}

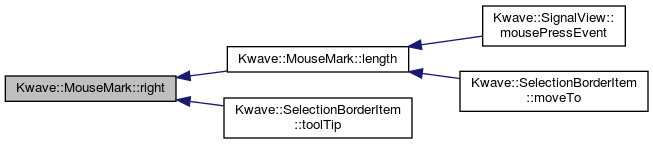

Here is the caller graph for this function:

set()

void Kwave::MouseMark::set	(	sample_index_t	l,
		sample_index_t	r
	)

Sets the selection to a new range.

Parameters

l	start position
r	end position

Definition at line 36 of file MouseMark.cpp.

References m_initial, and m_last.

Referenced by Kwave::SignalView::mousePressEvent(), Kwave::SignalView::mouseReleaseEvent(), and Kwave::SelectionBorderItem::SelectionBorderItem().

{
    m_initial = l;
    m_last    = r;
}

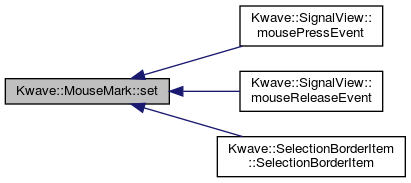

Here is the caller graph for this function:

update()

void Kwave::MouseMark::update

(

sample_index_t

x

)

Update the last known position of the mouse. This should be used for continuous update of the selection during mouse movement.

Parameters

x	new last position

Definition at line 67 of file MouseMark.cpp.

References m_last.

Referenced by Kwave::SelectionBorderItem::moveTo().

{
    m_last = x;
}

Here is the caller graph for this function:

Member Data Documentation

m_initial

sample_index_t Kwave::MouseMark::m_initial

private

initial position of the mouse

Definition at line 83 of file MouseMark.h.

Referenced by grep(), left(), right(), and set().

m_last

sample_index_t Kwave::MouseMark::m_last

private

last known position of the mouse

Definition at line 86 of file MouseMark.h.

Referenced by grep(), left(), right(), set(), and update().

---

The documentation for this class was generated from the following files:

• libgui/MouseMark.h
• libgui/MouseMark.cpp
