Kwave::MP3EncoderDialog Class Reference

#include <MP3EncoderDialog.h>

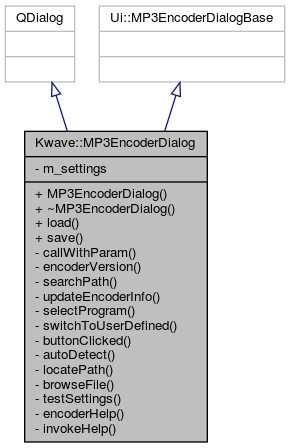

Inheritance diagram for Kwave::MP3EncoderDialog:
Inheritance graph

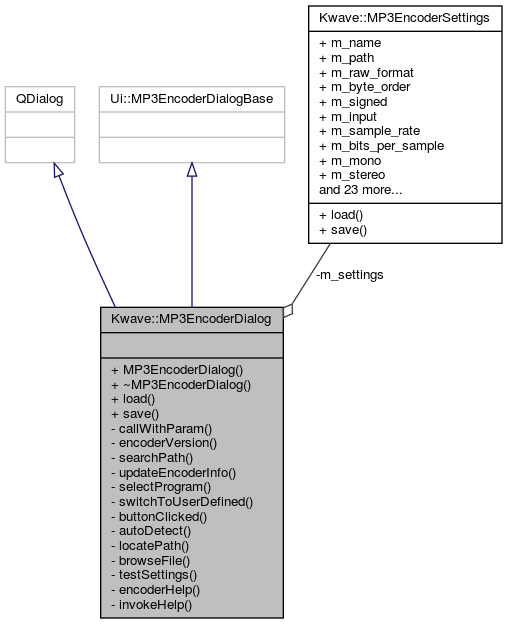

Collaboration diagram for Kwave::MP3EncoderDialog:
Collaboration graph

Public Slots

void load ()

void save ()


Public Member Functions

 MP3EncoderDialog (QWidget *parent)

virtual ~MP3EncoderDialog ()


Private Slots

void selectProgram (int index)

void switchToUserDefined ()

void buttonClicked (QAbstractButton *button)

void autoDetect ()

void locatePath ()

void browseFile ()

void testSettings ()

void encoderHelp ()

void invokeHelp ()


Private Member Functions

QString callWithParam (const QString &path, const QString &param)

QString encoderVersion (const QString &path, const QString &param)

QString searchPath (const QString &program)

void updateEncoderInfo ()


Private Attributes

Kwave::MP3EncoderSettings m_settings


Detailed Description

Definition at line 37 of file MP3EncoderDialog.h.

Constructor & Destructor Documentation

◆ MP3EncoderDialog()

Kwave::MP3EncoderDialog::MP3EncoderDialog ( QWidget *  parent)
explicit

Constructor

Definition at line 254 of file MP3EncoderDialog.cpp.

References _, autoDetect(), browseFile(), buttonClicked(), Kwave::connect(), CONNECT, ELEMENTS_OF, encoderHelp(), encoderVersion(), invokeHelp(), Kwave::MP3EncoderSettings::load(), load(), locatePath(), Kwave::MP3EncoderSettings::m_info, Kwave::MP3EncoderSettings::m_name, m_settings, Kwave::MP3EncoderSettings::m_version, name, PRESET_NAME_USER_DEFINED, searchPath(), selectProgram(), and testSettings().

255  :QDialog(parent), Ui::MP3EncoderDialogBase(),
257 {
258  setupUi(this);
259  setModal(true);
260
261  // set up the combo box with all presets
262  cbProgram->clear();
263  for (unsigned int i = 0; i < ELEMENTS_OF(g_predefined_settings); i++) {
264  QString name = g_predefined_settings[i].m_name;
265  QString path = searchPath(g_predefined_settings[i].m_path);
266  QString param = g_predefined_settings[i].m_info.m_version;
267  QString version = encoderVersion(path, param);
268  if (version.length() >= name.length())
269  cbProgram->addItem(version);
270  else
271  cbProgram->addItem(name);
272  }
273  cbProgram->addItem(PRESET_NAME_USER_DEFINED);
274
275  // load the saved settings from the config file
276  m_settings.load();
277  load();
278
279  // connect the combo box of the program selection
280  connect(cbProgram, SIGNAL(activated(int)),
281  this, SLOT(selectProgram(int)));
282
283  // standard actions, reset / reset to defaults etc...
284  connect(buttonBox, SIGNAL(clicked(QAbstractButton*)),
285  this, SLOT(buttonClicked(QAbstractButton*)));
286  connect(buttonBox_Help, SIGNAL(helpRequested()),
287  this, SLOT(invokeHelp()));
288
289  // auto-detect button
290  connect(btDetect, SIGNAL(clicked()), this, SLOT(autoDetect()));
291
292  // locate file path button
293  connect(btLocate, SIGNAL(clicked()), this, SLOT(locatePath()));
294
295  // search for program (file browser)
296  connect(btSearch, SIGNAL(clicked()), this, SLOT(browseFile()));
297
298  // test setup
299  connect(btTest, SIGNAL(clicked()), this, SLOT(testSettings()));
300
301  // builtin help of the encoder
302  connect(btEncoderHelp, SIGNAL(clicked()), this, SLOT(encoderHelp()));
303
304  // whenever a setting has been manally edited, check if that is a
305  // user defined setting or a predefined set of parameters
306  CONNECT(edPath);
307
308  CONNECT(edRawFormat);
309  CONNECT(edByteOrder);
310  CONNECT(edSign);
311
312  CONNECT(edSampleRate);
313  CONNECT(edBitsPerSample);
314  CONNECT(edMono);
315  CONNECT(edStereo);
316
317  CONNECT(edBitrateAvg);
318  CONNECT(edBitrateMin);
319  CONNECT(edBitrateMax);
320
321  CONNECT(edEmphasisNone);
322  CONNECT(edEmphasis5015ms);
323  CONNECT(edEmphasisCCIT_J17);
324
325  CONNECT(edNoiseShaping);
326  CONNECT(edCompatibility);
327
328  CONNECT(edCopyright);
329  CONNECT(edOriginal);
330  CONNECT(edProtect);
331  CONNECT(edPrepend);
332  CONNECT(edAppend);
333
334  CONNECT(edEncoderHelp);
335  CONNECT(edVersionInfo);
336
337  // set up all tool tips which contain a % character right here instead
338  // of the ui file, as they they would trigger errors during
339  // extraction (I18N_ARGUMENT_MISSING)
340  edSampleRate->setToolTip(i18n(
341  "sample rate in Hz (use %1 as placeholder)\n"
342  "or kHz (use %2 as placeholder)",
343  _("%1"), _("[%khz]")));
344  edBitsPerSample->setToolTip(i18n(
345  "bits per sample,\n"
346  "use %1 as placeholder",
347  _("%1")));
348  edBitrateMin->setToolTip(i18n(
349  "parameter for minimum bitrate in bits/sec\n"
350  "(use %1 as placeholder)",
351  _("%1")));
352  edBitrateMax->setToolTip(i18n(
353  "parameter for maximum bitrate in bits/sec\n"
354  "(use %1 as placeholder)",
355  _("%1")));
356  edBitrateAvg->setToolTip(i18n(
357  "parameter for average bitrate in bits/sec\n"
358  "(use %1 as placeholder)",
359  _("%1")));
360
361  // set the focus onto the "OK" button
362  buttonBox->button(QDialogButtonBox::Ok)->setFocus();
363 }
Kwave::MP3EncoderSettings m_settings
#define PRESET_NAME_USER_DEFINED
#define ELEMENTS_OF(x)
#define CONNECT(control)
bool connect(Kwave::StreamObject &source, const char *output, Kwave::StreamObject &sink, const char *input)
Definition: Connect.cpp:48
const char name[16]
Definition: memcpy.c:510
const Kwave::MP3EncoderSettings g_predefined_settings[]
#define _(m)
Definition: memcpy.c:66
void buttonClicked(QAbstractButton *button)
QString encoderVersion(const QString &path, const QString &param)
QString searchPath(const QString &program)
struct Kwave::MP3EncoderSettings::@8 m_info

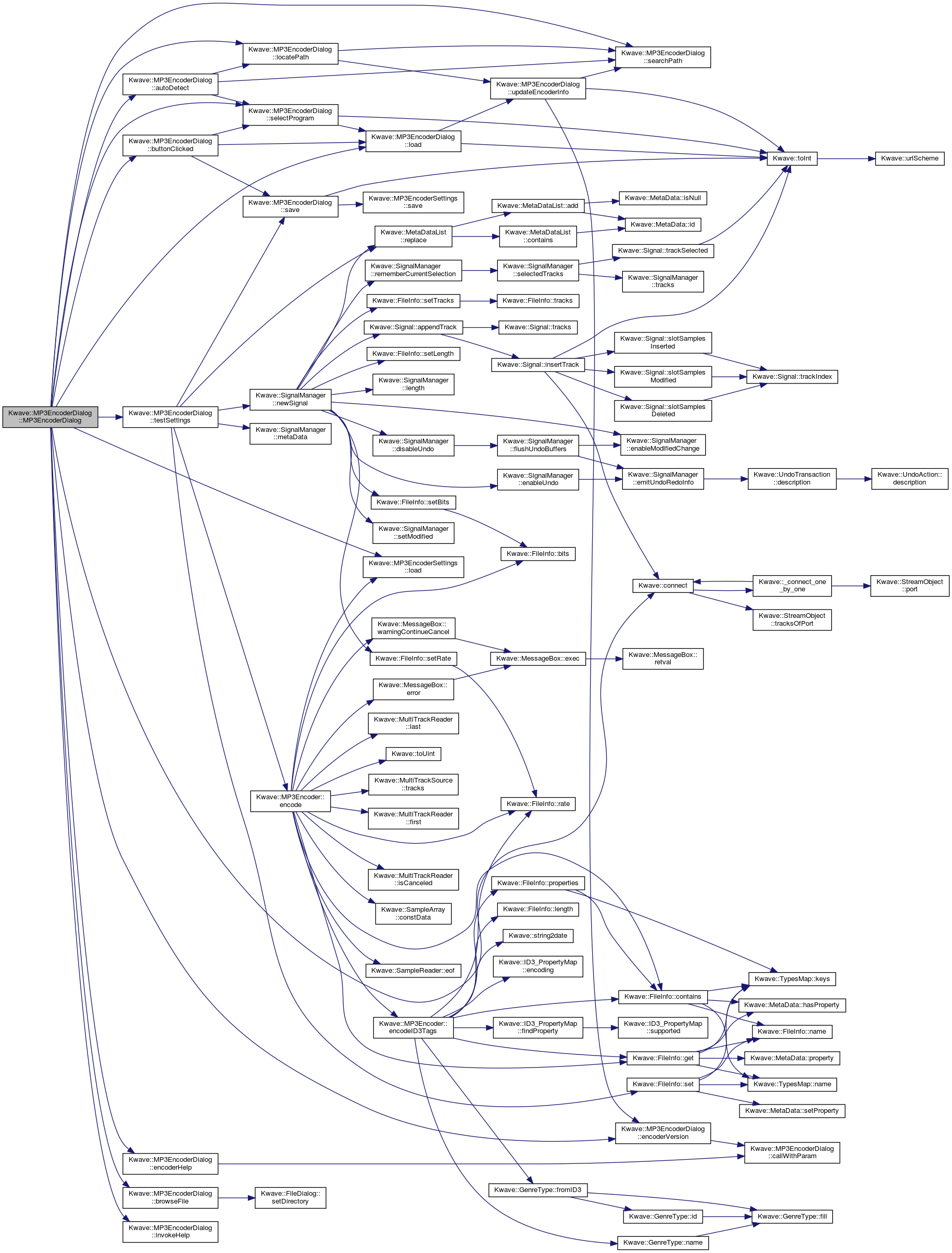

Here is the call graph for this function:

◆ ~MP3EncoderDialog()

Kwave::MP3EncoderDialog::~MP3EncoderDialog ( )
virtual

Destructor

Definition at line 366 of file MP3EncoderDialog.cpp.

367 {
368 }

Member Function Documentation

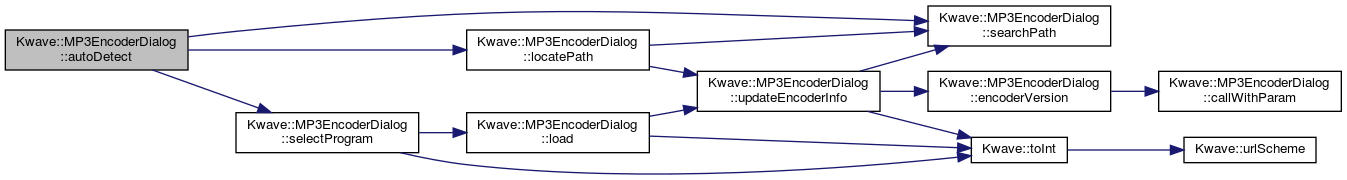

◆ autoDetect

void Kwave::MP3EncoderDialog::autoDetect ( )
privateslot

auto-detect settings

Definition at line 562 of file MP3EncoderDialog.cpp.

References ELEMENTS_OF, locatePath(), searchPath(), and selectProgram().

Referenced by MP3EncoderDialog().

563 {
564  for (unsigned i = 0; i < ELEMENTS_OF(g_predefined_settings); ++i) {
565  QFile f(searchPath(g_predefined_settings[i].m_path));
566  if (f.exists()) {
567  // found it :)
568  cbProgram->setCurrentIndex(i);
569  selectProgram(i);
570  locatePath();
571  return;
572  }
573  }
574 }
#define ELEMENTS_OF(x)
const Kwave::MP3EncoderSettings g_predefined_settings[]
QString searchPath(const QString &program)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ browseFile

void Kwave::MP3EncoderDialog::browseFile ( )
privateslot

search for the program, file browser

Definition at line 588 of file MP3EncoderDialog.cpp.

References _, Kwave::FileDialog::OpenFile, and Kwave::FileDialog::setDirectory().

Referenced by MP3EncoderDialog().

589 {
590  QString mask = _("*");
591 #ifdef EXECUTABLE_SUFFIX
592  mask += QString(EXECUTABLE_SUFFIX);
593 #endif
594  QPointer<Kwave::FileDialog> dlg = new(std::nothrow)
596  _("kfiledialog:///kwave_mp3_encoder"),
598  _(""), this,
599  QUrl::fromLocalFile(_("file:/") + edPath->text().simplified()),
600  mask
601  );
602  if (!dlg) return;
603  dlg->setWindowTitle(i18n("Select MP3 Encoder"));
604  dlg->setDirectory(_("/usr/bin/"));
605  if (dlg->exec() == QDialog::Accepted)
606  edPath->setText(dlg->selectedUrl().toLocalFile());
607  delete dlg;
608 }
void setDirectory(const QString &directory)
Definition: FileDialog.cpp:265
#define _(m)
Definition: memcpy.c:66
Here is the call graph for this function:
Here is the caller graph for this function:

◆ buttonClicked

void Kwave::MP3EncoderDialog::buttonClicked ( QAbstractButton *  button)
privateslot

evaluates a click to one of the standard buttons

Definition at line 540 of file MP3EncoderDialog.cpp.

References load(), save(), and selectProgram().

Referenced by MP3EncoderDialog().

541 {
542  if (!button || !buttonBox) return;
543  switch (buttonBox->standardButton(button)) {
544  case QDialogButtonBox::Ok:
545  // save settings and accept
546  save();
547  break;
548  case QDialogButtonBox::Reset:
549  // reset to last saved state
550  load();
551  break;
552  case QDialogButtonBox::RestoreDefaults:
553  // reset to default settings == entry #0 in the combo box
554  selectProgram(0);
555  break;
556  default:
557  break;
558  }
559 }

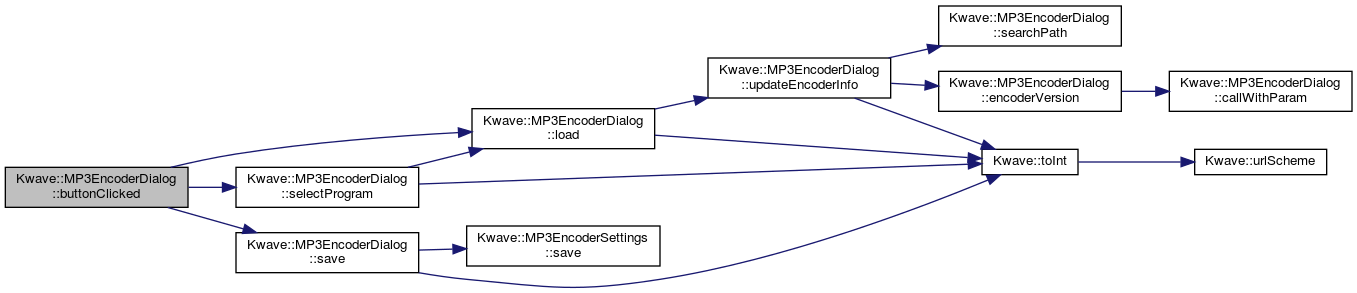

Here is the call graph for this function:
Here is the caller graph for this function:

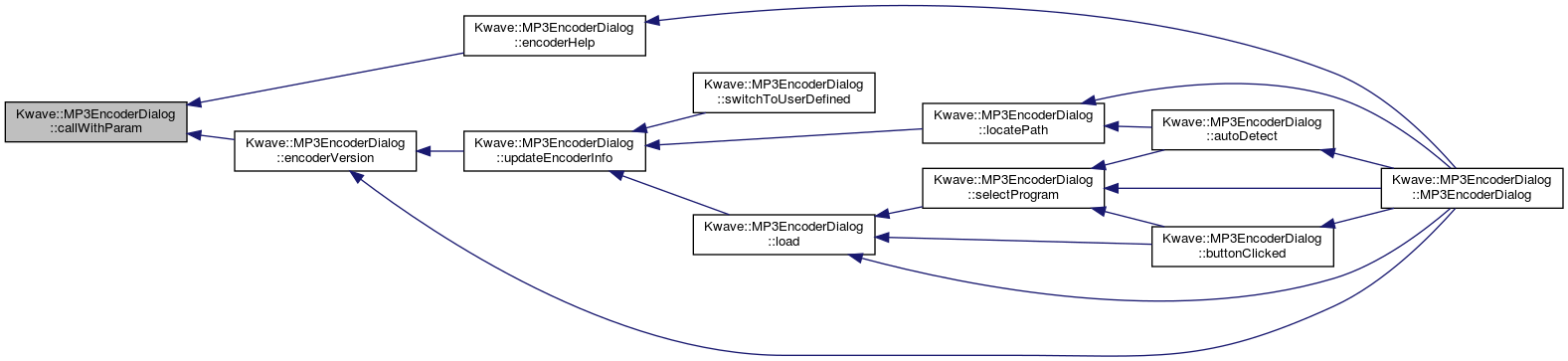

◆ callWithParam()

QString Kwave::MP3EncoderDialog::callWithParam ( const QString &  path,
const QString &  param
)
private

Calls the program with one parameter and returns the output of stderr/stdout (combined) as a string

Parameters
paththe path of the program to call
parama command line parameter
Returns
string with combined stdout/stderr

Definition at line 674 of file MP3EncoderDialog.cpp.

References DBG.

Referenced by encoderHelp(), and encoderVersion().

676 {
677  QStringList params(param);
678
679  // set hourglass cursor
680  QApplication::setOverrideCursor(QCursor(Qt::WaitCursor));
681
682  QProcess process;
683  process.setProcessChannelMode(QProcess::MergedChannels);
684  process.start(path, params);
685  process.waitForStarted();
686  if (process.state() != QProcess::NotRunning) process.waitForFinished();
687
688  QString text = QString::fromLocal8Bit(process.readAllStandardOutput());
689  qDebug("stdout output: %s", DBG(text));
690
691  // remove hourglass
692  QApplication::restoreOverrideCursor();
693
694  return text;
695 }
#define DBG(qs)
Definition: String.h:55
Here is the caller graph for this function:

◆ encoderHelp

void Kwave::MP3EncoderDialog::encoderHelp ( )
privateslot

show help about the encoder

Definition at line 662 of file MP3EncoderDialog.cpp.

References callWithParam().

Referenced by MP3EncoderDialog().

663 {
664  // show complete help
665  QString program = edPath->text().simplified();
666  QString param = QString(edEncoderHelp->text()).simplified();
667
668  QString text = callWithParam(program, param);
669
670  KMessageBox::information(this, text);
671 }
QString callWithParam(const QString &path, const QString &param)
Here is the call graph for this function:
Here is the caller graph for this function:

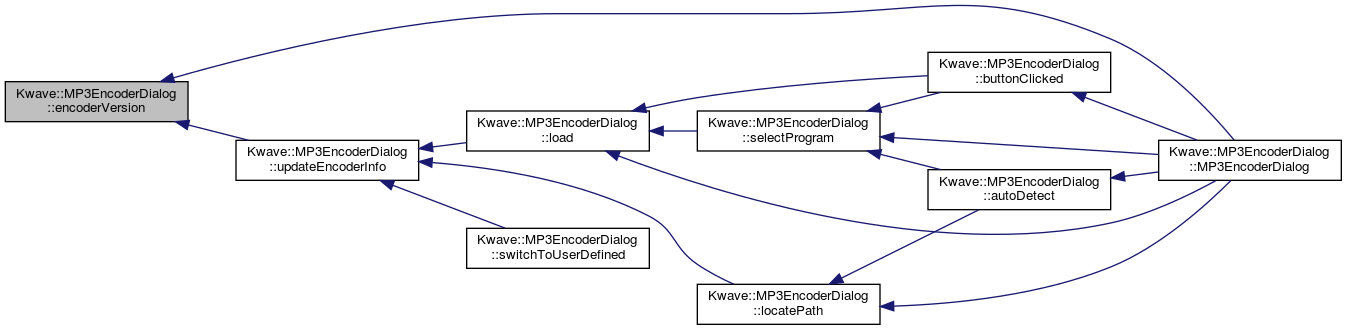

◆ encoderVersion()

QString Kwave::MP3EncoderDialog::encoderVersion ( const QString &  path,
const QString &  param
)
private

Retrieves the title/name of an encoder by calling it once

Parameters
paththe path of the encoder program
paramthe command line parameter to get the version
Returns
title of the encoder

Definition at line 698 of file MP3EncoderDialog.cpp.

References callWithParam().

Referenced by MP3EncoderDialog(), and updateEncoderInfo().

700 {
701  QString text = callWithParam(path, param);
702
703  QStringList lines = text.split(QLatin1Char('\n'));
704
705  // take the first non-zero line
706  while (lines.count() && !lines.first().simplified().length())
707  lines.removeFirst();
708
709  return (!lines.isEmpty()) ? lines.first().simplified() : QString();
710 }
QString callWithParam(const QString &path, const QString &param)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ invokeHelp

void Kwave::MP3EncoderDialog::invokeHelp ( )
privateslot

show the help page the manual

Definition at line 779 of file MP3EncoderDialog.cpp.

References _.

Referenced by MP3EncoderDialog().

780 {
781  KHelpClient::invokeHelp(_("plugin_sect_codec_mp3"));
782 }
#define _(m)
Definition: memcpy.c:66
Here is the caller graph for this function:

◆ load

void Kwave::MP3EncoderDialog::load ( )
slot

load all settings from the config file

Definition at line 371 of file MP3EncoderDialog.cpp.

References ELEMENTS_OF, LOAD, Kwave::MP3EncoderSettings::m_name, Kwave::MP3EncoderSettings::m_path, m_settings, Kwave::toInt(), and updateEncoderInfo().

Referenced by buttonClicked(), MP3EncoderDialog(), and selectProgram().

372 {
373  // cbProgram
374  unsigned int i = 0;
375  bool use_preset = false;
376  for (i = 0; i < ELEMENTS_OF(g_predefined_settings); i++) {
377  if (g_predefined_settings[i].m_name == m_settings.m_name) {
378  QString path = m_settings.m_path;
380  m_settings.m_path = path;
381  cbProgram->setCurrentIndex(i);
382  use_preset = true;
383  break;
384  }
385  }
386  if ((!use_preset) && (cbProgram->currentIndex() != Kwave::toInt(i))) {
387  // set the combo box to "user defined" and load the rest from the config
388  cbProgram->setCurrentIndex(i);
389  }
390
391  // set all other dialog content according to the loaded settings
392  LOAD(m_path, edPath);
393
394  LOAD(m_input.m_raw_format, edRawFormat);
395  LOAD(m_input.m_byte_order, edByteOrder);
396  LOAD(m_input.m_signed, edSign);
397
398  LOAD(m_format.m_sample_rate, edSampleRate);
399  LOAD(m_format.m_bits_per_sample, edBitsPerSample);
400  LOAD(m_format.m_channels.m_mono, edMono);
401  LOAD(m_format.m_channels.m_stereo, edStereo);
402
403  LOAD(m_quality.m_bitrate.m_avg, edBitrateAvg);
404  LOAD(m_quality.m_bitrate.m_min, edBitrateMin);
405  LOAD(m_quality.m_bitrate.m_max, edBitrateMax);
406
407  LOAD(m_encoding.m_emphasis.m_none, edEmphasisNone);
408  LOAD(m_encoding.m_emphasis.m_50_15ms, edEmphasis5015ms);
409  LOAD(m_encoding.m_emphasis.m_ccit_j17, edEmphasisCCIT_J17);
410
411  LOAD(m_encoding.m_noise_shaping, edNoiseShaping);
412  LOAD(m_encoding.m_compatibility, edCompatibility);
413
414  LOAD(m_flags.m_copyright, edCopyright);
415  LOAD(m_flags.m_original, edOriginal);
416  LOAD(m_flags.m_protect, edProtect);
417  LOAD(m_flags.m_prepend, edPrepend);
418  LOAD(m_flags.m_append, edAppend);
419
420  LOAD(m_info.m_help, edEncoderHelp);
421  LOAD(m_info.m_version, edVersionInfo);
422
424 }
Kwave::MP3EncoderSettings m_settings
#define ELEMENTS_OF(x)
#define LOAD(field, control)
int toInt(T x)
Definition: Utils.h:127
const Kwave::MP3EncoderSettings g_predefined_settings[]

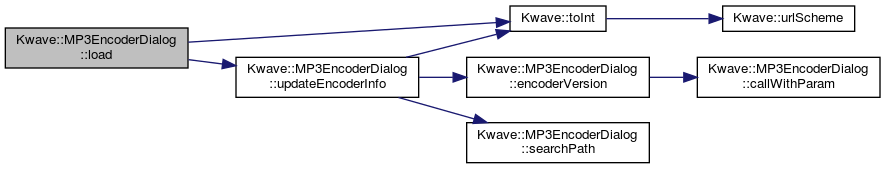

Here is the call graph for this function:

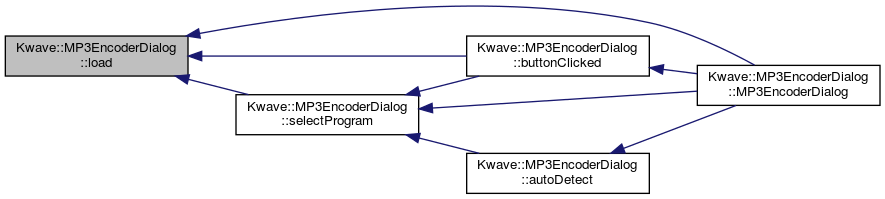

Here is the caller graph for this function:

◆ locatePath

void Kwave::MP3EncoderDialog::locatePath ( )
privateslot

locate the full path of the file

Definition at line 577 of file MP3EncoderDialog.cpp.

References searchPath(), and updateEncoderInfo().

Referenced by autoDetect(), and MP3EncoderDialog().

578 {
579  const QString prog_orig = edPath->text().simplified();
580  const QString prog = searchPath(prog_orig);
581  if (prog != prog_orig) {
582  edPath->setText(prog);
584  }
585 }
QString searchPath(const QString &program)

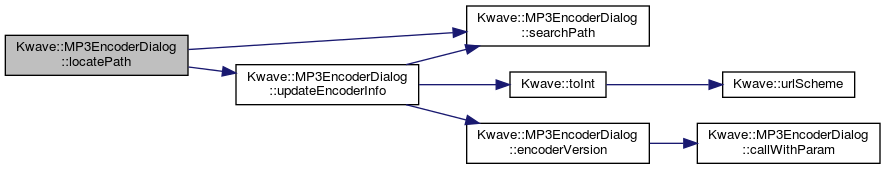

Here is the call graph for this function:
Here is the caller graph for this function:

◆ save

void Kwave::MP3EncoderDialog::save ( )
slot

store all settings to a config file

Definition at line 427 of file MP3EncoderDialog.cpp.

References _, ELEMENTS_OF, Kwave::MP3EncoderSettings::m_name, m_settings, Kwave::MP3EncoderSettings::save(), SAVE, and Kwave::toInt().

Referenced by buttonClicked(), Kwave::MP3CodecPlugin::setup(), and testSettings().

428 {
429  // get the content of the combo box
430  int index = cbProgram->currentIndex();
433  } else {
434  m_settings.m_name = _("*");
435  }
436
437  // fetch all settings from the dialog content
438  SAVE(m_path, edPath);
439
440  SAVE(m_input.m_raw_format, edRawFormat);
441  SAVE(m_input.m_byte_order, edByteOrder);
442  SAVE(m_input.m_signed, edSign);
443
444  SAVE(m_format.m_sample_rate, edSampleRate);
445  SAVE(m_format.m_bits_per_sample, edBitsPerSample);
446  SAVE(m_format.m_channels.m_mono, edMono);
447  SAVE(m_format.m_channels.m_stereo, edStereo);
448
449  SAVE(m_quality.m_bitrate.m_avg, edBitrateAvg);
450  SAVE(m_quality.m_bitrate.m_min, edBitrateMin);
451  SAVE(m_quality.m_bitrate.m_max, edBitrateMax);
452
453  SAVE(m_encoding.m_emphasis.m_none, edEmphasisNone);
454  SAVE(m_encoding.m_emphasis.m_50_15ms, edEmphasis5015ms);
455  SAVE(m_encoding.m_emphasis.m_ccit_j17, edEmphasisCCIT_J17);
456
457  SAVE(m_encoding.m_noise_shaping, edNoiseShaping);
458  SAVE(m_encoding.m_compatibility, edCompatibility);
459
460  SAVE(m_flags.m_copyright, edCopyright);
461  SAVE(m_flags.m_original, edOriginal);
462  SAVE(m_flags.m_protect, edProtect);
463  SAVE(m_flags.m_prepend, edPrepend);
464  SAVE(m_flags.m_append, edAppend);
465
466  SAVE(m_info.m_help, edEncoderHelp);
467  SAVE(m_info.m_version, edVersionInfo);
468
469  m_settings.save();
470 }
Kwave::MP3EncoderSettings m_settings
#define ELEMENTS_OF(x)
int toInt(T x)
Definition: Utils.h:127
const Kwave::MP3EncoderSettings g_predefined_settings[]
#define SAVE(field, control)
#define _(m)
Definition: memcpy.c:66

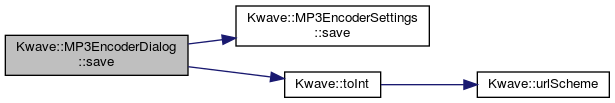

Here is the call graph for this function:

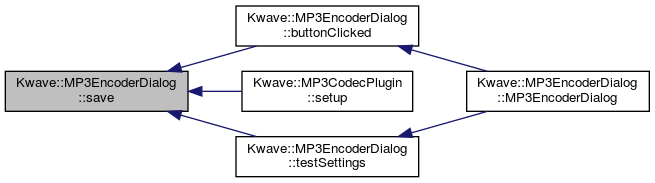

Here is the caller graph for this function:

◆ searchPath()

QString Kwave::MP3EncoderDialog::searchPath ( const QString &  program)
private

Search for an encoder in the system PATH

Parameters
programname of the program
Returns
full path where it can be found, or the value of the parameter "program" if not found

Definition at line 713 of file MP3EncoderDialog.cpp.

References _, and DBG.

Referenced by autoDetect(), locatePath(), MP3EncoderDialog(), and updateEncoderInfo().

714 {
715  const QFile::Permissions executable =
716  (QFile::ExeOwner | QFile::ExeUser | QFile::ExeGroup | QFile::ExeOther);
717 #ifdef Q_OS_WIN
718  const QLatin1Char separator = QLatin1Char(';');
719 #else
720  const QLatin1Char separator = QLatin1Char(':');
721 #endif
722  QStringList path =
723  _(qgetenv("PATH")).split(separator, QString::SkipEmptyParts);
724
725  QFileInfo f(program);
726  QString d = f.path();
727  if (d.length()) path.prepend(d);
728
729  foreach (const QString &dir, path) {
730  QString p = dir;
731  if (!p.endsWith(QDir::separator()))
732  p += QDir::separator();
733  p += f.fileName();
734
735  QFile file(p);
736  qDebug("testing '%s'", DBG(p));
737  if (file.exists() && (file.permissions() & executable)) {
738  // found it :)
739  return p;
740  }
741  }
742
743  return program;
744 }
#define _(m)
Definition: memcpy.c:66
#define DBG(qs)
Definition: String.h:55

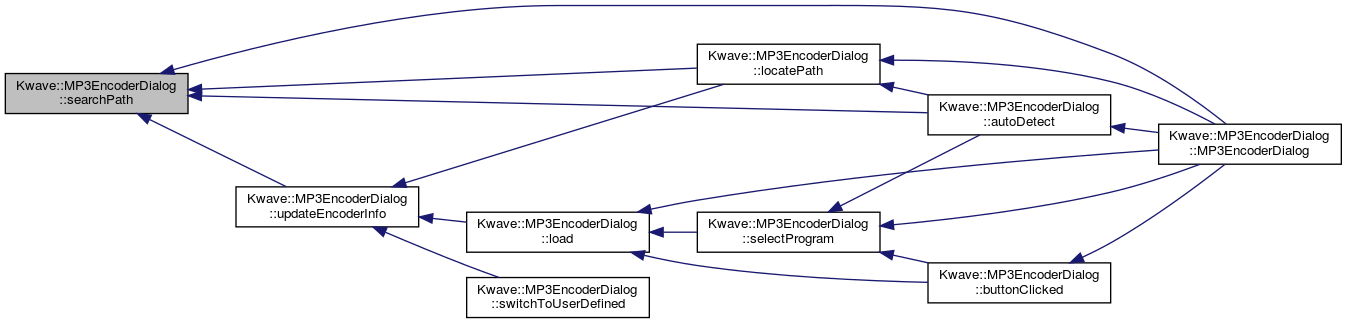

Here is the caller graph for this function:

◆ selectProgram

void Kwave::MP3EncoderDialog::selectProgram ( int  index)
privateslot

called when the selection of the program has changed

Definition at line 473 of file MP3EncoderDialog.cpp.

References ELEMENTS_OF, load(), m_settings, and Kwave::toInt().

Referenced by autoDetect(), buttonClicked(), and MP3EncoderDialog().

474 {
475  if (index < 0) return;
476  if (index >= Kwave::toInt(ELEMENTS_OF(g_predefined_settings))) return;
477
479  load();
480 }
Kwave::MP3EncoderSettings m_settings
#define ELEMENTS_OF(x)
int toInt(T x)
Definition: Utils.h:127
const Kwave::MP3EncoderSettings g_predefined_settings[]

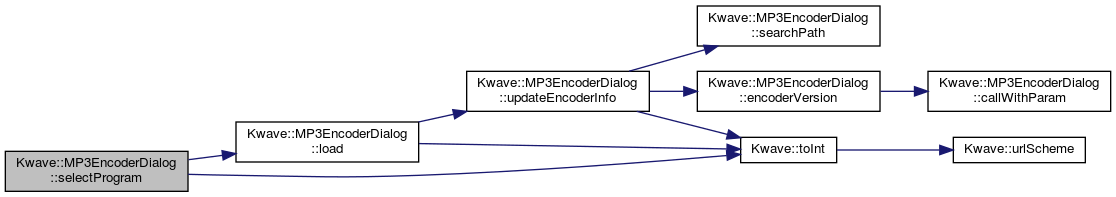

Here is the call graph for this function:

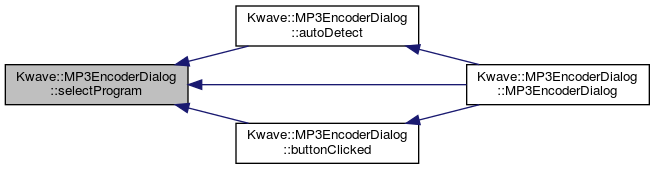

Here is the caller graph for this function:

◆ switchToUserDefined

void Kwave::MP3EncoderDialog::switchToUserDefined ( )
privateslot

called whenever an edit field has changed its value

Definition at line 483 of file MP3EncoderDialog.cpp.

References CHECK, ELEMENTS_OF, Kwave::MP3EncoderSettings::m_path, Kwave::toInt(), and updateEncoderInfo().

484 {
485  int index = cbProgram->currentIndex();
486
487  for (unsigned i = 0; i < ELEMENTS_OF(g_predefined_settings); i++) {
488  const Kwave::MP3EncoderSettings &settings =
490  bool match = true;
491
492  match &= bool(edPath->text().simplified().contains(settings.m_path,
493  Qt::CaseInsensitive));
494
495  CHECK(m_input.m_raw_format, edRawFormat);
496  CHECK(m_input.m_byte_order, edByteOrder);
497  CHECK(m_input.m_signed, edSign);
498
499  CHECK(m_format.m_sample_rate, edSampleRate);
500  CHECK(m_format.m_bits_per_sample, edBitsPerSample);
501  CHECK(m_format.m_channels.m_mono, edMono);
502  CHECK(m_format.m_channels.m_stereo, edStereo);
503
504  CHECK(m_quality.m_bitrate.m_avg, edBitrateAvg);
505  CHECK(m_quality.m_bitrate.m_min, edBitrateMin);
506  CHECK(m_quality.m_bitrate.m_max, edBitrateMax);
507
508  CHECK(m_encoding.m_emphasis.m_none, edEmphasisNone);
509  CHECK(m_encoding.m_emphasis.m_50_15ms, edEmphasis5015ms);
510  CHECK(m_encoding.m_emphasis.m_ccit_j17, edEmphasisCCIT_J17);
511
512  CHECK(m_encoding.m_noise_shaping, edNoiseShaping);
513  CHECK(m_encoding.m_compatibility, edCompatibility);
514
515  CHECK(m_flags.m_copyright, edCopyright);
516  CHECK(m_flags.m_original, edOriginal);
517  CHECK(m_flags.m_protect, edProtect);
518  CHECK(m_flags.m_prepend, edPrepend);
519  CHECK(m_flags.m_append, edAppend);
520
521  CHECK(m_info.m_help, edEncoderHelp);
522  CHECK(m_info.m_version, edVersionInfo);
523
524  if (match) {
525  // found a match against known preset
526  if (Kwave::toInt(i) != index) {
527  cbProgram->setCurrentIndex(i);
529  }
530  return;
531  }
532  }
533
534  // fallback: "user defined"
535  cbProgram->setCurrentIndex(ELEMENTS_OF(g_predefined_settings));
537 }
#define ELEMENTS_OF(x)
int toInt(T x)
Definition: Utils.h:127
#define CHECK(field, control)
const Kwave::MP3EncoderSettings g_predefined_settings[]

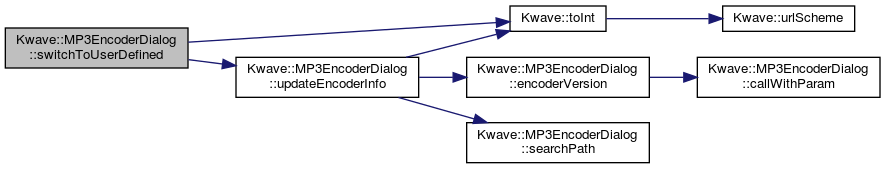

Here is the call graph for this function:

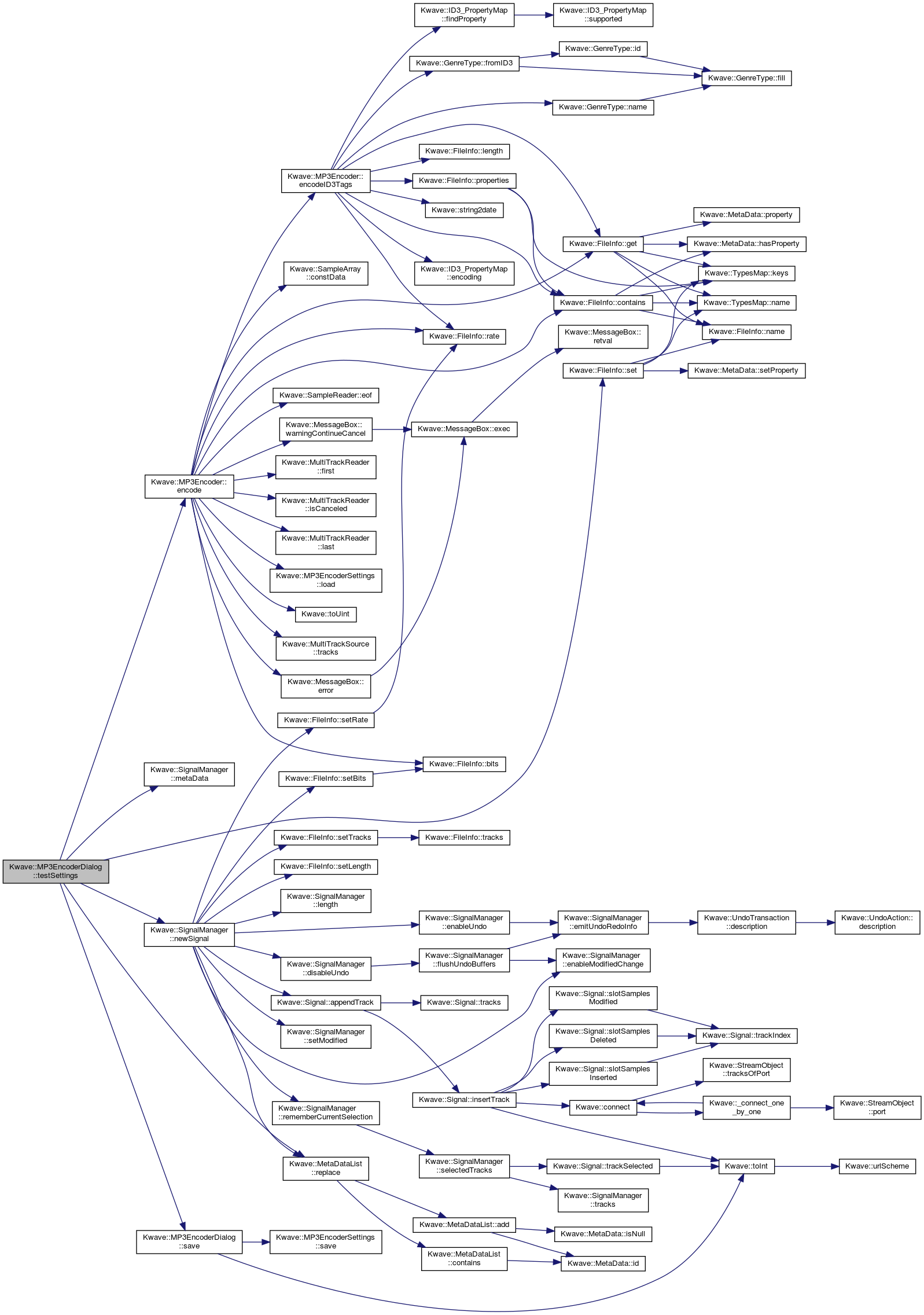

◆ testSettings

void Kwave::MP3EncoderDialog::testSettings ( )
privateslot

test the settings

Definition at line 611 of file MP3EncoderDialog.cpp.

References Kwave::MP3Encoder::encode(), Kwave::INF_BITRATE_LOWER, Kwave::INF_BITRATE_NOMINAL, Kwave::INF_BITRATE_UPPER, Kwave::INF_COPYRIGHTED, Kwave::INF_MPEG_EMPHASIS, Kwave::INF_ORIGINAL, Kwave::SignalManager::metaData(), Kwave::SignalManager::newSignal(), Kwave::MetaDataList::replace(), save(), Kwave::FileInfo::set(), and Kwave::SinglePassForward.

Referenced by MP3EncoderDialog().

612 {
613  const sample_index_t test_length = 128 * 1024; // 128k samples
614  const double sample_rate = 44100.0;
615  const unsigned int bits = 16;
616  const unsigned int tracks = 2;
617
618  // save all data, so that the encoder can read it
619  save();
620
621  // us a dummy sink in memory
622  QBuffer dst;
623
624  // create some dummy audio data (stereo)
625  Kwave::SignalManager manager(this);
626  manager.newSignal(test_length, sample_rate, bits, tracks);
627  Kwave::MetaDataList meta_data = manager.metaData();
628
629  // add some dummy meta data, to cover all parameters of the encoder
630  Kwave::FileInfo info(meta_data);
631  info.set(Kwave::INF_BITRATE_NOMINAL, QVariant(128000));
632  info.set(Kwave::INF_BITRATE_LOWER, QVariant( 64000));
633  info.set(Kwave::INF_BITRATE_UPPER, QVariant(192000));
634  info.set(Kwave::INF_MPEG_EMPHASIS, QVariant(3));
635  info.set(Kwave::INF_COPYRIGHTED, QVariant(1));
636  info.set(Kwave::INF_ORIGINAL, QVariant(1));
637  meta_data.replace(Kwave::MetaDataList(info));
638
639  // create a multi track reader
640  QList<unsigned int> track_list;
641  track_list.append(0);
642  track_list.append(1);
643  sample_index_t first = 0;
644  sample_index_t last = test_length - 1;
646  manager, track_list, first, last);
647
648  // create an encoder
649  MP3Encoder encoder;
650
651  // pass the data through the encoder
652  bool succeeded = encoder.encode(this, src, dst, meta_data);
653
654  // check return code
655  if (succeeded) {
656  KMessageBox::information(this, i18n(
657  "Congratulation, the test was successful!"));
658  } // else: the plugin has already shown an error message
659 }
quint64 sample_index_t
Definition: Sample.h:28
virtual void replace(const MetaDataList &list)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ updateEncoderInfo()

void Kwave::MP3EncoderDialog::updateEncoderInfo ( )
private

updates the version info string of the current encoder

Definition at line 747 of file MP3EncoderDialog.cpp.

References ELEMENTS_OF, encoderVersion(), Kwave::MP3EncoderSettings::m_info, Kwave::MP3EncoderSettings::m_name, Kwave::MP3EncoderSettings::m_version, name, PRESET_NAME_USER_DEFINED, searchPath(), and Kwave::toInt().

Referenced by load(), locatePath(), and switchToUserDefined().

748 {
749  int index = cbProgram->currentIndex();
750  QString title;
751
753  title = PRESET_NAME_USER_DEFINED;
754  }
755
756  // detect by using the currently selected path
757  if (!title.length()) {
758  // first try with user defined full path
759  QString name = g_predefined_settings[index].m_name;
760  QString program = QFileInfo(edPath->text().simplified()).filePath();
761  QString param = edVersionInfo->text().simplified();
762  QString version = encoderVersion(program, param);
763  if (version.length() >= name.length()) {
764  title = version;
765  } else {
766  // fallback: detect by using list of predefined settings
767  QString p = g_predefined_settings[index].m_info.m_version;
768  program = searchPath(g_predefined_settings[index].m_path);
769  version = encoderVersion(program, p);
770  if (version.length() >= name.length())
771  title = version;
772  }
773  }
774
775  cbProgram->setItemText(index, title);
776 }
#define PRESET_NAME_USER_DEFINED
#define ELEMENTS_OF(x)
const char name[16]
Definition: memcpy.c:510
int toInt(T x)
Definition: Utils.h:127
const Kwave::MP3EncoderSettings g_predefined_settings[]
QString encoderVersion(const QString &path, const QString &param)
QString searchPath(const QString &program)
struct Kwave::MP3EncoderSettings::@8 m_info

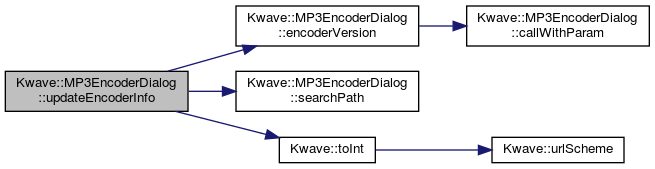

Here is the call graph for this function:

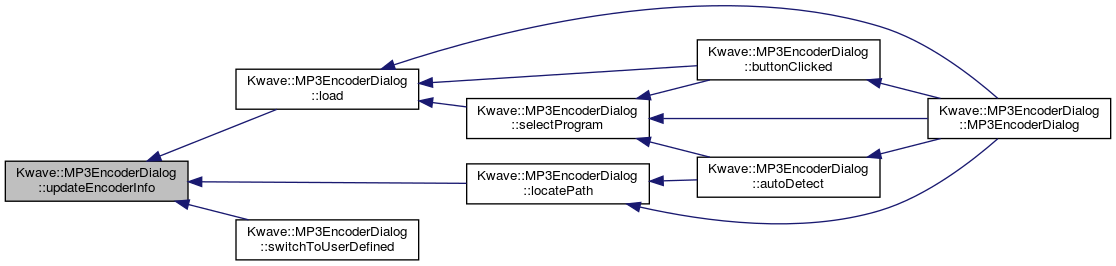

Here is the caller graph for this function:

Member Data Documentation

◆ m_settings

Kwave::MP3EncoderSettings Kwave::MP3EncoderDialog::m_settings
private

current encoder settings, complete struct

Definition at line 119 of file MP3EncoderDialog.h.

Referenced by load(), MP3EncoderDialog(), save(), and selectProgram().


The documentation for this class was generated from the following files:
