Kwave::LowPassPlugin Class Reference

#include <LowPassPlugin.h>

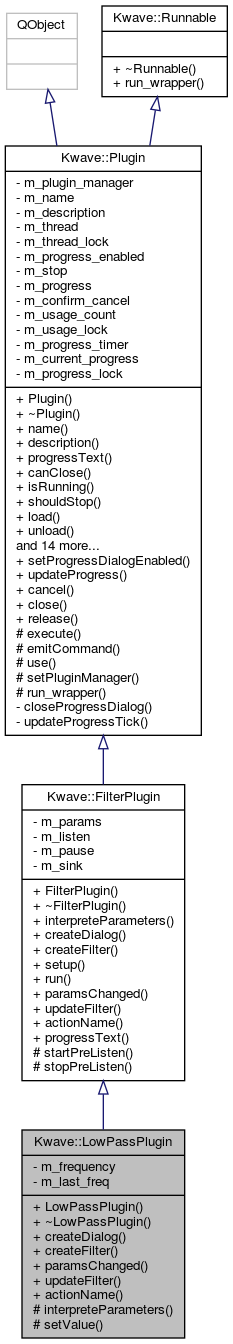

Inheritance diagram for Kwave::LowPassPlugin:

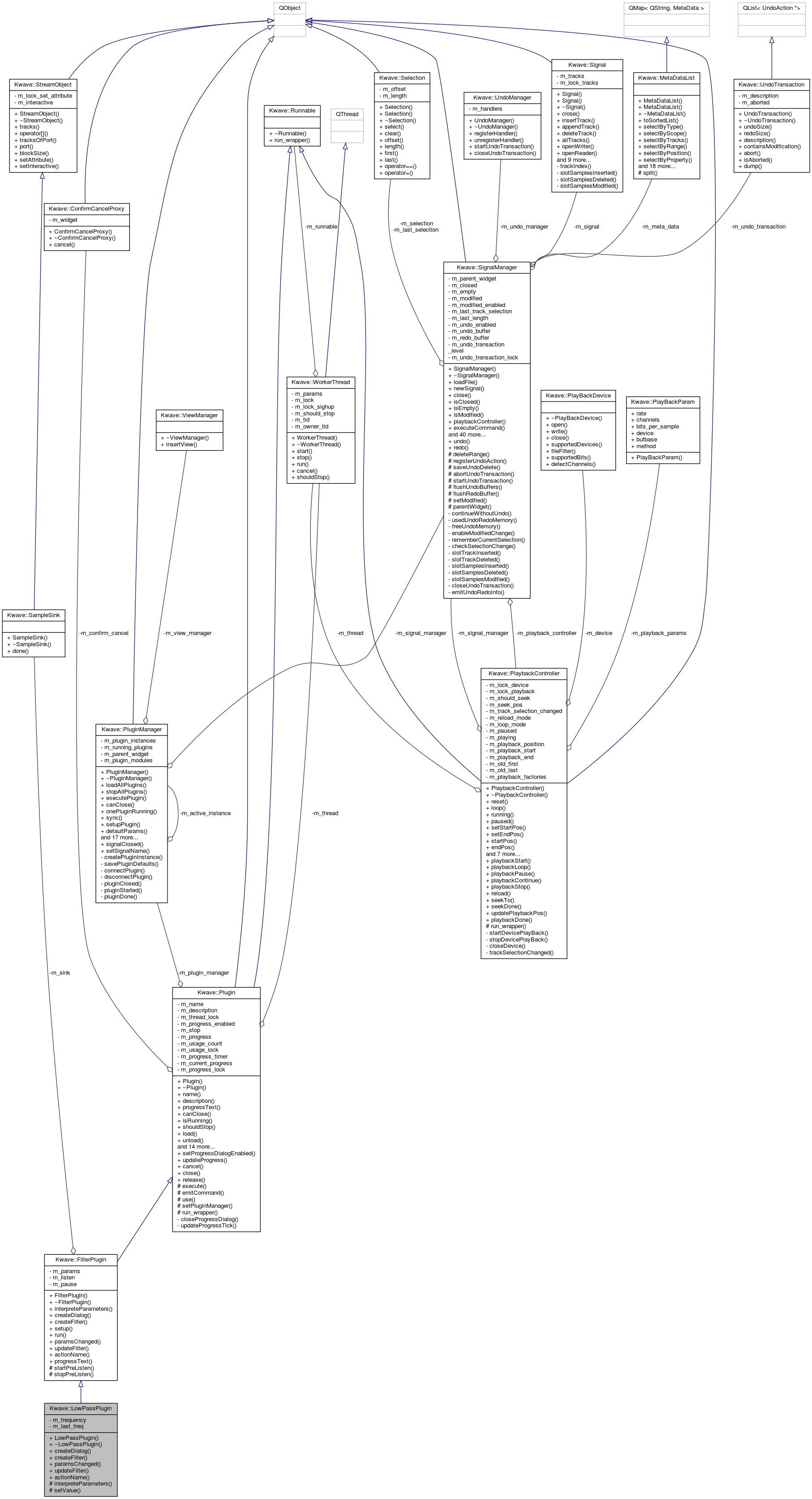

Collaboration diagram for Kwave::LowPassPlugin:

Public Member Functions
	LowPassPlugin (QObject *parent, const QVariantList &args)
virtual	~LowPassPlugin () Q_DECL_OVERRIDE
virtual Kwave::PluginSetupDialog *	createDialog (QWidget *parent) Q_DECL_OVERRIDE
virtual Kwave::SampleSource *	createFilter (unsigned int tracks) Q_DECL_OVERRIDE
virtual bool	paramsChanged () Q_DECL_OVERRIDE
virtual void	updateFilter (Kwave::SampleSource *filter, bool force=false) Q_DECL_OVERRIDE
virtual QString	actionName () Q_DECL_OVERRIDE
Public Member Functions inherited from Kwave::FilterPlugin
	FilterPlugin (QObject *parent, const QVariantList &args)
virtual	~FilterPlugin () Q_DECL_OVERRIDE
virtual QStringList *	setup (QStringList &previous_params) Q_DECL_OVERRIDE
virtual void	run (QStringList params) Q_DECL_OVERRIDE
virtual QString	progressText () Q_DECL_OVERRIDE
Public Member Functions inherited from Kwave::Plugin
	Plugin (QObject *parent, const QVariantList &args)
virtual	~Plugin () Q_DECL_OVERRIDE
virtual QString	name () const
virtual QString	description () const
virtual bool	canClose () const
bool	isRunning () const
bool	shouldStop () const
virtual void	load (QStringList &params)
virtual void	unload ()
virtual int	start (QStringList &params)
virtual int	stop ()
Kwave::PluginManager &	manager () const
Kwave::SignalManager &	signalManager ()
QWidget *	parentWidget () const
QString	signalName ()
virtual sample_index_t	signalLength ()
virtual double	signalRate ()
virtual const QList< unsigned int >	selectedTracks ()
virtual sample_index_t	selection (QList< unsigned int > *tracks=Q_NULLPTR, sample_index_t *left=Q_NULLPTR, sample_index_t *right=Q_NULLPTR, bool expand_if_empty=false)
virtual void	selectRange (sample_index_t offset, sample_index_t length)
virtual void	migrateToActiveContext ()
Public Member Functions inherited from Kwave::Runnable
virtual	~Runnable ()

Protected Slots
void	setValue (double frequency)
Protected Slots inherited from Kwave::FilterPlugin
void	startPreListen ()
void	stopPreListen ()

Protected Member Functions
virtual int	interpreteParameters (QStringList &params) Q_DECL_OVERRIDE
Protected Member Functions inherited from Kwave::Plugin
int	execute (QStringList &params)
void	emitCommand (const QString &command)
void	use ()
void	setPluginManager (Kwave::PluginManager *new_plugin_manager)
virtual void	run_wrapper (const QVariant &params) Q_DECL_OVERRIDE

Private Attributes
double	m_frequency
double	m_last_freq

Additional Inherited Members
Public Slots inherited from Kwave::Plugin
virtual void	setProgressDialogEnabled (bool enable)
virtual void	updateProgress (qreal progress)
virtual void	cancel ()
virtual void	close ()
void	release ()
Signals inherited from Kwave::FilterPlugin
void	sigCancelPressed ()
Signals inherited from Kwave::Plugin
void	sigRunning (Kwave::Plugin *plugin)
void	sigDone (Kwave::Plugin *plugin)
void	sigClosed (Kwave::Plugin *p)
void	sigCommand (const QString &command)
void	setProgressText (const QString &text)

Detailed Description

Definition at line 39 of file LowPassPlugin.h.

Constructor & Destructor Documentation

LowPassPlugin()

Kwave::LowPassPlugin::LowPassPlugin	(	QObject *	parent,
		const QVariantList &	args
	)

Constructor

Parameters

parent	reference to our plugin manager
args	argument list [unused]

Definition at line 35 of file LowPassPlugin.cpp.

    :Kwave::FilterPlugin(parent, args),
     m_frequency(3500.0), m_last_freq(100)
{
}

~LowPassPlugin()

Kwave::LowPassPlugin::~LowPassPlugin ( )

virtual

Destructor

Definition at line 43 of file LowPassPlugin.cpp.

{
}

Member Function Documentation

actionName()

QString Kwave::LowPassPlugin::actionName ( )

virtual

Returns a verbose name of the performed action. Used for giving the undo action a readable name.

Implements Kwave::FilterPlugin.

Definition at line 107 of file LowPassPlugin.cpp.

{
    return i18n("Low Pass");
}

createDialog()

Kwave::PluginSetupDialog * Kwave::LowPassPlugin::createDialog ( QWidget *  parent )

virtual

Creates the setup dialog and connects it's signals

Implements Kwave::FilterPlugin.

Definition at line 65 of file LowPassPlugin.cpp.

References Kwave::connect(), setValue(), and Kwave::Plugin::signalRate().

{
    Kwave::LowPassDialog *dialog =
        new Kwave::LowPassDialog(parent, signalRate());
    Q_ASSERT(dialog);
    if (!dialog) return Q_NULLPTR;

    // connect the signals for detecting value changes in pre-listen mode
    connect(dialog, SIGNAL(changed(double)),
            this, SLOT(setValue(double)));

    return dialog;
}

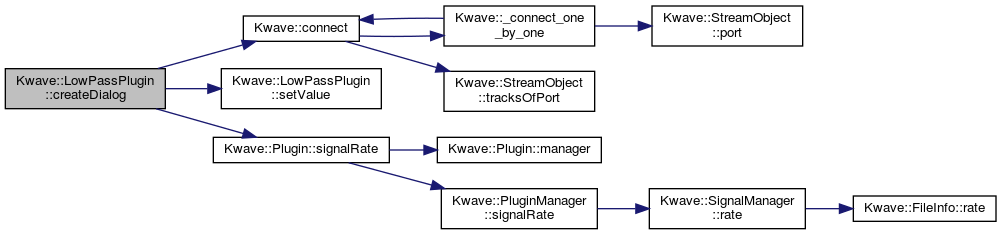

Here is the call graph for this function:

createFilter()

Kwave::SampleSource * Kwave::LowPassPlugin::createFilter ( unsigned int  tracks )

virtual

Creates a multi-track filter with the given number of tracks

Parameters

tracks

number of tracks that the filter should have

Returns

pointer to the filter or null if failed

Implements Kwave::FilterPlugin.

Definition at line 80 of file LowPassPlugin.cpp.

{
    return new Kwave::MultiTrackSource<Kwave::LowPassFilter, true>(tracks);
}

interpreteParameters()

int Kwave::LowPassPlugin::interpreteParameters ( QStringList &  params )

protectedvirtual

Reads values from the parameter list

Implements Kwave::FilterPlugin.

Definition at line 48 of file LowPassPlugin.cpp.

References m_frequency.

{
    bool ok;
    QString param;

    // evaluate the parameter list
    if (params.count() != 1) return -EINVAL;

    param = params[0];
    m_frequency = param.toDouble(&ok);
    Q_ASSERT(ok);
    if (!ok) return -EINVAL;

    return 0;
}

paramsChanged()

bool Kwave::LowPassPlugin::paramsChanged ( )

virtual

Returns true if the parameters have changed during pre-listen.

Reimplemented from Kwave::FilterPlugin.

Definition at line 86 of file LowPassPlugin.cpp.

References m_frequency, and m_last_freq.

{
    return (!qFuzzyCompare(m_frequency, m_last_freq));
}

setValue

void Kwave::LowPassPlugin::setValue ( double  frequency )

protectedslot

Called when the parameter changed during pre-listen

Parameters

frequency

the frequency parameter in Hz

Definition at line 113 of file LowPassPlugin.cpp.

References m_frequency.

Referenced by createDialog().

{
    m_frequency = frequency;
}

Here is the caller graph for this function:

updateFilter()

void Kwave::LowPassPlugin::updateFilter ( Kwave::SampleSource *  filter, bool  force = false  )

virtual

Update the filter with new parameters if it has changed changed during the pre-listen.

Parameters

filter	the Kwave::SampleSource to be updated, should be the same one as created with createFilter()
force	if true, even update if no settings have changed

Reimplemented from Kwave::FilterPlugin.

Definition at line 92 of file LowPassPlugin.cpp.

References m_frequency, m_last_freq, Kwave::StreamObject::setAttribute(), and Kwave::Plugin::signalRate().

{
    double sr = signalRate();

    if (!filter) return;

    if (!qFuzzyCompare(m_frequency, m_last_freq) || force)
        filter->setAttribute(SLOT(setFrequency(QVariant)),
            QVariant((m_frequency * 2.0 * M_PI) / sr));

    m_last_freq  = m_frequency;
}

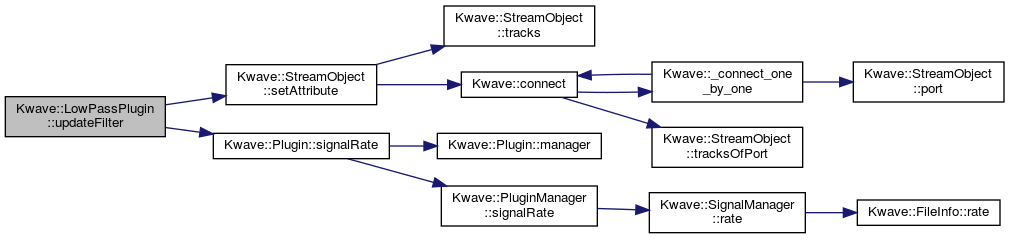

Here is the call graph for this function:

Member Data Documentation

m_frequency

double Kwave::LowPassPlugin::m_frequency

private

cutoff frequency [Hz]

Definition at line 104 of file LowPassPlugin.h.

Referenced by interpreteParameters(), paramsChanged(), setValue(), and updateFilter().

m_last_freq

double Kwave::LowPassPlugin::m_last_freq

private

last value of m_frequency

Definition at line 107 of file LowPassPlugin.h.

Referenced by paramsChanged(), and updateFilter().

---

The documentation for this class was generated from the following files:

• plugins/lowpass/LowPassPlugin.h
• plugins/lowpass/LowPassPlugin.cpp
