Kwave::CodecPlugin Class Reference

#include <CodecPlugin.h>

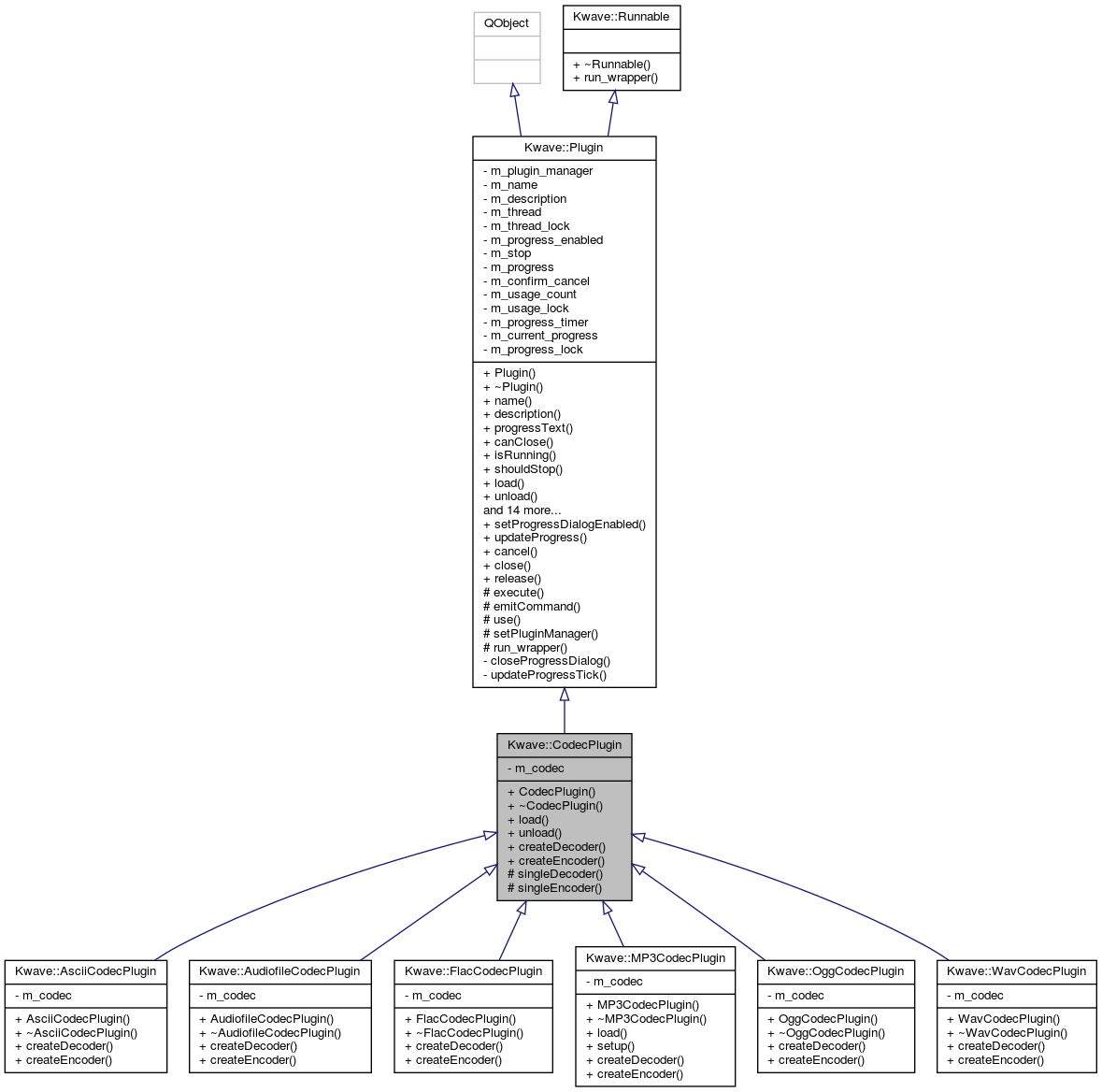

Inheritance diagram for Kwave::CodecPlugin:

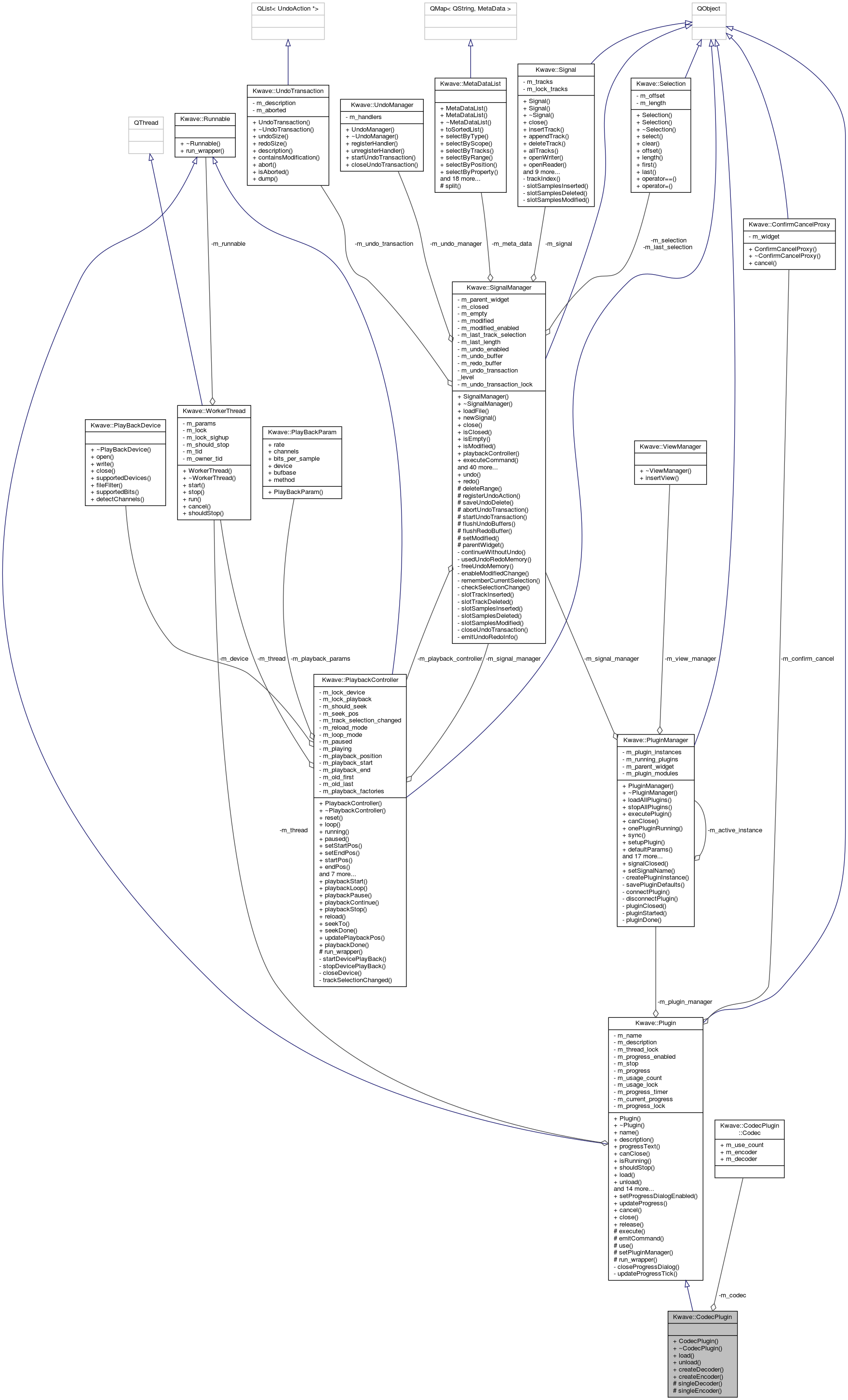

Collaboration diagram for Kwave::CodecPlugin:

Classes
struct	Codec

Public Member Functions
	CodecPlugin (QObject *parent, const QVariantList &args, Codec &codec)
virtual	~CodecPlugin () Q_DECL_OVERRIDE
virtual void	load (QStringList &) Q_DECL_OVERRIDE
virtual void	unload () Q_DECL_OVERRIDE
virtual QList< Kwave::Decoder * >	createDecoder ()=0
virtual QList< Kwave::Encoder * >	createEncoder ()=0
Public Member Functions inherited from Kwave::Plugin
	Plugin (QObject *parent, const QVariantList &args)
virtual	~Plugin () Q_DECL_OVERRIDE
virtual QString	name () const
virtual QString	description () const
virtual QString	progressText ()
virtual bool	canClose () const
bool	isRunning () const
bool	shouldStop () const
virtual QStringList *	setup (QStringList &previous_params)
virtual int	start (QStringList &params)
virtual int	stop ()
virtual void	run (QStringList params)
Kwave::PluginManager &	manager () const
Kwave::SignalManager &	signalManager ()
QWidget *	parentWidget () const
QString	signalName ()
virtual sample_index_t	signalLength ()
virtual double	signalRate ()
virtual const QList< unsigned int >	selectedTracks ()
virtual sample_index_t	selection (QList< unsigned int > *tracks=Q_NULLPTR, sample_index_t *left=Q_NULLPTR, sample_index_t *right=Q_NULLPTR, bool expand_if_empty=false)
virtual void	selectRange (sample_index_t offset, sample_index_t length)
virtual void	migrateToActiveContext ()
Public Member Functions inherited from Kwave::Runnable
virtual	~Runnable ()

Protected Member Functions
template<class T >
QList< Kwave::Decoder * >	singleDecoder ()
template<class T >
QList< Kwave::Encoder * >	singleEncoder ()
Protected Member Functions inherited from Kwave::Plugin
int	execute (QStringList &params)
void	emitCommand (const QString &command)
void	use ()
void	setPluginManager (Kwave::PluginManager *new_plugin_manager)
virtual void	run_wrapper (const QVariant &params) Q_DECL_OVERRIDE

Private Attributes
Codec &	m_codec

Additional Inherited Members
Public Slots inherited from Kwave::Plugin
virtual void	setProgressDialogEnabled (bool enable)
virtual void	updateProgress (qreal progress)
virtual void	cancel ()
virtual void	close ()
void	release ()
Signals inherited from Kwave::Plugin
void	sigRunning (Kwave::Plugin *plugin)
void	sigDone (Kwave::Plugin *plugin)
void	sigClosed (Kwave::Plugin *p)
void	sigCommand (const QString &command)
void	setProgressText (const QString &text)

Detailed Description

Definition at line 33 of file CodecPlugin.h.

Constructor & Destructor Documentation

CodecPlugin()

Kwave::CodecPlugin::CodecPlugin	(	QObject *	parent,
		const QVariantList &	args,
		Codec &	codec
	)

Constructor

Parameters

parent	pointer to the corresponding plugin manager
args	argument list, containts internal meta data
codec	reference to a static container for the codec

Definition at line 26 of file CodecPlugin.cpp.

    :Kwave::Plugin(parent, args), m_codec(codec)
{
}

~CodecPlugin()

Kwave::CodecPlugin::~CodecPlugin ( )

virtual

Destructor

Definition at line 34 of file CodecPlugin.cpp.

{
}

Member Function Documentation

createDecoder()

virtual QList<Kwave::Decoder *> Kwave::CodecPlugin::createDecoder ( )

pure virtual

Create a new set of decoders

Returns

list of decoders, may be empty

Implemented in Kwave::MP3CodecPlugin, Kwave::FlacCodecPlugin, Kwave::AsciiCodecPlugin, Kwave::OggCodecPlugin, Kwave::WavCodecPlugin, and Kwave::AudiofileCodecPlugin.

Referenced by load().

Here is the caller graph for this function:

createEncoder()

virtual QList<Kwave::Encoder *> Kwave::CodecPlugin::createEncoder ( )

pure virtual

Create a new set of encoders

Returns

list of encoders, may be empty

Implemented in Kwave::MP3CodecPlugin, Kwave::FlacCodecPlugin, Kwave::AsciiCodecPlugin, Kwave::OggCodecPlugin, Kwave::WavCodecPlugin, and Kwave::AudiofileCodecPlugin.

Referenced by load().

Here is the caller graph for this function:

load()

void Kwave::CodecPlugin::load ( QStringList &  )

virtual

Gets called when the plugin is first loaded. Registers new encoder and decoder on first call, all subsequenct calls only increment the reference count of the existing encoder/decoder instances.

Reimplemented from Kwave::Plugin.

Reimplemented in Kwave::MP3CodecPlugin.

Definition at line 39 of file CodecPlugin.cpp.

References createDecoder(), createEncoder(), m_codec, Kwave::CodecPlugin::Codec::m_decoder, Kwave::CodecPlugin::Codec::m_encoder, Kwave::CodecPlugin::Codec::m_use_count, Kwave::CodecManager::registerDecoder(), Kwave::CodecManager::registerEncoder(), and Kwave::Plugin::use().

Referenced by Kwave::MP3CodecPlugin::load().

{
    use();

    m_codec.m_use_count++;
    if (m_codec.m_use_count == 1)
    {
        m_codec.m_encoder = createEncoder();
        if (!m_codec.m_encoder.isEmpty())
            foreach (Kwave::Encoder *enc, m_codec.m_encoder)
                if (enc) Kwave::CodecManager::registerEncoder(*enc);

        m_codec.m_decoder = createDecoder();
        if (!m_codec.m_decoder.isEmpty())
            foreach (Kwave::Decoder *dec, m_codec.m_decoder)
                Kwave::CodecManager::registerDecoder(*dec);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

singleDecoder()

template<class T >

QList<Kwave::Decoder *> Kwave::CodecPlugin::singleDecoder ( )

inlineprotected

helper template to return a list with a single decoder, for use within createDecoder()

Definition at line 87 of file CodecPlugin.h.

        {
            QList<Kwave::Decoder *> list;
            list.append(new(std::nothrow) T);
            return list;
        }

singleEncoder()

template<class T >

QList<Kwave::Encoder *> Kwave::CodecPlugin::singleEncoder ( )

inlineprotected

helper template to return a list with a single encoder, for use within createEncoder()

Definition at line 98 of file CodecPlugin.h.

        {
            QList<Kwave::Encoder *> list;
            list.append(new(std::nothrow) T);
            return list;
        }

unload()

void Kwave::CodecPlugin::unload ( )

virtual

Gets called before the plugin is unloaded. Decrements the use count of existing encoder/decoder instances and removes them if zero gets reached.

Reimplemented from Kwave::Plugin.

Definition at line 59 of file CodecPlugin.cpp.

References m_codec, Kwave::CodecPlugin::Codec::m_decoder, Kwave::CodecPlugin::Codec::m_encoder, Kwave::CodecPlugin::Codec::m_use_count, Kwave::Plugin::release(), Kwave::CodecManager::unregisterDecoder(), and Kwave::CodecManager::unregisterEncoder().

{
    m_codec.m_use_count--;

    if (m_codec.m_use_count < 1)
    {
        while (!m_codec.m_decoder.isEmpty()) {
            Kwave::Decoder *dec = m_codec.m_decoder.takeLast();
            Kwave::CodecManager::unregisterDecoder(dec);
            delete dec;
        }

        while (!m_codec.m_encoder.isEmpty()) {
            Kwave::Encoder *enc = m_codec.m_encoder.takeLast();
            Kwave::CodecManager::unregisterEncoder(enc);
            delete enc;
        }
    }

    release();
}

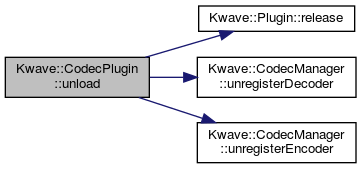

Here is the call graph for this function:

Member Data Documentation

m_codec

Codec& Kwave::CodecPlugin::m_codec

private

reference to the static container with encoder/decoder/usecount

Definition at line 108 of file CodecPlugin.h.

Referenced by load(), and unload().

---

The documentation for this class was generated from the following files:

• libkwave/CodecPlugin.h
• libkwave/CodecPlugin.cpp
