#include <RecordDevice.h>

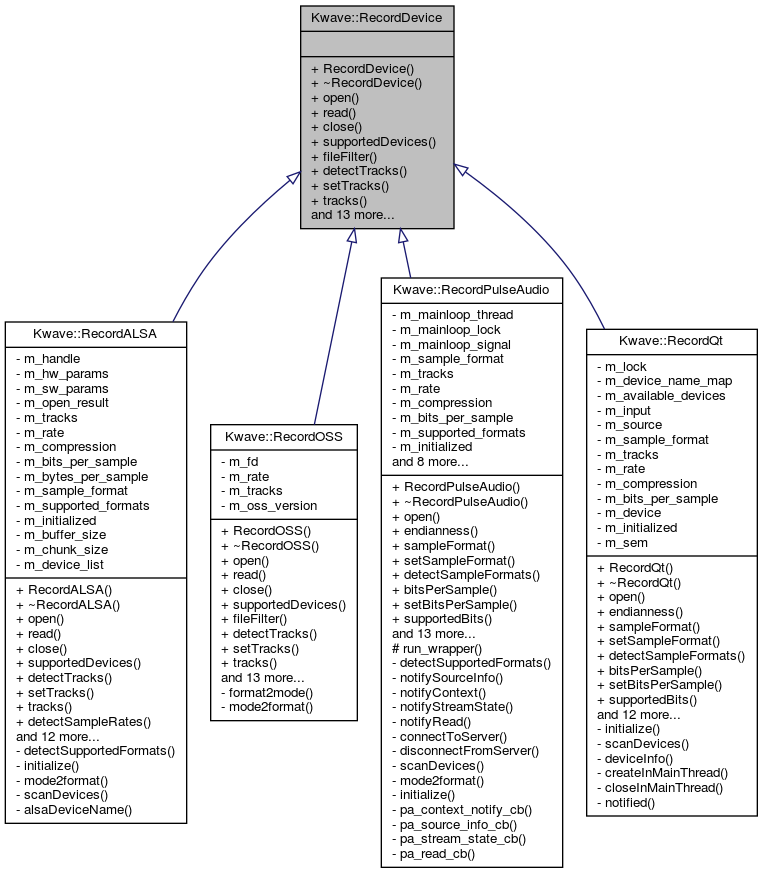

Inheritance diagram for Kwave::RecordDevice:

Collaboration diagram for Kwave::RecordDevice:

Public Member Functions
	RecordDevice ()

virtual	~RecordDevice ()

virtual QString	open (const QString &dev)=0

virtual int	read (QByteArray &buffer, unsigned int offset)=0

virtual int	close ()=0

virtual QStringList	supportedDevices ()=0

virtual QString	fileFilter ()

virtual int	detectTracks (unsigned int &min, unsigned int &max)=0

virtual int	setTracks (unsigned int &tracks)=0

virtual int	tracks ()=0

virtual QList< double >	detectSampleRates ()=0

virtual int	setSampleRate (double &new_rate)=0

virtual double	sampleRate ()=0

virtual QList< Kwave::Compression::Type >	detectCompressions ()=0

virtual int	setCompression (Kwave::Compression::Type new_compression)=0

virtual Kwave::Compression::Type	compression ()=0

virtual QList< unsigned int >	supportedBits ()=0

virtual int	setBitsPerSample (unsigned int new_bits)=0

virtual int	bitsPerSample ()=0

virtual QList< Kwave::SampleFormat::Format >	detectSampleFormats ()=0

virtual int	setSampleFormat (Kwave::SampleFormat::Format new_format)=0

virtual Kwave::SampleFormat::Format	sampleFormat ()=0

virtual Kwave::byte_order_t	endianness ()=0

Detailed Description

Definition at line 37 of file RecordDevice.h.

Constructor & Destructor Documentation

◆ RecordDevice()

Kwave::RecordDevice::RecordDevice ( )

inline

Constructor

Definition at line 42 of file RecordDevice.h.

42 {}

◆ ~RecordDevice()

virtual Kwave::RecordDevice::~RecordDevice ( )

inlinevirtual

Destructor

Definition at line 45 of file RecordDevice.h.

References close(), open(), read(), and supportedDevices().

45 {}

Here is the call graph for this function:

Member Function Documentation

◆ bitsPerSample()

virtual int Kwave::RecordDevice::bitsPerSample ( )

pure virtual

Returns the current resolution in bits per sample or a negative error code if failed

Implemented in Kwave::RecordALSA, Kwave::RecordOSS, Kwave::RecordPulseAudio, and Kwave::RecordQt.

Referenced by Kwave::RecordPlugin::changeBitsPerSample(), fileFilter(), Kwave::RecordPlugin::paramsValid(), and Kwave::RecordPlugin::setupRecordThread().

Here is the caller graph for this function:

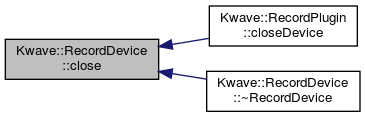

◆ close()

virtual int Kwave::RecordDevice::close ( )

pure virtual

Close the device

Implemented in Kwave::RecordPulseAudio, Kwave::RecordQt, Kwave::RecordALSA, and Kwave::RecordOSS.

Referenced by Kwave::RecordPlugin::closeDevice(), and ~RecordDevice().

Here is the caller graph for this function:

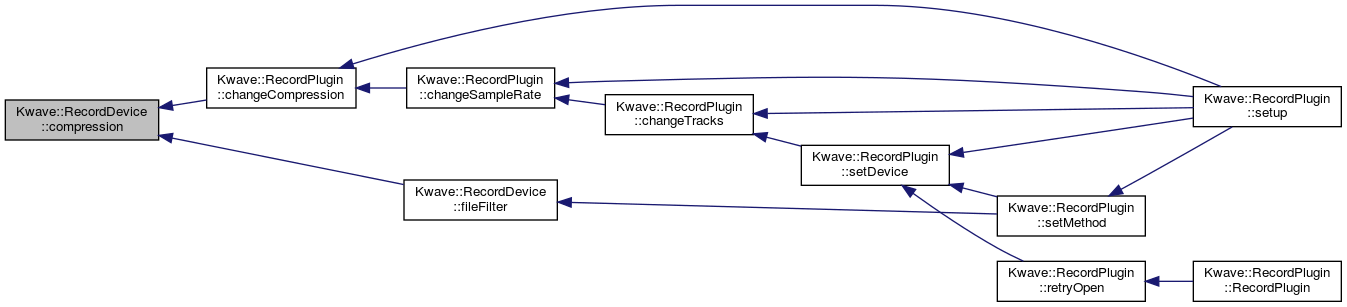

◆ compression()

virtual Kwave::Compression::Type Kwave::RecordDevice::compression ( )

pure virtual

Returns the current compression type (0==none)

Implemented in Kwave::RecordALSA, Kwave::RecordOSS, Kwave::RecordPulseAudio, and Kwave::RecordQt.

Referenced by Kwave::RecordPlugin::changeCompression(), and fileFilter().

Here is the caller graph for this function:

◆ detectCompressions()

virtual QList<Kwave::Compression::Type> Kwave::RecordDevice::detectCompressions ( )

pure virtual

Gets a list of supported compression types. If no compression is supported, the list might be empty.

Implemented in Kwave::RecordPulseAudio, Kwave::RecordQt, Kwave::RecordALSA, and Kwave::RecordOSS.

Referenced by Kwave::RecordPlugin::changeCompression(), and fileFilter().

Here is the caller graph for this function:

◆ detectSampleFormats()

virtual QList<Kwave::SampleFormat::Format> Kwave::RecordDevice::detectSampleFormats ( )

pure virtual

Gets a list of supported sample formats.

Note: this depends on the current setting of the compression!

Implemented in Kwave::RecordALSA, Kwave::RecordOSS, Kwave::RecordPulseAudio, and Kwave::RecordQt.

Referenced by Kwave::RecordPlugin::changeSampleFormat(), and fileFilter().

Here is the caller graph for this function:

◆ detectSampleRates()

virtual QList<double> Kwave::RecordDevice::detectSampleRates ( )

pure virtual

get a list of supported sample rates

Implemented in Kwave::RecordPulseAudio, Kwave::RecordQt, Kwave::RecordALSA, and Kwave::RecordOSS.

Referenced by Kwave::RecordPlugin::changeSampleRate(), and fileFilter().

Here is the caller graph for this function:

◆ detectTracks()

virtual int Kwave::RecordDevice::detectTracks	(	unsigned int &	min,
		unsigned int &	max
	)

pure virtual

Detect the minimum and maximum number of tracks. If the detection fails, minimum and maximum are set to zero.

Parameters

min	receives the lowest supported number of tracks
max	receives the highest supported number of tracks

Returns: zero or positive number if ok, negative error number if failed

Implemented in Kwave::RecordPulseAudio, Kwave::RecordQt, Kwave::RecordALSA, and Kwave::RecordOSS.

Referenced by Kwave::RecordPlugin::changeTracks(), and fileFilter().

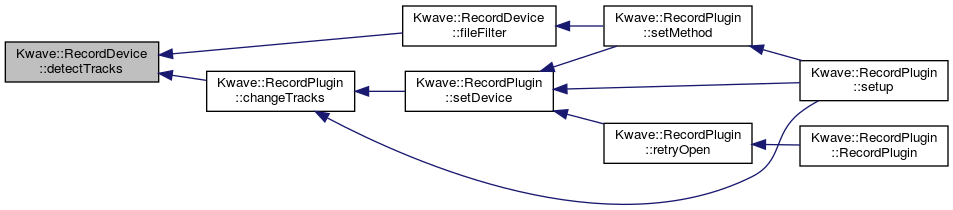

Here is the caller graph for this function:

◆ endianness()

virtual Kwave::byte_order_t Kwave::RecordDevice::endianness ( )

pure virtual

Returns the current endianness (big/little)

Implemented in Kwave::RecordALSA, Kwave::RecordOSS, Kwave::RecordPulseAudio, and Kwave::RecordQt.

Referenced by fileFilter(), Kwave::RecordPlugin::paramsValid(), and Kwave::RecordPlugin::setupRecordThread().

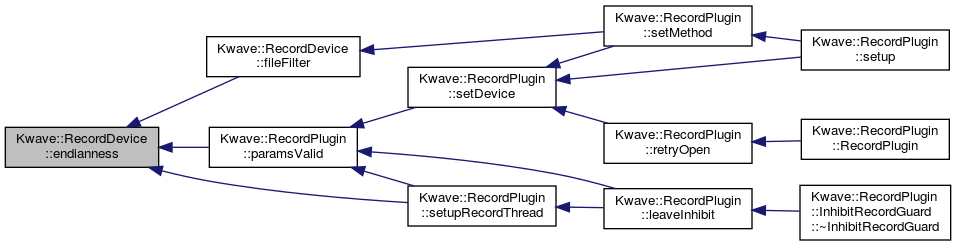

Here is the caller graph for this function:

◆ fileFilter()

virtual QString Kwave::RecordDevice::fileFilter ( )

inlinevirtual

return a string suitable for a "File Open..." dialog

Reimplemented in Kwave::RecordOSS.

Definition at line 75 of file RecordDevice.h.

References _, bitsPerSample(), compression(), detectCompressions(), detectSampleFormats(), detectSampleRates(), detectTracks(), endianness(), sampleFormat(), sampleRate(), setBitsPerSample(), setCompression(), setSampleFormat(), setSampleRate(), setTracks(), supportedBits(), and tracks().

Referenced by Kwave::RecordPlugin::setMethod().

75 { return _(""); }

_

#define _(m)

Definition: memcpy.c:66

Here is the call graph for this function:

Here is the caller graph for this function:

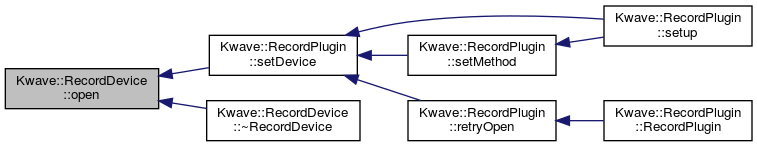

◆ open()

virtual QString Kwave::RecordDevice::open ( const QString & dev )

pure virtual

Open the record device.

Parameters

dev	path of the record device

Return values

QString()	if successful
QString::number(ENODEV)	if device not found
QString::number(EBUSY)	if device is busy
QString::number(EINVAL)	on invalid parameters
QString(...)	device specific error message (already translated)

Implemented in Kwave::RecordPulseAudio, Kwave::RecordQt, Kwave::RecordALSA, and Kwave::RecordOSS.

Referenced by Kwave::RecordPlugin::setDevice(), and ~RecordDevice().

Here is the caller graph for this function:

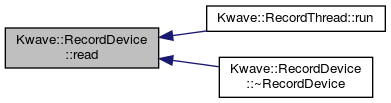

◆ read()

virtual int Kwave::RecordDevice::read	(	QByteArray &	buffer,
		unsigned int	offset
	)

pure virtual

Read the raw audio data from the record device.

Parameters

buffer	array of bytes to receive the audio data might be resized for alignment
offset	offset in bytes within the buffer

Returns: number of bytes read, zero or negative if failed

Implemented in Kwave::RecordPulseAudio, Kwave::RecordQt, Kwave::RecordALSA, and Kwave::RecordOSS.

Referenced by Kwave::RecordThread::run(), and ~RecordDevice().

Here is the caller graph for this function:

◆ sampleFormat()

virtual Kwave::SampleFormat::Format Kwave::RecordDevice::sampleFormat ( )

pure virtual

Returns the current sample format (signed/unsigned)

Implemented in Kwave::RecordALSA, Kwave::RecordOSS, Kwave::RecordPulseAudio, and Kwave::RecordQt.

Referenced by Kwave::RecordPlugin::changeSampleFormat(), fileFilter(), Kwave::RecordPlugin::paramsValid(), and Kwave::RecordPlugin::setupRecordThread().

Here is the caller graph for this function:

◆ sampleRate()

virtual double Kwave::RecordDevice::sampleRate ( )

pure virtual

Returns the current sample rate of the device

Implemented in Kwave::RecordPulseAudio, Kwave::RecordQt, Kwave::RecordALSA, and Kwave::RecordOSS.

Referenced by Kwave::RecordPlugin::changeSampleRate(), and fileFilter().

Here is the caller graph for this function:

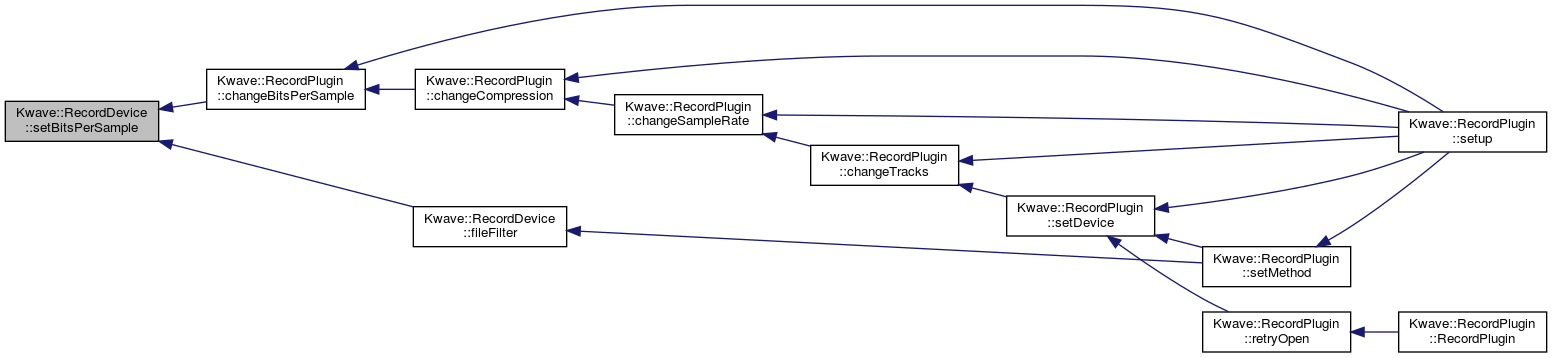

◆ setBitsPerSample()

virtual int Kwave::RecordDevice::setBitsPerSample ( unsigned int new_bits )

pure virtual

Set the resolution in bits per sample

Parameters

new_bits resolution [bits/sample]

Implemented in Kwave::RecordALSA, Kwave::RecordOSS, Kwave::RecordPulseAudio, and Kwave::RecordQt.

Referenced by Kwave::RecordPlugin::changeBitsPerSample(), and fileFilter().

Here is the caller graph for this function:

◆ setCompression()

virtual int Kwave::RecordDevice::setCompression ( Kwave::Compression::Type new_compression )

pure virtual

Try to set a new compression type.

Parameters

new_compression the identifier of the new compression

Returns: zero on success, negative error code if failed

See also: class Kwave::Compression

Implemented in Kwave::RecordALSA, Kwave::RecordPulseAudio, Kwave::RecordOSS, and Kwave::RecordQt.

Referenced by Kwave::RecordPlugin::changeCompression(), and fileFilter().

Here is the caller graph for this function:

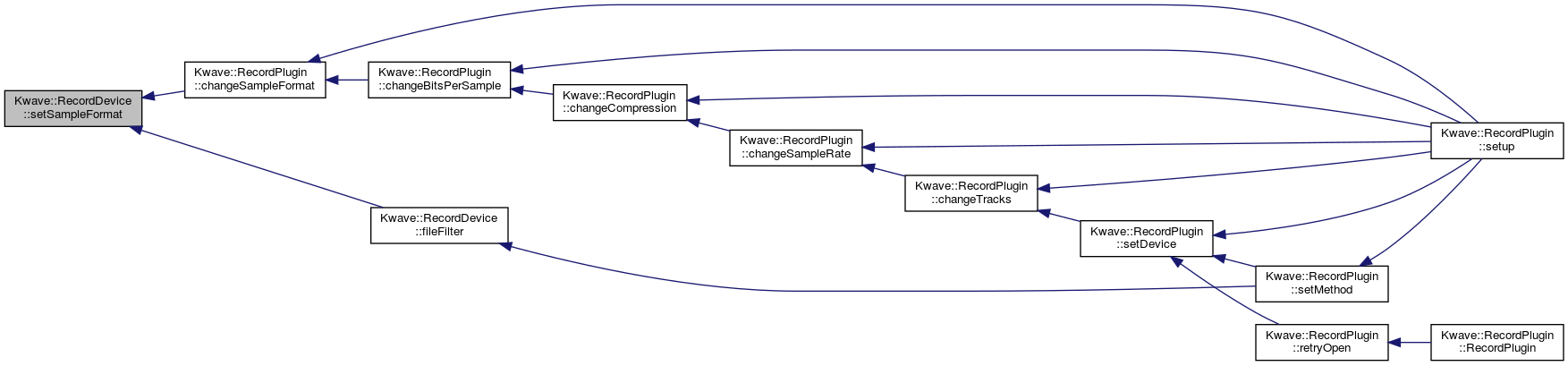

◆ setSampleFormat()

virtual int Kwave::RecordDevice::setSampleFormat ( Kwave::SampleFormat::Format new_format )

pure virtual

Try to set a new sample format (signed/unsigned)

Parameters

new_format the identifier for the new format

Returns: zero on success, negative error code if failed

See also: class SampleFormat

Implemented in Kwave::RecordALSA, Kwave::RecordOSS, Kwave::RecordPulseAudio, and Kwave::RecordQt.

Referenced by Kwave::RecordPlugin::changeSampleFormat(), and fileFilter().

Here is the caller graph for this function:

◆ setSampleRate()

virtual int Kwave::RecordDevice::setSampleRate ( double & new_rate )

pure virtual

Try to set a new sample rate.

Parameters

new_rate the sample rate to be set [samples/second], can be modified and rounded up/down to the nearest supported sample rate if the underlying driver supports that.
