Kwave::RIFFChunk Class Reference

#include <RIFFChunk.h>

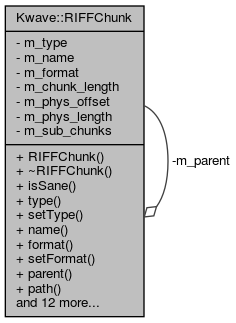

Collaboration diagram for Kwave::RIFFChunk:

Public Types
enum	ChunkType {   Root, Main, Sub, Garbage,   Empty }

Public Member Functions
	RIFFChunk (Kwave::RIFFChunk *parent, const QByteArray &name, const QByteArray &format, quint32 length, quint32 phys_offset, quint32 phys_length)
virtual	~RIFFChunk ()
bool	isSane () const
ChunkType	type () const
void	setType (ChunkType type)
const QByteArray &	name () const
const QByteArray &	format () const
void	setFormat (const QByteArray &format)
Kwave::RIFFChunk *	parent () const
const QByteArray	path () const
quint32	dataStart () const
quint32	dataLength () const
quint32	length () const
void	setLength (quint32 length)
quint32	physStart () const
quint32	physEnd () const
quint32	physLength () const
Kwave::RIFFChunkList &	subChunks ()
const Kwave::RIFFChunkList &	subChunks () const
bool	isChildOf (Kwave::RIFFChunk *chunk)
void	fixSize ()
void	dumpStructure ()

Private Attributes
ChunkType	m_type
QByteArray	m_name
QByteArray	m_format
Kwave::RIFFChunk *	m_parent
quint32	m_chunk_length
quint32	m_phys_offset
quint32	m_phys_length
Kwave::RIFFChunkList	m_sub_chunks

Detailed Description

Stores information about a RIFF chunk, containing name, type, position in the source and length.

Definition at line 39 of file RIFFChunk.h.

Member Enumeration Documentation

ChunkType

enum Kwave::RIFFChunk::ChunkType

State of a chunk. Most are a sub-chunks. If one is known to contain further sub-chunks, it is marked as a main chunk. main and sub chunks always have a valid name and some length information, but might be truncated. If the name is not valid, the chunk is considered to contain only garbage. If the name is valid but there is no length information the chunk is marked as "empty".

Enumerator
Root	virtual root node of the RIFF structure
Main	contains sub-chunks
Sub	valid/sane sub-chunk
Garbage	no or invalid name
Empty	valid name, but no size

Definition at line 50 of file RIFFChunk.h.

                     {
            Root,
            Main,
            Sub,
            Garbage,
            Empty
        } ChunkType;

Constructor & Destructor Documentation

RIFFChunk()

Kwave::RIFFChunk::RIFFChunk	(	Kwave::RIFFChunk *	parent,
		const QByteArray &	name,
		const QByteArray &	format,
		quint32	length,
		quint32	phys_offset,
		quint32	phys_length
	)

Constructor.

Parameters

parent	pointer to the parent node (or null if root node)
name	the 4-byte name of the chunk
format	the 4-byte format specifier, only valid for main chunks, contains invalid data in sub-chunks
length	size of the chunk's data
phys_offset	start of the chunk name in the source
phys_length	length allocated in the source (file)

Definition at line 28 of file RIFFChunk.cpp.

    :m_type(Sub), m_name(name), m_format(format), m_parent(parent),
     m_chunk_length(length), m_phys_offset(phys_offset),
     m_phys_length(phys_length), m_sub_chunks()
{
}

~RIFFChunk()

Kwave::RIFFChunk::~RIFFChunk ( )

virtual

Destructor

Definition at line 38 of file RIFFChunk.cpp.

References m_sub_chunks.

{
    while (!m_sub_chunks.isEmpty()) {
        Kwave::RIFFChunk *chunk = m_sub_chunks.takeLast();
        if (chunk) delete chunk;
    }
}

Member Function Documentation

dataLength()

quint32 Kwave::RIFFChunk::dataLength

(

)

const

Returns the physical length of the chunk's data

Definition at line 136 of file RIFFChunk.cpp.

References m_chunk_length, m_type, and Main.

Referenced by isSane(), Kwave::RIFFParser::joinGarbageToEmpty(), Kwave::WavDecoder::open(), parent(), Kwave::RIFFParser::parse(), and Kwave::WavDecoder::repairChunk().

{
    return m_chunk_length - ((m_type == Main) ? 4 : 0);
}

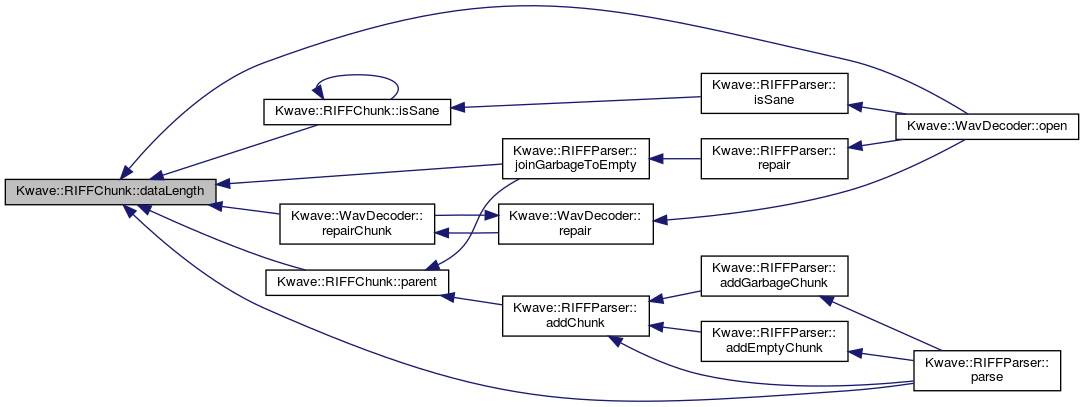

Here is the caller graph for this function:

dataStart()

quint32 Kwave::RIFFChunk::dataStart

(

)

const

Returns the offset where the chunk's data starts.

Definition at line 130 of file RIFFChunk.cpp.

References m_phys_offset, m_type, and Main.

Referenced by Kwave::RIFFParser::joinGarbageToEmpty(), Kwave::WavDecoder::open(), parent(), Kwave::RIFFParser::parse(), and Kwave::WavDecoder::repairChunk().

{
    return m_phys_offset + ((m_type == Main) ? 12 : 8);
}

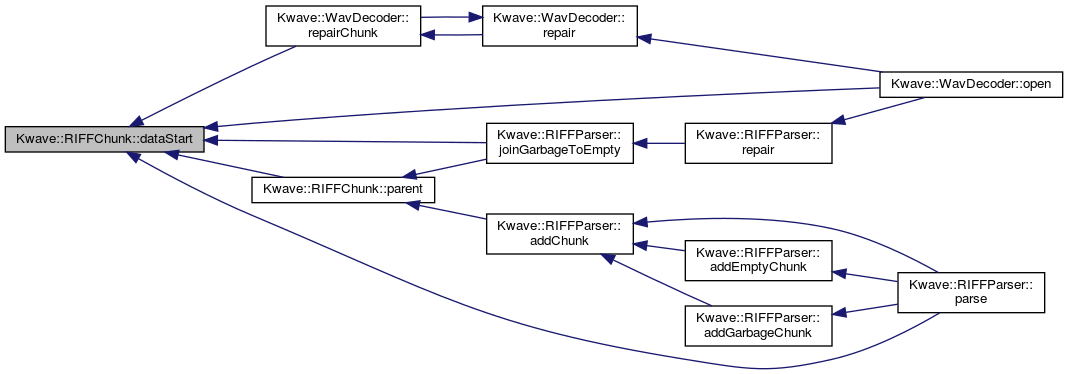

Here is the caller graph for this function:

dumpStructure()

void Kwave::RIFFChunk::dumpStructure

(

)

Dumps the structure of this chunks and all sub-chunks, useful for debugging.

Definition at line 203 of file RIFFChunk.cpp.

References dumpStructure(), Empty, Garbage, length(), m_phys_offset, m_sub_chunks, m_type, Main, path(), physEnd(), physLength(), Root, and Sub.

Referenced by Kwave::RIFFParser::dumpStructure(), dumpStructure(), and subChunks().

{
    // translate the type into a user-readable string
    const char *t = "?unknown?";
    switch (m_type) {
        case Root:    t = "ROOT";    break;
        case Main:    t = "MAIN";    break;
        case Sub:     t = "SUB";     break;
        case Garbage: t = "GARBAGE"; break;
        case Empty:   t = "EMPTY";   break;
    }

    // dump this chunk
    qDebug("[0x%08X-0x%08X] (%10u/%10u) %7s, '%s'",
          m_phys_offset, physEnd(), physLength(), length(),
          t, path().data()
    );

    // recursively dump all sub-chunks
    foreach (Kwave::RIFFChunk *chunk, m_sub_chunks)
        if (chunk) chunk->dumpStructure();

}

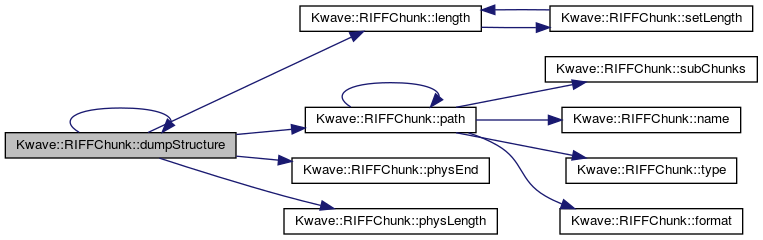

Here is the call graph for this function:

Here is the caller graph for this function:

fixSize()

void Kwave::RIFFChunk::fixSize

(

)

Fixes descrepancies in the size of the chunk. The new size will be computed as the size of all sub-chunks (that will be recursively fixed too) plus the own header.

Definition at line 158 of file RIFFChunk.cpp.

References fixSize(), m_chunk_length, m_phys_length, m_type, Main, path(), physEnd(), physStart(), Root, and subChunks().

Referenced by fixSize(), Kwave::WavDecoder::repair(), and subChunks().

{
    // pass one: fix sizes of sub chunks recursively
    foreach (Kwave::RIFFChunk *chunk, subChunks())
        if (chunk) chunk->fixSize();

    // pass two: sum up sub-chunks if type is main or root.
    if ((m_type == Main) || (m_type == Root)) {
        quint32 old_length = m_phys_length;
        m_phys_length = 0;
        if (m_type == Main) m_phys_length += 4;

        foreach (Kwave::RIFFChunk *chunk, subChunks()) {
            if (!chunk) continue;
            quint32 len = chunk->physEnd() - chunk->physStart() + 1;
            m_phys_length += len;
        }
        if (m_phys_length != old_length) {
            qDebug("%s: setting size from %u to %u",
                path().data(), old_length, m_phys_length);
        }
        // chunk length is always equal to physical length for
        // main and root !
        m_chunk_length = m_phys_length;
    } else {
        // just round up if no main or root chunk
        if (m_phys_length & 0x1) {
            m_phys_length++;
            qDebug("%s: rounding up size to %u", path().data(), m_phys_length);
        }

        // adjust chunk size to physical size if not long enough
        if ((m_chunk_length+1 != m_phys_length) &&
            (m_chunk_length != m_phys_length))
        {
            qDebug("%s: resizing chunk from %u to %u",
                path().data(), m_chunk_length, m_phys_length);
            m_chunk_length = m_phys_length;
        }

    }

}

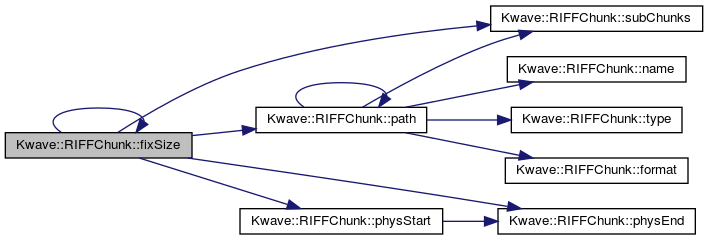

Here is the call graph for this function:

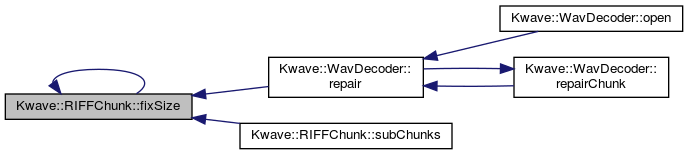

Here is the caller graph for this function:

format()

const QByteArray& Kwave::RIFFChunk::format ( ) const

inline

Returns the chunk's format string.

Note

Only valid for main chunk

Definition at line 97 of file RIFFChunk.h.

References m_format.

Referenced by path(), Kwave::WavDecoder::repairChunk(), and setFormat().

{ return m_format; }

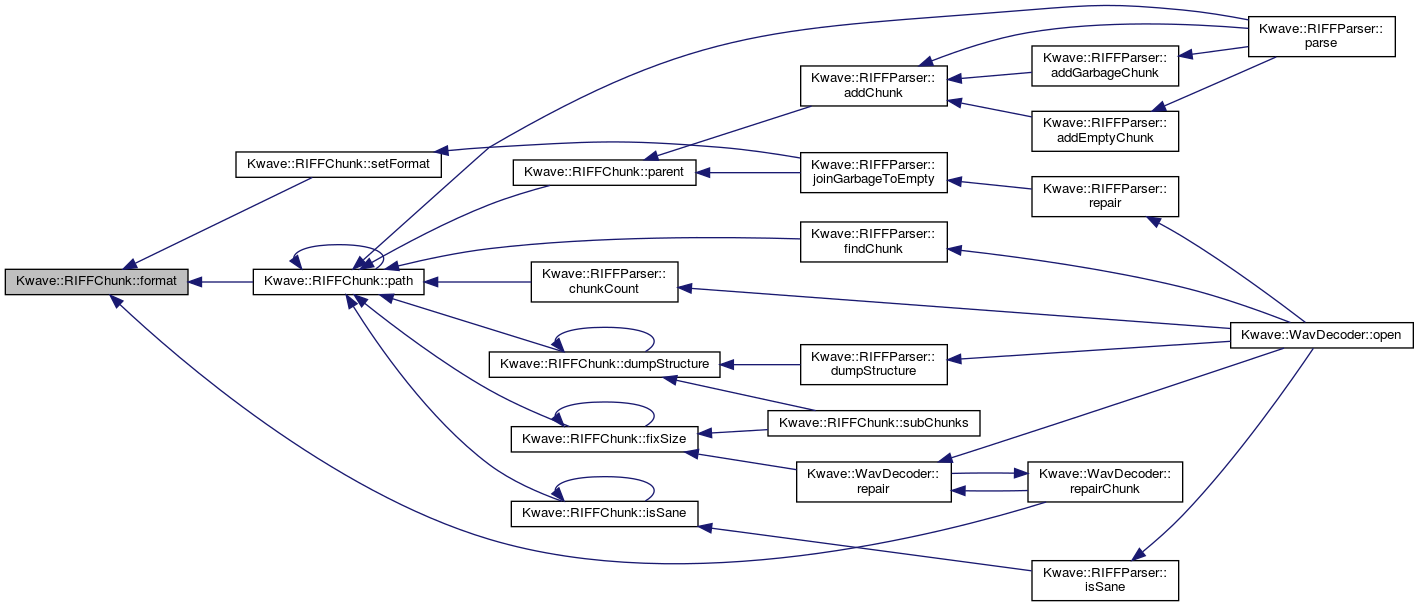

Here is the caller graph for this function:

isChildOf()

bool Kwave::RIFFChunk::isChildOf

(

Kwave::RIFFChunk *

chunk

)

Returns true if the given chunk is a parent of us.

Definition at line 149 of file RIFFChunk.cpp.

References isChildOf(), m_parent, m_type, and Root.

Referenced by Kwave::RIFFParser::fixGarbageEnds(), isChildOf(), and subChunks().

{
    if (!chunk) return (m_type == Root); // only root has null as parent
    if (chunk == m_parent) return true;
    if (m_parent) return m_parent->isChildOf(chunk);
    return false;
}

Here is the call graph for this function:

Here is the caller graph for this function:

isSane()

bool Kwave::RIFFChunk::isSane

(

)

const

Returns true if the file chunk no structural errors and no garbage or empty chunks.

Definition at line 49 of file RIFFChunk.cpp.

References CHECK, dataLength(), Empty, Garbage, isSane(), m_phys_length, m_sub_chunks, m_type, Main, path(), Root, and subChunks().

Referenced by Kwave::RIFFParser::isSane(), and isSane().

{
    CHECK(m_type == Empty);
    CHECK(m_type == Garbage);
    CHECK((m_type == Main) && m_sub_chunks.isEmpty());
    CHECK((m_type == Root) && m_sub_chunks.isEmpty());

#ifdef DEBUG
    if (m_phys_length & 0x1) {
        // size is not an even number: no criterium for insanity
        // but worth a warning
        qWarning("%s: physical length is not an even number: %u",
                path().data(), m_phys_length);
    }
#endif /* DEBUG */

    unsigned int datalen = dataLength();
    if (m_type == Main) datalen += 4;
    if (((datalen + 1) < m_phys_length) || (datalen > m_phys_length)) {
        qWarning("%s: dataLength=%u, phys_length=%u",
                 path().data(), datalen, m_phys_length);
        return false;
    }

    foreach (const Kwave::RIFFChunk *chunk, subChunks())
        if (chunk && !chunk->isSane()) return false;
    return true;
}

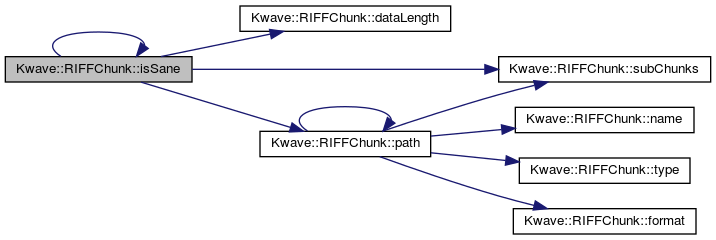

Here is the call graph for this function:

Here is the caller graph for this function:

length()

quint32 Kwave::RIFFChunk::length ( ) const

inline

Returns the length of the chunk in bytes, like stated in the head of the chunk. Includes the format when it's a main chunk.

Definition at line 123 of file RIFFChunk.h.

References m_chunk_length, and setLength().

Referenced by dumpStructure(), Kwave::WavDecoder::open(), and setLength().

{ return m_chunk_length; }

Here is the call graph for this function:

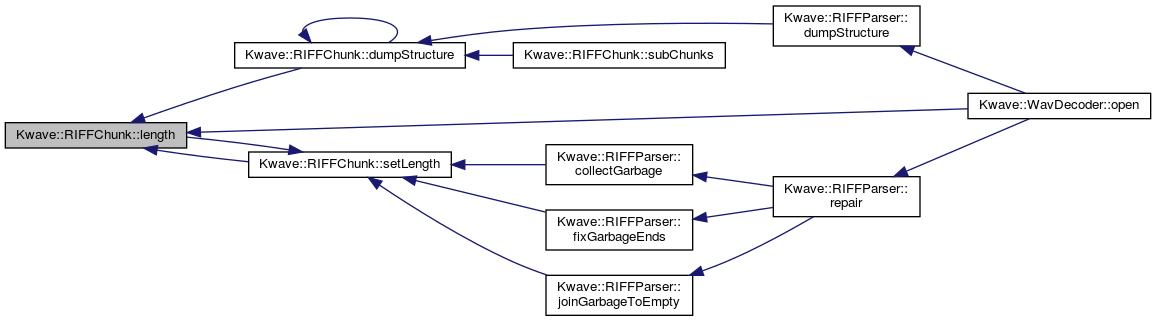

Here is the caller graph for this function:

name()

const QByteArray& Kwave::RIFFChunk::name ( ) const

inline

Returns the 4-character name of the chunk

Definition at line 91 of file RIFFChunk.h.

References m_name.

Referenced by Kwave::RIFFParser::chunkCount(), Kwave::RIFFParser::findChunk(), Kwave::RIFFParser::fixGarbageEnds(), Kwave::RIFFParser::joinGarbageToEmpty(), Kwave::WavDecoder::open(), Kwave::RIFFParser::parse(), path(), Kwave::WavDecoder::repair(), and Kwave::WavDecoder::repairChunk().

{ return m_name; }

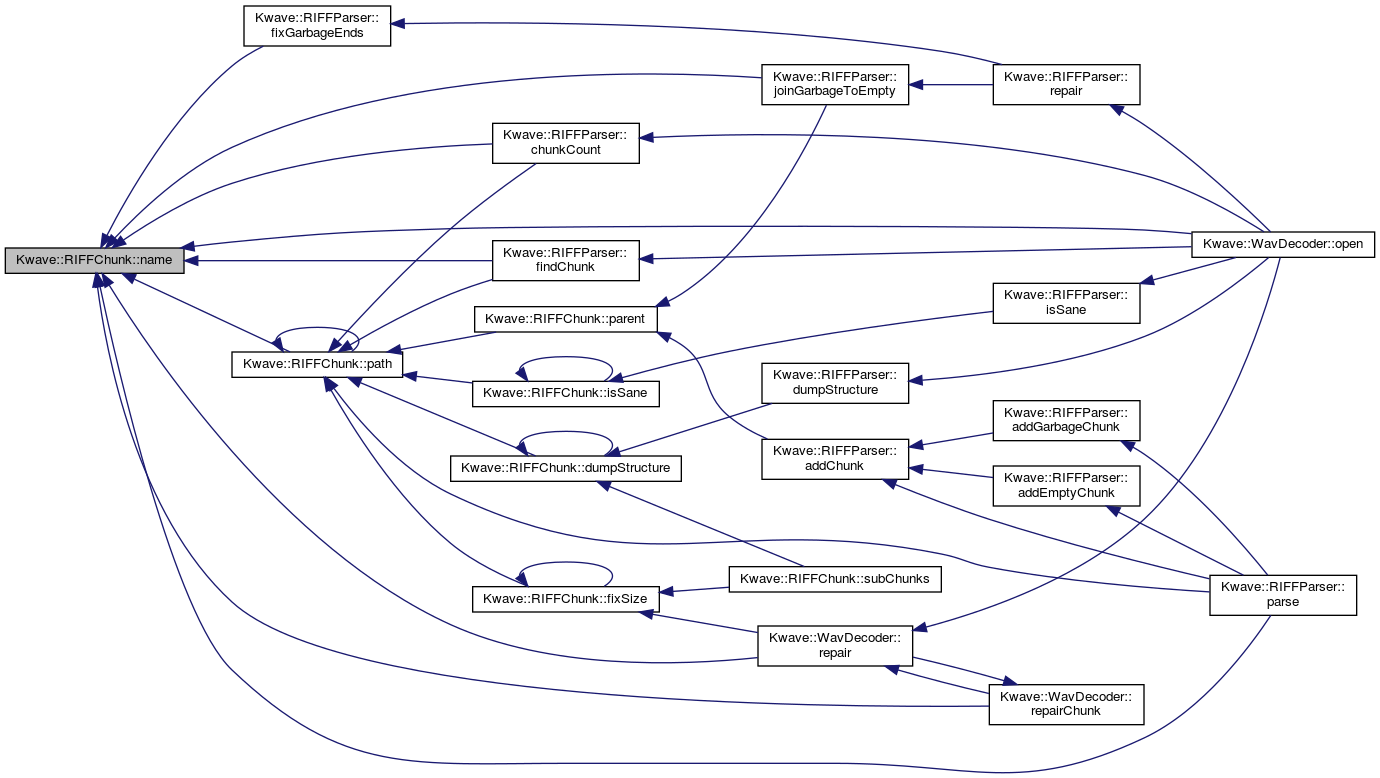

Here is the caller graph for this function:

parent()

Kwave::RIFFChunk* Kwave::RIFFChunk::parent ( ) const

inline

Returns the pointer to the parent node

Definition at line 103 of file RIFFChunk.h.

References dataLength(), dataStart(), m_parent, and path().

Referenced by Kwave::RIFFParser::addChunk(), and Kwave::RIFFParser::joinGarbageToEmpty().

{ return m_parent; }

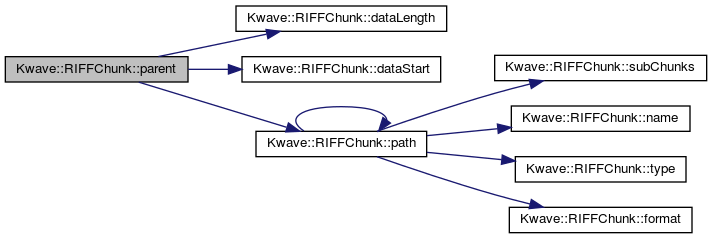

Here is the call graph for this function:

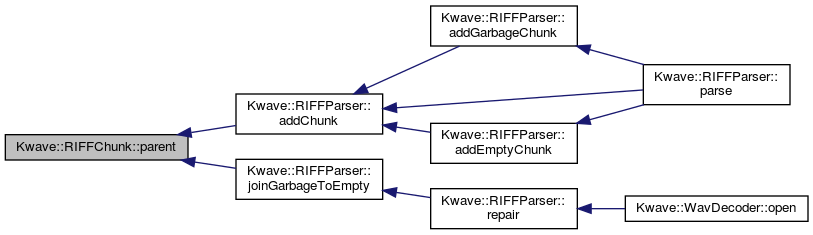

Here is the caller graph for this function:

path()

const QByteArray Kwave::RIFFChunk::path

(

)

const

Returns the full path of this node. If the node is a "Main" chunk and has a format parameter, the format is appended, separated with a ":". If the chunk name is not unique within it's parents the zero based index is appended within round brackets.

Definition at line 88 of file RIFFChunk.cpp.

References format(), m_format, m_name, m_parent, m_type, Main, name(), path(), subChunks(), and type().

Referenced by Kwave::RIFFParser::chunkCount(), dumpStructure(), Kwave::RIFFParser::findChunk(), fixSize(), isSane(), parent(), Kwave::RIFFParser::parse(), and path().

{
    QByteArray p = "";

    if (m_parent) p += m_parent->path() + '/';
    p += m_name;
    if (m_type == Main) p += ':' + m_format;

    if (m_parent) {
        QListIterator<Kwave::RIFFChunk *> it(m_parent->subChunks());
        unsigned int before = 0;
        unsigned int after  = 0;
        const Kwave::RIFFChunk *chunk = Q_NULLPTR;
        while (it.hasNext()) {
            chunk = it.next();
            if (!chunk) continue;
            if (chunk == this) break;
            if (chunk->name() != m_name) continue;
            if (chunk->type() != m_type) continue;
            if ((m_type == Main) && (chunk->format() != m_format)) continue;
            before++;
        }
        if ((chunk == this) && (it.hasNext())) chunk = it.next();
        while ((chunk != this) && (it.hasNext())) {
            chunk = it.next();
            if (!chunk) continue;
            if (chunk->name() != m_name) continue;
            if (chunk->type() != m_type) continue;
            if ((m_type == Main) && (chunk->format() != m_format)) continue;
            after++;
        }
        if (before + after != 0) {
            QByteArray index;
            index.setNum(before);
            p += '(' + index + ')';
        }
    }

    return p;
}

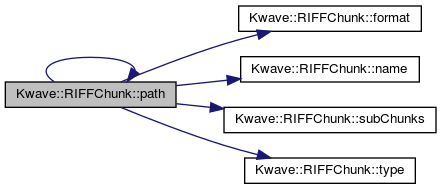

Here is the call graph for this function:

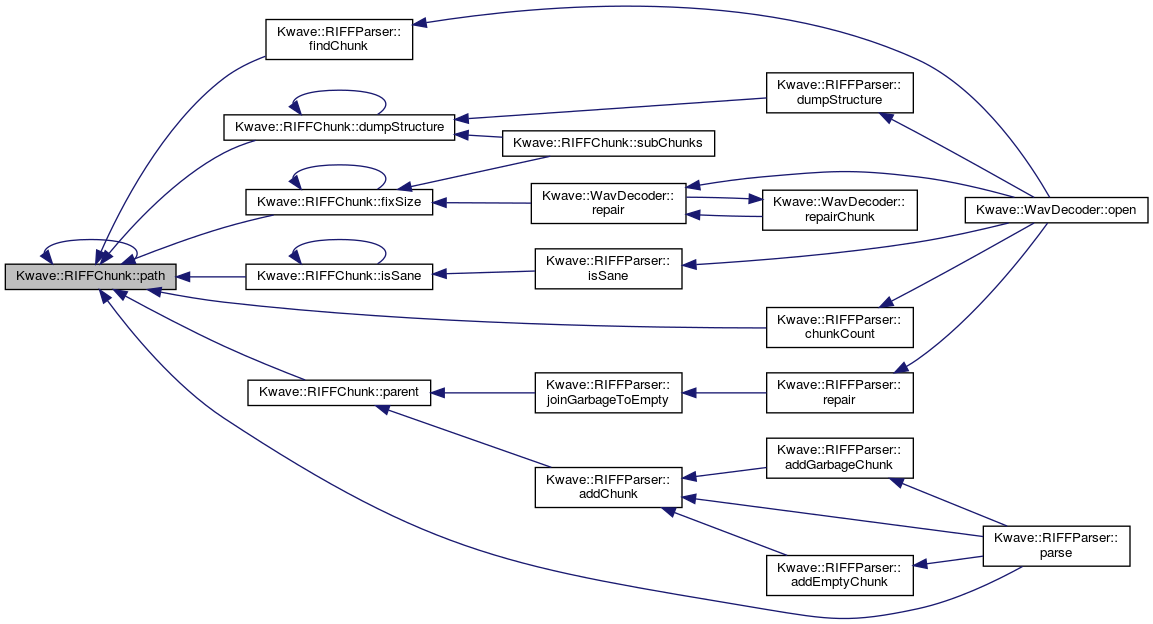

Here is the caller graph for this function:

physEnd()

quint32 Kwave::RIFFChunk::physEnd

(

)

const

Returns the offset in the source (file) where the chunk ends.

Definition at line 79 of file RIFFChunk.cpp.

References Garbage, m_phys_length, m_phys_offset, m_type, and Root.

Referenced by Kwave::RIFFParser::collectGarbage(), dumpStructure(), Kwave::RIFFParser::findMissingChunk(), Kwave::RIFFParser::fixGarbageEnds(), fixSize(), Kwave::RIFFParser::parse(), and physStart().

{
    quint32 end = m_phys_offset + m_phys_length;
    if (m_phys_length) --end;
    if ((m_type != Root) && (m_type != Garbage)) end += 8;
    return end;
}

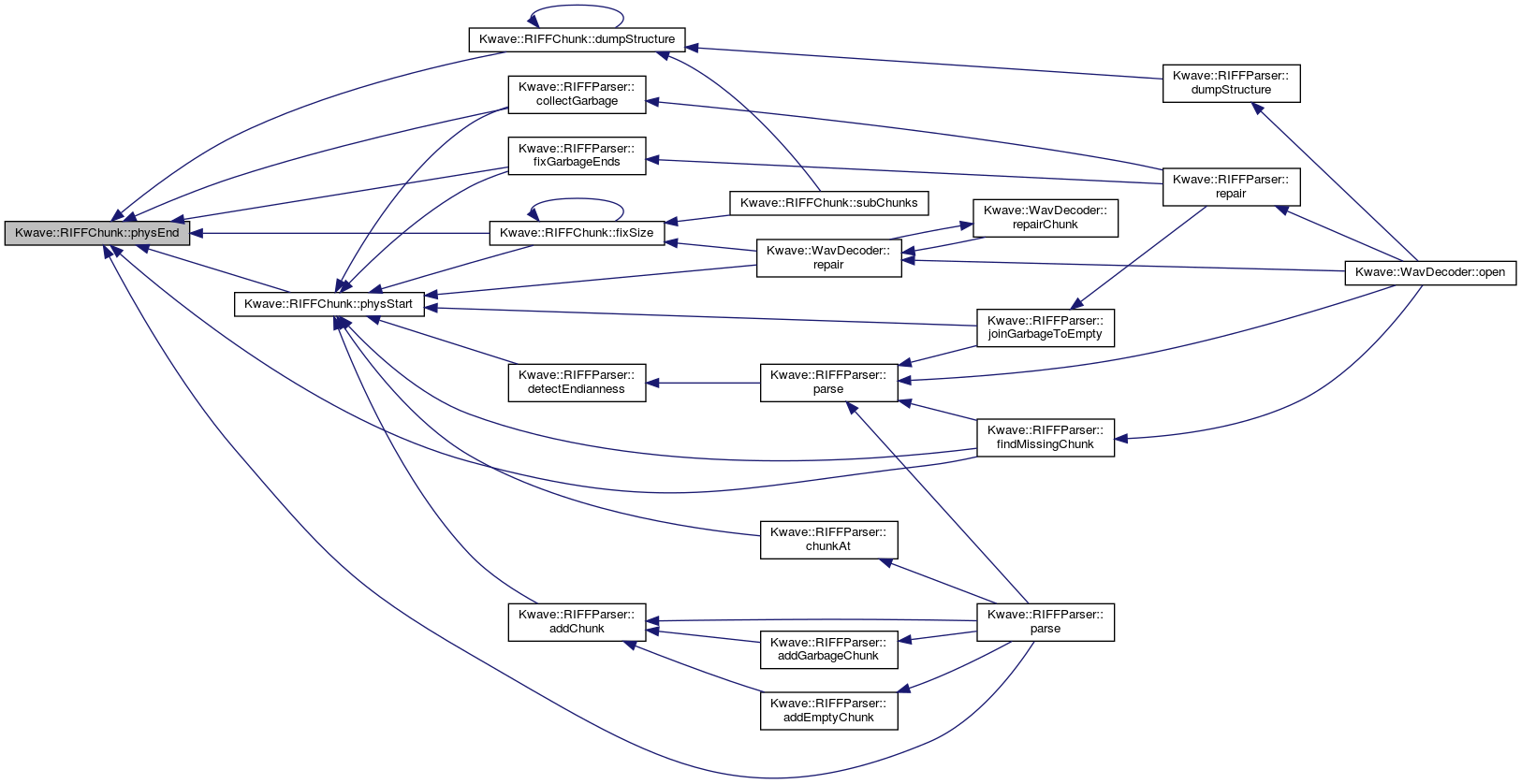

Here is the caller graph for this function:

physLength()

quint32 Kwave::RIFFChunk::physLength ( ) const

inline

Returns the length of the chunk in the file. For some dubious reason this seems always to be rounded up for even numbers!

Definition at line 146 of file RIFFChunk.h.

References m_phys_length.

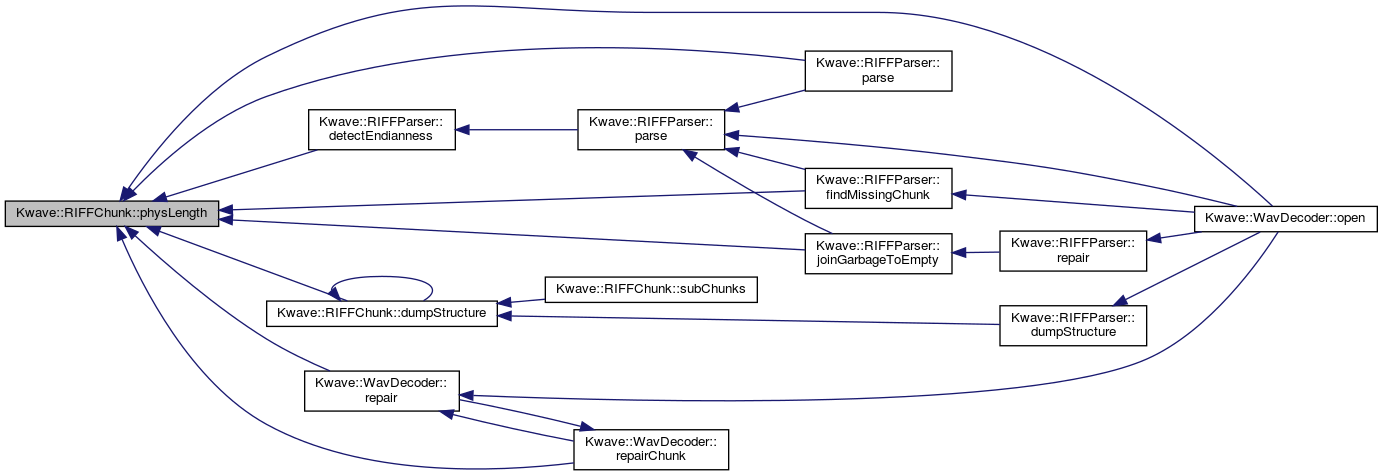

Referenced by Kwave::RIFFParser::detectEndianness(), dumpStructure(), Kwave::RIFFParser::findMissingChunk(), Kwave::RIFFParser::joinGarbageToEmpty(), Kwave::WavDecoder::open(), Kwave::RIFFParser::parse(), Kwave::WavDecoder::repair(), and Kwave::WavDecoder::repairChunk().

{ return m_phys_length; }

Here is the caller graph for this function:

physStart()

quint32 Kwave::RIFFChunk::physStart ( ) const

inline

Returns the offset in the source (file) where the chunk (name) starts.

Definition at line 135 of file RIFFChunk.h.

References m_phys_offset, and physEnd().

Referenced by Kwave::RIFFParser::addChunk(), Kwave::RIFFParser::chunkAt(), Kwave::RIFFParser::collectGarbage(), Kwave::RIFFParser::detectEndianness(), Kwave::RIFFParser::findMissingChunk(), Kwave::RIFFParser::fixGarbageEnds(), fixSize(), Kwave::RIFFParser::joinGarbageToEmpty(), and Kwave::WavDecoder::repair().

{ return m_phys_offset; }

Here is the call graph for this function:

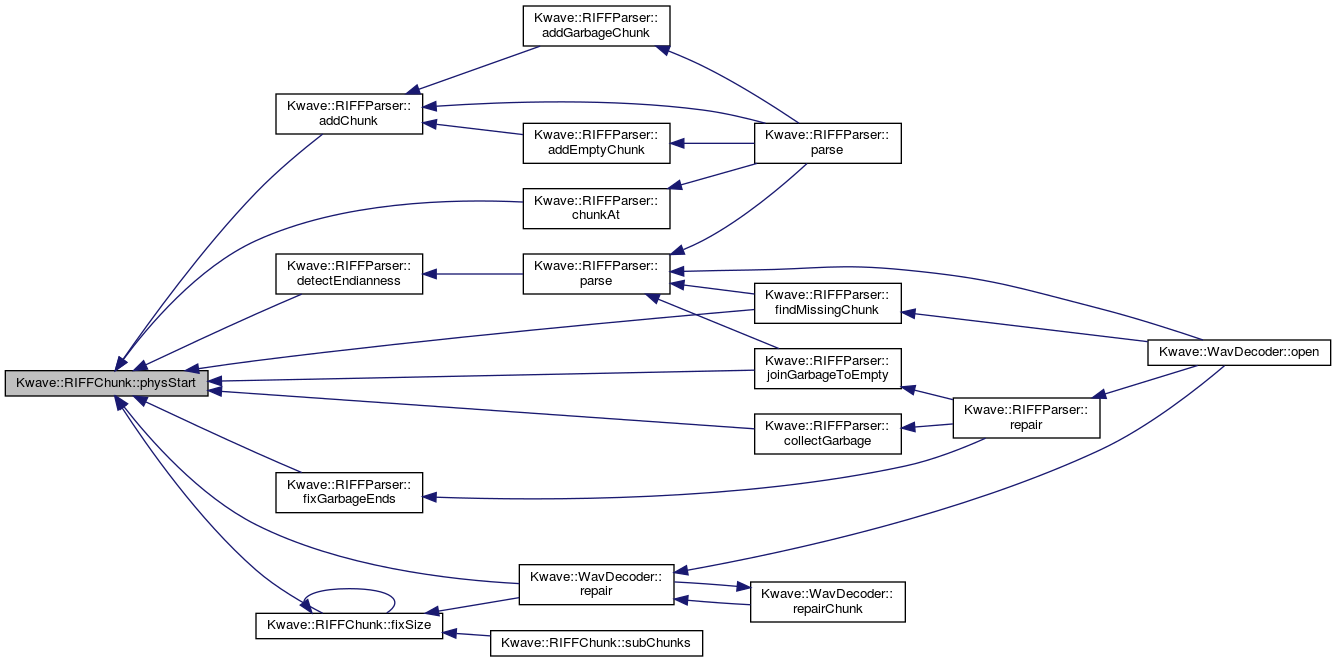

Here is the caller graph for this function:

setFormat()

void Kwave::RIFFChunk::setFormat ( const QByteArray &  format )

inline

Sets the format to a new value, without any error checking

Definition at line 100 of file RIFFChunk.h.

References format(), and m_format.

Referenced by Kwave::RIFFParser::joinGarbageToEmpty().

{ m_format = format; }

Here is the call graph for this function:

Here is the caller graph for this function:

setLength()

void Kwave::RIFFChunk::setLength

(

quint32

length

)

Sets the data and physical length of the chunk both to a new value.

Definition at line 142 of file RIFFChunk.cpp.

References length(), m_chunk_length, and m_phys_length.

Referenced by Kwave::RIFFParser::collectGarbage(), Kwave::RIFFParser::fixGarbageEnds(), Kwave::RIFFParser::joinGarbageToEmpty(), and length().

{
    m_chunk_length = length;
    m_phys_length  = length;
}

Here is the call graph for this function:

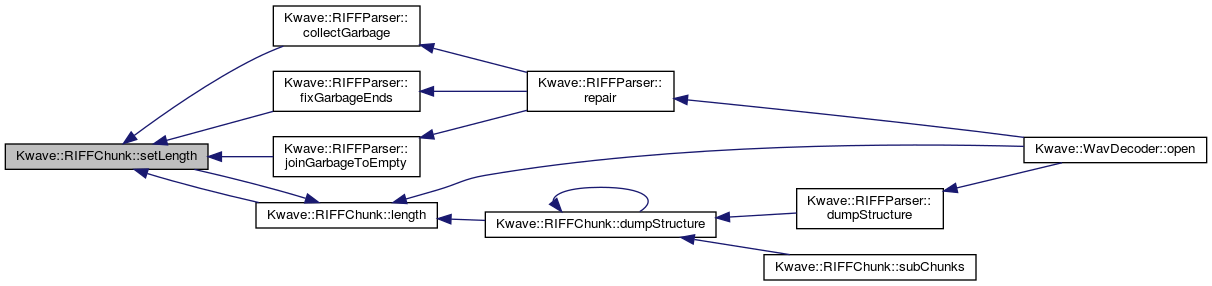

Here is the caller graph for this function:

setType()

void Kwave::RIFFChunk::setType ( ChunkType  type )

inline

Sets the type of the chunk

Definition at line 88 of file RIFFChunk.h.

References m_type, and type().

Referenced by Kwave::RIFFParser::addChunk(), Kwave::RIFFParser::collectGarbage(), Kwave::RIFFParser::joinGarbageToEmpty(), Kwave::RIFFParser::parse(), Kwave::WavDecoder::repair(), and Kwave::RIFFParser::RIFFParser().

{ m_type = type; }

Here is the call graph for this function:

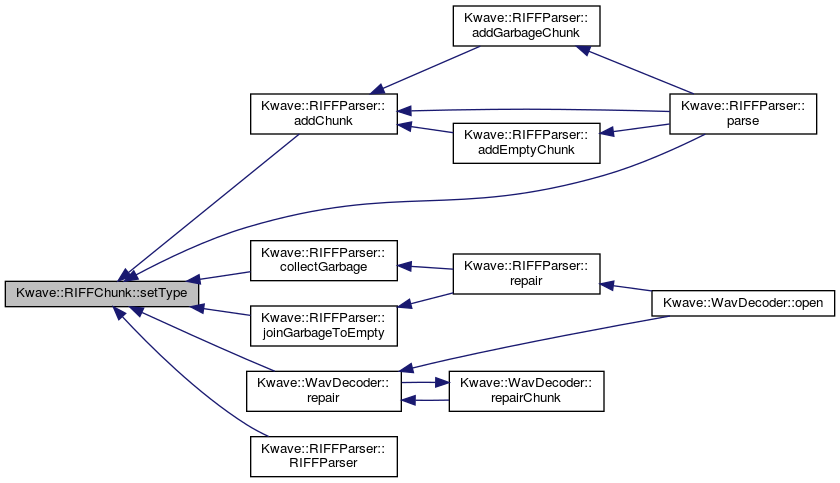

Here is the caller graph for this function:

subChunks() [1/2]

Kwave::RIFFChunkList& Kwave::RIFFChunk::subChunks ( )

inline

Returns a reference to the list of sub-chunks (mutable).

Definition at line 151 of file RIFFChunk.h.

References m_sub_chunks.

Referenced by Kwave::RIFFParser::addChunk(), Kwave::RIFFParser::collectGarbage(), Kwave::RIFFParser::discardGarbage(), fixSize(), isSane(), Kwave::RIFFParser::joinGarbageToEmpty(), Kwave::RIFFParser::listAllChunks(), Kwave::WavDecoder::open(), Kwave::RIFFParser::parse(), path(), Kwave::WavDecoder::repair(), and Kwave::WavDecoder::repairChunk().

{ return m_sub_chunks; }

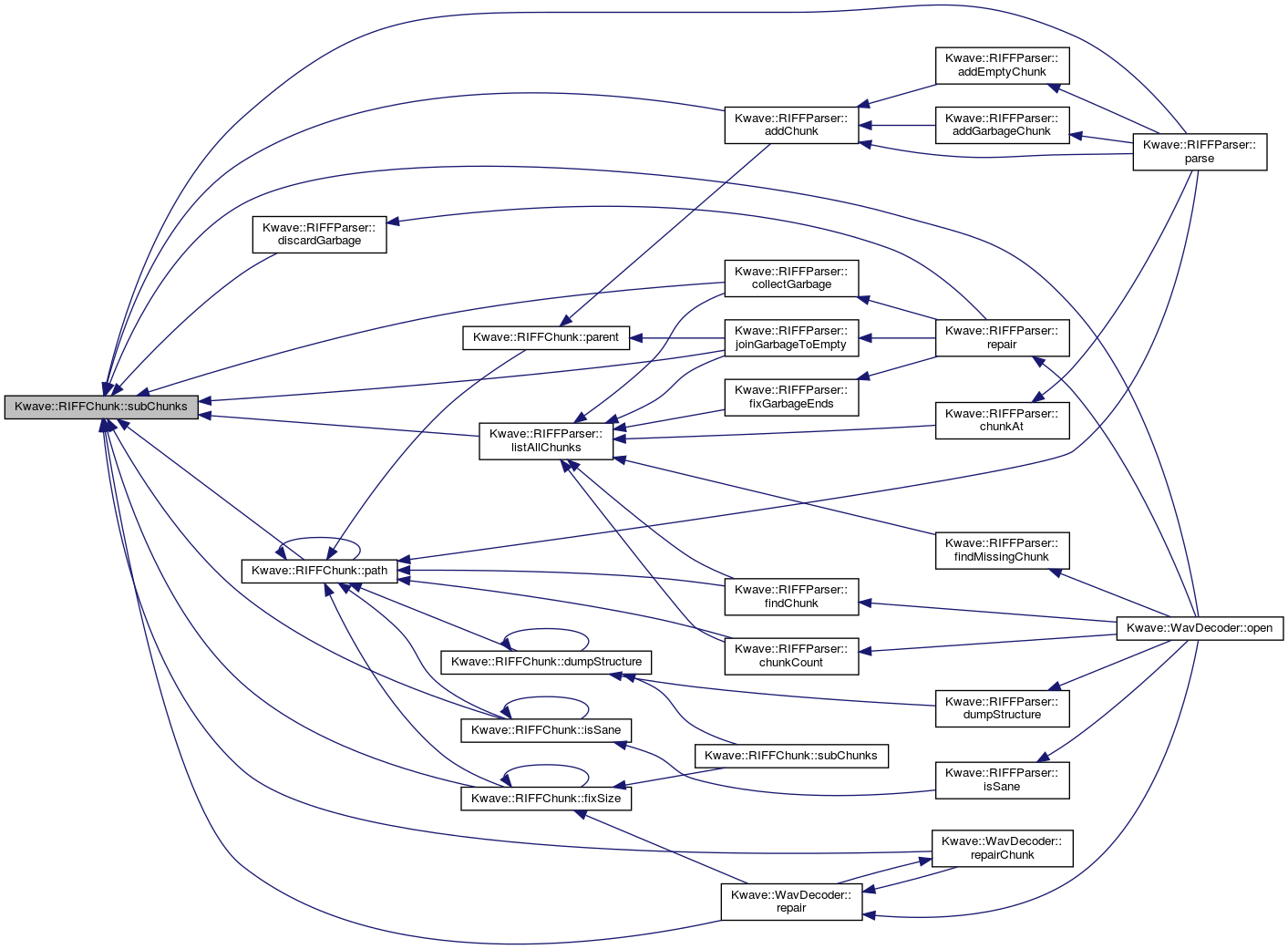

Here is the caller graph for this function:

subChunks() [2/2]

const Kwave::RIFFChunkList& Kwave::RIFFChunk::subChunks ( ) const

inline

Returns a reference to the list of sub-chunks (const).

Definition at line 156 of file RIFFChunk.h.

References dumpStructure(), fixSize(), isChildOf(), and m_sub_chunks.

                                                           {
            return m_sub_chunks;
        }

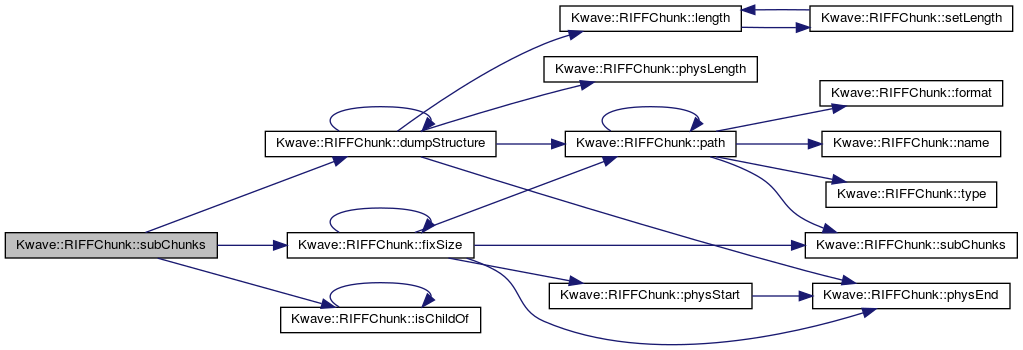

Here is the call graph for this function:

type()

ChunkType Kwave::RIFFChunk::type ( ) const

inline

Returns the type of the chunk.

See also

ChunkType

Definition at line 85 of file RIFFChunk.h.

References m_type.

Referenced by Kwave::RIFFParser::addChunk(), Kwave::RIFFParser::collectGarbage(), Kwave::RIFFParser::discardGarbage(), Kwave::RIFFParser::findMissingChunk(), Kwave::RIFFParser::fixGarbageEnds(), Kwave::RIFFParser::joinGarbageToEmpty(), path(), Kwave::WavDecoder::repair(), Kwave::WavDecoder::repairChunk(), and setType().

{ return m_type; }

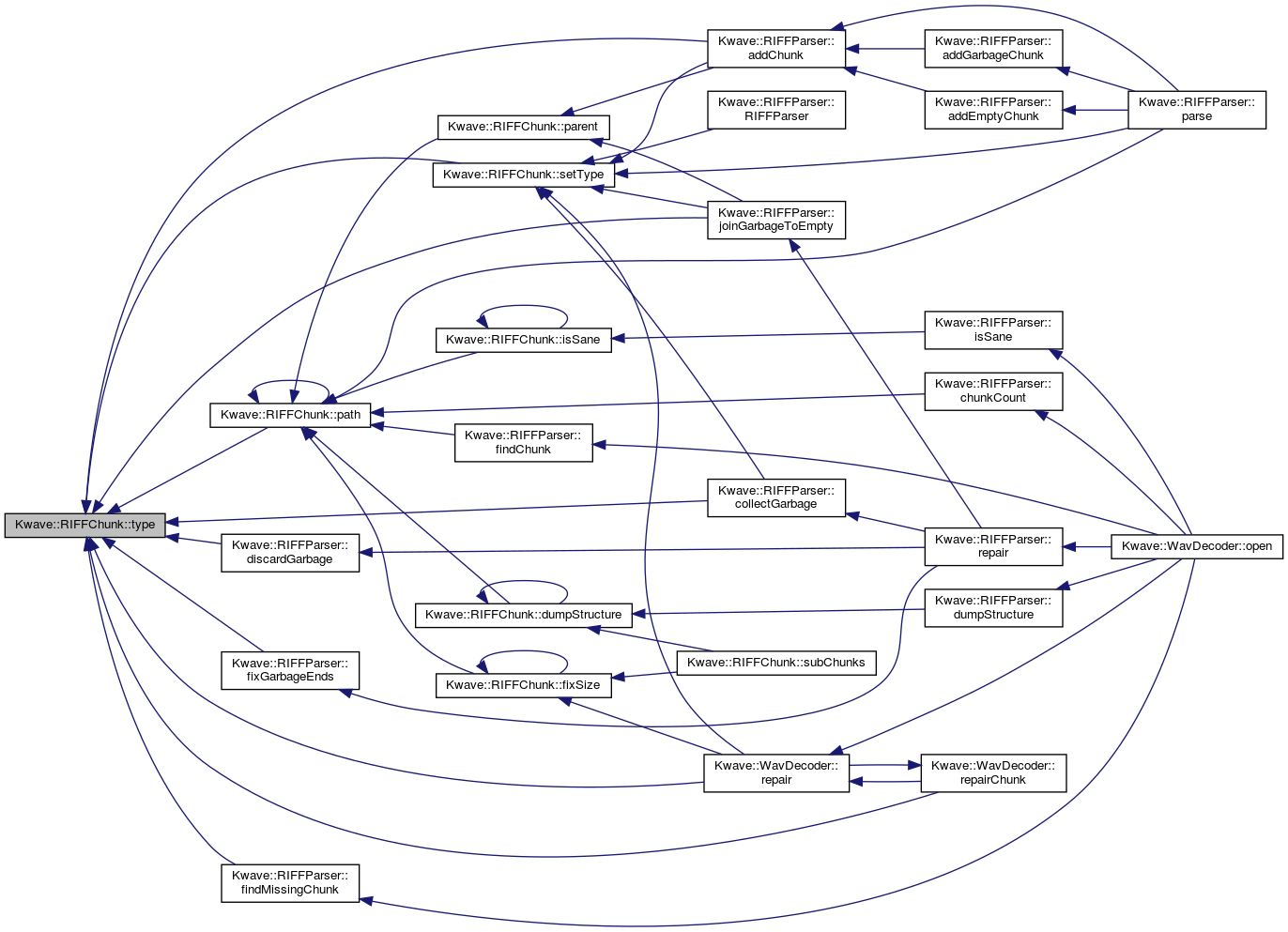

Here is the caller graph for this function:

Member Data Documentation

m_chunk_length

quint32 Kwave::RIFFChunk::m_chunk_length

private

length of the chunk

Definition at line 192 of file RIFFChunk.h.

Referenced by dataLength(), fixSize(), length(), and setLength().

m_format

QByteArray Kwave::RIFFChunk::m_format

private

format of the chunk, only valid for main chunks

Definition at line 186 of file RIFFChunk.h.

Referenced by format(), path(), and setFormat().

m_name

QByteArray Kwave::RIFFChunk::m_name

private

chunk name, always 4 bytes ASCII

Definition at line 183 of file RIFFChunk.h.

Referenced by name(), and path().

m_parent

Kwave::RIFFChunk* Kwave::RIFFChunk::m_parent

private

path of the parent chunk

Definition at line 189 of file RIFFChunk.h.

Referenced by isChildOf(), parent(), and path().

m_phys_length

quint32 Kwave::RIFFChunk::m_phys_length

private

length used in the source (file)

Definition at line 198 of file RIFFChunk.h.

Referenced by fixSize(), isSane(), physEnd(), physLength(), and setLength().

m_phys_offset

quint32 Kwave::RIFFChunk::m_phys_offset

private

offset within the source (file)

Definition at line 195 of file RIFFChunk.h.

Referenced by dataStart(), dumpStructure(), physEnd(), and physStart().

m_sub_chunks

Kwave::RIFFChunkList Kwave::RIFFChunk::m_sub_chunks

private

list of sub-chunks, empty if none known

Definition at line 201 of file RIFFChunk.h.

Referenced by dumpStructure(), isSane(), subChunks(), and ~RIFFChunk().

m_type

ChunkType Kwave::RIFFChunk::m_type

private

type of this chunk: main or sub chunk

Definition at line 180 of file RIFFChunk.h.

Referenced by dataLength(), dataStart(), dumpStructure(), fixSize(), isChildOf(), isSane(), path(), physEnd(), setType(), and type().

---

The documentation for this class was generated from the following files:

• plugins/codec_wav/RIFFChunk.h
• plugins/codec_wav/RIFFChunk.cpp
