Kwave::PlayBackDialog Class Reference

#include <PlayBackDialog.h>

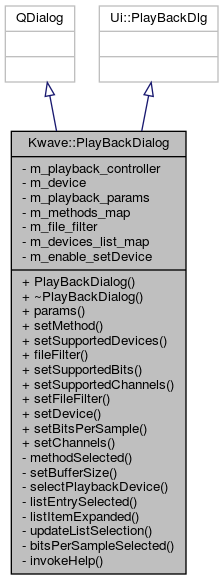

Inheritance diagram for Kwave::PlayBackDialog:

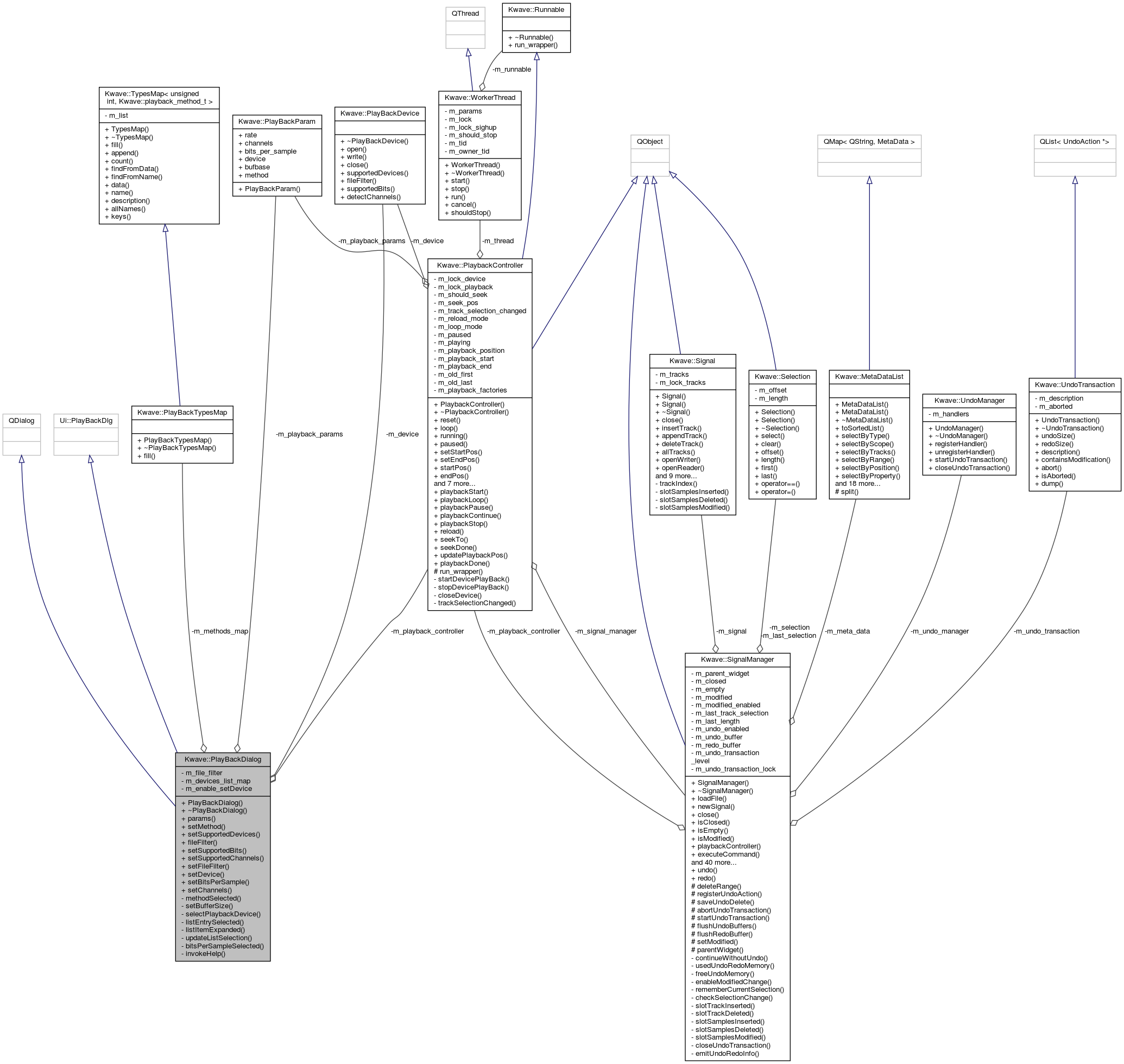

Collaboration diagram for Kwave::PlayBackDialog:

Public Slots
void	setFileFilter (const QString &filter)
void	setDevice (const QString &device)
void	setBitsPerSample (unsigned int bits)
void	setChannels (int channels)

Signals
void	sigMethodChanged (Kwave::playback_method_t method)
void	sigTestPlayback ()

Public Member Functions
	PlayBackDialog (Kwave::Plugin &p, Kwave::PlaybackController &playback_controller, const Kwave::PlayBackParam &params)
virtual	~PlayBackDialog ()
const Kwave::PlayBackParam &	params ()
void	setMethod (Kwave::playback_method_t method)
void	setSupportedDevices (QStringList devices)
QString	fileFilter ()
void	setSupportedBits (const QList< unsigned int > &bits)
void	setSupportedChannels (unsigned int min, unsigned int max)

Private Slots
void	methodSelected (int index)
void	setBufferSize (int exp)
void	selectPlaybackDevice ()
void	listEntrySelected (QTreeWidgetItem *current, QTreeWidgetItem *previous)
void	listItemExpanded (QTreeWidgetItem *item)
void	updateListSelection ()
void	bitsPerSampleSelected (const QString &text)
void	invokeHelp ()

Private Attributes
Kwave::PlaybackController &	m_playback_controller
Kwave::PlayBackDevice *	m_device
Kwave::PlayBackParam	m_playback_params
Kwave::PlayBackTypesMap	m_methods_map
QString	m_file_filter
QMap< QTreeWidgetItem *, QString >	m_devices_list_map
bool	m_enable_setDevice

Detailed Description

Definition at line 42 of file PlayBackDialog.h.

Constructor & Destructor Documentation

PlayBackDialog()

Kwave::PlayBackDialog::PlayBackDialog	(	Kwave::Plugin &	p,
		Kwave::PlaybackController &	playback_controller,
		const Kwave::PlayBackParam &	params
	)

Constructor

Definition at line 55 of file PlayBackDialog.cpp.

References Kwave::PlayBackParam::bits_per_sample, bitsPerSampleSelected(), Kwave::PlayBackParam::bufbase, Kwave::PlayBackParam::channels, Kwave::connect(), Kwave::TypesMap< IDX, DATA >::count(), Kwave::TypesMap< IDX, DATA >::data(), Kwave::TypesMap< IDX, DATA >::description(), Kwave::PlayBackParam::device, invokeHelp(), listEntrySelected(), listItemExpanded(), m_methods_map, Kwave::PlayBackParam::method, methodSelected(), selectPlaybackDevice(), setBitsPerSample(), setBufferSize(), setChannels(), setDevice(), setMethod(), sigTestPlayback(), and updateListSelection().

    :QDialog(p.parentWidget()), PlayBackDlg(),
     m_playback_controller(playback_controller),
     m_device(Q_NULLPTR),
     m_playback_params(params),
     m_methods_map(),
     m_file_filter(_("")),
     m_devices_list_map(),
     m_enable_setDevice(true)
{
    setupUi(this);
    setModal(true);

    // fill the combo box with playback methods
    unsigned int index=0;
    for (index = 0; index < m_methods_map.count(); index++) {
        cbMethod->addItem(
            m_methods_map.description(index, true),
            static_cast<int>(m_methods_map.data(index)) );
    }
    cbMethod->setEnabled(cbMethod->count() > 1);

    connect(cbMethod, SIGNAL(activated(int)),
            SLOT(methodSelected(int)));
    connect(cbDevice, SIGNAL(editTextChanged(QString)),
            SLOT(setDevice(QString)));
    connect(cbDevice, SIGNAL(activated(QString)),
            SLOT(setDevice(QString)));
    connect(cbBitsPerSample, SIGNAL(editTextChanged(QString)),
            SLOT(bitsPerSampleSelected(QString)));
    connect(cbBitsPerSample, SIGNAL(activated(QString)),
            SLOT(bitsPerSampleSelected(QString)));
    connect(sbChannels, SIGNAL(valueChanged(int)),
            SLOT(setChannels(int)));
    connect(slBufferSize, SIGNAL(valueChanged(int)),
            SLOT(setBufferSize(int)));
    connect(btSelectDevice, SIGNAL(clicked()),
            SLOT(selectPlaybackDevice()));

    connect(listDevices,
            SIGNAL(currentItemChanged(QTreeWidgetItem*,QTreeWidgetItem*)),
            SLOT(listEntrySelected(QTreeWidgetItem*,QTreeWidgetItem*)));
    connect(listDevices, SIGNAL(itemExpanded(QTreeWidgetItem*)),
            SLOT(listItemExpanded(QTreeWidgetItem*)));
    connect(listDevices, SIGNAL(focusLost()),
            SLOT(updateListSelection()));

    connect(btTest, SIGNAL(clicked()),
            SIGNAL(sigTestPlayback()));
    connect(btHelp->button(QDialogButtonBox::Help), SIGNAL(clicked()),
            this,   SLOT(invokeHelp()));

    // remove the header of the tree view
    listDevices->headerItem()->setHidden(true);

    // fix the dialog size
    setFixedHeight(sizeHint().height());

    // update the GUI elements
    // order is: Method -> Device -> "Select..."-button
    // -> Channels -> Bits per Sample
    setMethod(params.method);
    setDevice(params.device);
    setBitsPerSample(params.bits_per_sample);
    setChannels(params.channels);

    // buffer size is independent
    setBufferSize(params.bufbase);

    // set the focus onto the "OK" button
    buttonBox->button(QDialogButtonBox::Ok)->setFocus();
}

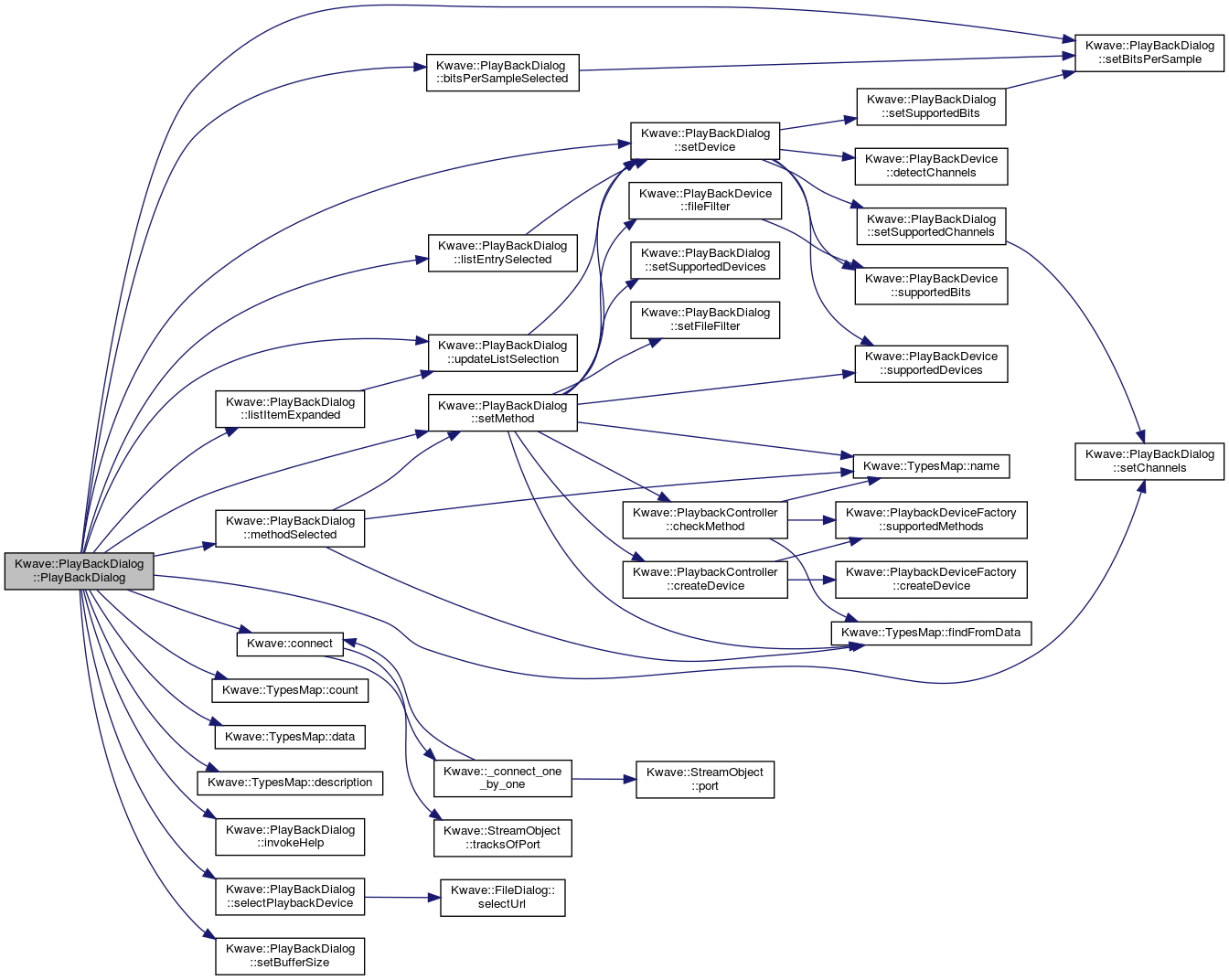

Here is the call graph for this function:

~PlayBackDialog()

Kwave::PlayBackDialog::~PlayBackDialog ( )

virtual

Destructor

Definition at line 133 of file PlayBackDialog.cpp.

{
}

Member Function Documentation

bitsPerSampleSelected

void Kwave::PlayBackDialog::bitsPerSampleSelected ( const QString &  text )

privateslot

selection in the bits per sample combo box has changed

Definition at line 549 of file PlayBackDialog.cpp.

References setBitsPerSample().

Referenced by fileFilter(), and PlayBackDialog().

{
    bool ok = false;
    unsigned int bits = text.toUInt(&ok);
    if (!ok) bits = 0;

    setBitsPerSample(bits);
}

Here is the call graph for this function:

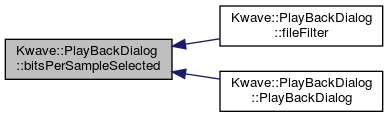

Here is the caller graph for this function:

fileFilter()

QString Kwave::PlayBackDialog::fileFilter ( )

inline

return the file filter used for the "Select..." dialog

Definition at line 70 of file PlayBackDialog.h.

References bitsPerSampleSelected(), invokeHelp(), listEntrySelected(), listItemExpanded(), m_file_filter, methodSelected(), selectPlaybackDevice(), setBitsPerSample(), setBufferSize(), setChannels(), setDevice(), setFileFilter(), setSupportedBits(), setSupportedChannels(), sigMethodChanged(), sigTestPlayback(), and updateListSelection().

                                    {
            return m_file_filter;
        }

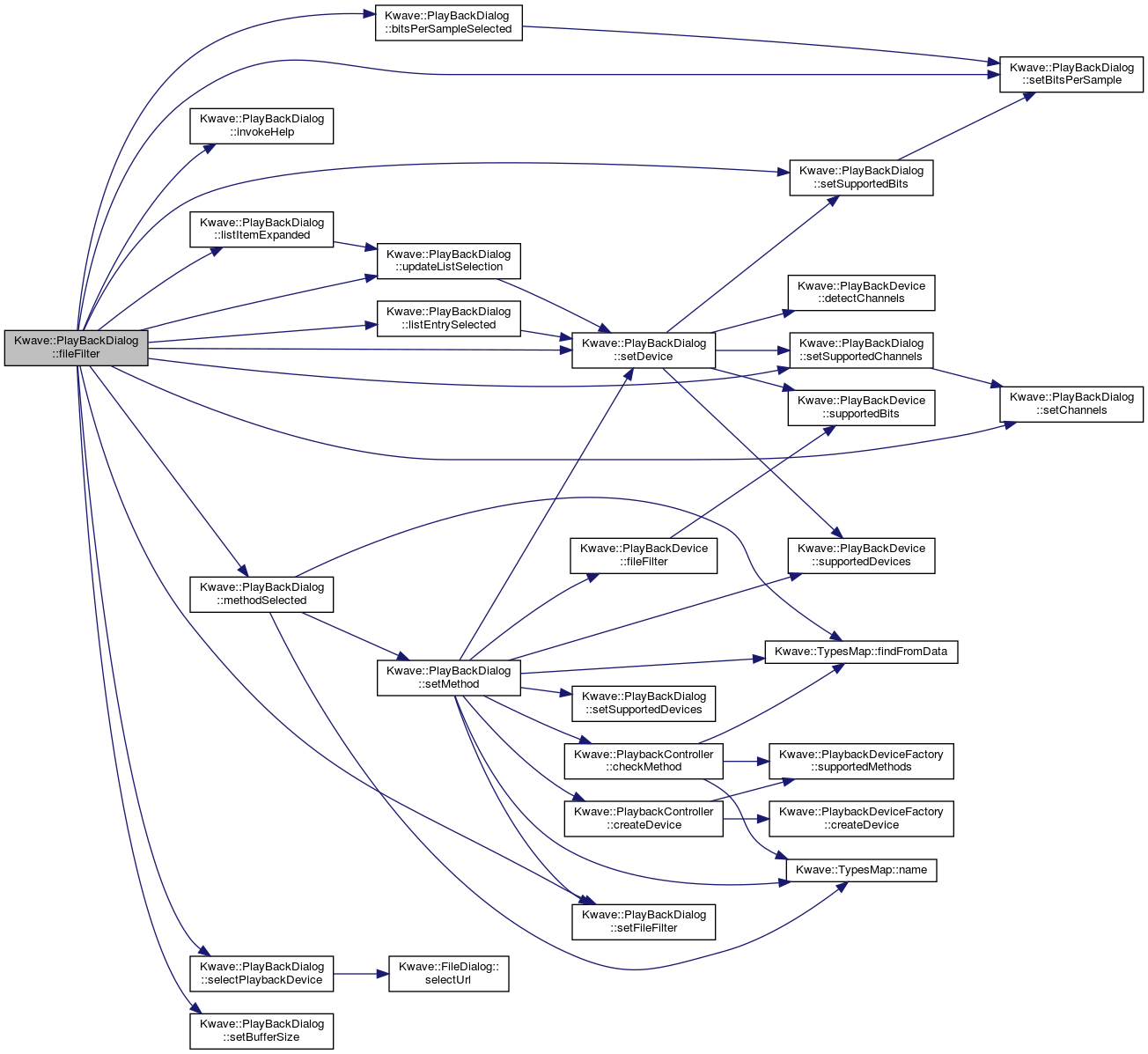

Here is the call graph for this function:

invokeHelp

void Kwave::PlayBackDialog::invokeHelp ( )

privateslot

invoke the online help

Definition at line 659 of file PlayBackDialog.cpp.

References _.

Referenced by fileFilter(), and PlayBackDialog().

{
    KHelpClient::invokeHelp(_("playback"));
}

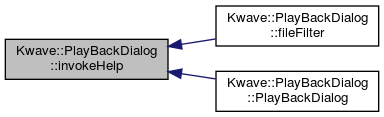

Here is the caller graph for this function:

listEntrySelected

void Kwave::PlayBackDialog::listEntrySelected ( QTreeWidgetItem *  current, QTreeWidgetItem *  previous  )

privateslot

selection in the device list view has changed

Definition at line 403 of file PlayBackDialog.cpp.

References m_devices_list_map, and setDevice().

Referenced by fileFilter(), and PlayBackDialog().

{
    Q_ASSERT(listDevices);
    Q_UNUSED(previous);
    if (!current || !listDevices) return;

    if (m_devices_list_map.contains(current))
        setDevice(m_devices_list_map[current]);
}

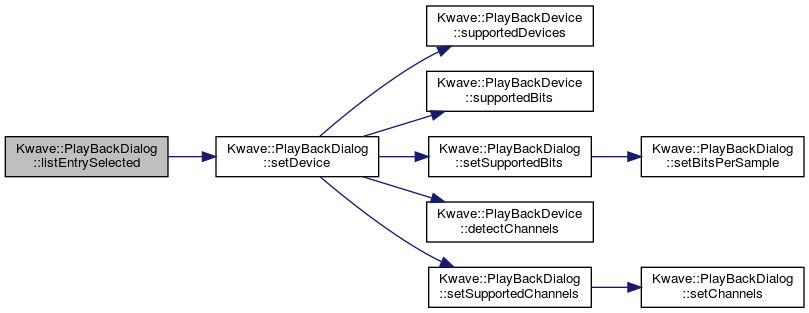

Here is the call graph for this function:

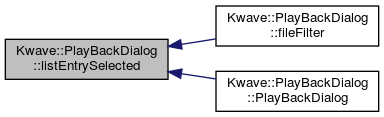

Here is the caller graph for this function:

listItemExpanded

void Kwave::PlayBackDialog::listItemExpanded ( QTreeWidgetItem *  item )

privateslot

selection in the device list view has changed

Definition at line 415 of file PlayBackDialog.cpp.

References updateListSelection().

Referenced by fileFilter(), and PlayBackDialog().

{
    Q_UNUSED(item);
    updateListSelection();
}

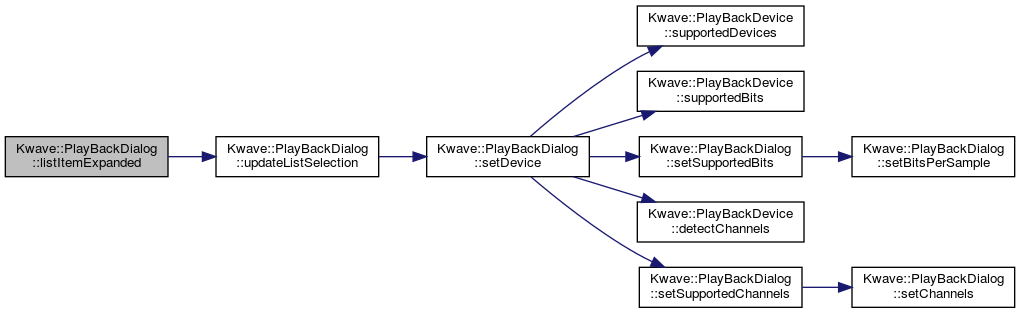

Here is the call graph for this function:

Here is the caller graph for this function:

methodSelected

void Kwave::PlayBackDialog::methodSelected ( int  index )

privateslot

called when a new playback method has been selected from the combo box

Parameters

index

the position within the combo box

Definition at line 239 of file PlayBackDialog.cpp.

References DBG, Kwave::TypesMap< IDX, DATA >::findFromData(), m_methods_map, Kwave::TypesMap< IDX, DATA >::name(), Kwave::PLAYBACK_INVALID, Kwave::PLAYBACK_NONE, and setMethod().

Referenced by fileFilter(), and PlayBackDialog().

{
    Kwave::playback_method_t method = static_cast<Kwave::playback_method_t>(
        cbMethod->itemData(index).toInt());

    qDebug("PlayBackDialog::methodSelected(%d) -> %s [%d]", index,
        DBG(m_methods_map.name(m_methods_map.findFromData(method))),
        static_cast<int>(method) );

    if (method <= Kwave::PLAYBACK_NONE) return;
    if (method >= Kwave::PLAYBACK_INVALID) return;

    setMethod(method);
}

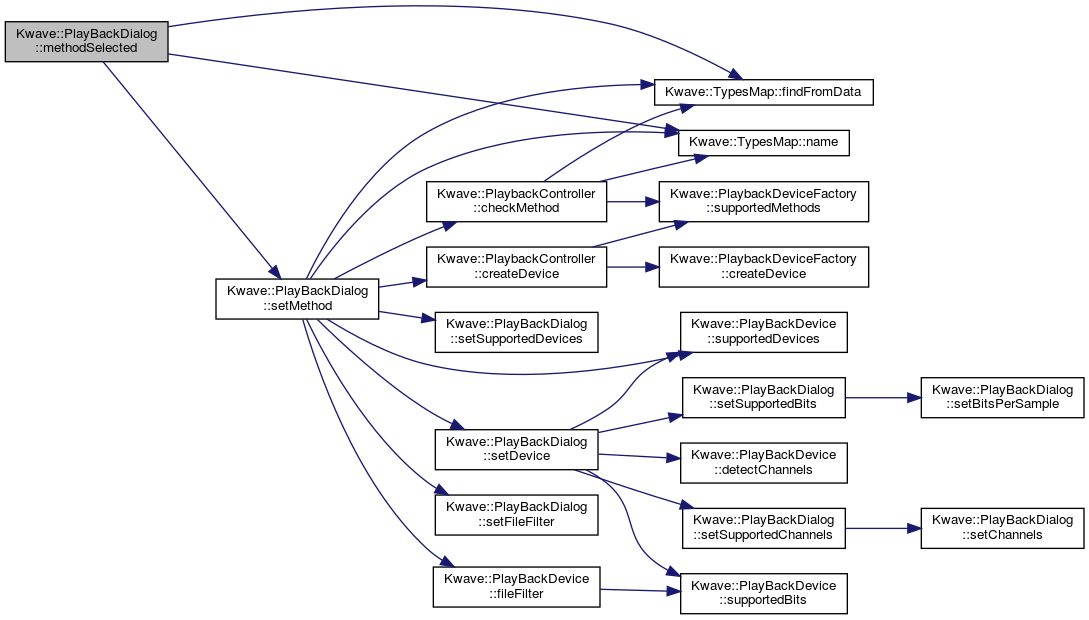

Here is the call graph for this function:

Here is the caller graph for this function:

params()

const Kwave::PlayBackParam & Kwave::PlayBackDialog::params

(

)

Returns the current set of parameters

Definition at line 622 of file PlayBackDialog.cpp.

References m_playback_params.

Referenced by Kwave::PlayBackPlugin::run(), Kwave::PlayBackPlugin::setup(), and Kwave::PlayBackPlugin::testPlayBack().

{
    return m_playback_params;
}

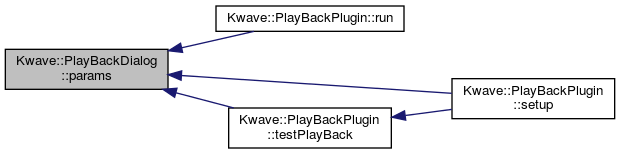

Here is the caller graph for this function:

selectPlaybackDevice

void Kwave::PlayBackDialog::selectPlaybackDevice ( )

privateslot

Select a playback device through a File/Open dialog

Definition at line 635 of file PlayBackDialog.cpp.

References _, Kwave::PlayBackParam::device, m_file_filter, m_playback_params, Kwave::FileDialog::OpenFile, and Kwave::FileDialog::selectUrl().

Referenced by fileFilter(), and PlayBackDialog().

{
    QString filter = m_file_filter;

    QPointer<Kwave::FileDialog> dlg = new(std::nothrow) Kwave::FileDialog(
        _("kfiledialog:///kwave_playback_device"),
        Kwave::FileDialog::OpenFile, filter, this,
        QUrl(_("file:/dev"))
    );
    if (!dlg) return;
    dlg->setWindowTitle(i18n("Select Playback Device"));
    if (!m_playback_params.device.startsWith(_("#")))
        dlg->selectUrl(QUrl(_("file:") + m_playback_params.device));
    else
        dlg->selectUrl(QUrl(_("file:/dev/*")));
    if (dlg->exec() == QDialog::Accepted) {
        QString new_device = dlg->selectedUrl().fileName();
        // selected new device
        if (cbDevice) cbDevice->setEditText(new_device);
    }
    delete dlg;
}

Here is the call graph for this function:

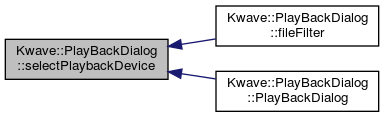

Here is the caller graph for this function:

setBitsPerSample

void Kwave::PlayBackDialog::setBitsPerSample ( unsigned int  bits )

slot

sets the new value for bits per sample

Definition at line 559 of file PlayBackDialog.cpp.

References Kwave::PlayBackParam::bits_per_sample, and m_playback_params.

Referenced by bitsPerSampleSelected(), fileFilter(), PlayBackDialog(), and setSupportedBits().

{
    Q_ASSERT(cbBitsPerSample);
    if (!cbBitsPerSample) return;

    qDebug("PlayBackDialog::setBitsPerSample(): %u -> %u",
           m_playback_params.bits_per_sample, bits);

    QString txt;
    txt.setNum(bits);
    if (cbBitsPerSample->findText(txt) >= 0) {
        cbBitsPerSample->setCurrentIndex(cbBitsPerSample->findText(txt));
        m_playback_params.bits_per_sample = bits;
    }
}

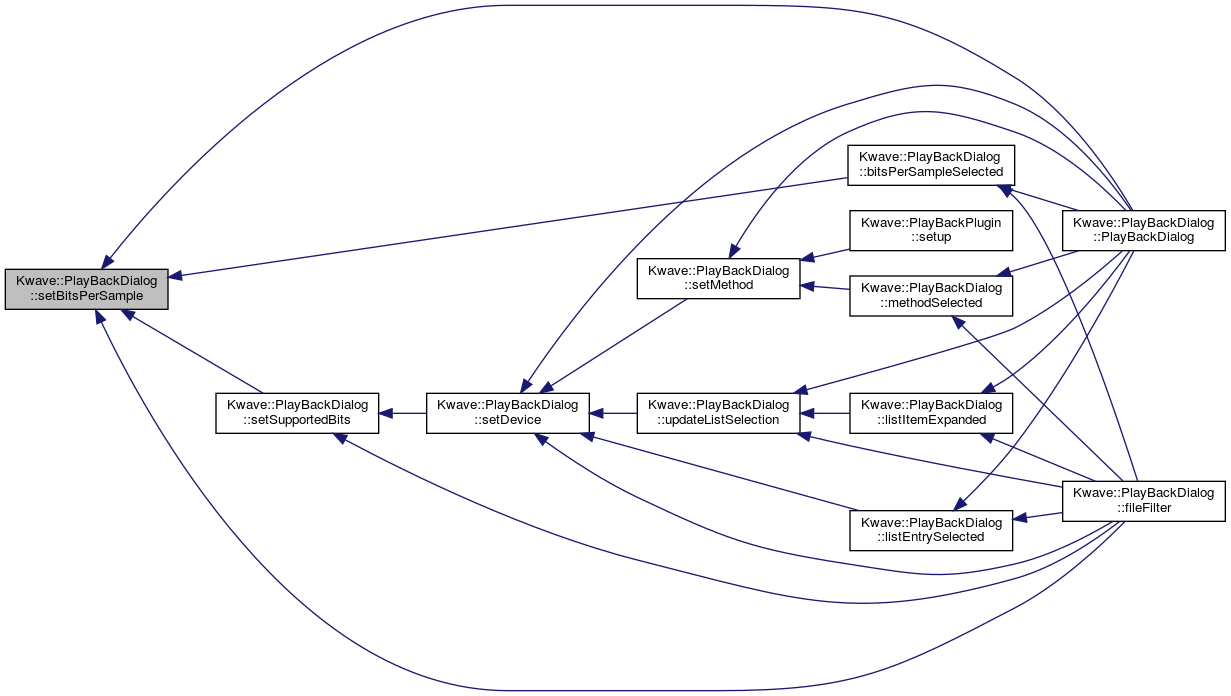

Here is the caller graph for this function:

setBufferSize

void Kwave::PlayBackDialog::setBufferSize ( int  exp )

privateslot

Selects a buffer size exponent

Definition at line 495 of file PlayBackDialog.cpp.

References Kwave::PlayBackParam::bufbase, and m_playback_params.

Referenced by fileFilter(), and PlayBackDialog().

{
    Q_ASSERT(slBufferSize);
    Q_ASSERT(txtBufferSize);
    if (!slBufferSize || !txtBufferSize) return;

    if (exp <  8) exp =  8;
    if (exp > 18) exp = 18;

    // update the slider if necessary
    if (slBufferSize->value() != exp) slBufferSize->setValue(exp);

    // take the value into our struct
    m_playback_params.bufbase = exp;

    // update the text
    unsigned int buffer_size = (1 << exp);
    QString text;
    if (buffer_size < 1024) {
        text = i18n("%1 Bytes", buffer_size);
    } else {
        text = i18n("%1 kB", buffer_size >> 10);
    }
    txtBufferSize->setText(text);
}

Here is the caller graph for this function:

setChannels

void Kwave::PlayBackDialog::setChannels ( int  channels )

slot

Sets the number of channels

Definition at line 594 of file PlayBackDialog.cpp.

References _, Kwave::PlayBackParam::channels, and m_playback_params.

Referenced by fileFilter(), PlayBackDialog(), and setSupportedChannels().

{
    Q_ASSERT(sbChannels);
    if (!sbChannels) return;

    if ((sbChannels->value() != channels) &&
        (sbChannels->minimum() != sbChannels->maximum()) &&
        (sbChannels->maximum() > 0))
    {
        sbChannels->setValue(channels);
        channels = sbChannels->value();
    }

    qDebug("PlayBackDialog::setChannels(): %d -> %d",
           m_playback_params.channels, channels);
    m_playback_params.channels = channels;

    QString txt;
    switch (channels) {
        case 1: txt = i18n("(mono)");   break;
        case 2: txt = i18n("(stereo)"); break;
        case 4: txt = i18n("(quadro)"); break;
        default: txt = _("");
    }
    lblChannels->setText(txt);
}

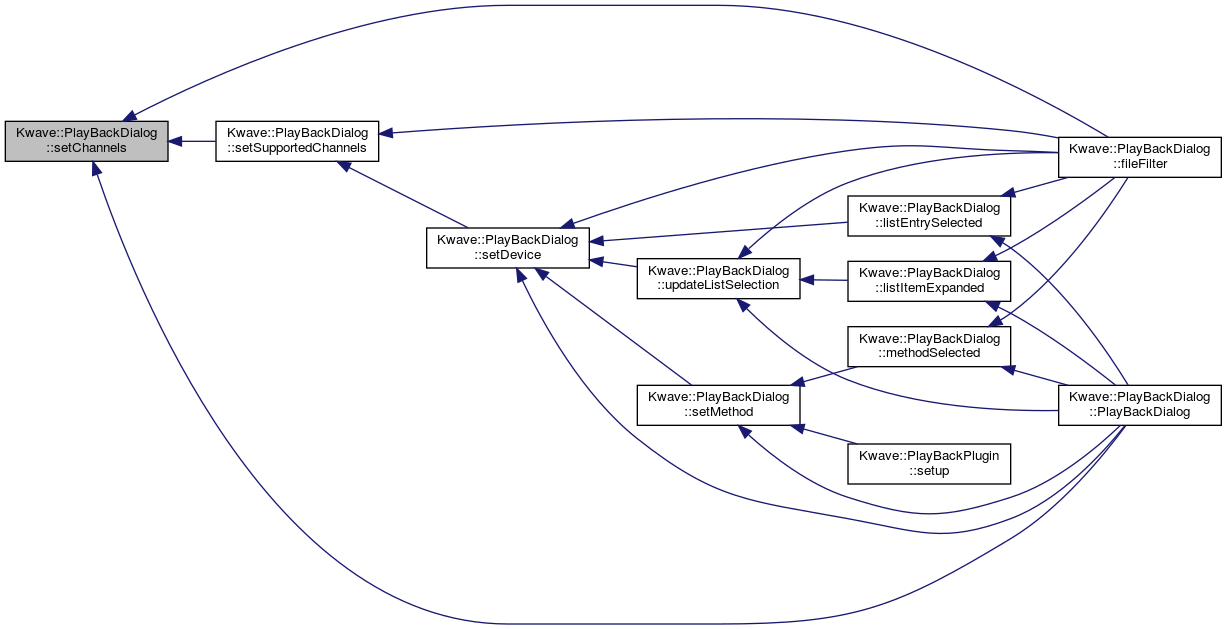

Here is the caller graph for this function:

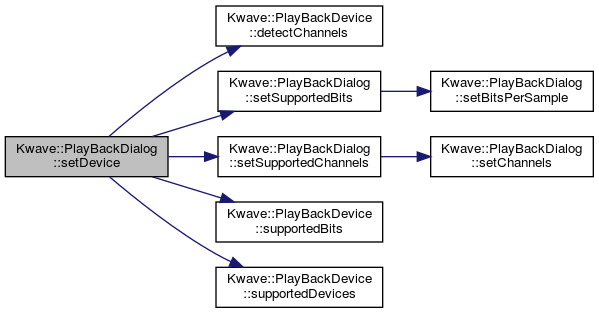

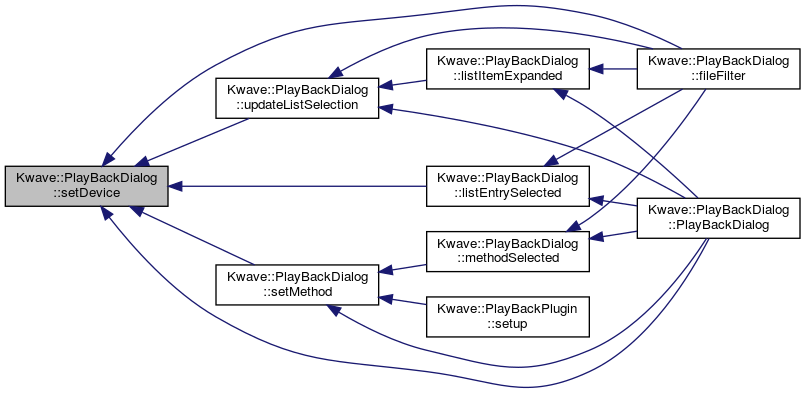

setDevice

void Kwave::PlayBackDialog::setDevice ( const QString &  device )

slot

set a new device name

Definition at line 429 of file PlayBackDialog.cpp.

References _, DBG, Kwave::PlayBackDevice::detectChannels(), Kwave::PlayBackParam::device, m_device, m_devices_list_map, m_enable_setDevice, m_playback_params, setSupportedBits(), setSupportedChannels(), Kwave::PlayBackDevice::supportedBits(), and Kwave::PlayBackDevice::supportedDevices().

Referenced by fileFilter(), listEntrySelected(), PlayBackDialog(), setMethod(), and updateListSelection().

{
    Q_ASSERT(cbDevice);
    Q_ASSERT(listDevices);
    if (!cbDevice || !listDevices) return;

    if (!m_enable_setDevice) return;

    qDebug("PlayBackDialog::setDevice(): '%s' -> '%s'",
       DBG(m_playback_params.device.split(_("|")).at(0)),
       DBG(device.split(_("|")).at(0)));

    if (listDevices->isEnabled()) {
        // treeview mode
        QTreeWidgetItem *node = m_devices_list_map.key(device, Q_NULLPTR);
        if (node) {
            node->setSelected(true);
            listDevices->scrollToItem(node);
            listDevices->setCurrentItem(node);
        }
    } else if (cbDevice->isEditable() && device.length()) {
        // user defined device name
        if (!device.isEmpty() && (cbDevice->currentText() != device)) {
            cbDevice->setCurrentIndex(cbDevice->findText(device));
            cbDevice->setEditText(device);
        }
    } else {
        // just take one from the list
        if (cbDevice->findText(device) >= 0) {
            cbDevice->setCurrentIndex(cbDevice->findText(device));
        } else if (cbDevice->count()) {
            cbDevice->setCurrentIndex(0);
        }
    }

    // select the default device if new one is not supported
    QString dev = device;
    if (m_device) {
        QStringList supported = m_device->supportedDevices();
        supported.removeAll(_("#EDIT#"));
        supported.removeAll(_("#SELECT#"));
        supported.removeAll(_("#TREE#"));
        if (!supported.isEmpty() && !supported.contains(device)) {
            // use the first entry as default
            dev = supported.first();
            qDebug("PlayBackPlugin::setDevice(%s) -> fallback to '%s'",
                DBG(device.split(_("|")).at(0)),
                DBG(dev.split(_("|")).at(0)));
        }
    }

    // take over the device, please note that this one might differ from
    // the device we got as parameter, maybe it is a fallback
    m_playback_params.device = dev;

    QList<unsigned int> supported_bits;
    if (m_device) supported_bits = m_device->supportedBits(dev);
    setSupportedBits(supported_bits);

    unsigned int min = 0;
    unsigned int max = 0;
    if (m_device) m_device->detectChannels(dev, min, max);
    setSupportedChannels(min, max);
}

Here is the call graph for this function:

Here is the caller graph for this function:

setFileFilter

void Kwave::PlayBackDialog::setFileFilter ( const QString &  filter )

slot

set the file filter used for the "Select..." dialog

Definition at line 628 of file PlayBackDialog.cpp.

References m_file_filter.

Referenced by fileFilter(), and setMethod().

{
    m_file_filter = filter;
    if (btSelectDevice) btSelectDevice->setEnabled(m_file_filter.length());
}

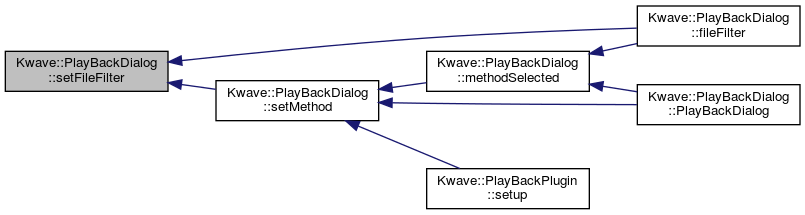

Here is the caller graph for this function:

setMethod()

void Kwave::PlayBackDialog::setMethod

(

Kwave::playback_method_t

method

)

Selects a new playback method.

Definition at line 138 of file PlayBackDialog.cpp.

References _, Kwave::PlaybackController::checkMethod(), Kwave::PlaybackController::createDevice(), DBG, Kwave::PlayBackParam::device, Kwave::PlayBackDevice::fileFilter(), Kwave::TypesMap< IDX, DATA >::findFromData(), m_device, m_methods_map, m_playback_controller, m_playback_params, Kwave::PlayBackParam::method, Kwave::TypesMap< IDX, DATA >::name(), Kwave::PLAYBACK_INVALID, setDevice(), setFileFilter(), setSupportedDevices(), and Kwave::PlayBackDevice::supportedDevices().

Referenced by methodSelected(), PlayBackDialog(), and Kwave::PlayBackPlugin::setup().

{
    Kwave::playback_method_t old_method = m_playback_params.method;

    m_playback_params.method = method;

    // update the selection in the combo box if necessary
    int index = cbMethod->findData(static_cast<int>(method));
    if (cbMethod->currentIndex() != index) {
        cbMethod->setCurrentIndex(index);
        return; // we will get called again, through "methodSelected(...)"
    }

    qDebug("PlayBackDialog::setMethod('%s' [%d])",
           DBG(m_methods_map.name(m_methods_map.findFromData(method))),
           static_cast<int>(method) );

    // set hourglass cursor
    QApplication::setOverrideCursor(QCursor(Qt::WaitCursor));

    // change the playback method (class PlayBackDevice)
    if (m_device) delete m_device;
    m_device = Q_NULLPTR;

    // remember the device selection, just for the GUI
    // for the next time this method gets selected
    // change in method -> save the current device and use
    // the previous one
    QString device = _("");
    QString section = _("plugin playback");
    KConfigGroup cfg = KSharedConfig::openConfig()->group(section);

    // save the current device
    cfg.writeEntry(
        QString(_("last_device_%1")).arg(static_cast<int>(old_method)),
        m_playback_params.device);
    qDebug("SAVE:    '%s' (%d) -> '%s'",
            DBG(m_methods_map.name(m_methods_map.findFromData(old_method))),
            static_cast<int>(old_method),
            DBG(m_playback_params.device.split(_("|")).at(0)));
    cfg.sync();

    // NOTE: the "method" may get modified here if not supported!
    m_playback_controller.checkMethod(method);
    if (method != m_playback_params.method) {
        // method has been modified to some fallback -> start through
        qDebug("    method has changed: %d -> %d",
               static_cast<int>(m_playback_params.method),
               static_cast<int>(method));
        setMethod(method); // -> recursion

        // remove hourglass
        QApplication::restoreOverrideCursor();

        return;
    }

    // if we found no playback method
    if (method == Kwave::PLAYBACK_INVALID) {
        qWarning("found no valid playback method");
    }

    // create a new playback device (will fail if method is unsupported)
    m_device = m_playback_controller.createDevice(method);
    if (!m_device) {
        // oops, something has failed :-(
        setSupportedDevices(QStringList());
        setDevice(QString());

        // remove hourglass
        QApplication::restoreOverrideCursor();

        return;
    }

    // restore the previous settings of the new method
    device = cfg.readEntry(
        _("last_device_%1").arg(static_cast<int>(method)));
    qDebug("RESTORE: '%s' (%d) -> '%s'",
            DBG(m_methods_map.name(m_methods_map.findFromData(method))),
            static_cast<int>(method),
           DBG(device.split(_("|")).at(0)));

    m_playback_params.device = device;

    // set list of supported devices
    setSupportedDevices(m_device->supportedDevices());

    // set current device, no matter if supported or not,
    // the dialog will take care of this.
    setDevice(m_playback_params.device);

    // check the filter for the "select..." dialog. If it is
    // empty, the "select" dialog will be disabled
    setFileFilter(m_device->fileFilter());

    // remove hourglass
    QApplication::restoreOverrideCursor();
}

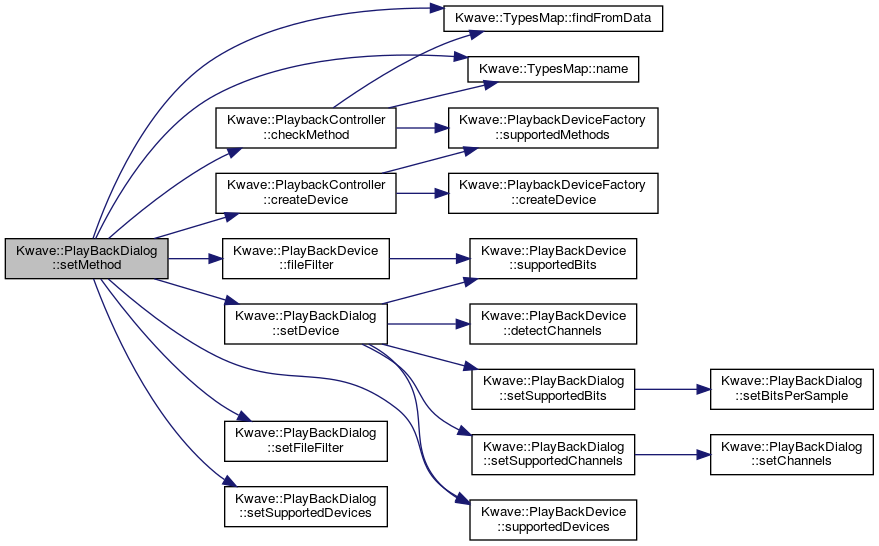

Here is the call graph for this function:

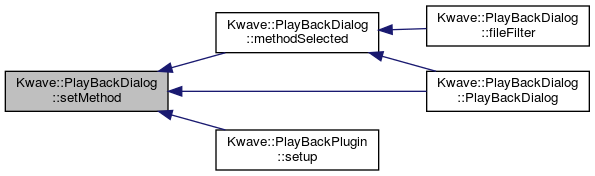

Here is the caller graph for this function:

setSupportedBits()

void Kwave::PlayBackDialog::setSupportedBits

(

const QList< unsigned int > &

bits

)

Sets the list of supported bits per sample

Definition at line 522 of file PlayBackDialog.cpp.

References Kwave::PlayBackParam::bits_per_sample, m_playback_params, and setBitsPerSample().

Referenced by fileFilter(), and setDevice().

{
    Q_ASSERT(cbBitsPerSample);
    if (!cbBitsPerSample) return;

    int current_bits = m_playback_params.bits_per_sample;
    cbBitsPerSample->clear();
    QString txt;
    foreach (unsigned int b, bits) {
        txt.setNum(b);
        cbBitsPerSample->addItem(txt);
    }

    // if possibilities are "unknown" -> use last known setting
    if (!bits.count()) {
        txt.setNum(current_bits);
        cbBitsPerSample->addItem(txt);
    }

    if (!bits.contains(current_bits) && bits.count())
        current_bits = bits.last();

    setBitsPerSample(current_bits);
    cbBitsPerSample->setEnabled(bits.count() > 0);
}

Here is the call graph for this function:

Here is the caller graph for this function:

setSupportedChannels()

void Kwave::PlayBackDialog::setSupportedChannels	(	unsigned int	min,
		unsigned int	max
	)

Sets the lowest and highest number of playback channels

Parameters

min	lowest supported number of channels
max	highest supported number of channels

Definition at line 576 of file PlayBackDialog.cpp.

References Kwave::PlayBackParam::channels, m_playback_params, and setChannels().

Referenced by fileFilter(), and setDevice().

{
    Q_ASSERT(sbChannels);
    if (!sbChannels) return;

    int current_channels = m_playback_params.channels;

    // if possibilities are "unknown" -> use last known setting
    if (!min && !max && current_channels)
        min = max = current_channels;

    sbChannels->setMinimum(min);
    sbChannels->setMaximum(max);
    setChannels(current_channels);
    sbChannels->setEnabled(min != max);
}

Here is the call graph for this function:

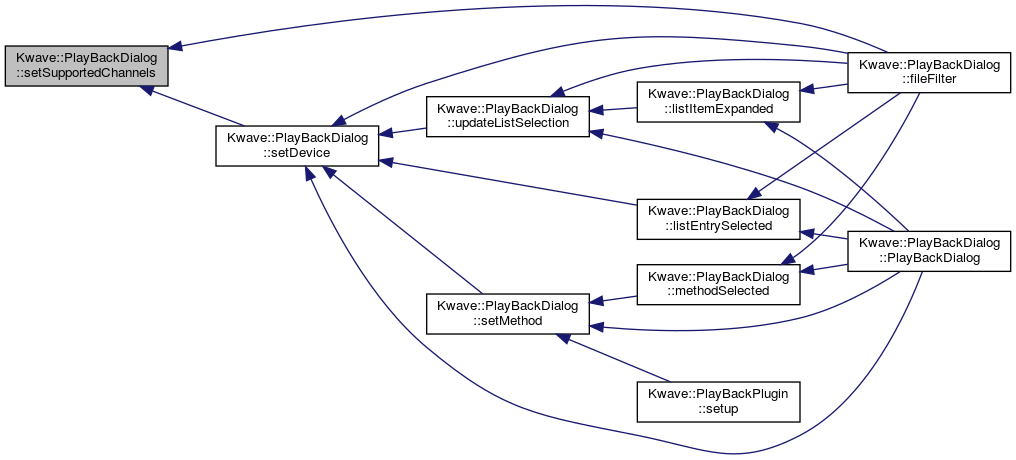

Here is the caller graph for this function:

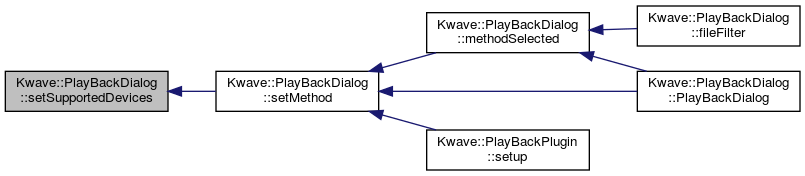

setSupportedDevices()

void Kwave::PlayBackDialog::setSupportedDevices

(

QStringList

devices

)

Sets the list of supported devices, just entries for the device selection combo box.

Definition at line 255 of file PlayBackDialog.cpp.

References _, Kwave::PlayBackParam::device, m_devices_list_map, m_enable_setDevice, and m_playback_params.

Referenced by setMethod().

{
    Q_ASSERT(cbDevice);
    Q_ASSERT(listDevices);
    if (!cbDevice || !listDevices) return;
    QString current_device = m_playback_params.device;

    // disable all that noisy stuff that comes from modifying the
    // device controls...
    m_enable_setDevice = false;

//     qDebug("PlayBackDialog::setSupportedDevices():");
//     foreach (const QString &d, devices)
//      qDebug("    '%s'", DBG(d));

    cbDevice->clearEditText();
    cbDevice->clear();
    listDevices->clear();

    if (devices.contains(_("#EDIT#"))) {
        devices.removeAll(_("#EDIT#"));
        cbDevice->setEditable(true);
    } else {
        cbDevice->setEditable(false);
    }

    if (devices.contains(_("#SELECT#"))) {
        devices.removeAll(_("#SELECT#"));
        btSelectDevice->setEnabled(true);
        btSelectDevice->show();
    } else {
        btSelectDevice->setEnabled(false);
        btSelectDevice->hide();
    }

    if (devices.contains(_("#TREE#"))) {
        // treeview mode
        KIconLoader *icon_loader = KIconLoader::global();

        devices.removeAll((_("#TREE#")));
        listDevices->setEnabled(true);
        cbDevice->setEnabled(false);
        cbDevice->hide();
        m_devices_list_map.clear();

        // build a tree with all nodes in the list
        foreach (const QString &dev_id, devices) {
            QTreeWidgetItem *parent = Q_NULLPTR;

            QStringList list = dev_id.split(_("||"), QString::KeepEmptyParts);
            foreach (const QString &t, list) {
                QString token(t);
                QTreeWidgetItem *item = Q_NULLPTR;

                // split the icon name from the token
                QString icon_name;
                int pos = token.indexOf(QLatin1Char('|'));
                if (pos > 0) {
                    icon_name = token.mid(pos+1);
                    token     = token.left(pos);
                }

                // find the first item with the same text
                // and the same root
                if (parent) {
                    for (int i = 0; i < parent->childCount(); i++) {
                        QTreeWidgetItem *node = parent->child(i);
                        if (node && node->text(0) == token) {
                            item = node;
                            break;
                        }
                    }
                } else {
                    QList<QTreeWidgetItem *> matches =
                        listDevices->findItems(token, Qt::MatchExactly);
                    if (matches.count())
                        item = matches.takeFirst();
                }

                if (item) {
                    // already in the list
                    parent = item;
                } else if (parent) {
                    // new leaf, add to the parent
                    item = new QTreeWidgetItem(parent);
                    Q_ASSERT(item);
                    if (item) {
                        item->setText(0, token);
                        m_devices_list_map.insert(item, dev_id);
                    }

                    parent->setExpanded(true);
                    parent->setFlags(parent->flags() &
                        ~(Qt::ItemIsUserCheckable | Qt::ItemIsSelectable));
                    if (m_devices_list_map.contains(parent)) {
                        // make the parent not selectable
                        m_devices_list_map.remove(parent);
                    }
                } else {
                    // new root node
                    item = new QTreeWidgetItem(listDevices);
                    Q_ASSERT(item);
                    if (item) {
                        item->setText(0, token);
                        m_devices_list_map.insert(item, dev_id);
                    }
                }

                if (item && icon_name.length() && icon_loader) {
                    QIcon icon = icon_loader->loadIcon(
                        icon_name, KIconLoader::User);
                    item->setIcon(0, icon);
                }

                // use the current item as parent for the next pass
                parent = item;
            }
        }
    } else {
        // combo box mode
        cbDevice->addItems(devices);
        cbDevice->show();
        listDevices->setEnabled(false);

        if (devices.contains(current_device)) {
            // current device is in the list
            cbDevice->setCurrentIndex(cbDevice->findText(current_device));
        } else {
            if (cbDevice->isEditable() && current_device.length()) {
                // user defined device name
                cbDevice->setEditText(current_device);
            } else if (devices.count()) {
                // one or more other possibilities -> take the first one
                cbDevice->setCurrentIndex(0);
            } else {
                // empty list of possibilities
                cbDevice->clearEditText();
                cbDevice->clear();
            }
        }
        cbDevice->setEnabled(devices.count() > 1);
    }

    // enable changes in the device controls again
    m_enable_setDevice = true;
}

Here is the caller graph for this function:

sigMethodChanged

void Kwave::PlayBackDialog::sigMethodChanged ( Kwave::playback_method_t  method )

signal

emits changes in the currently selected playback method

Referenced by fileFilter().

Here is the caller graph for this function:

sigTestPlayback

void Kwave::PlayBackDialog::sigTestPlayback ( )

signal

emitted when the user clicked on the "Test..." button

Referenced by fileFilter(), and PlayBackDialog().

Here is the caller graph for this function:

updateListSelection

void Kwave::PlayBackDialog::updateListSelection ( )

privateslot

updates/fixes the device selection when the tree view has lost focus, to avoid that nothing is selected

Definition at line 422 of file PlayBackDialog.cpp.

References Kwave::PlayBackParam::device, m_playback_params, and setDevice().

Referenced by fileFilter(), listItemExpanded(), and PlayBackDialog().

{
    // set the current device again, otherwise nothing will be selected
    setDevice(m_playback_params.device);
}

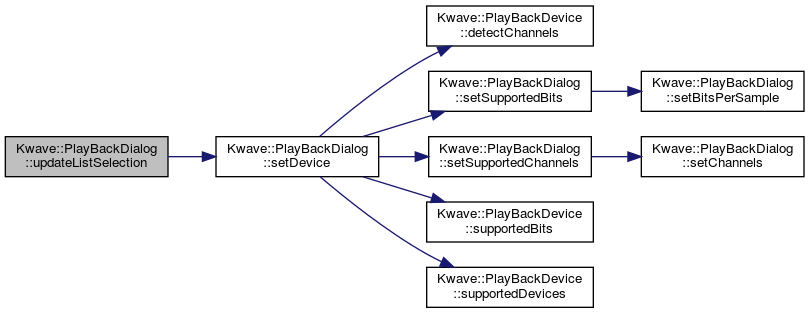

Here is the call graph for this function:

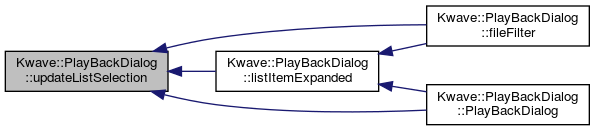

Here is the caller graph for this function:

Member Data Documentation

m_device

Kwave::PlayBackDevice* Kwave::PlayBackDialog::m_device

private

The playback device used for configuring and testing playback

Definition at line 146 of file PlayBackDialog.h.

Referenced by setDevice(), and setMethod().

m_devices_list_map

QMap<QTreeWidgetItem *, QString> Kwave::PlayBackDialog::m_devices_list_map

private

map for items in the list view

Definition at line 158 of file PlayBackDialog.h.

Referenced by listEntrySelected(), setDevice(), and setSupportedDevices().

m_enable_setDevice

bool Kwave::PlayBackDialog::m_enable_setDevice

private

if false, do nothing in setDevice

Definition at line 161 of file PlayBackDialog.h.

Referenced by setDevice(), and setSupportedDevices().

m_file_filter

QString Kwave::PlayBackDialog::m_file_filter

private

file filter for the "Select..." dialog (optional)

Definition at line 155 of file PlayBackDialog.h.

Referenced by fileFilter(), selectPlaybackDevice(), and setFileFilter().

m_methods_map

Kwave::PlayBackTypesMap Kwave::PlayBackDialog::m_methods_map

private

map of playback methods/types

Definition at line 152 of file PlayBackDialog.h.

Referenced by methodSelected(), PlayBackDialog(), and setMethod().

m_playback_controller

Kwave::PlaybackController& Kwave::PlayBackDialog::m_playback_controller

private

reference to the playback controller

Definition at line 143 of file PlayBackDialog.h.

Referenced by setMethod().

m_playback_params

Kwave::PlayBackParam Kwave::PlayBackDialog::m_playback_params

private

all parameters needed for playback

Definition at line 149 of file PlayBackDialog.h.

Referenced by params(), selectPlaybackDevice(), setBitsPerSample(), setBufferSize(), setChannels(), setDevice(), setMethod(), setSupportedBits(), setSupportedChannels(), setSupportedDevices(), and updateListSelection().

---

The documentation for this class was generated from the following files:

• plugins/playback/PlayBackDialog.h
• plugins/playback/PlayBackDialog.cpp
