Kwave::OggSubDecoder Class Reference

#include <OggSubDecoder.h>

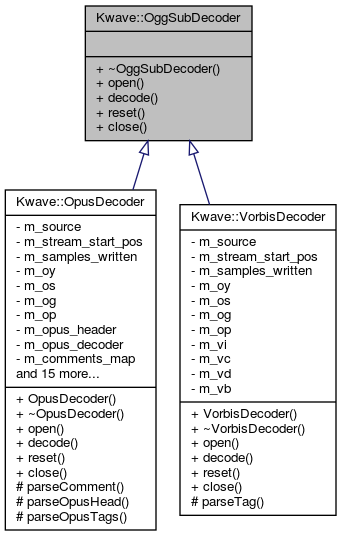

Inheritance diagram for Kwave::OggSubDecoder:

Collaboration diagram for Kwave::OggSubDecoder:

Public Member Functions
virtual	~OggSubDecoder ()
virtual int	open (QWidget *widget, Kwave::FileInfo &info)=0
virtual int	decode (Kwave::MultiWriter &dst)=0
virtual void	reset ()=0
virtual void	close (Kwave::FileInfo &info)=0

Detailed Description

Definition at line 30 of file OggSubDecoder.h.

Constructor & Destructor Documentation

~OggSubDecoder()

virtual Kwave::OggSubDecoder::~OggSubDecoder ( )

inlinevirtual

Destructor

Definition at line 34 of file OggSubDecoder.h.

References close(), decode(), open(), and reset().

{}

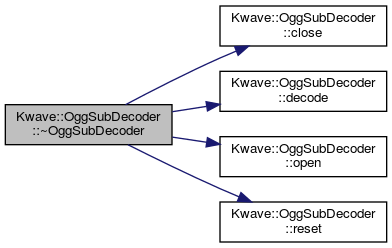

Here is the call graph for this function:

Member Function Documentation

close()

virtual void Kwave::OggSubDecoder::close ( Kwave::FileInfo &  info )

pure virtual

finish the decoding, last chance to fix up some file info

Parameters

info	reference to a FileInfo to fill

Implemented in Kwave::OpusDecoder, and Kwave::VorbisDecoder.

Referenced by Kwave::OggDecoder::decode(), and ~OggSubDecoder().

Here is the caller graph for this function:

decode()

virtual int Kwave::OggSubDecoder::decode ( Kwave::MultiWriter &  dst )

pure virtual

decode received ogg data

Parameters

dst	a MultiWriter to be used as sink

Returns

-1 if failed or >= 0 if succeeded

Implemented in Kwave::OpusDecoder, and Kwave::VorbisDecoder.

Referenced by Kwave::OggDecoder::decode(), and ~OggSubDecoder().

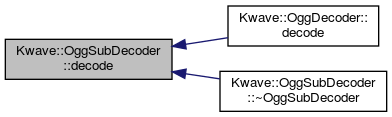

Here is the caller graph for this function:

open()

virtual int Kwave::OggSubDecoder::open ( QWidget *  widget, Kwave::FileInfo &  info  )

pure virtual

parse the header of the stream and initialize the decoder

Parameters

widget	a QWidget to be used as parent for error messages
info	reference to a FileInfo to fill

Returns

-1 if failed or +1 if succeeded

Implemented in Kwave::OpusDecoder, and Kwave::VorbisDecoder.

Referenced by Kwave::OggDecoder::parseHeader(), and ~OggSubDecoder().

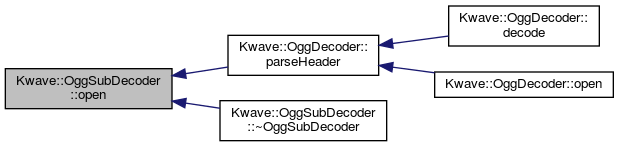

Here is the caller graph for this function:

reset()

virtual void Kwave::OggSubDecoder::reset ( )

pure virtual

reset the stream info

Implemented in Kwave::OpusDecoder, and Kwave::VorbisDecoder.

Referenced by Kwave::OggDecoder::decode(), and ~OggSubDecoder().

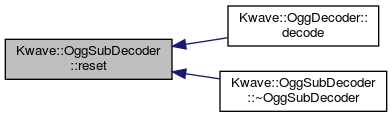

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• plugins/codec_ogg/OggSubDecoder.h
