Kwave::MixerMatrix Class Reference

#include <MixerMatrix.h>

Inheritance diagram for Kwave::MixerMatrix:

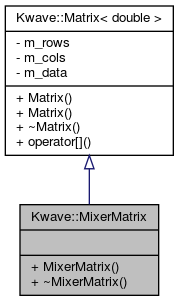

Collaboration diagram for Kwave::MixerMatrix:

Public Member Functions
	MixerMatrix (unsigned int inputs, unsigned int outputs)
virtual	~MixerMatrix ()
Public Member Functions inherited from Kwave::Matrix< double >
	Matrix (unsigned int cols, unsigned int rows)
	Matrix (const Matrix &other)
virtual	~Matrix ()
double *	operator[] (unsigned int col) const

Detailed Description

Definition at line 31 of file MixerMatrix.h.

Constructor & Destructor Documentation

MixerMatrix()

Kwave::MixerMatrix::MixerMatrix	(	unsigned int	inputs,
		unsigned int	outputs
	)

Constructor

Parameters

inputs	number of inputs
outputs	number of outputs

Definition at line 24 of file MixerMatrix.cpp.

    :Kwave::Matrix<double>(inputs, outputs)
{
    for (unsigned int y = 0; y < outputs; y++) {
        unsigned int m1, m2;

        m1 = y * inputs;
        m2 = (y + 1) * inputs;

        for (unsigned int x = 0; x < inputs; x++) {
            unsigned int n1, n2;
            n1 =  x * outputs;
            n2 = n1 + outputs;

            // get the common area of [n1..n2] and [m1..m2]
            unsigned int l = (n1 > m1) ? n1 : m1;
            unsigned int r = (n2 < m2) ? n2 : m2;

            (*this)[x][y] = (r > l) ? static_cast<double>(r - l) /
                static_cast<double>(inputs) : 0.0;
        }
    }
}

~MixerMatrix()

Kwave::MixerMatrix::~MixerMatrix ( )

virtual

Destructor

Definition at line 49 of file MixerMatrix.cpp.

{
}

---

The documentation for this class was generated from the following files:

• libkwave/MixerMatrix.h
• libkwave/MixerMatrix.cpp
