Kwave::AmplifyFreeDialog Class Reference

#include <AmplifyFreeDialog.h>

Inheritance diagram for Kwave::AmplifyFreeDialog:

Collaboration diagram for Kwave::AmplifyFreeDialog:

Public Member Functions
	AmplifyFreeDialog (QWidget *parent)
virtual	~AmplifyFreeDialog ()
QString	getCommand ()
void	setParams (QStringList &params)

Private Slots
void	invokeHelp ()

Detailed Description

Definition at line 33 of file AmplifyFreeDialog.h.

Constructor & Destructor Documentation

AmplifyFreeDialog()

Kwave::AmplifyFreeDialog::AmplifyFreeDialog ( QWidget *  parent )

explicit

Constructor

Definition at line 34 of file AmplifyFreeDialog.cpp.

References Kwave::connect(), and invokeHelp().

    :QDialog(parent), Ui::AmplifyFreeDlg()
{
    setupUi(this);
    curveWidget->setMinimumSize(150, 100);

    xScale->setMinimumSize(250,  30);
    xScale->setMinMax(0, 100);
    xScale->setLogMode(false);
    xScale->setUnit(i18n("ms"));

    yScale->setMinimumSize( 30, 150);
    yScale->setMinMax(0, 100);
    yScale->setLogMode(false);
    yScale->setUnit(i18n("%"));

    connect(buttonBox_Help->button(QDialogButtonBox::Help), SIGNAL(clicked()),
            this,   SLOT(invokeHelp()));

    // set the focus onto the "OK" button
    buttonBox->button(QDialogButtonBox::Ok)->setFocus();
}

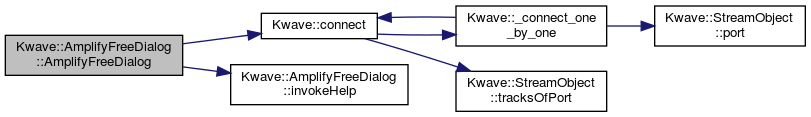

Here is the call graph for this function:

~AmplifyFreeDialog()

Kwave::AmplifyFreeDialog::~AmplifyFreeDialog ( )

virtual

Destructor

Definition at line 58 of file AmplifyFreeDialog.cpp.

{
}

Member Function Documentation

getCommand()

QString Kwave::AmplifyFreeDialog::getCommand

(

)

Returns a command string for the curve

Definition at line 63 of file AmplifyFreeDialog.cpp.

References _.

Referenced by Kwave::AmplifyFreePlugin::setup().

{
    QString cmd;
    Q_ASSERT(curveWidget);
    Kwave::Parser p(curveWidget->getCommand());

    cmd = _("amplifyfree(");
    if (p.hasParams()) cmd += p.nextParam();
    while (!p.isDone()) {
        cmd += _(",") + p.nextParam();
    }
    cmd += _(")");

    return cmd;
}

Here is the caller graph for this function:

invokeHelp

void Kwave::AmplifyFreeDialog::invokeHelp ( )

privateslot

invoke the online help

Definition at line 96 of file AmplifyFreeDialog.cpp.

References _.

Referenced by AmplifyFreeDialog().

{
    KHelpClient::invokeHelp(_("plugin_sect_amplifyfree"));
}

Here is the caller graph for this function:

setParams()

void Kwave::AmplifyFreeDialog::setParams

(

QStringList &

params

)

Sets the curve parameters and points from a list of parameters

Definition at line 80 of file AmplifyFreeDialog.cpp.

References _.

Referenced by Kwave::AmplifyFreePlugin::setup().

{
    QStringList::Iterator it;
    QString cmd = _("curve(");

    it = params.begin();
    if (it != params.end()) cmd += *(it++);

    for (; it != params.end(); ++it)
        cmd += _(",") + *it;
    cmd += _(")");

    if (curveWidget) curveWidget->setCurve(cmd);
}

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• plugins/amplifyfree/AmplifyFreeDialog.h
• plugins/amplifyfree/AmplifyFreeDialog.cpp
